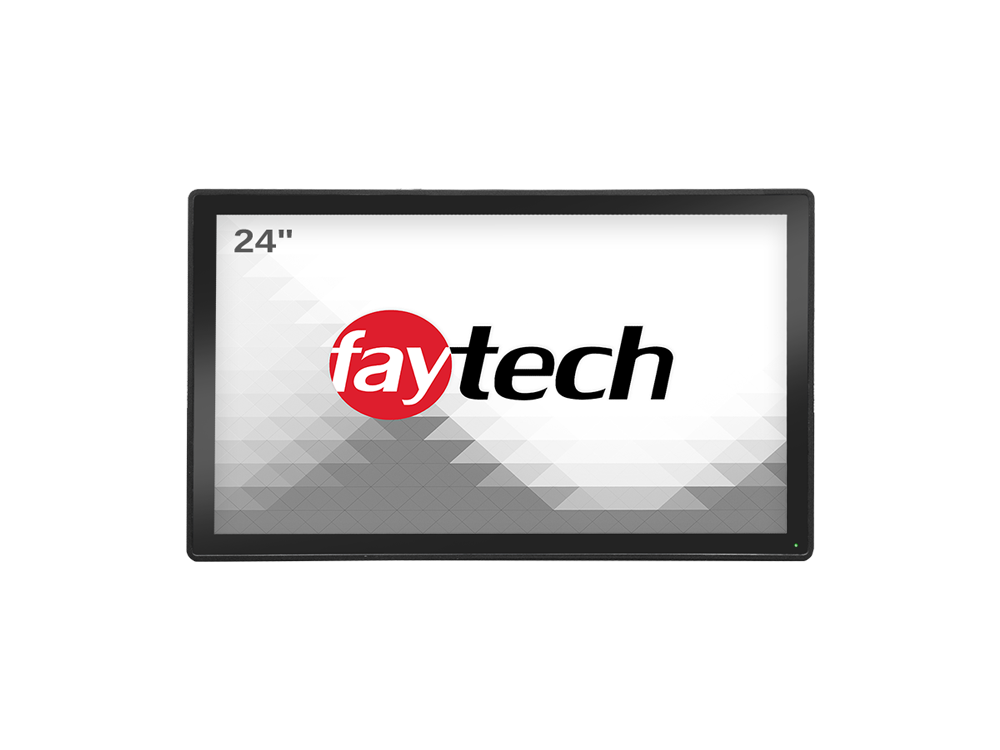

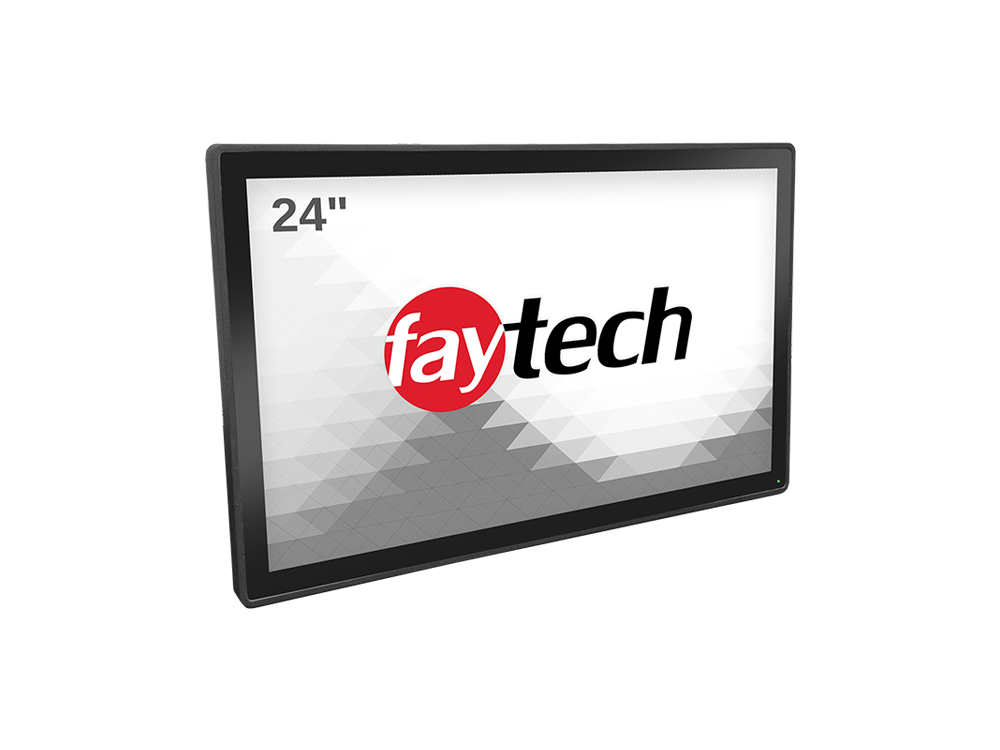

Panel PC 24' FT24N4200CAPOB (N4200, 4G/ 128GB)
Price excludes VAT
1,490.00€
Sale price
Price excludes VAT
1,490.00€
Regular price
Total with VAT (23%): 1,832.70€
Shipping calculated at checkout.
FT24N42004G128CAPOB
FT24N4200CAPOB
- Intel® Pentium® N4200 Quad Core
- 4 GB of RAM, 128 GB industrial SSD
- Windows 10 e Linux (32 bits, 64 bits)
- 1.1mm front glass with 7H hardness
- Anti-glare surface treatment
- Touchscreen optically bonded to the LCD
- 10-point capacitive multi-touch touchscreen
- Patented IP65 front panel with silicone seal
- Speakers with audio amplifier
- Supports mounting clamps
- Integrated W-LAN
- 2-year warranty
| Product name | 24" Capacitive Touch PC (N4200) |
| Article Code / EAN Number | FT24N4200CAPOB / 6920734000333 |
| CPU | Intel® Pentium® QuadCore N4200 |
| GPU | Intel® HD Graphics |
| Audio | Realtek ALC3236 Audio CODEC |
| Memory | 4GB DDR3L non-ECC (max. 8GB) |
| Storage | faytech Industrial 128GB SSD |
| Network | 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN |
| Driver Support | Win10; Linux; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
| IP65 Front / IP40 Rear |
| Screen Diagonal (Inch/cm) | 24/60.97 |
| Active Screen Area Size (cm) | 53.13×29.88 |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum External Resolution — HDMI, DP | 1920×1200 |
| Displayed Colours | 16.7M |
| Brightness (cd/m²) | 500 |
| Contrast | 1000:1 |
| Typical Response Time Tr/ Tf (ms) | 3.5/1.5 |
| Horizontal/Vertical Viewing Angle (°) | 170/160 |
| Backlight / Backlight Lifetime (hours) | LED / 20,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Anti-glare (chemically etched) |
| Glass Strengthening | Chemically Strengthened |
| Operating Temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 5.86 |
| Gross weight (kg) | 9.30 (incl. cartonage) |
| Housing material | Rubber front case, aluminium IPC back case |
| Housing (mm) L × W × H | 579.4 × 347.0 × 57.5 |
| Cut-out for clamp supports (mm) L × H | 555.4 × 323.0 |
| Max. wall thickness for clamp supports (mm) | 5.0 |
| Number of clamps required | 7 |
| Mounting | VESA 100 |
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 12V DC-Out |
| Working power (V) | 12 |
| Power consumption (W) | 36 |
| Standby consumption (W) | <1 |
| 1x SO-DIMM, max. 8GB, DDR3L 1333/1600/1867 non-ECC single-channel memory |
| 3x RS232/RS485 COM connectors switchable in BIOS |
| 2x LCD backlight control/LCD panel voltage boxes |
| 1x 5V/12V SATA power connector |
| 1x 12V DC power connector (2-pin) |
| 1x 4-pin SATA power connector |
| 1x S/PDIF output pin header |
| 1x 8-bit digital I/O interface |
| 1x Line-out/Mic-in header |
| 1x front-panel box header |
| 1x Serial ATA 6Gb/s |
| 1x MIPI CSI connector |
| 1x LVDS box header |
| 2x USB 3.0 box headers |
| 1x 12V DC-In (screwable) |
| 1x W-LAN antenna connector (RP-SMA male) |
| 2x USB 2.0 |
| 2x USB 3.0 |
| 1x DP |
| 1x HDMI |
| 1x MIC-In & EAR-Out |
| 1x 10-PIN DIO as RJ50 |
| 1x COM – RS 232/422/485 switchable; 5V/12V/RI option (COM1, DSUB9) |
| 1x COM – RS 232; RX/TX (COM2, DSUB9) |
| 2x COM – RS 232 & 485; RX/TX & A+/B- (COM3&4, RJ12) |
| 2x 10/100/1000Mbit RJ45 ports |
| 1x 2.5" module slot, replaceable SSD included |
| 1x full-size mSATA (occupied by SSD) |
| 1x M.2 E-Key slot (occupied by Wi-Fi card) |
| 1x SATA connector |
| 1x external PCIe x1 Straddle connector |
| Power supply (see Power section) |
| W-LAN antenna (RP-SMA female) |
| Short installation manual |
| Standard stand |
