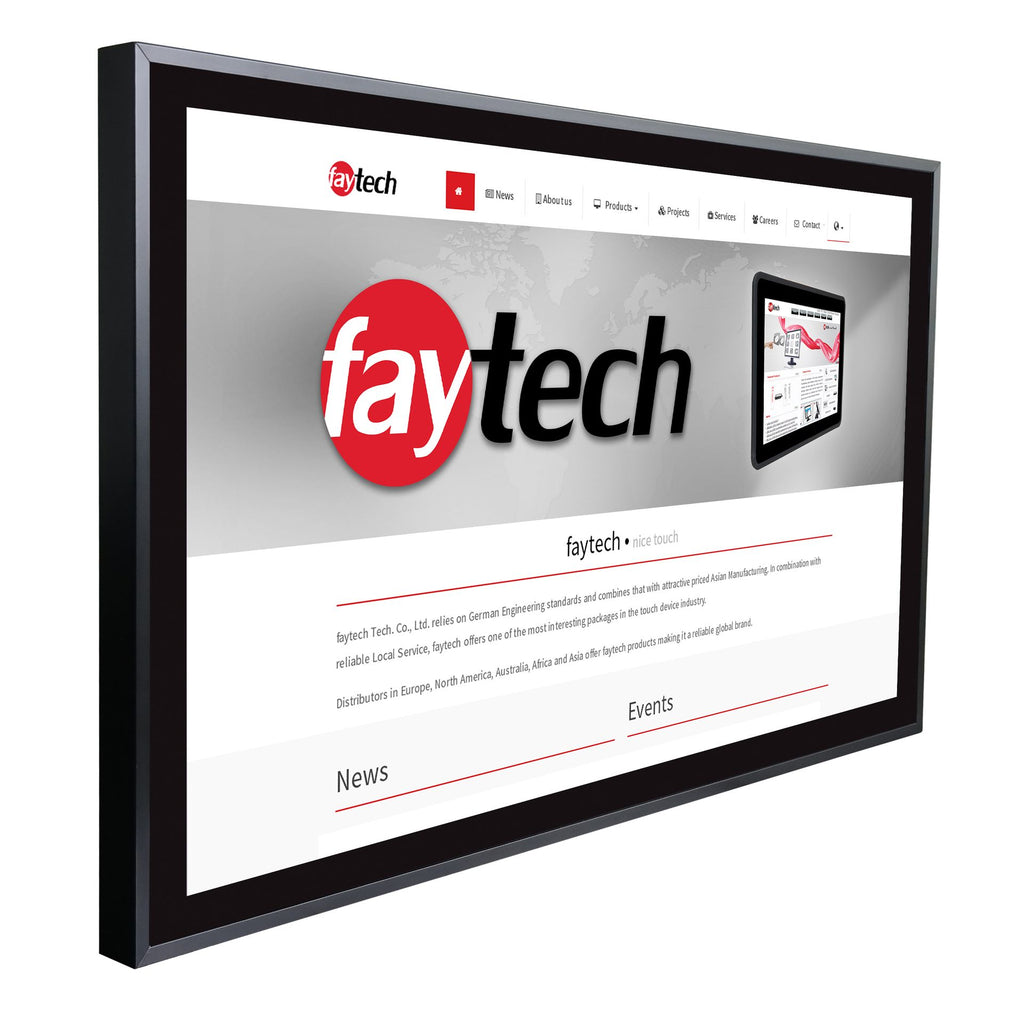

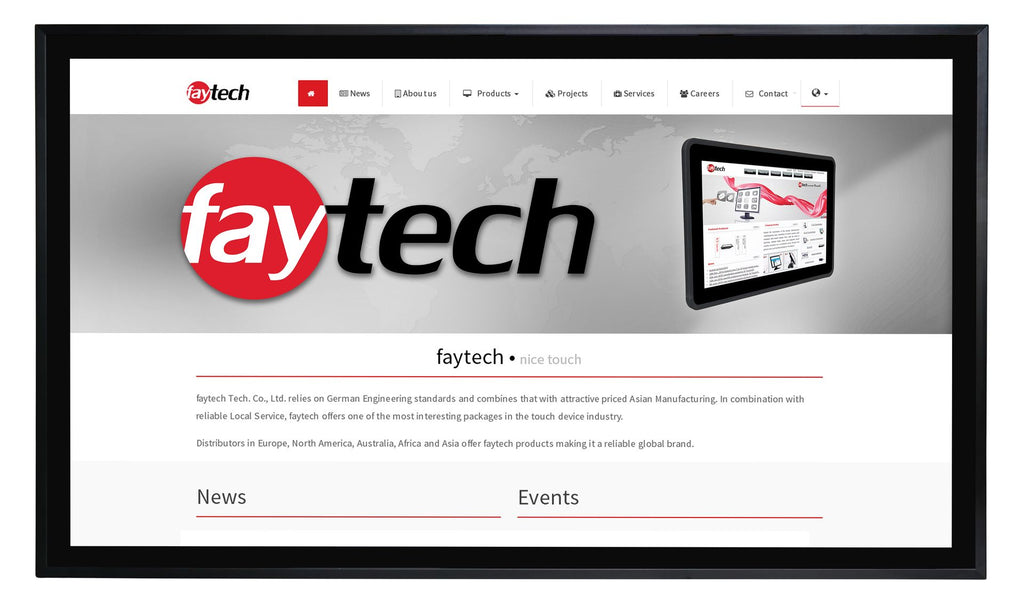

Panel PC 32' FT32N42004G128CAPOB (N4200, 4G/ 128GB)
Price excludes VAT
2,180.00€
Sale price
Price excludes VAT
2,180.00€
Regular price
Total with VAT (23%): 2,681.40€
Shipping calculated at checkout.
FT32N42004G128CAPOB
- Intel® Pentium® N4200 Quad Core
- 4 GB of RAM, 128 GB industrial SSD
- Windows 10 e Linux (32 bits, 64 bits)
- 1.1mm front glass with 7H hardness
- Anti-reflective surface treatment
- Touchscreen optically bonded to the LCD
- 10-point multi-touch capacitive touchscreen
- Patented IP65-rated front panel with silicone seal
- Speakers with audio amplifier
- VESA 400 mounting
- Integrated W-LAN
- 2-year warranty
| Product name | 32" Capacitive Touch PC |
| Article Code / EAN Number | FT32N42004G128CAPOB / 6920734003204 |
| CPU | Intel® Pentium® QuadCore N4200 |
| Chipset | Intel® HD Graphics |
| Audio | Realtek ALC3236 audio CODEC |
| Memory | 4GB DDR3L non-ECC (max. 8GB) |
| Storage | faytech Industrial 128GB SSD |
| Network | 2x Realtek PCIe GB LAN 8111G (1x optional with POE); W-LAN |
| Driver Support | Win10; Linux; 32Bit/64Bit |
| Pre-installed OS | Linux Ubuntu |
| IP65 Front / IP40 Rear |
| Screen Diagonal (Inch/cm) | 31.5/80.01 |
| Active Screen Area Size (cm) | 69.84×39.29 |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920×1080 |
| Maximum external display resolution — DP | 1920×1200 |
| Displayed Colours | 16.7M |
| Brightness (cd/m²) | 350 |
| Contrast | 3000:1 |
| Typical Response Time Tr/ Tf (ms) | 6/1 |
| Horizontal/Vertical Viewing Angle (°) | 178/178 |
| Backlight / Backlight Lifetime (hours) | LED / min. 30,000 |
| Touch Technology | Projected Capacitive 10-point Multitouch |
| Touch Connector | USB |
| Touch Life (Contacts) | Unlimited |
| Surface Hardness | 7H |
| Surface Treatment | Antiglare (chemically etched) |
| Operating temperature (°C) | -10 ~ +60 |
| Humidity range (RH) | 10% - 90% |
| Net weight (kg) | 14.50 |
| Gross weight (kg) | 20.50 (incl. carton packaging) |
| Housing material | Aluminium |
| Housing (mm) L × W × H | 768.0 × 475.0 × 73.45 |
| Cut-out for clamp supports (mm) L × H | N/A |
| Number of clamps required | N/A |
| Mounting | VESA 400×300 |
| Power indicator | Green LED |
| Power supply | 100-240V ACDC active switching; 24V DC-Out |
| Operating voltage (V) | 24 |
| Power consumption (W) | 75 |
| Stand-By Consumption (W) | <1 |
| 1x SO-DIMM, max. 8GB, DDR3L 1333/1600/1867 non-ECC, single-channel memory |
| 3x RS232/RS485 COM connectors switchable in the BIOS |
| 2x LCD backlight control/LCD panel voltage box |
| 1x 5V/12V SATA power connector |
| 1x 12V DC power connector (2-pin) |
| 1x 4-pin SATA power connector |
| 1x S/PDIF output pin header |
| 1x 8-bit Digital I/O interface |
| 1x Line-out / Mic-in header |
| 1x front-panel box header |
| 1x Serial ATA 6Gb/s |
| 1x MIPI CSI connector |
| 1x LVDS box header |
| 2x USB 3.0 box headers |
| 1x 24V DC-In (4-pin) |
| 1x HDMI |
| 1x DisplayPort |
| 2x USB 3.0 ports |
| 2x USB 2.0 ports |
| 1x W-LAN Antenna Connector (RP-SMA Male) |
| 1x Full-PIN COM port - RS232/485; 5V/12V |
| 2x 10/100/1000Mbit RJ45 ports |
| 1x 2.5" module slot, replaceable SSD included |
| 1x full-size mSATA (occupied by SSD) |
| 1x M.2 E-Key slot (occupied by Wi-Fi card) |
| 1x SATA connector |
| 1x external PCIe x1 Straddle connector |
| Power Supply (see Power section) |
| W-LAN Antenna (RP-SMA female) |
| Short Installation Manual |
