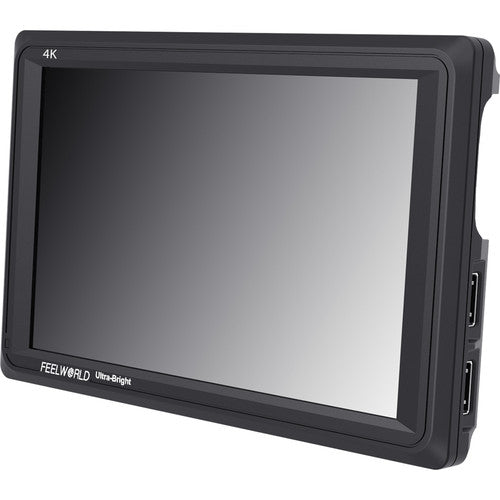

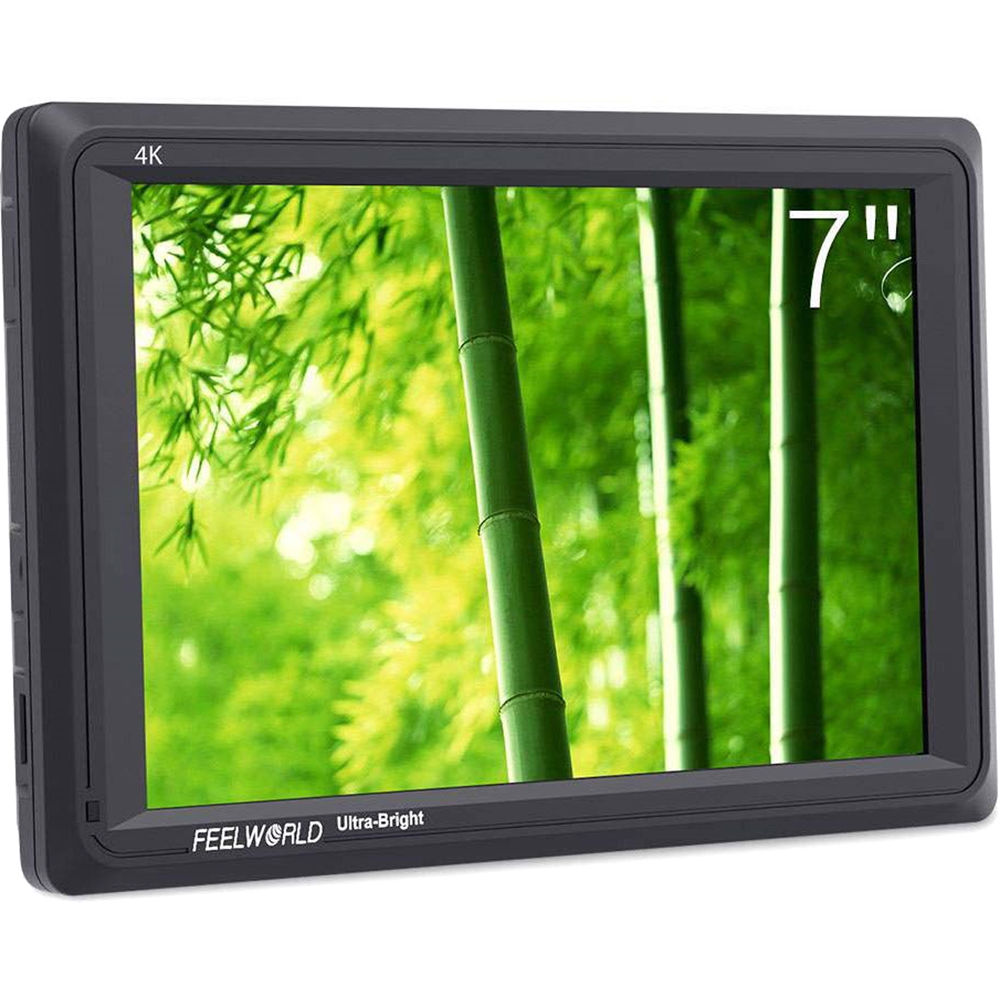

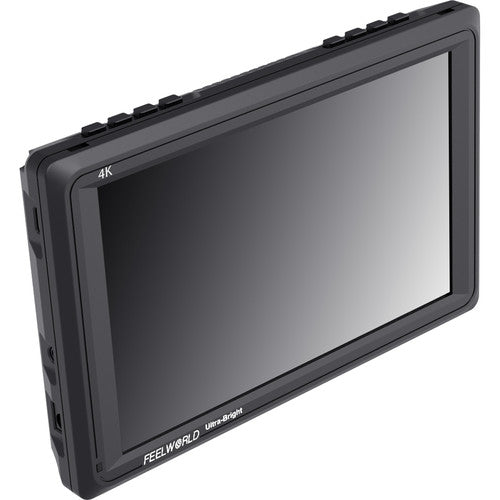

Monitor 7' Feelworld FW279 4K with HDMI
FEELWORLD FW279 7' Monitor, 4K, HDMI, 2200 nits
- Monitor LCD IPS de 7" com 1920x1200
- E/S de loop de HDMI 1.4
- Accepts SD, HD and UHD 4K video
- Brightness of 2200 cd/m²
- Contrast ratio of 1200:1
- Viewing angle of 160°
- Side-mounted control buttons
- Includes a removable L-series plate
- Image Assessment Tools
- 1:1 Pixel Mapping
Featuring a 323 PPI (pixels per inch) IPS LCD, the FeelWorld 7" 4K Ultra-Bright monitor with Loop-Through HDMI is ready to display SD, HD, UHD and DCI 4K video. The LCD panel has a resolution of 1920x1200, a 16:10 aspect ratio, a 1200:1 contrast ratio and a measured brightness of 2200 cd/m² for easy viewing in outdoor and indoor environments. The IPS LCD provides good off-axis viewing, allowing the image to be viewed without standing directly in front of the monitor and without distorted colours or contrast. The monitor chassis is slim and lightweight, with a thickness of 2.54cm and a weight of only 371.4g with the removable L-series battery plate.
The side of the monitor provides loop-through HDMI input and output connections, while the headphone input and external DC power input are located on the opposite side. The bottom has a 1/4"-20 threaded mounting hole, and the control buttons are located on top of the monitor. The rear of the monitor contains the included L-series battery plate, as well as a VESA 75-compatible mount. A range of image assessment tools is built into the monitor, including a histogram, false colours and zebras for exposure checking, peaking and magnification for focus checking, and markers to ensure correct framing.
Professional Monitoring Tool
The FW279 offers extensive monitoring tools, including a histogram, focus assist, built-in audio, false colours, zebra exposure, aspect-ratio markers, anamorphic mode, zoom, etc. These tools can help you create the perfect video.
Image Quality to Power Your Creative Workflow
The FEELWORLD FW279 offers a 7" 8-bit IPS display with a resolution of 1920x1200, a pixel density of 323ppi and professional colour calibration to compensate for the LCD's natural colour deviation. The FW279 displays sharper images, clearer text and improved colour reproduction, regardless of filming conditions. A wide viewing angle allows everyone on set to review the action.
High Brightness of 2200nit for Outdoor Filming
The high-brightness FEELWORLD FW279 monitor uses a 7-inch “golden size” panel. The FW279 monitor not only has the resolution and pixel density required to make every image look impressive, but also features a high-brightness 2200nit display with almost 5 times the brightness of conventional field monitors, allowing outdoor filming without reflections in the image. This makes it an excellent choice as a gimbal, Steadicam or director's monitor, providing a clear image without the limitations of bulk and viewing angle.
Simple and Practical Design
It is no surprise that the FW279's simple, practical design, together with its size and weight for field production, makes it an ideal choice for filmmakers, directors, photographers and videographers. The FEELWORLD FW279 makes it easy to add professional monitoring to 4K HDMI cameras or DSLRs. It is also easy to connect and mount, thanks to its slim, simple design.
True Color · Professional Colour Calibration
Uses the Rec.709 colour standard. FEELWORLD uses the professional HD Rec.709 colour standard and colour calibration technology. Professional factory calibration enables efficient monitor calibration, accurate colour reproduction without colour distortion, and a true representation of the image when recording video.
Accurate Colour Reproduction
The FEELWORLD monitor supports ITU standards and the consistent standard HD Rec.709 video colour space. Advanced image-processing technology delivers a clear image and highly natural colours, ensuring accurate colour reproduction and faithful representation of the filmed scene, while allowing users to assess the quality of various input video signals accurately.
Intuitive Controls and Menus
The menu controls are intuitive and easy to use. The complete button layout is located on top of the monitor. Two separate function buttons can be programmed for the features you use most frequently. For example, one shortcut key can be assigned to the image-flip function, allowing the display to be flipped quickly when filming with the camera upside down.
The monitor automatically saves the previously configured parameters and retains these settings the next time it is switched on. They do not need to be configured again, making operation convenient and straightforward.
The Camera's Best Companion
Ideal for 4K cameras and DSLRs. The compact FW279 design includes 4K HDMI input/output for connection to virtually any 4K camera or DSLR. The HDMI connection supports up to 4Kp30. Audio can also be monitored through the 3,5 mm stereo headphone connector or the built-in speaker.
Loop-out 4K HDMI
The FW279 features 4K HDMI loop-through input and output, allowing live signals not only to be displayed but also to be sent to other monitors simultaneously. This enables live images to be shown on multiple monitors at the same time while maintaining the original video quality. It can be connected to a wireless transmitter to send the signal to the filming team's director while monitoring it simultaneously. Cable-free operation provides greater flexibility for effortless transitions between scenes and outdoor filming.
Connects to the Director's Monitor
Displays the live image on multiple monitors simultaneously.
Connect to a Projector
At concerts, live broadcasts or conferences, the monitor can be connected to a projector to display images in real time.
Mounting Point
Attach it to cameras or equipment carts, or hang it wherever required. The FEELWORLD FW279 has standard 1/4” mounting points on the bottom for attachment to cameras and rigs. When using an inverted installation, the image-flip function can be enabled to maintain the correct orientation.
75mm VESA Mounting Holes
Alternatively, the VESA 75 mounting holes on the rear can be used to secure the monitor to a more robust support if required.
Continuous Power
For power, the monitor has a 12V DC input and an L battery plate (standard). The 12V DC input can be connected to a continuous power supply, or the monitor can be used with rechargeable batteries. Other battery plates can also be selected for convenience.
Note: To switch off the monitor, press the power button; do not disconnect the power cable directly.
As the FW279 is a high-brightness monitor, use a DC7-24V output with a power supply rated above 18W, such as a 12V/2A power adapter.
