Being an associate member of the Intel IoT Solutions Alliance, GIGAIPC is devoting efforts to present solutions for Internet of Things (IoT) computing market. We create reference designs for Intel’s new platforms, and develop them further into a large range of professional IoT products and customer-optimized solutions. With leading performance and security, robust build quality and the Input/output (I / O) flexibility, QBiX-Plus-APLA3450-A1 is made a perfect fit for various IoT applications.
Thhe new generationi of Intel® Celeron Processors leverage the 14nm process technology. The new processors improve upon power consumption along with enhancements in performance of graphics and computations. Intel® Celeron processors deliver a 30% increase in performance and at least 35% better 3D graphics performance gen-over-gen. The system-on-chip (SoC) design provides an even smaller footprint than its desktop counterparts, making QBiX-Plus-APLA3450-A1 the ideal solution for thin clients, POS solutions, and digital signage.
QBiX-Plus-APLA3450-A1 ensures you won't be hindered by lack of connections. Having built-in 802.11ac and Bluetooth 4.2 gives users a higher capacity and broader coverage, allowing them to use their devices and accessories wherever they wish, with no compromise on the speed. Gigabit Ethernet can help increase performance between compatible devices on your wired LAN, especially when large file transfers are involved.
With two HDMI outputs, QBiX-Plus-APLA3450-A1 can power two displays simultaneously, making it a perfect choice as a high productivity device in IoT applications.
Bundled with a VESA bracket, QBiX-Plus-APLA3450-A1 can easily be mounted behind a monitor or HDTV, offering a simple and effective way to turn any VESA-compliant display or TV into a full-featured PC or digital signage unit.
Equipped with 4 x USB 3.0 ports, QBiX-Plus-APLA3450-A1 is flexible to adapt to your desired multimedia environment. The SuperSpeed USB 3.0 supports transfer speeds of up to 5 Gb/s and is backward compatible with USB 2.0 and 1.0 for the possibility to connect thousands of devices.
QBiX-Plus-APLA3450-A1 is equipped with 1 x RJ45 connector with D-SUB 9-pin adapter cable to support RS-232 / 422 / 485 w/o RI via settings in the BIOS.
| Dimension | System Size : 165W x 105D x 27H (mm) |
| CPU |
Intel® Celeron® N3450 Processor 14nm, 4 cores, 4 threads, up to 2.2 GHz TDP 6W 2MB L2 cache |
| Chipset | SoC |
| Memory |
2 x DDR3L SO-DIMM sockets, Max. Capacity 8 GB Support Dual Channel DDR3L 1866 MHz memory modules |
| Ethernet | 2 x GbE LAN Ports (Realtek® RTL8111HS) |
| Graphic Support |
Integrated Graphics Processor - Intel® HD Graphics 500: 2 x HDMI 1.4 ports, supporting a maximum resolution of 3840x2160 @30Hz (2 independent display outputs) |
| Audio | Realtek® Audio Codec |
| Expansion Slots |
1 x 2280 M.2 M-Key (SATA 6Gb/s) 1 x 2230 M.2 E-Key (WiFi/BT) 1 x Full-size Mini PCIe with SIM slot (PCIe x1 + USB2.0) |
| Front I/O |

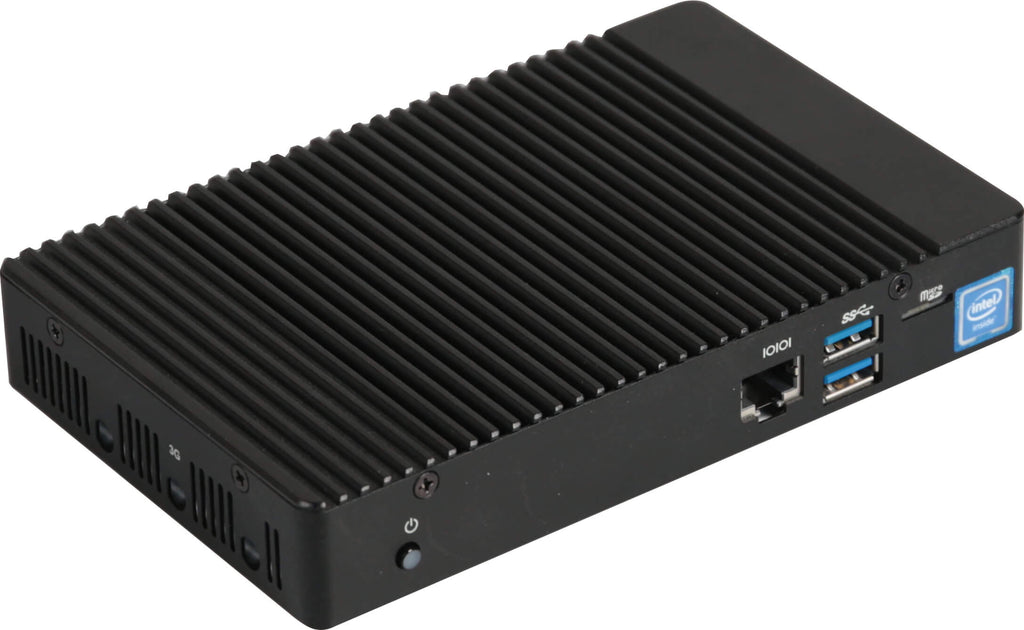

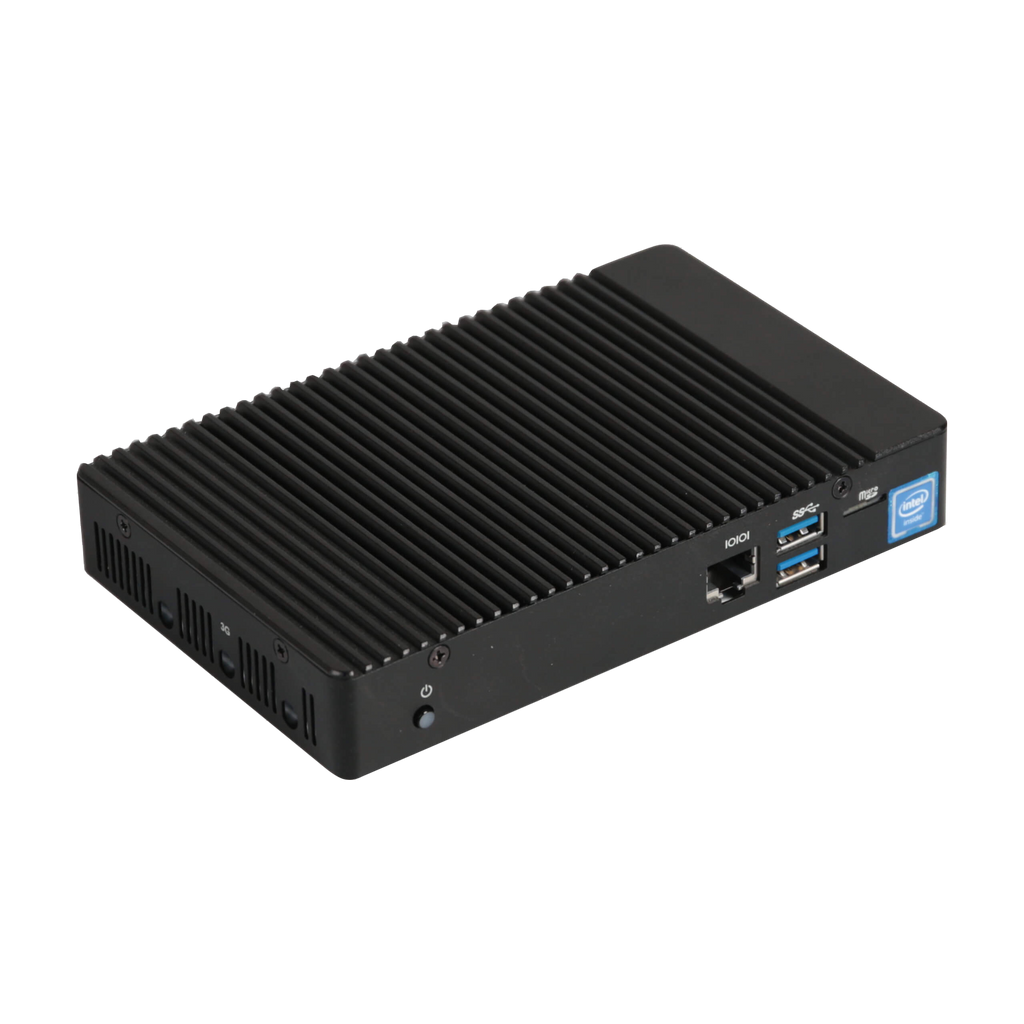

2 x USB 3.0 1 x COM Port (RS-232/422/485)(RJ45 Type) 1 x Micro SD card slot 1 x Power button |
| Rear I/O |

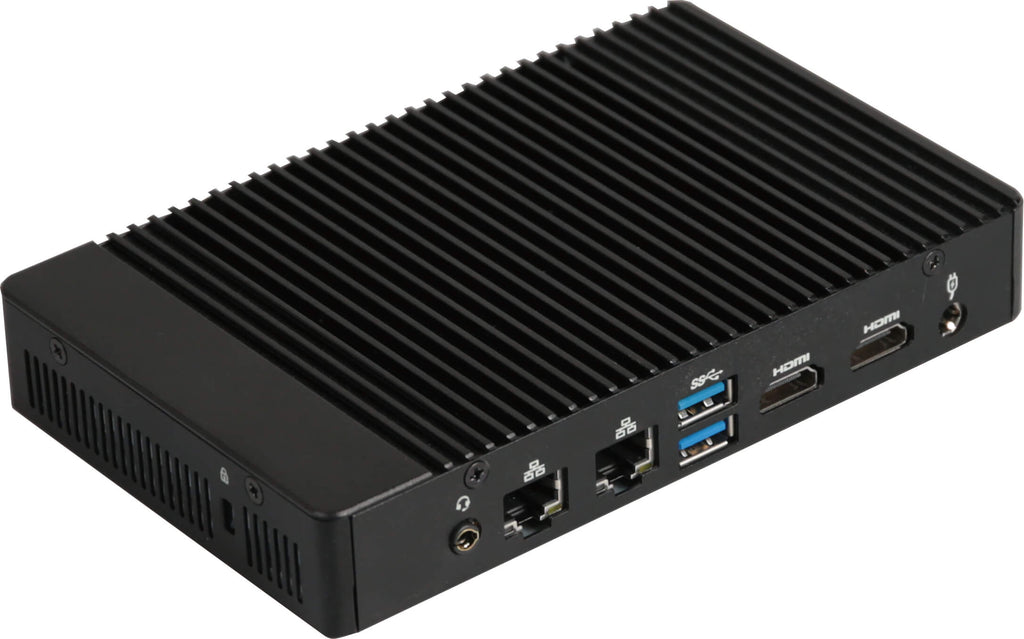

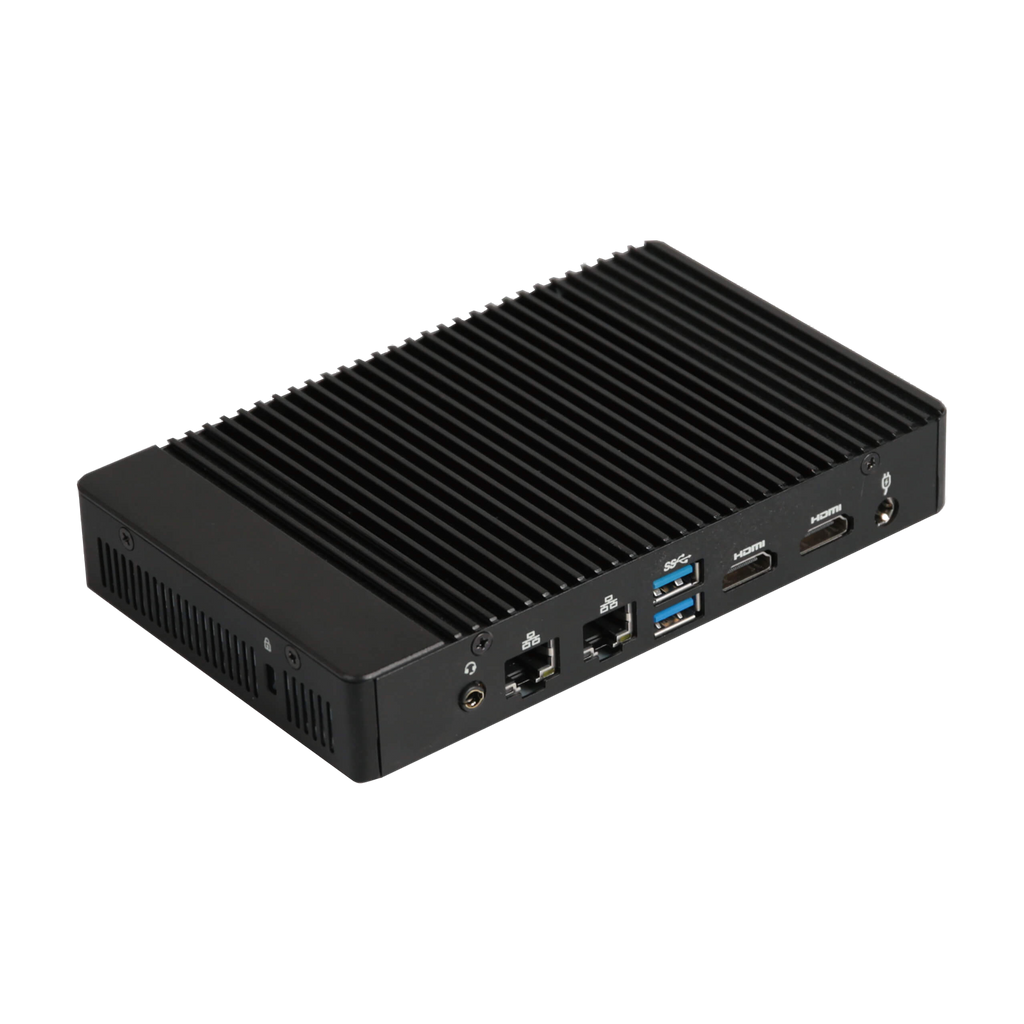

1 x Combo Audio Jack (Microphone & Headphone) 2 x RJ45 LAN Ports 2 x USB 3.0 2 x HDMI 1 x DC Jack |
| Side I/O | 3 x External Antenna Holes (Optional) |
| Power | +19VDC (Adapter 19V/65W) |
| Operation Temperature |
Operating temperature: 0°C to 50°C Operating humidity: 0-90% (non-condensing) Non-operating temperature: -40°C to 85°C Non-operating humidity: 0%-95% (non-condensing) |
| Packaging Content | Carton size: 416 x 359 x 257 (mm) Packing Capacity: 10pcs Including: Power Cord 3Gx0.75 H03VV-F SP05/QP038 700mm TW x 1 (P/N: 25CP2-007006-Q0R) PSU ADP 19V 65W 100-240VAC x 1 (P/N: 25EP2-10065K-F3S) RJ45 to D-SUB Cable #24 150mm x 1 (P/N: 25CR0-150400-S9R) Vesa Mount Bracket x 1 (P/N: 25HB2-XM2720-E4S) |
| Order Information |
System: 9BCBBAZAMR-SI (CTO) (Built in Components: Please contact with your sales representative for more information or e-mailed to : sales@gigaipc.com) |
| Optional Kit |
Internal Antenna 200mm : 25CA0-200006-A5S Internal Antenna 230mm : 25CA0-230001-A5S Internal Antenna 150mm : 25CA0-150002-A5S WiFi/BT module : 25FC7-3165N0-10R Antenna_WiFI x 2 : 25CA0-111000-A5S Antenna_3G x 1 : 25CA0-111001-A5S |
