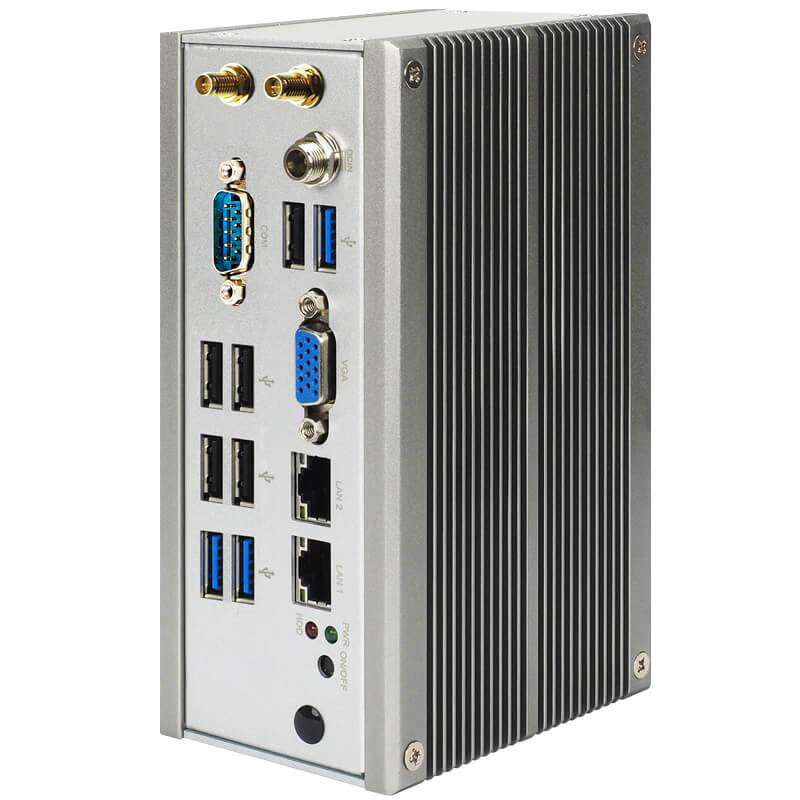

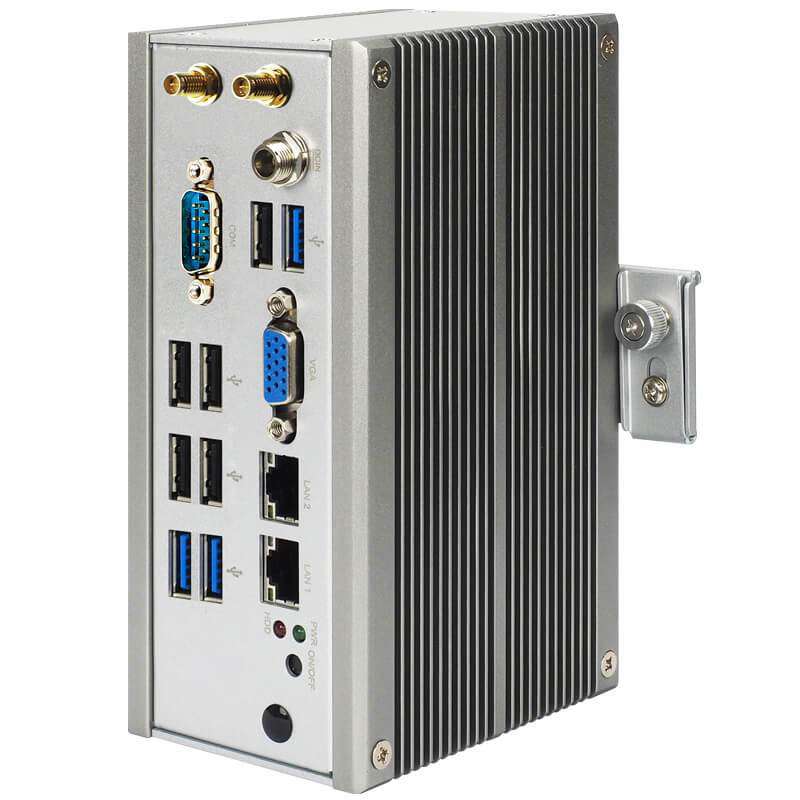

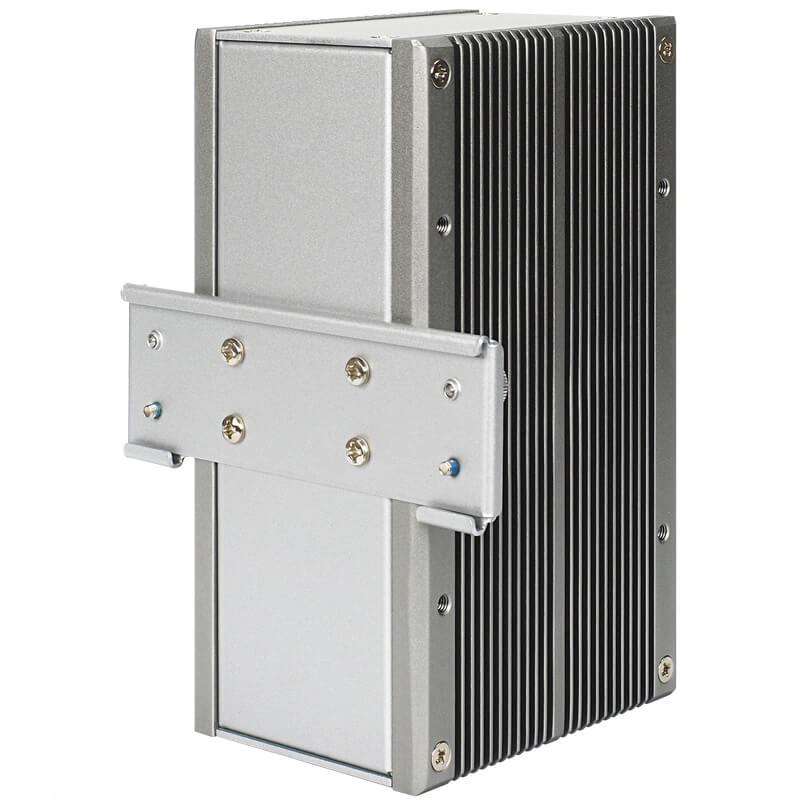

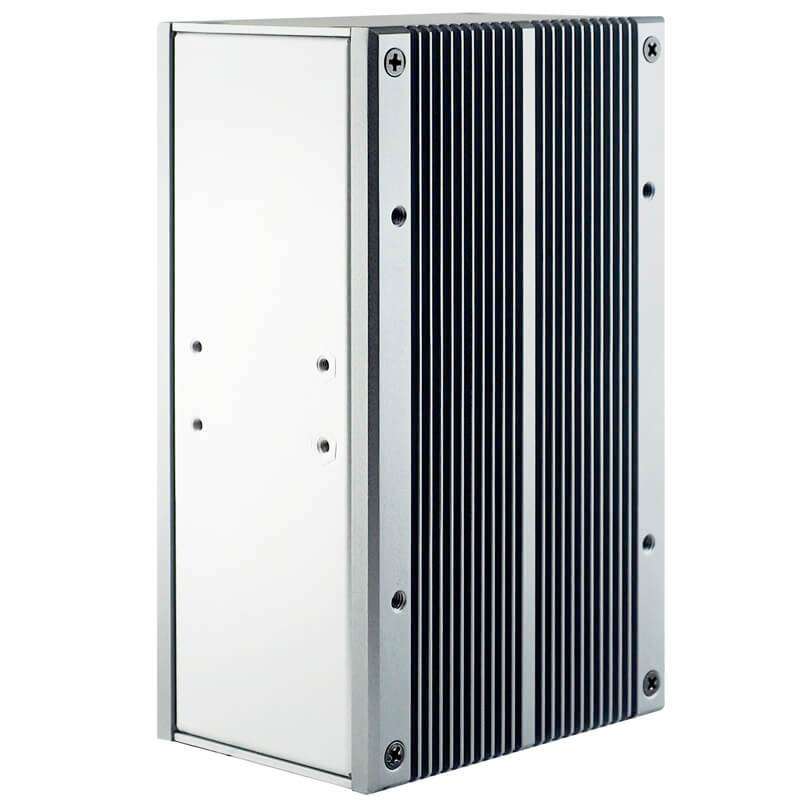

Jetway HBFHP792UW-2807-G DIN-rail (2GB, 8* USB, WLAN)

MB Model

– JNP792V-2807

Part No.

HBFHP792L-2807-G

HBFHP792G-2807-G

HBFHP792C-2807-G

HBFHP792U-2807-G

– HBFHP792L-2807-G
– HBFHP792LW-2807-G (WIFI)

– HBFHP792G-2807-G)
– HBFHP792GW-2807-G (WIFI)

– HBFHP792C-2807-G
– HBFHP792CW-2807-G (WIFI)

– HBFHP792U-2807-G
– HBFHP792UW-2807-G (WIFI)

CPU/Chipset

– Intel® Bay Trail N2807 Processor

Memory

– 2GB DDR3L-1333 onboard memory

Storage

– 1 * full-size Mini-PCIe slot (for MSATA)

Network

– 2 * Intel® GbE (MB / Intel i210IT)

Expansion slot

– 1 * M.2-2230 slot (for WiFi expansion)
WiFi card – Supports IEEE 802.11a/b/g/n/ac Wireless LAN 2T2R and Bluetooth 4.2
– Supports 802.11ac 2×2, Wave-2 compliant with MU-MIMO

Standard I/O

– 1 * power button, 1 * power LED, 1 * HDD LED
– 1 * USB 3.0, 1 * USB 2.0
– 1 * VGA, 2 * RJ45 (WOL support)
– 1 * DC-In jack (lock type)

Expansion I/O

HBFHP792L-2807-G

HBFHP792G-2807-G

HBFHP792C-2807-G

HBFHP792U-2807-G

– 4 * RJ45, 1 * RS232 (RJ45 TYPE)

– GPIO (input – 16 PIN / output – 16 PIN)

– COM 1 ~ 2 / RS232 (RS422 / RS485), COM 3 / RS232

– 2 * USB 3.0, 4 * USB 2.0, 1 * RS232 (RS422 / RS485)

Power Source

– FSP AC 90~240V to DC Adapter / DC12V-3.3A-40W / LV6

Compliance

– CE, FCC, LVD, RoHS

Temperature

– Recommended Operating Temperature: 0 ~ 50° C
– Operating environment temperature: -20 ~ 70° C
– Storage Temperature: -20 ~ 70° C

Dimensions

– 63 (W) x 89 (D) x 149 (H) mm

Packing

– Net Weight: 1.5KG
– Gross Weight: 2.2KG
– Color Box dimensions: 152 (W) * 162 (D) * 260 (H) mm

OS Support

– Windows 7, Windows 8.1, Windows 10, Linux

Warranty

– 2 Year limited warranty
