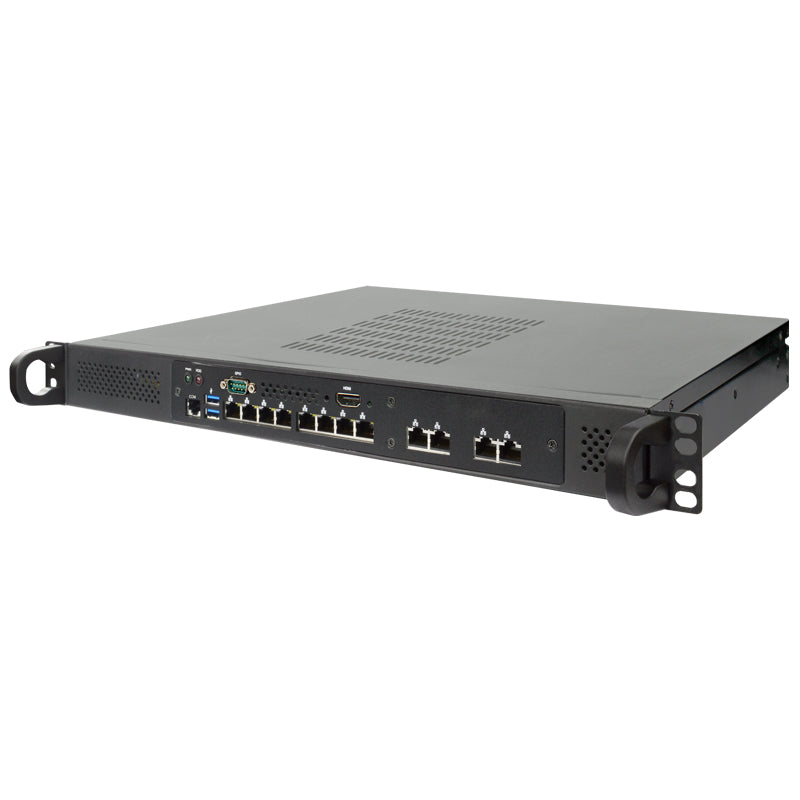

Rackmount PC HBJC153F592-Q170G4 (Intel Q170, 8 + 4* LAN)

MB Model

– JNF592-Q170 / MINI-ITX

Part No.

Standard

Expansion PCI-E Card with 4 LAN ports

2 pairs of LAN Bypass

– HBJC153F592-Q170-B

– HBJC153F592-Q170G4

– HBJC153F592-Q170B4

BIOS

– AMI 128MB SMT Flash ROM

CPU/Chipset

– INTEL® LGA 1151 Socket for Core i7/i5/i3/Pentium Processor

Memory

– 2 * SO-DIMM DDR3L 1333/1066MHz slots, up to 16GB

Storage

– 2 * 2.5” SATA HDD

Expansion

– 1 * Full-size Mini-PCIE
– 1 * SIM Card Slot
– TPM support (optional)

Network

– 8 * Intel i211AT Gigabit LAN
– 1 * full-size mini-PCIE slot (802.11 b/g/n + BT 4.0 installed in the Wi-Fi model)

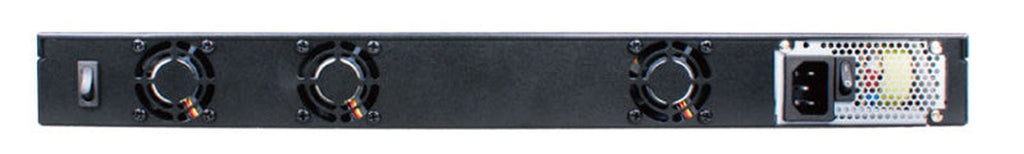

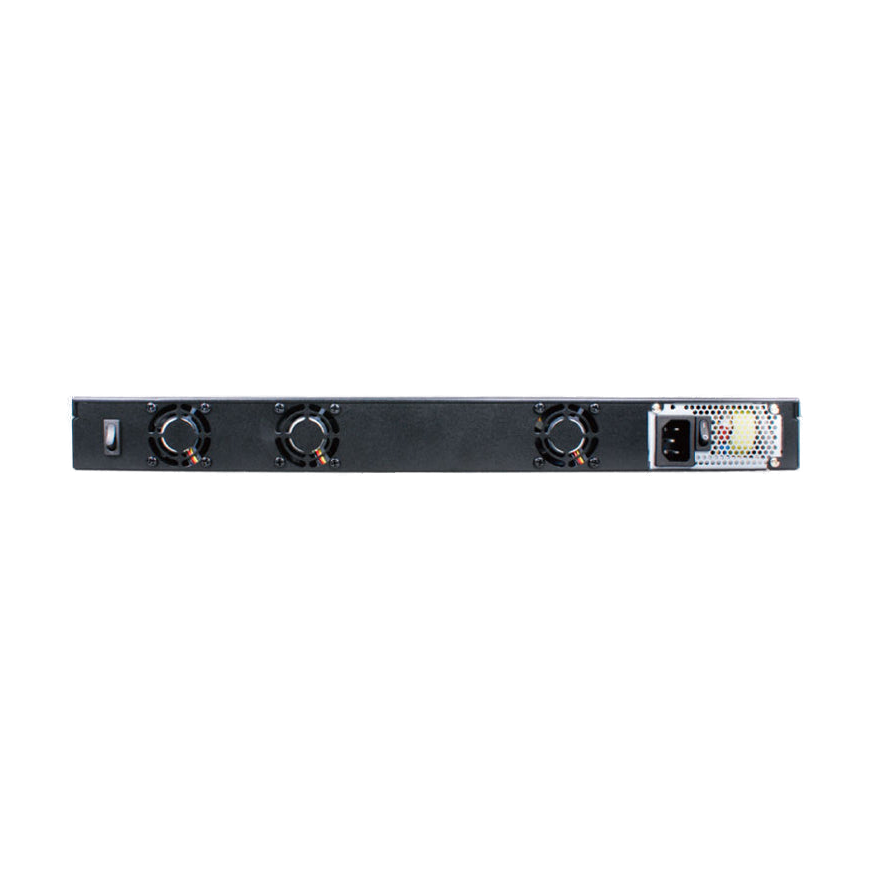

Rear Panel I/O

– 1 * Power SWITCH
– AC INPUT / built-in 1U FLEX 200W Power Supply

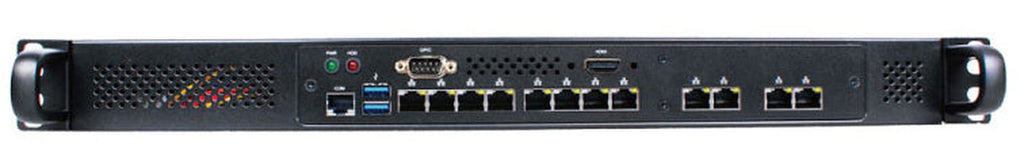

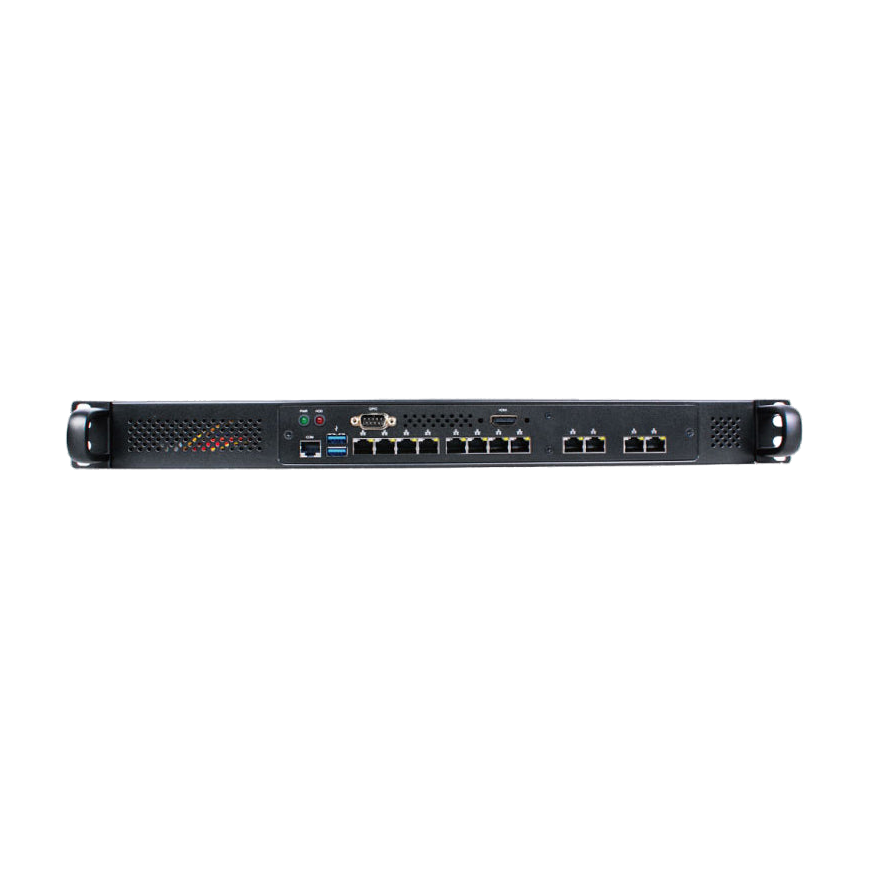

Front Panel I/O

– 8 * RJ45
– 2 * USB3.0
– 1 * COM (RJ45 TYPE)
– 1 * PW LED, 1 * Alarm LED
– 1 * HDMI (Max. Resolution: 4096×2160@24Hz, not assembled when shipped; cable placed in the parts box)
– 1 * GPIO (not assembled when shipped; cable placed in the parts box)
– 4-port GbE PCIe expansion card: HBJC153F592-Q170G4
– PCIe expansion card with 2 pairs of LAN Bypass: HBJC153F592-Q170B4

Power source

– Built-in 1U FLEX 200W Power Supply
– AC 90~240V input

Compliance

– CE, FCC, RoHS

Temperature

– Operating Temperature: 0 ~ 40° C
– Storage Temperature: -10 ~ 70° C

Dimensions

– 430 (W) x 252 (D) x 44 (H) mm

Packaging

– Net Weight: 4.2KG
– Gross Weight: 5KG
– Color Box dimensions: 560 (W) * 400 (D) * 380 (H) mm

OS Support

– Skylake CPU supports Win7, Win8, and Win10.
– Kabylake CPU supports Win10 only.

Warranty

– 2-Year limited warranty
