Jetway HBJC313U591Z-3160-B (Braswell N3160 quadcore, 2* LAN, Wifi)

Dimensions

– 110(D) * 116(W) * 49(H) mm

Construction

– Top cover and I/O plate – Aluminum; base – Metal

Motherboard model

– JNU591-3160

Part No.

Non-Wi-Fi

Mini PCIe Wi-Fi ac card

– HBJC313U591-3160-B (default)

– HBJC313U591Z-3160B

CPU

– Intel® Braswell N3160 SoC processor at 1.6GHz (up to 2.24GHz)

BIOS

– AMI UEFI 64 Mb

Memory

– 1 * DDR3L SO-DIMM slot (max. up to 8GB)

Storage

– 1 * full-size Mini PCIe slot for a Mini PCIe /mSATA device

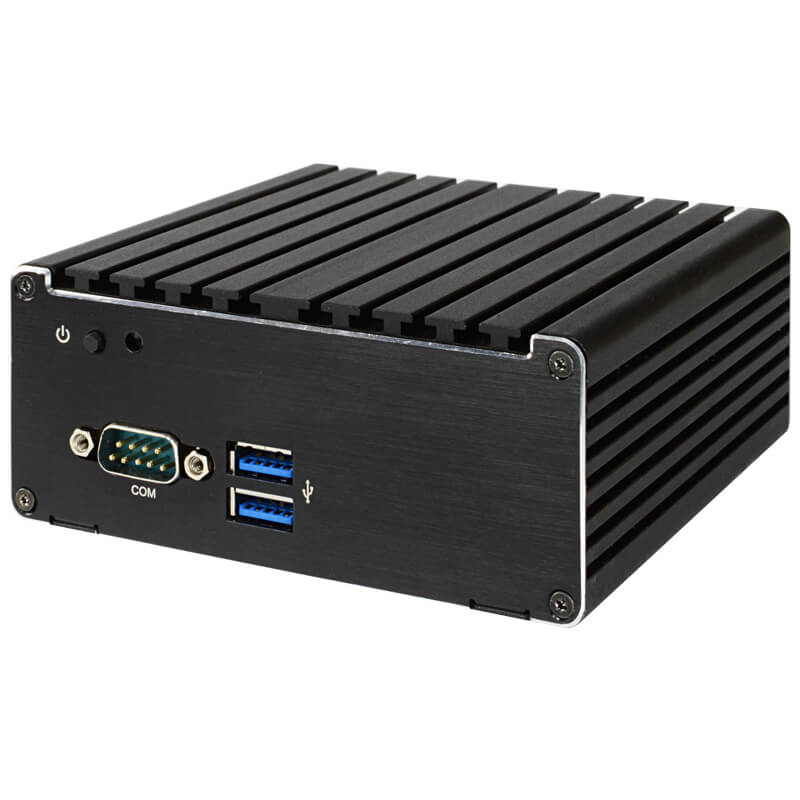

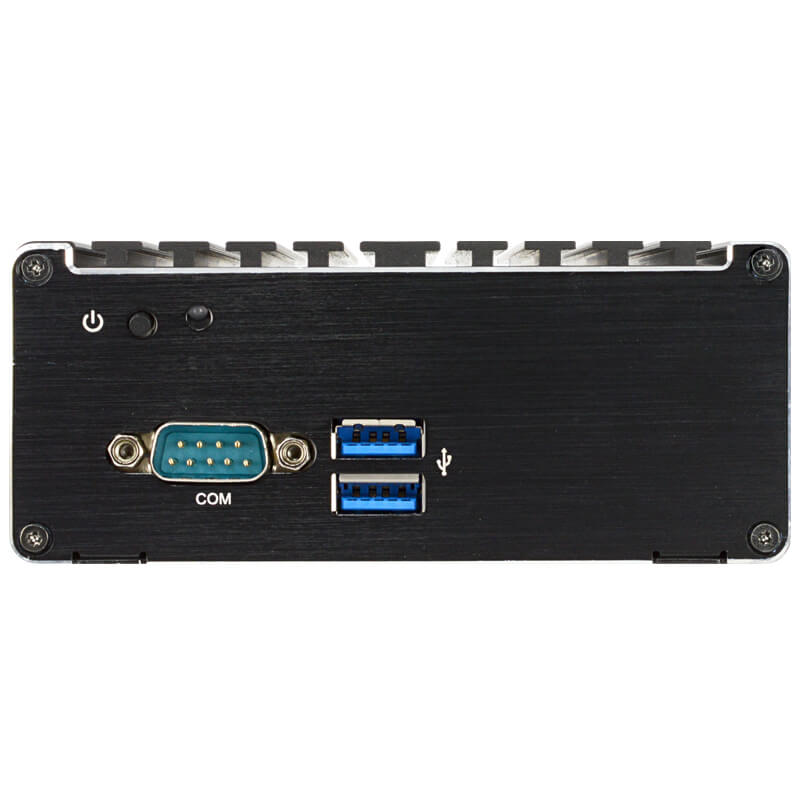

Front I/O ports

– 2 * USB3.0 (type A)
– 1 * COM port
– 1 * power button

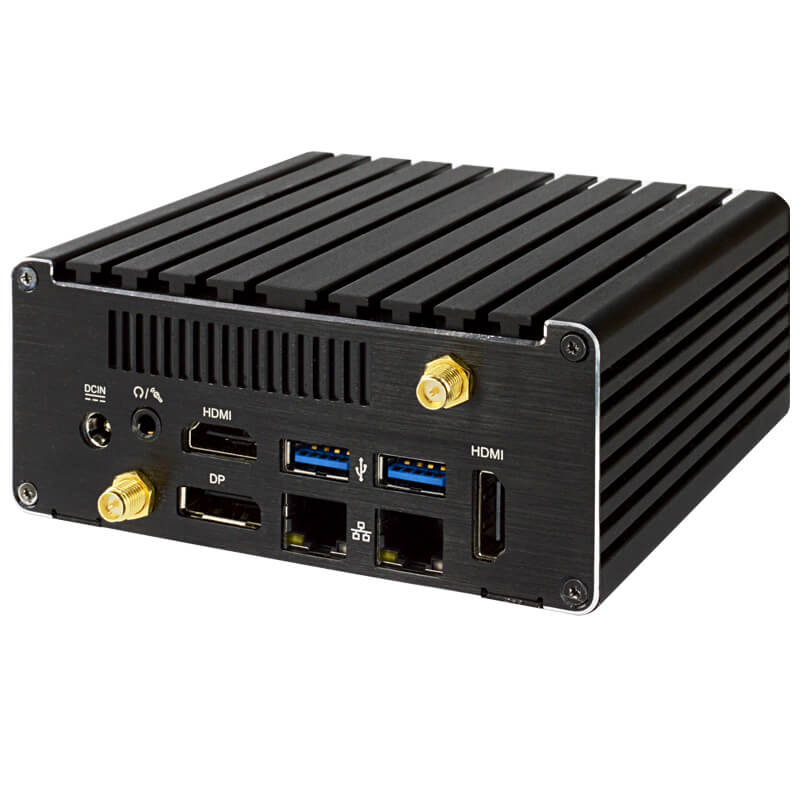

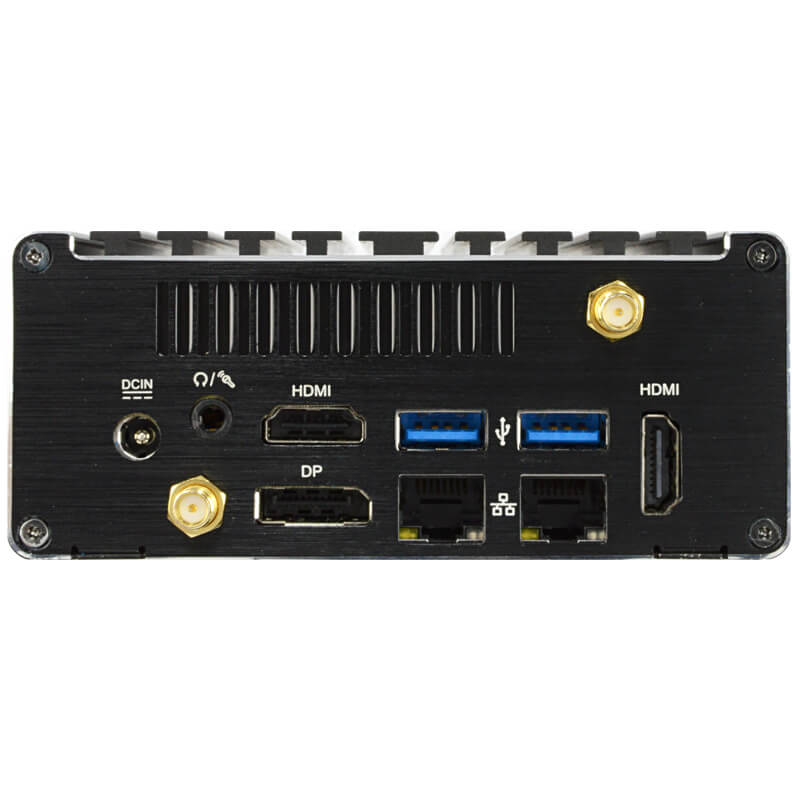

Rear I/O ports

– 2 * USB 3.0 (type A)
– 2 * HDMI 1.4b (max. resolution: 2560 * 1600@60Hz)
– 1 * DP 1.1a (max. resolution: 2560 * 1600@60Hz)
– 2 * RJ45 (GbE)
– Wi-Fi (option)
– 1 * line-out/MIC combo connector
– 1 * DC-in jack

Network

– 1 * half-size Mini PCIe slot (for a Mini-PCIe Wi-Fi module)
– 1 * SIM card holder

Power Source

– Adapter: AC_90~240V / DC_12V / 40W

Certification

– EMC: CE, FCC
– Safety: RoHS, ErP

Environment

– Operating temperature: 0°C~50°C with airflow (mSATA)
– Storage temperature: -10°C~70°C

Mounting Bracket

– Wall / VESA / DIN rail combination mounting kit

Packaging

– Net weight: 0.9 KG
– Gross weight: 1.3 KG
– Colour box dimensions: 158(W) x 167(D) x 123.6(H) mm

Warranty

–2-year limited warranty
