Jetway HM-1000 (Intel® Haswell)

Jetway HM-1000 barebone, an expandable embedded fanless Mini-PC designed for applications such as industrial automation, surveillance systems, machine vision and in-vehicle use. This barebone can be customised by each user with high-performance fanless processors, PCi or PCI Express expansion cards, and additional modules such as Ethernet, GPIO, USB ports or COM ports.

The Jetway HM-1000 is a high-performance system based on the Intel Q87 Haswell platform, supporting i3, i5 and i7 CPUs with an LGA1150 socket up to 54W. The system includes 4GB of onboard DDR3 and is also available in an 8GB version. The memory cannot be expanded, helping to make the system more rugged and resistant to shock and vibration.

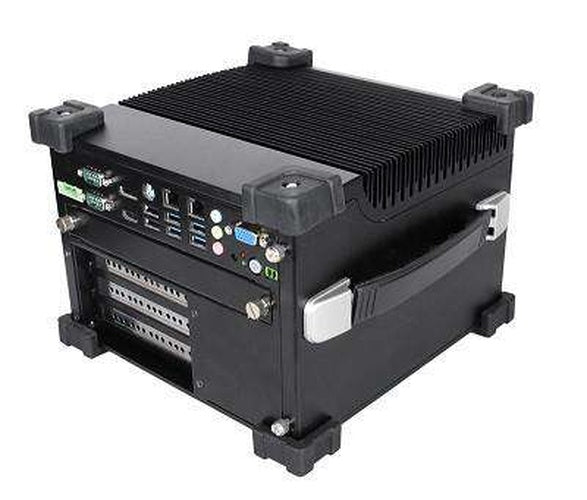

Operates across a wide temperature range, from -10ºC to +60ºC, without fans or removable parts except for the 2.5" HDD. The aluminium chassis features large rubber shock absorbers at the corners, helping to make the system more resistant to vibration and shock. In addition, the interior of the unit is cable-free, providing a clean layout, high thermal performance and a more rugged solution.

The Jetway HM-1000 barebone includes 3x expansion slots as standard: 1 PCI Express x16 slot and 2 PCI 32bit slots, with a risercard option also available. The system supports 1 SATA 2.5” HDD/SSD and an M.2 SATA connector for an SSD. It also includes 1 full-size Mini-PCi Express slot for WIFI modules or another mini PCIE Express card.
