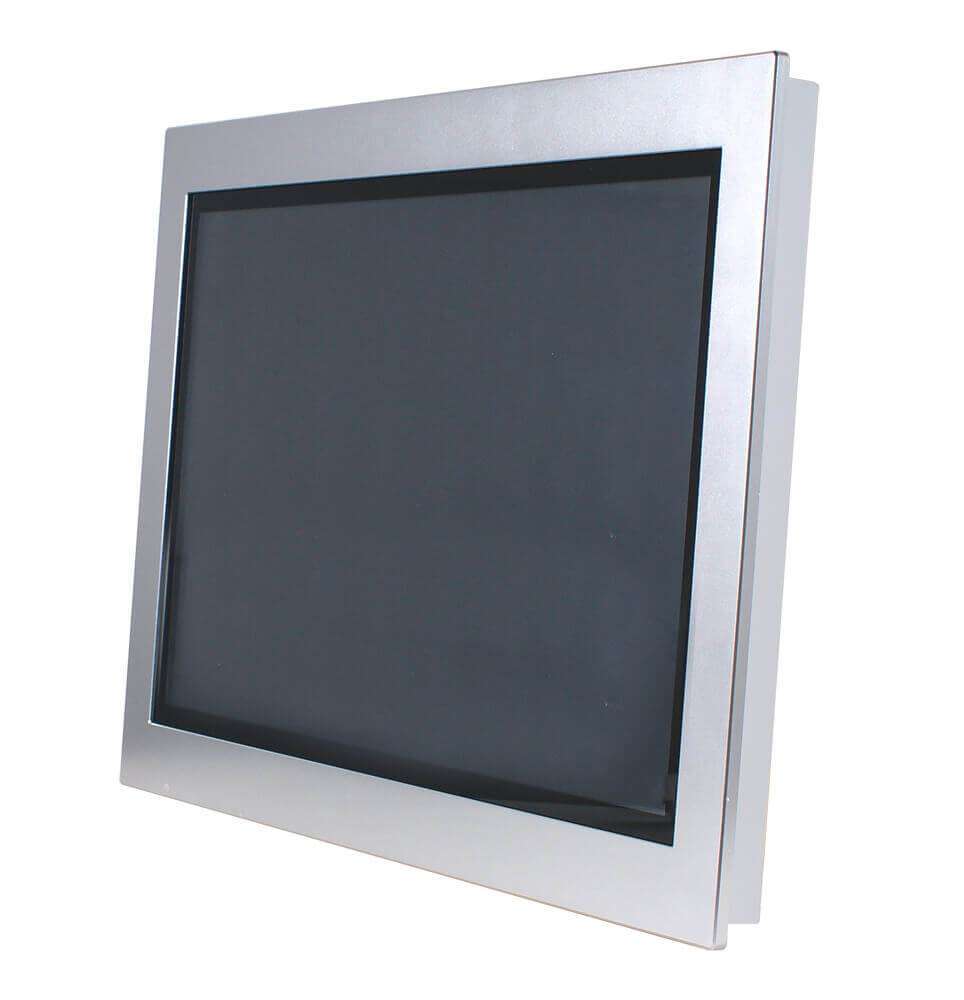

Panel PC 18.5' HPC-185SC-HD1900B (J1900, 4G)
-
Onboard Intel® Bay Trail-D J1900 2.0GHz Quad Core CPU.</>
-
18.5” high-brightness TFT LCD (250 nits), SVGA, with LED backlight.
-
Onboard SAMSUNG 4G/1333MHz DDR3L memory.
-
Supports dual Intel® Gigabit LAN.
-

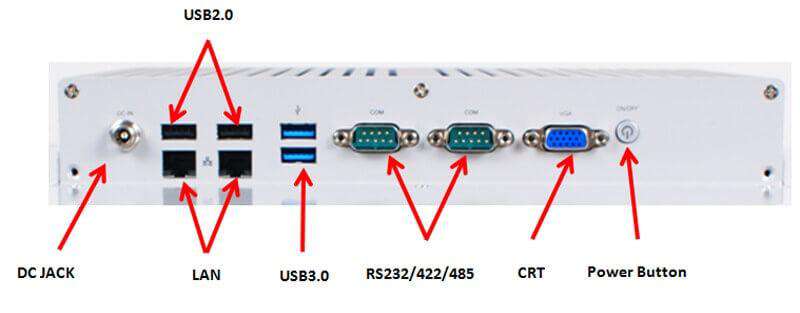

Supports 4 COM ports (COM1/2 support RS232/422/485).
-
Supports 2 USB2.0 ports + 2 USB3.0 ports.
-
Supports a 2.5” SATA HDD and 1x M.2 connector.
-
1 Mini PCI-E slot.
-
1 slot for a 4G SIM card.
-
Supports a wide input voltage range: 9~28V.
-
IP65 front protection.
Specifications:
|
Display |
|
|
Front Bezel |
– IP65, NEMA 4 rugged protection, metal front bezel |
|
Display Type |
– 18.5″ with LED Backlight |
|
Brightness ( cd/m²) |
– 250 nits |
|
Display Color |
– 16.7M |
|
Resolution |
– 1366 x768 @ 60Hz |
|
Viewing Angle (H/V) |
– 178°/178° |
|
Pixel Pitch |
– 0.3 x 0.3 mm |
|
Aspect Ratio |
– 16:9 |
|
Contrast Ratio |
– 1000:1 |
|
Response Time |
– 5.5 ms |
|
Touch Screen |
|
|
Type |
– Projected capacitive type |
|
Active Range |
– 440.8 x 271.4mm ±2.0mm |
|
Transparency |
– 85 ±5% |
|
Surface Hardness |
– ≧ 6H (JIS-5400)) |
|
Glass Haze Value |
– ≦ 3% |
|
Main System |
|
|
CPU |
– Intel® Bay Trail-D J1900 2.0GHz/QC |
|
RAM |
– 4G 1333MHz DDR3L SAMSUNG DRAM |
|
BIOS |
– 64MB SPI Flash ROM |
|
Storage |
– 1 * 2.5” SATA HDD |
|
Watchdog Timer |
– 255 levels, 0~255 sec. |
|
OS Support |
– Windows 7 / 8.1 / 10 / Linux |
|

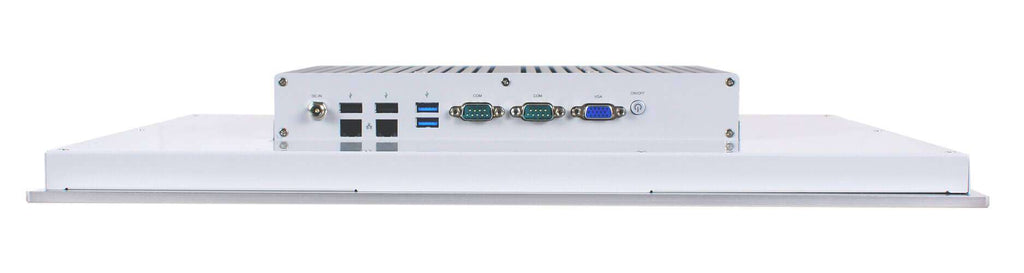

I/O Ports and Switches |
– 2 * USB3.0 |
|
Expansion Interface |
|
|
Expansion |
– 1 * PCI-E mini card for WIFI or 4G/3G |
|
Power Input |
– AC version: 100~240V AC-DC 60W power adapter or |
|
Power Consumption |
– 25W |
|
Dimensions |
|
|
Case Dimensions |
– 492*323*84mm |
|
Packing Dimensions |
– Net Weight: 7.92KG |
|
Certifications |
– CE, FCC, IP65(Front) |
|
Temperature |
– Operating: -10°C ~ 60°C (with W.T. DRAM/HDD under airflow conditions) |
|
– Storage: -20°C ~ 65°C |
|
|
Vibration |
– Operating: 5~500Hz/1 Grms |
|
Warranty |
|
|
Warranty |
– 2-year warranty; 1-year panel warranty |
