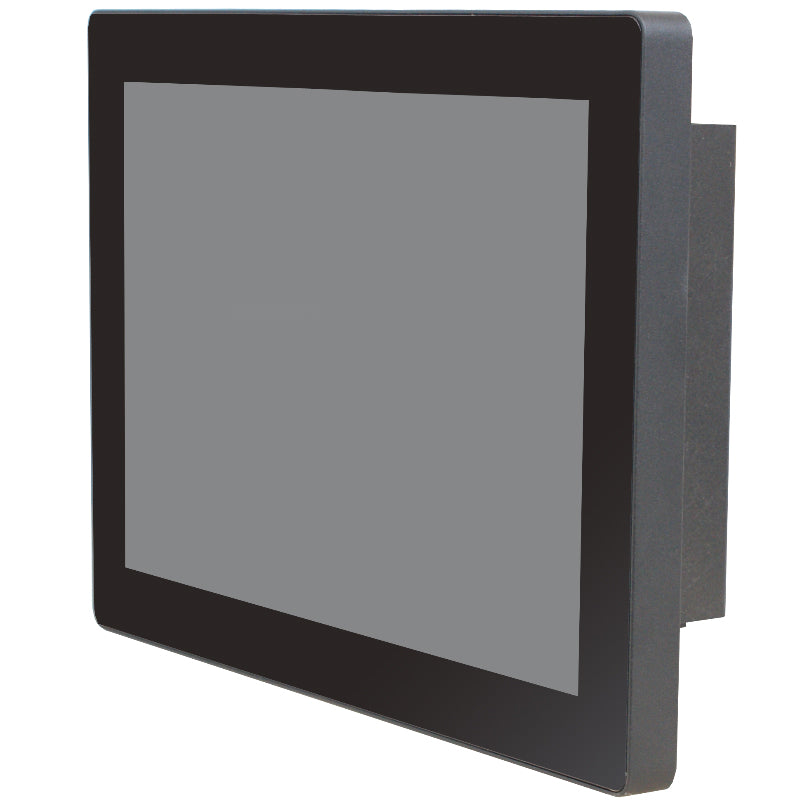

Panel PC 10.1' HPC-WV101 (ARM RK3288 1.8GHz, 2GB/ 8G, 9~36V)

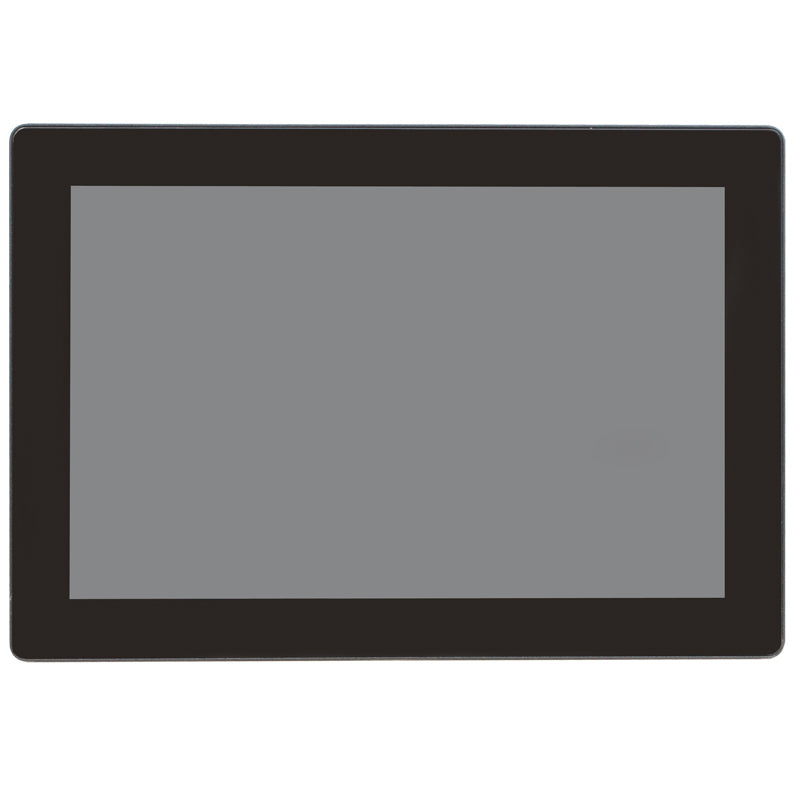

Display

– IP65, NEMA 4 rugged protection, metal front bezel
– 10.1″ with LED backlight
– 350 nits brightness (cd/m²)
– 262K display colors
– 1280 x 800 @ 60Hz resolution
– 160°/160° viewing angle (H/V)
– 0.1695 x 0.1695mm pixel pitch
– 16:10 aspect ratio
– 600:1 contrast ratio
– 25ms response time

Touchscreen

– Projected capacitive type
– 257.10 x 159.66mm ±0.2mm active area
– Transparency ≧ 87%
– Operating force ≦ 80g
– Surface hardness ≧ 6H (ASTM D3363, pressure 1N/45°)

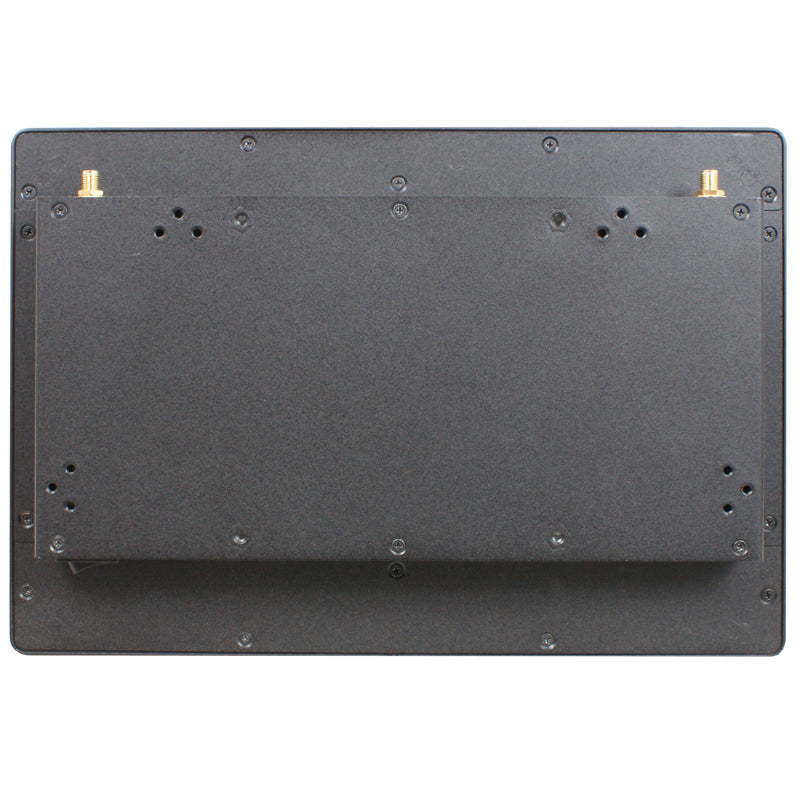

Case

– Aluminum panel
– Iron case
– Black color
– Spray-paint coating requirement

Main System

– Rockchip® ARM Cortex A17 1.8GHz/QC processor
– Onboard 1333/2GB DDR3L DRAM
– Onboard 8G Flash ROM
– Watchdog Timer with 256 levels, 0~255 sec.
– Speaker: 2* 2W/8Ohm
– Camera: 1* 500W USB (option)
– OS support: Android 5.1/9.0 or Debian 9.0
– Power Consumption: 8.5W

Expansion

– 1* Micro SD socket

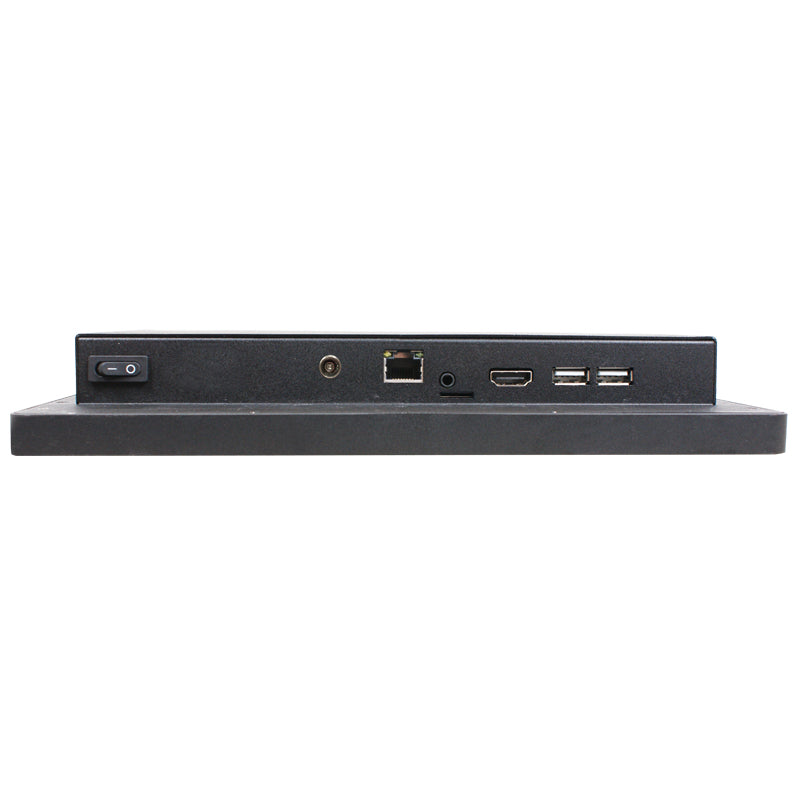

I/O Connector

– 2* USB2.0 (USB1 co-layout OTG)
– 1* HDMI 1.4
– 1* AUDIO (Line-out + MIC)
– 1* Micro SD Socket
– 1* Power Button
– 1* GbE
– 1* 9~36V DC jack

Power Input

– 9~36V DC-in

Dimensions

– 259.3 * 177.3 * 39.0mm

Compliance

– CE, FCC, IP65 (Front) — Option

Safety

– Shock: 15G, 11ms duration
– Vibration: 5~500Hz/1 Grms

Temperature

– Operating: -10°C ~ 50°C
– Storage: -20°C ~ 60°C

Warranty

– 2-Year Limited Warranty (Panel and Touch have only a 1-Year Warranty)
