- Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail
- Supports SO-DIMM DDR3-L 1333MHz up to 8GB (1.35V)
- 10x Intel i211AT Gigabit LAN ports
- Intel HD Graphics
- Supports 2.5" HDD/SSD, 1x mSATA slot (Full-Size)
- 1x HMDI port, 1x serial port, 4x USB
- Wireless 802.11 b/g/n
- Fanless
Specifications
| CPU: | Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail |
| Memory: | 1x 204-pin DDR3L-1333 SO-DIMM, up to 8GB (1.35V!) |
| Graphics: | Intel HD |
| LAN: | 10x Intel i211AT Gigabit LAN ports |
| Audio: | Realtek ALC662 HD Audio |
| Storage | 1x 2.5" SATA2 3Gb/s bay for HDD or SSD, 1x shared mSATA/mini-PCI Express slot (Full-Size) |
| Wireless / Mini-PCIE slot: | 1x Mini-PCI Express slot (Full-size) / Wireless 802.11 b/g/n |
| USB: | Embedded: 1x USB 3.0 and 3x USB 2.0 |
| Dimensions: | 185 (L) x 165 (P) x 48 (A) mm |
| Color: | Black |
| Bays: | 1x 2.5" (supports only 2.5" SATA HDD / SSD) |

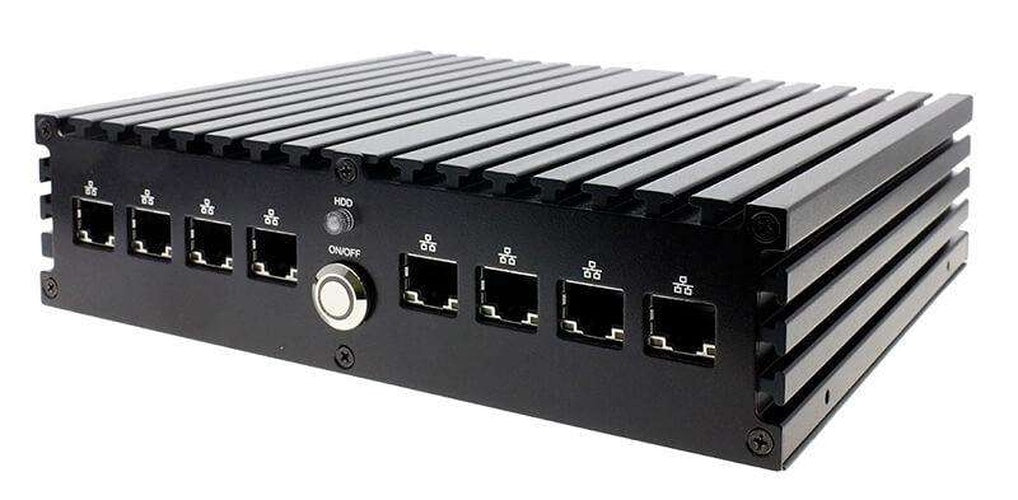

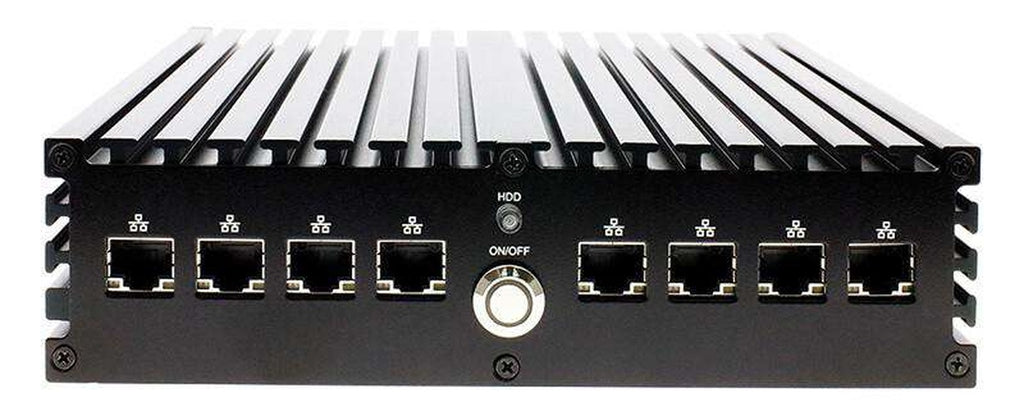

| Front I/O ports: | 1x Power button, 1x HDD LED, 8x RJ-45 LAN ports |

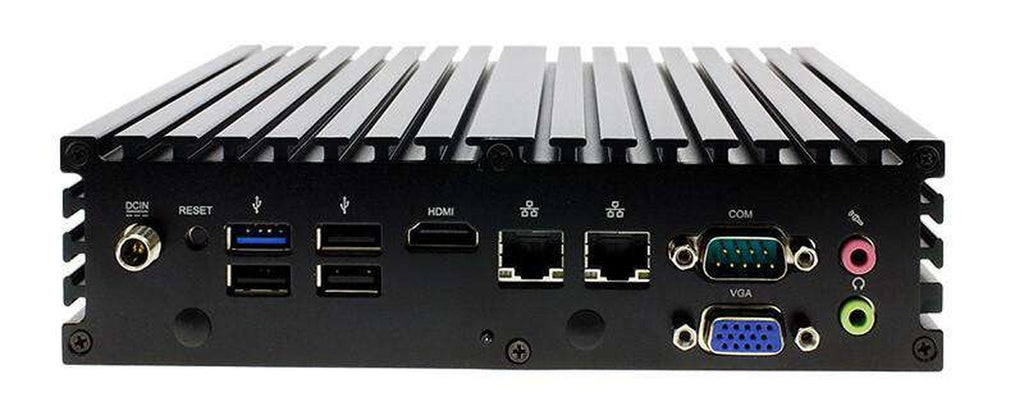

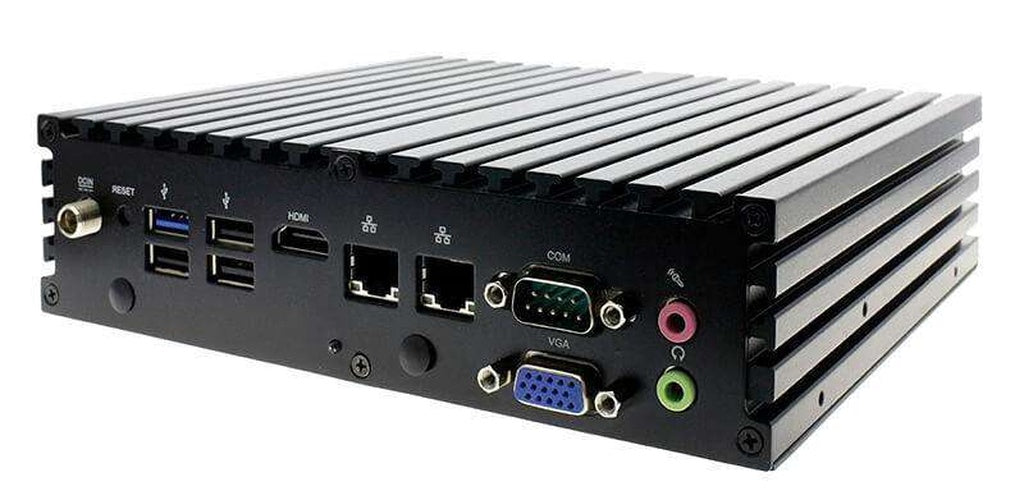

| Rear I/O ports: | 1x DC-in +12V jack, 1x Reset Switch, 1x USB 3.0, 3x USB 2.0, 1x HDMI, 2x RJ-45 LAN, 1x serial port (RS232/422/485), 1x VGA, 1x Line Out jack, 1x MIC In jack, 2x SMA connectors for WiFi antennas |
| Environment: | Operating temperature: 0 ~ 40°C; storage temperature: -20 ~ 85°C |
| Standard accessories: | 1x AC-DC 60W adapter, 1x power cable, Wall Mount kit, 2x DIN RAIL, 1x CD, 1x manual, WiFi antenna |
| Applications: | Networking, Firewall/Router, Industrial Control, Digital Security, Embedded Systems |
| Certifications: | CE,FCC,ErP for barebone; CE,FCC,TUV,UL,CCC,CB,ErP for adapter |
