Jetway JBC390F541WAA-19-B (Celeron J1900, 10* GLAN, Wifi)
Price on request
Jetway JBC390F541WAA-19-B with an Intel® Bay Trail J1900 quad-core 2.0GHz CPU and 10W TDP. This version includes 10x Intel Gigabit LAN ports, 1x HMDI, 1x serial port, 4x USB, support for 2.5" drives, an mSATA slot, Wireless 802.11 b/g/n, and other features that make it ideal for networking, firewall/router, industrial control, digital security, embedded systems, and other applications.
- Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail
- Supports SO-DIMM DDR3-L 1333MHz up to 8GB (1.35V)
- 10x Intel i211AT Gigabit LAN ports
- Wi-Fi
- Intel HD Graphics
- Supports 2.5" HDD/SSD and 1x mSATA slot (Full-Size)
- 1x HMDI port, 1x serial port, 4x USB
- Wireless 802.11 b/g/n
- Fanless
Specifications
| CPU: | Intel® Celeron J1900, 2.0GHz Quad-Core SoC, 10W, Bay Trail |
| Memory: | 1x 204-pin DDR3L-1333 SO-DIMM up to 8GB (1.35V!) |
| Graphics: | Intel HD |
| LAN: | 10x Intel i211AT Gigabit LAN ports |
| Audio: | Realtek ALC662 HD Audio |
| Storage | 1x 2.5" SATA2 3Gb/s bay for HDD or SSD 1x shared mSATA/mini-PCI Express slot (Full-Size) |
| Wireless / Mini-PCIE slot: | 1x Mini-PCI Express slot (Full-size) / Wireless 802.11 b/g/n |
| USB: | Embedded: 1x USB 3.0 and 3x USB 2.0 |
| Dimensions: | 185 (L) x 165 (P) x 48 (A) mm |
| Color: | Black |
| Bays: | 1x 2.5" (supports only 2.5" SATA HDD / SSD) |

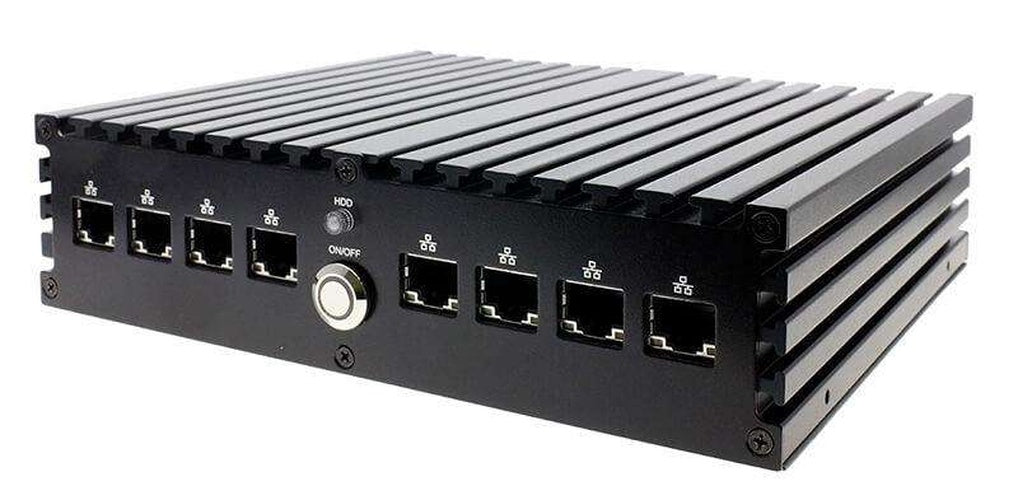

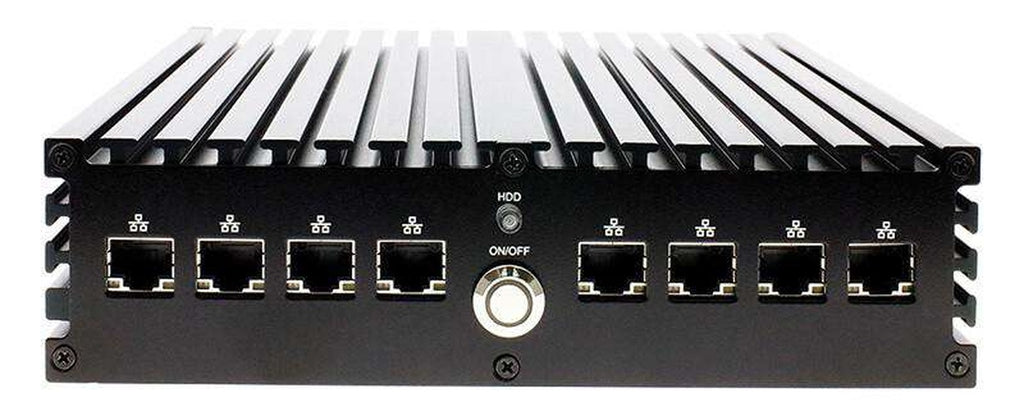

| Front I/O ports: | 1x power button 1x HDD LED 8x RJ-45 LAN ports |

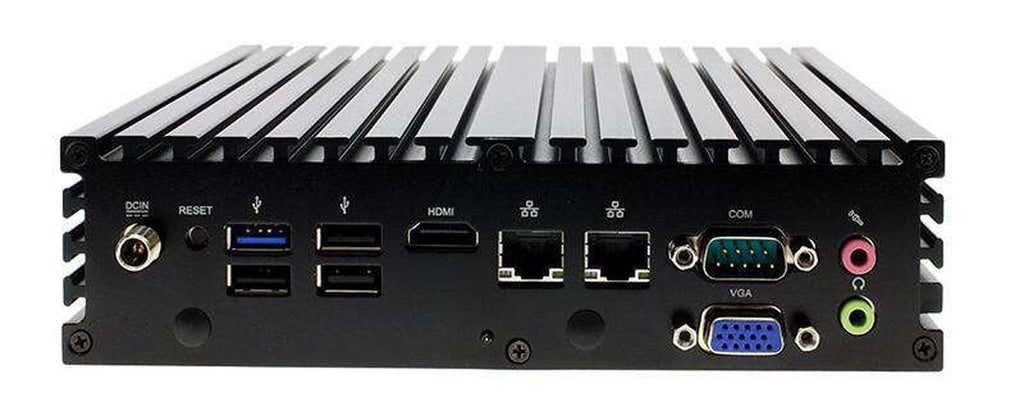

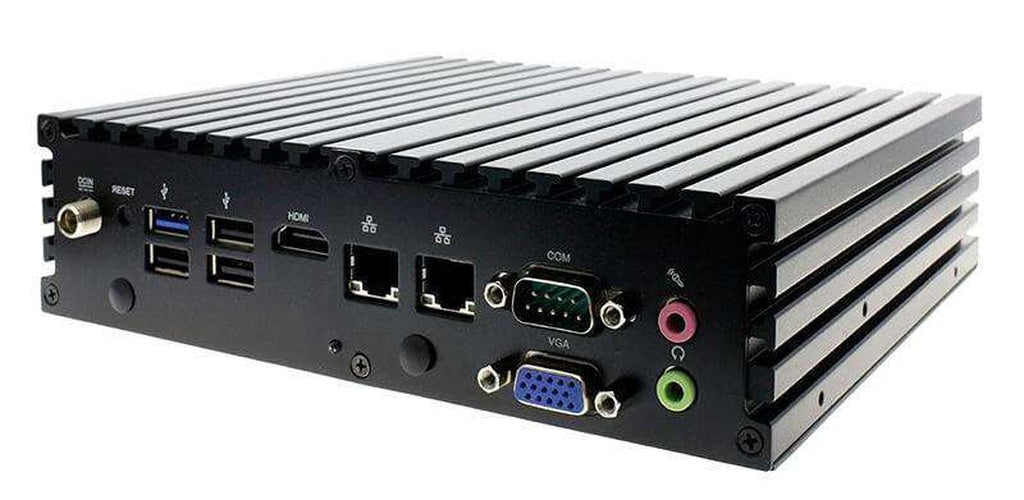

| Rear I/O ports: | 1x DC-in +12V jack 1x reset switch 1x USB 3.0 3x USB 2.0 1x HDMI 2x RJ-45 LAN 1x serial port (RS232/422/485) 1x VGA 1x Line Out jack 1x MIC In jack 2x SMA connectors for WiFi antennas |
| Environment: | Operating temperature: 0 ~ 40°C Storage temperature: -20 ~ 85°C |
| Standard accessories: | 1x AC-DC 60W adapter 1x power cable Wall Mount Kit 2x DIN RAIL 1x CD 1x manual WiFi antenna |
| Applications: | Networking, firewall/router, industrial control, digital security, embedded systems |
| Certifications: | CE,FCC,ErP for the barebone CE,FCC,TUV,UL,CCC,CB,ErP for the adapter |
