Barebone Jetway JBC501F9QW-Q87-B designed for 4th Generation Intel® Core i7 / i5 / i3 / Pentium CPUs with <45W. 2 SO-DIMM DDR3-1600 Dual Channel slots supporting up to 16 GB, dual Giga LAN, and Wi-Fi
- 4th Generation Intel® Core i7 / i5 / i3 / Pentium CPUs rated at <45W
- Long-life series, with a projected life cycle through Q4'2018
- Onboard Nuvoton TPM IC
- Supports up to 3 displays via HDMI, DVI-D and VGA
- Supports iAMT 9.0
- ECO design - EuP/ErP
Specifications
| Model No | JBC501F9QW-Q87-B |
| Part No | HBJC501F9QW-Q87-B |
| Motherboard specifications | |
| CPU | 4th Generation Intel® Core i7 / i5 / i3 / Pentium processor, < 45W LGA 1150 socket (formerly Haswell) |
| Chipset | Intel Q87 chipset |
| Memory | 2 x 204-pin SODIMM DDR3-1600, Dual Channel (up to 16 GB) |
| Graphics | Requires an Intel Core processor with Intel HD Graphics |
| LAN | 1 x Intel i217LM PHY Gigabit LAN (iAMT 9.0) 1 x Intel i211AT PCI-E Gigabit LAN |
| Audio | Realtek ALC662 HD audio codec |
| Storage | 4 x SATA3 6Gb/s ports with RAID 0, 1, 5, 10 , JBOD 1 x shared mSATA/mini-PCI Express Combo slot (full-size) |
| Wireless / Mini-PCIE slot | Wireless 802.11 b/g/n |
| USB | Embedded 4 * USB 3.0 & 2 * USB 2.0 |
| Motherboard form factor | Mini-ITX (170mm x 170mm) |
| Chassis Specifications | |
| Product Dimensions | 260 (W) * 208 (D) * 58.5 (H) mm |
| Color | Black |
| Storage | 1 * 2.5" SATA Drive Bay |

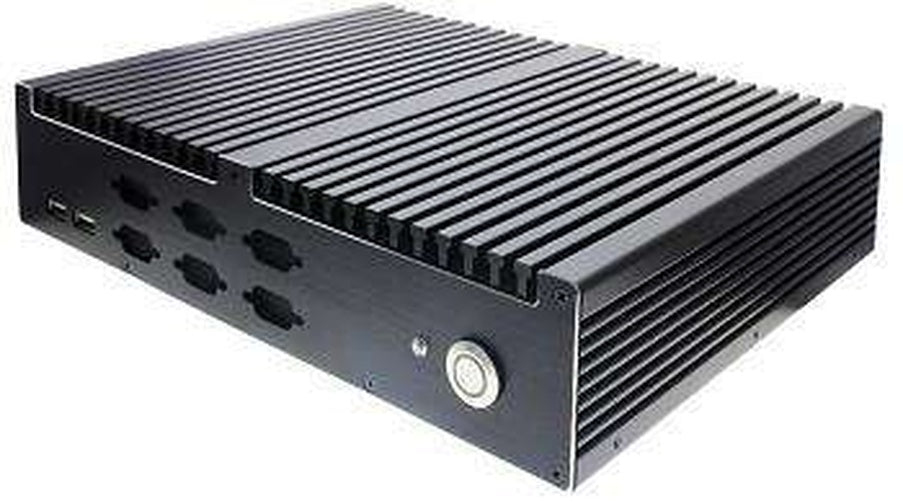

| Front I/O Ports | 1 * Power Button 1 * HDD LED 2 * USB 2.0 ports 6 * DB9 punchouts |

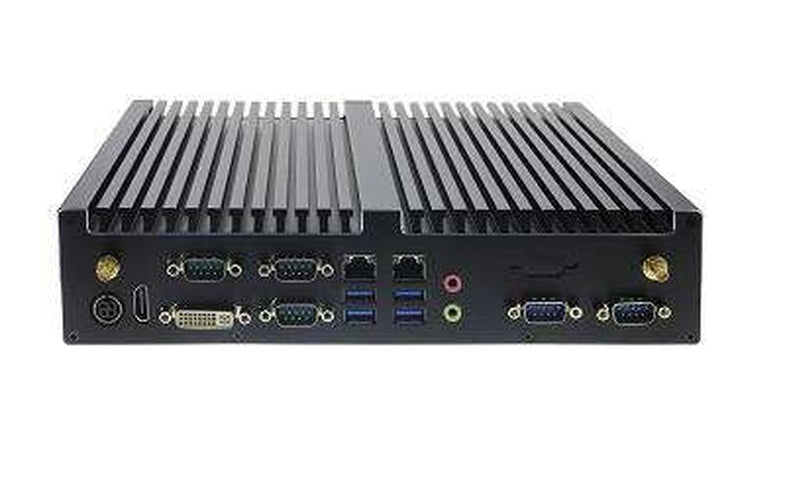

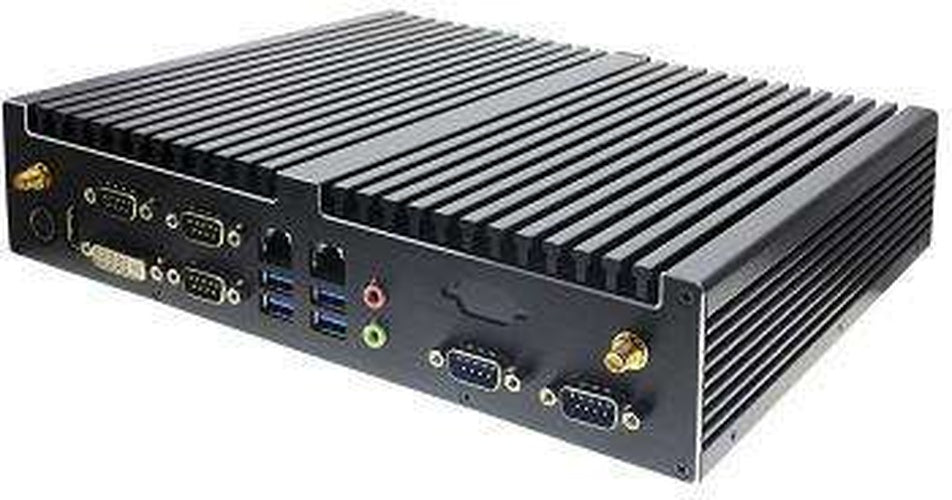

| Rear I/O Ports | 1 * +9 ~ +24V DC-in jack (1-pin 2.5mm ID, 5.5mm OD) 1 * HDMI (up to 1920 x 1080) 1 * DVI-D (up to 1920 x 1080) 1 * VGA (up to 1920 x 1080) 1 * RS232/422/485 jumperless COM port 3 * RS232 COM ports 4 * USB 3.0 ports 2 * RJ-45 ports 1 * Line-out jack 1 * MIC-in jack 2 * SMA holes for Wi-Fi antennas |
| Other Internal Headers | These connectors may not be fully usable with the chassis closed, but the information is provided for alternative customer uses. 1 * PCI-E 2.0 x4 Slot 1 * Chassis Intrusion Header 1 * AT/ATX Mode Select Jumper 1 * 8-bit GPIO Header |
| Environment | Operating Temperature: 0 ~ 40°C Storage Temperature: -20 ~ 85°C |
| Standard Accessories | √ 19V 120W AC-DC Adapter x1 √ Power Cord x1 √ Wall Mount Kit √ DVI-to-VGA Adapter x1 √ DIN RAIL x2 √ DVD Disc x1 √ Manual x1 √ Wi-Fi Antenna (with HBJC501F9QUW-Q87-B model) |
| Certifications | CE,FCC,ErP for Barebone CE,FCC,TUV,UL,CCC,CB,ErP for Power Adapter |
