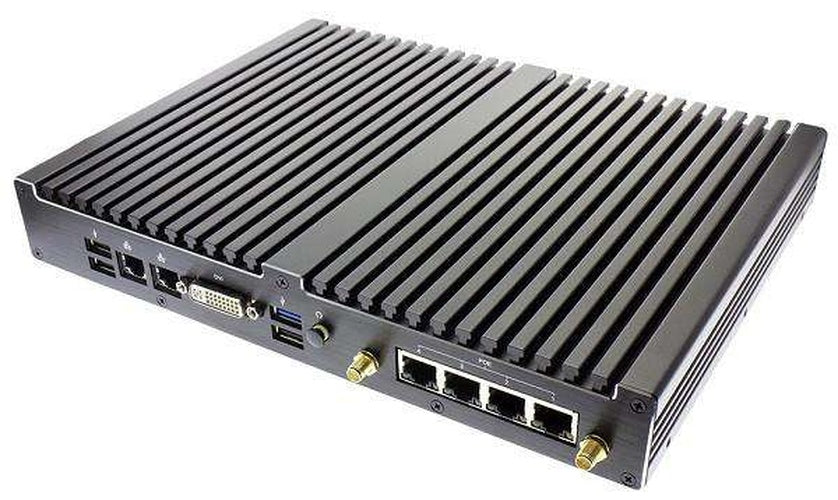

Jetway JBC512F3DG‐1900‐B barebone. Fanless PoE Mini-PC for industrial control systems, automation, network servers, or digital security. Equipped with an Intel Bay Trail-D 1900 quad-core CPU, dual LAN, and 90~240V power input support.
- CPU Intel® Bay Trail-D 1900 SoC
- 4GB DRAM onboard
- Intelligent processor cooling
- 2 Gigabit LAN ports
- Supports 4x RJ45 10/100M/1000M Base-TX ports
- Supports watchdog technology
- Supports 90~240V AC input
- Applications: industrial automation, machine control, network servers, or digital security.
Specifications:
| Product dimensions | 264 (W) * 199.4 (D) * 38 (H) mm |
| Product model | JBC512F3DP(W)-1900-B |
| Motherboard model and size | NF3DP-1900 / 3.5” SBC |
| BIOS | AMI UEFI |
| CPU | INTEL® Bay Trail-D 1900 SoC processor |
| Memory | 4GB onboard DRAM |
| Storage space | 2.5” SATA device * 1 |
| Colors | Black |

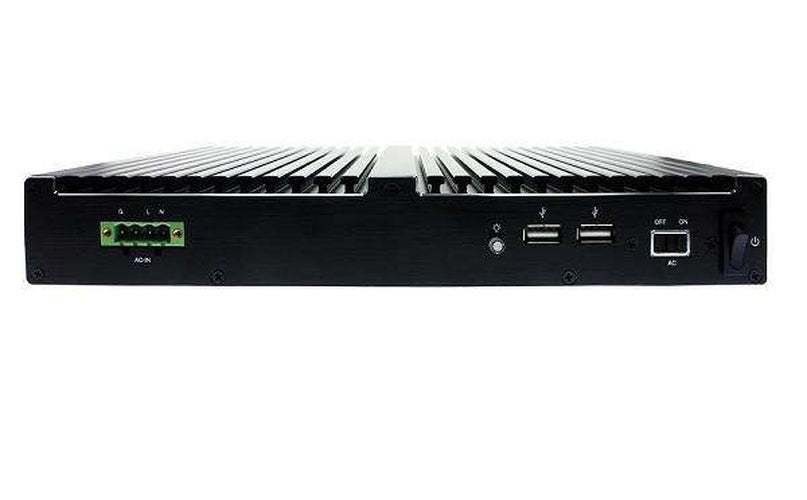

| Front I/O port | 4 PIN AC input * 1 AC ON-OFF * 1 power LED * 1 power SW * 1 USB 2.0 * 2 |

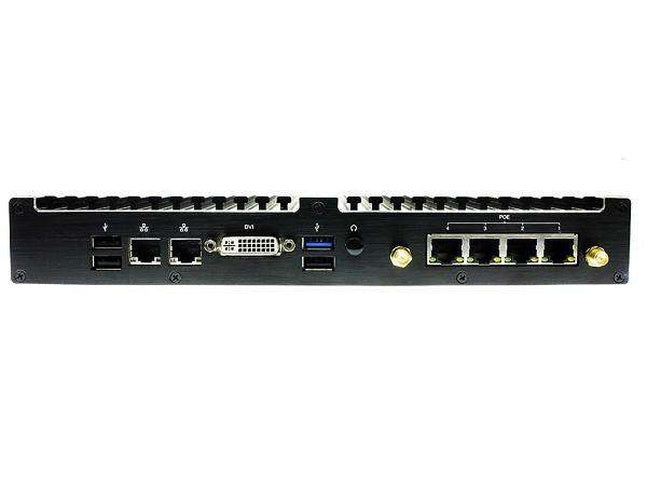

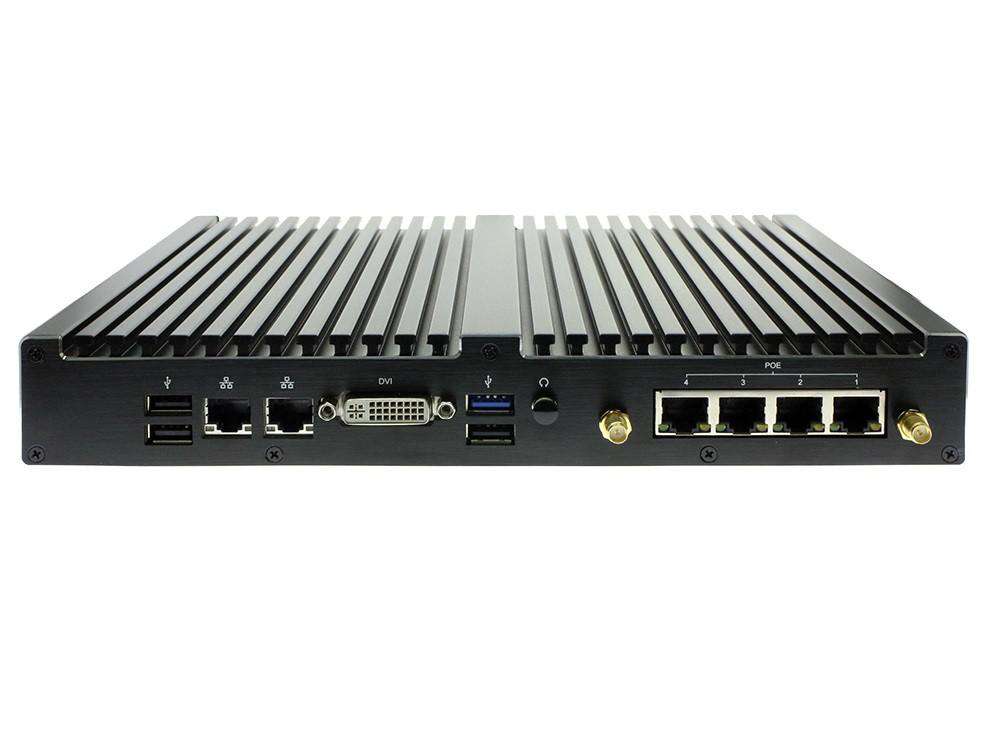

| Rear I/O port | USB3.0 * 1 , USB2.0 * 3 DVI-I * 1 Gigabit LAN port * 2 audio * 1 (Line out) |
| PoE port | 10/100M/1000M Base-TX RJ45 ports * 4 Compliant with IEEE802.3af, IEEE802.3at IEEE802.3x flow control IEEE 802.3x full-duplex flow control, up to 23W per port For the switch: Marvell 88E6176 For PoE: MAX5980 |
| Power source | Integrated 150W AC-DC OP power supply, AC 90~240V input |
| Accessories | AC cable * 1 4 Pin terminal block connector * 1 user manual * 1 CD * 1 screw package * 1 |
| Packing | Net weight：3.6KG Gross weight：4.5KG Color box dimensions：406 (W) x 148 (D) x 359 (H) mm |
| Temperature | Operating within 0~50 centigrade Storage within -10-70 centigrade |
| Certification | EMC : CE , FCC Safety : RoHS , ErP |
| Applications | Industrial control system Networking server System security Industry |
