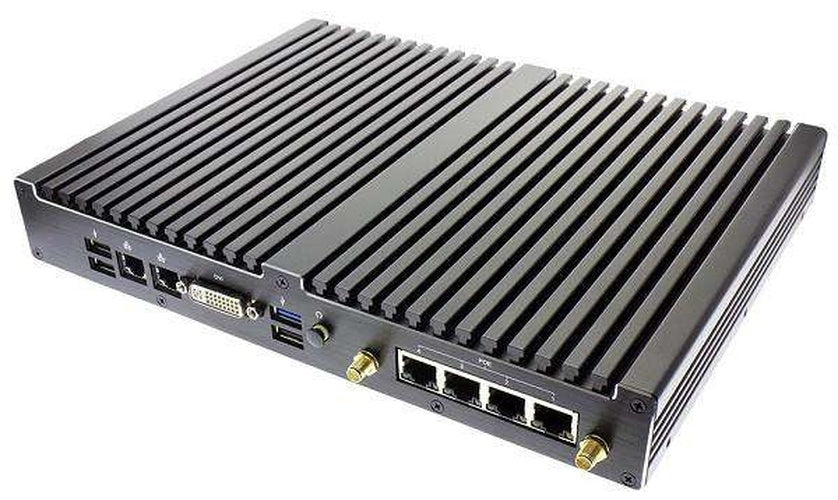

Jetway JBC512F3DP‐1900‐B barebone. Fanless PoE Mini-PC for industrial control systems, automation, network servers, or digital security. Equipped with an Intel Bay Trail-D 1900 quad-core CPU, dual LAN, and 90~240V power input support.
- CPU Intel® Bay Trail-D 1900 SoC
- 4GB DRAM onboard

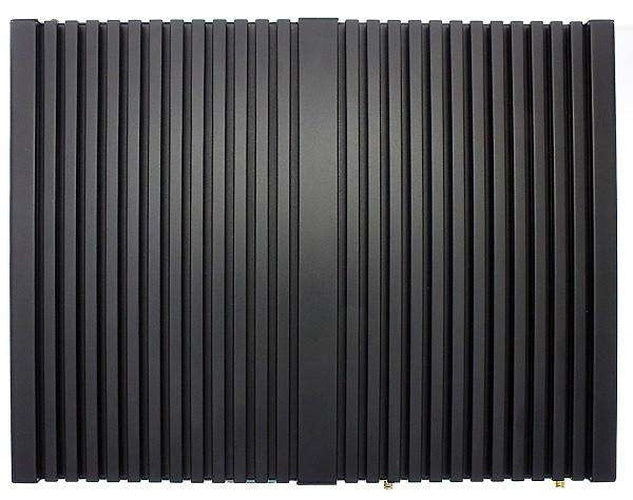

- Intelligent processor cooling
- 2 Gigabit LAN ports
- Supports PoE ports
- Supports 4x RJ45 10/100M/1000M Base-TX ports
- Supports watchdog technology
- Supports 90~240V AC input
- Applications: industrial automation, machine control, network servers or digital security.
| Product Dimensions | 264 (W) * 199.4 (D) * 38 (H) mm |
| Product Model | JBC512F3DP(W)-1900-B |
| Motherboard Model & Size | NF3DP-1900 / 3.5” SBC |
| BIOS | AMI UEFI |
| CPU | INTEL® Bay Trail-D 1900 SoC processor |
| Memory | 4GB onboard DRAM |
| Storage | 2.5” SATA Device * 1 |
| Colors | Black |

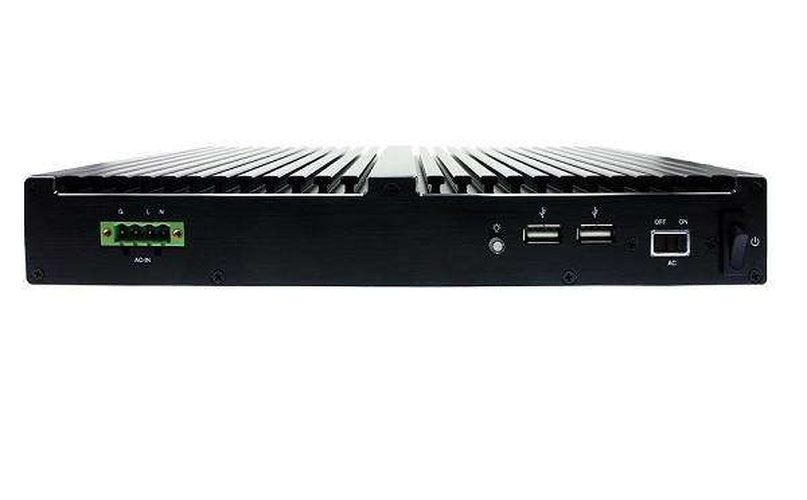

| Front I/O Ports | 4 PIN AC Input * 1 AC ON-OFF * 1 Power LED * 1 Power Switch * 1 USB 2.0 * 2 |

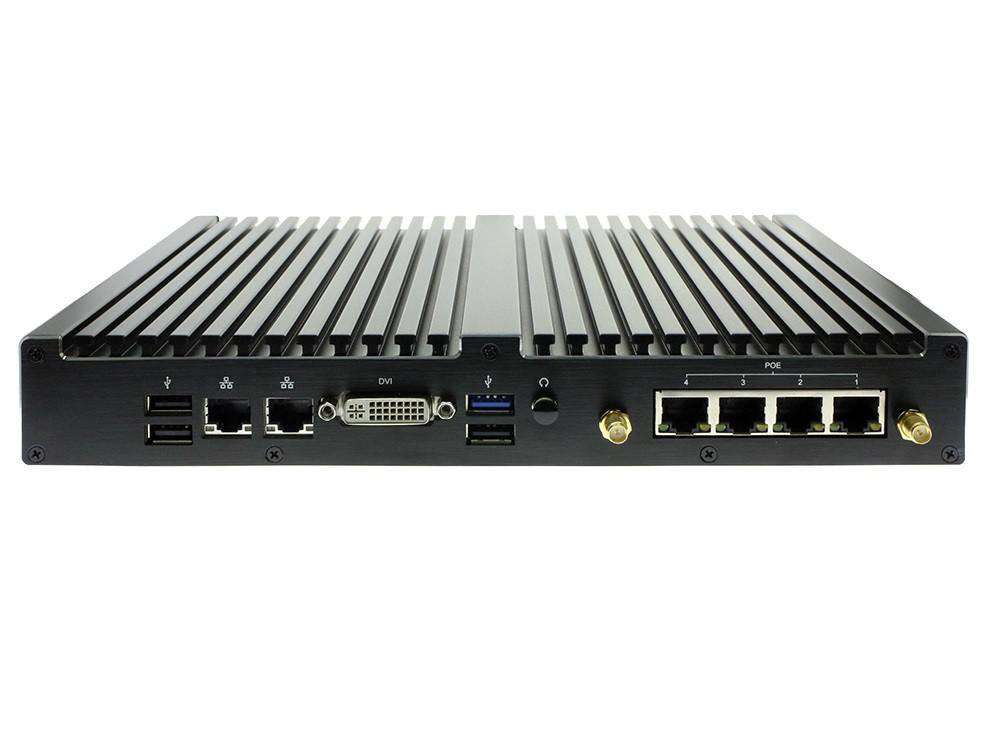

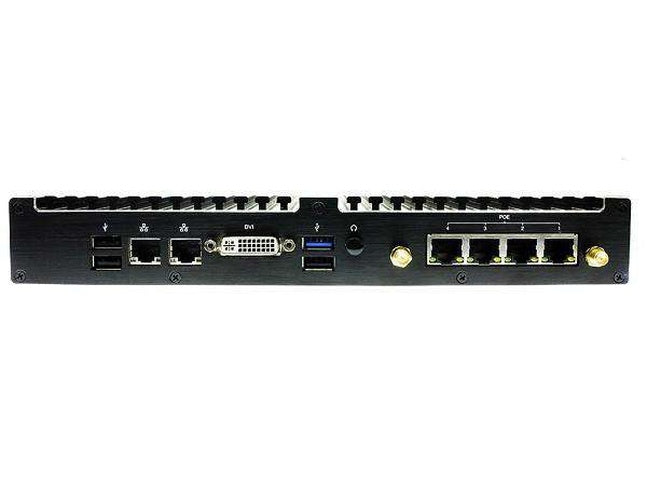

| Rear I/O Ports | USB3.0 * 1 , USB2.0 * 3 DVI-I * 1 Gigabit LAN port * 2 Audio * 1 (line out) |
| PoE Ports | 100M LAN port * 4 (DC52.5V-1.94A-102W) Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at IEEE802.3x flow control Provides 4 PoE injectors, per port DC52.5V-0.48A-25W For the switch: IP178G For PoE: MAX5980 |
| Power Source | Internal 150W AC-DC OP power supply with 90~240V AC input |
| Accessories | AC Cable * 1 4 Pin Terminal Block Connector * 1 User Manual * 1 CD * 1 Screw Package * 1 |
| Packing | Net Weight: 3.6KG Gross Weight: 4.5KG Color Box Dimensions: 406 (W) x 148 (D) x 359 (H) mm |
| Temperature | Operating within 0~50 degrees centigrade Storage within -10-70 degrees centigrade |
| Certifications | EMC : CE , FCC Safety : RoHS , ErP |
| Applications | Industrial Control Systems Network Servers System Security Industry |
