Barebone Jetway JBC512F3DPW‐1900‐B. Fanless PoE Mini-PC for Industrial control systems, automation, network servers or digital security. Equipped with an Intel Bay Trail-D 1900 quad-core CPU, dual Giga LAN and Dual Wireless LAN, with 90~240V power input support.
- CPU Intel® Bay Trail-D 1900 SoC
- 4GB DRAM onboard
- Intelligent processor cooling
- 2 Gigabit LAN ports
- 2 Wireless LAN ports
- Supports PoE ports
- Supports 4x RJ45 10/100M/1000M Base-TX ports
- Supports watchdog technology
- Supports AC 90~240V input
- Applications: Industrial automation, machine control, network servers or digital security.
Specifications:
| Product dimensions | 264 (W) * 199.4 (D) * 38 (H) mm |
| Product model | JBC512F3DP(W)-1900-B |
| MB model & size | NF3DP-1900 / 3.5” SBC |
| BIOS | AMI UEFI |
| CPU | INTEL® Bay Trail-D 1900 SoC Processor |
| Memory | 4GB DRAM onboard |
| Storage space | 2.5” SATA device * 1 |
| Colours | Black |

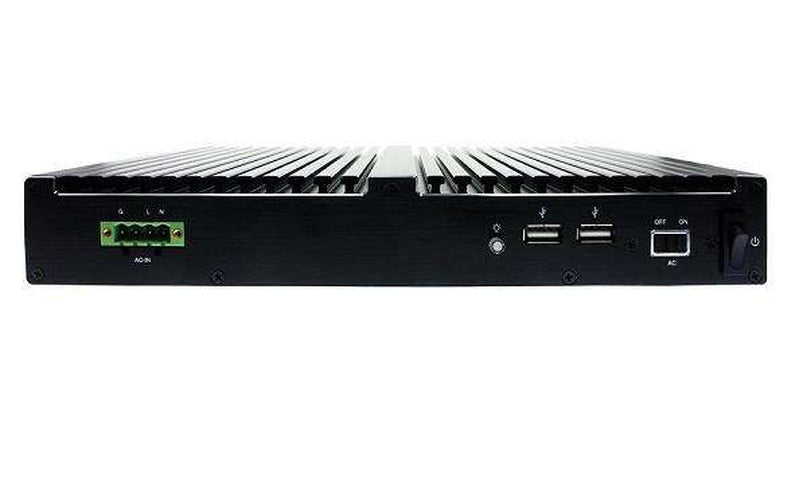

| Front I/O Port | 4 PIN AC input * 1 AC ON-OFF * 1 Power LED * 1 Power SW * 1 USB 2.0 * 2 |

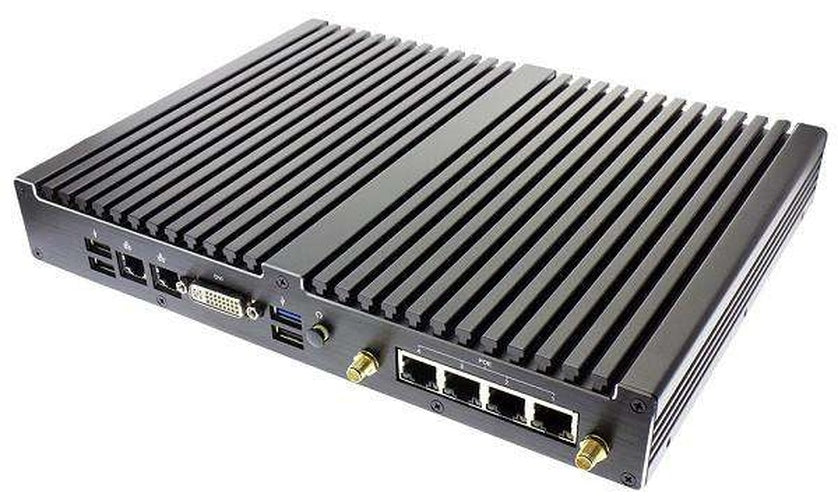

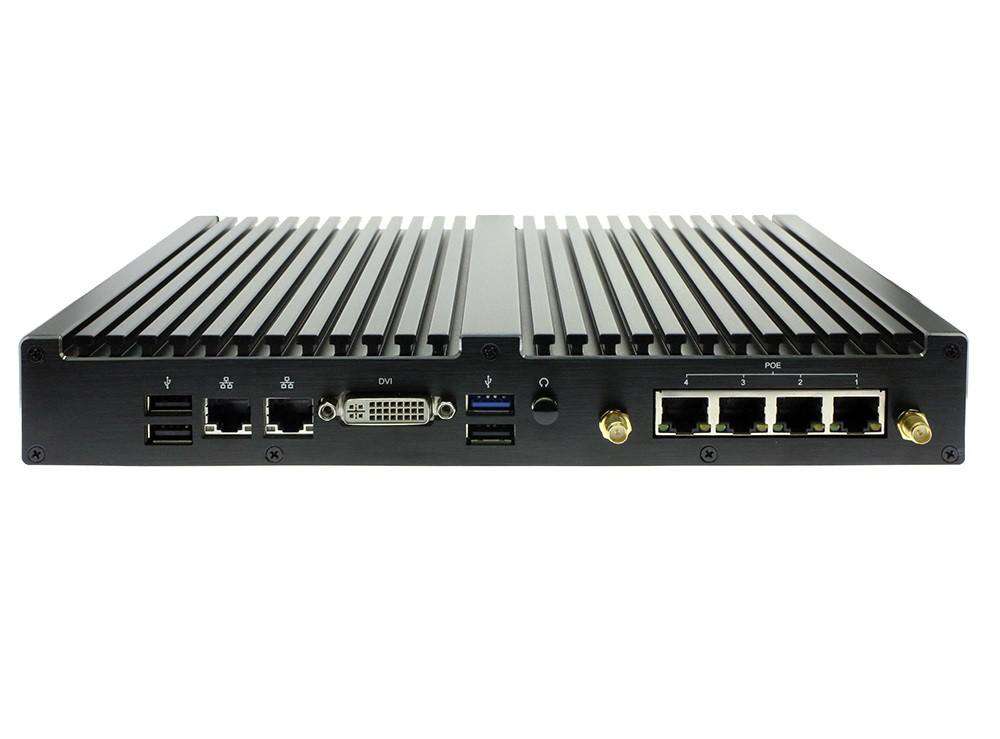

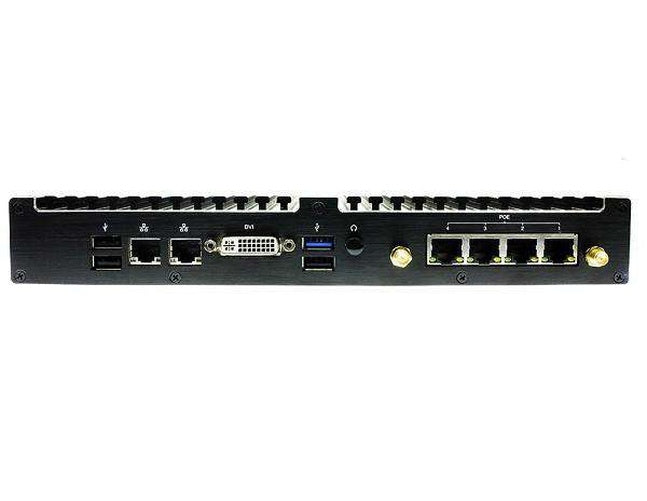

| Rear I/O ports | USB3.0 * 1 , USB2.0 * 3 DVI-I * 1 Giga LAN port * 2 audio * 1 (Line out) WiFi port * 2 |
| POE port | 100M LAN port * 4 (DC52.5V-1.94A-102W) Compliant with IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at IEEE802.3x Flow control Provides 4 PoE injectors, per port DC52.5V-0.48A-25W Switch: IP178G PoE: MAX5980 |
| Power source | Internal 150W AC-DC OP power supply with AC 90~240V input |
| Accessories | AC cable * 1 4 Pin terminal block connector * 1 user manual * 1 CD * 1 screw package * 1 |
| Packing | Net weight：3.6KG Gross weight：4.5KG Colour box dimensions：406 (W) x 148 (D) x 359 (H) mm |
| Temperature | Operating within 0~50 degrees centigrade Storage within -10-70 degrees centigrade |
| Certification | EMC : CE , FCC Safety : RoHS , ErP |
| Applications | Industrial control systems Networking servers System security Industry |
