Barebone Jetway JBC512F532‐2930‐B. Fanless PoE Mini-PC for Industrial control systems, automation, network server or digital security. CPU Intel Bay Trailby M 2930, Dual Giga Lan, support for 4 The doors LAN 100M (DC 52.5V - 1.94A -102W and food 90~240V.
- Intel® Bay Trail-M 2930 SoC CPU
- Single Channel DDR3L 1333MHz SDRAM up to 4GB
- Intelligent processor cooling
- 2 Gigabit LAN ports
- Suporta 4x The doors RJ45 100M (DC52.5V - 1.94A - 102W)
- Supports watchdog technology
- Supports 90~240V AC input
- Applications: industrial automation, machine control, network servers, or digital security.
| Product dimensions | 264 (W) * 199.4 (D) * 38 (H) mm |
| Product model | JBC512F532(W)-2930-B |
| Motherboard model and size | NF532P-2930 / 3.5” SBC |
| BIOS | AMI UEFI |
| CPU | INTEL® Bay Trail-M 2930 SoC Processor |
| Memory | Single Channel DDR3L 1333MHz SDRAM up to 4GB |
| Storage space | 2.5” SATA device * 1 |
| Colors | Black |

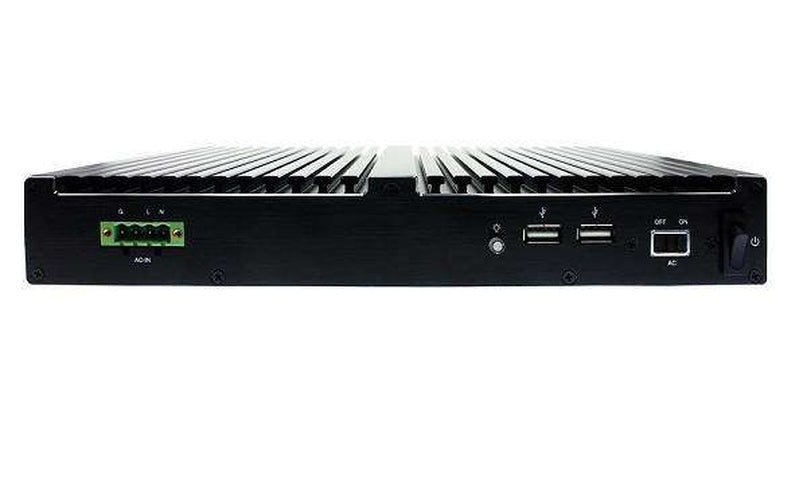

| Front I/O port | 4 PIN AC input * 1 AC ON-OFF * 1 power LED * 1 power SW * 1 USB 2.0 * 2 |

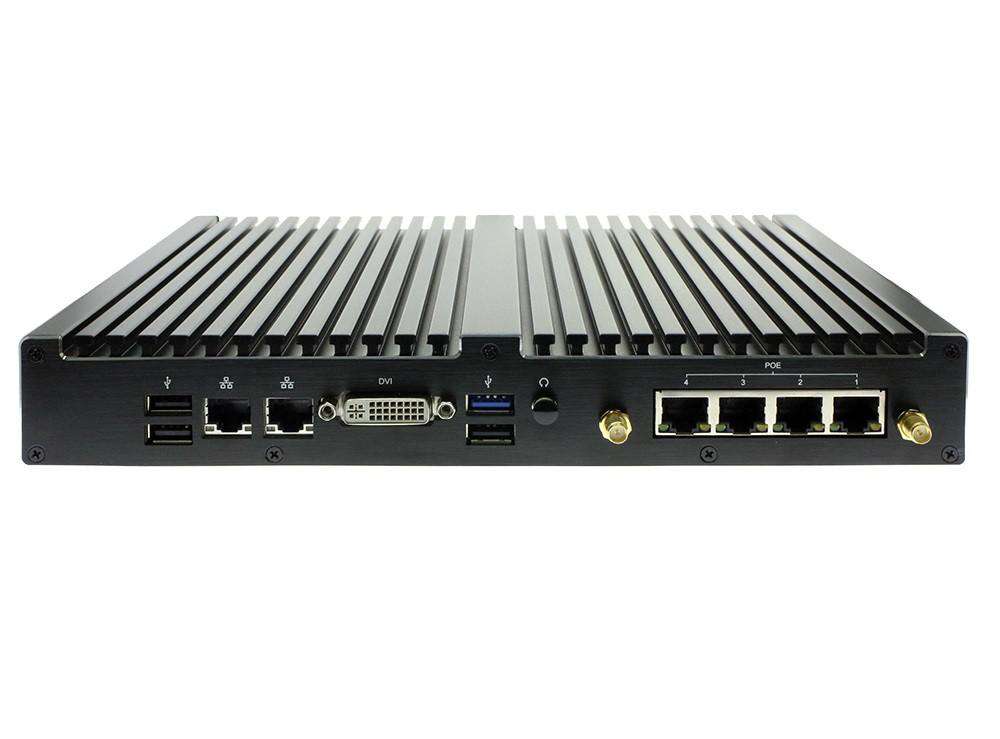

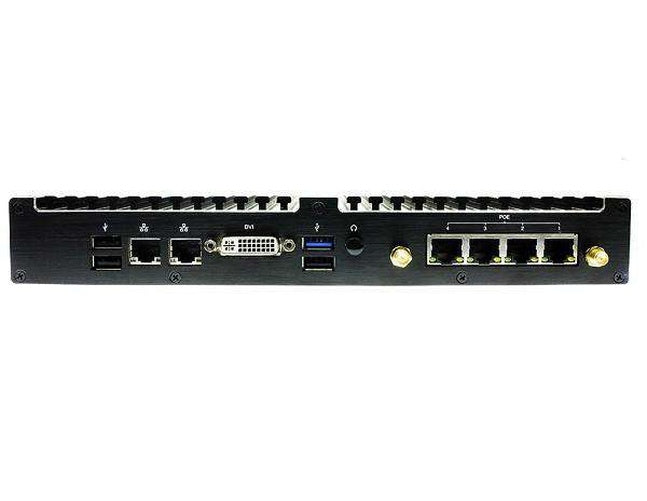

| Rear I/O port | USB3.0 * 1 , USB2.0 * 3 DVI-I * 1 Gigabit LAN port * 2 audio * 1 (Line out) |
| PoE port | 100M LAN port * 4 (DC52.5V-1.94A-102W). Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at, and IEEE802.3x. Flow control. Provides 4 PoE injectors, per port DC52.5V-0.48A-25W. For the switch: IP178G. For PoE: MAX5980 |
| Power source | Internal 150W AC-to-DC OP power supply with AC 90~240V input |
| Accessories | AC cable * 1 4 Pin terminal block connector * 1 user manual * 1 CD * 1 screw package * 1 |
| Packing | Net weight: 3.6KG Gross weight: 4.5KG Color box dimensions: 406 (W) x 148 (D) x 359 (H) mm |
| Temperature | Operating temperature: 0~50 degrees centigrade Storage temperature: -10-70 degrees centigrade |
| Certification | EMC: CE , FCC Safety: RoHS , ErP |
| Applications | Industrial control system Networking server System security Industry |
