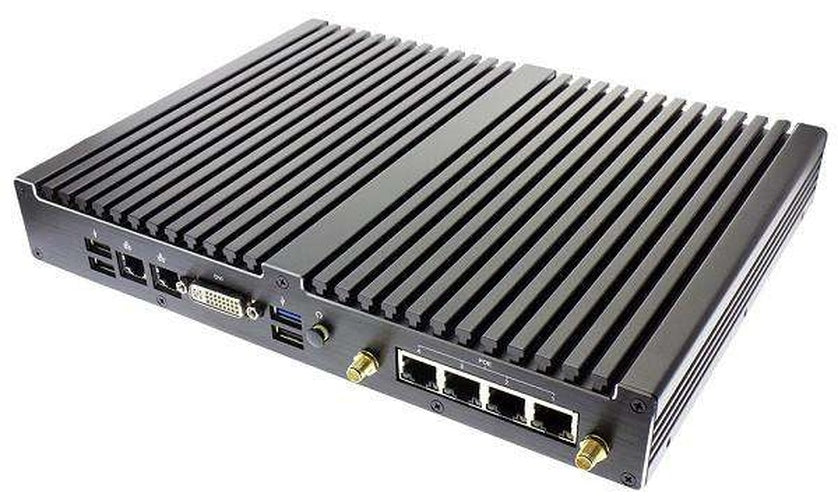

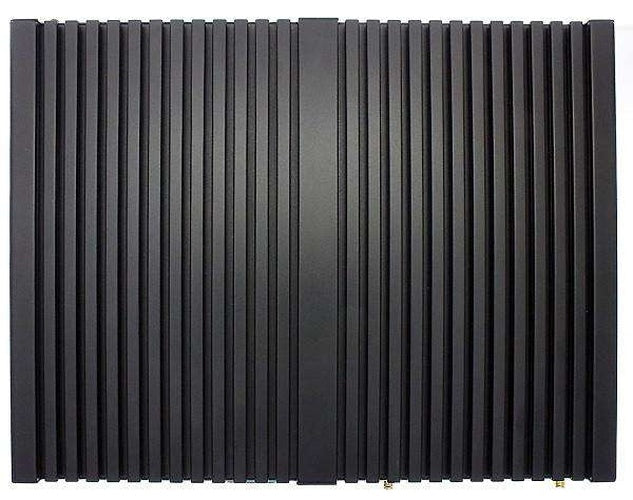

Jetway JBC512F532W‐2930‐B Barebone. Fanless PoE Mini-PC for Industrial control systems, automation, network server or digital security. CPU Intel Bay Trailby M 2930Dual GLan and WiFi, support for 4 The doors LAN 100M (DC 52.5V - 1.94A -102W and food 90~240V.
- Intel® Bay Trail-M 2930 SoC CPU
- Single Channel DDR3L 1333MHz SDRAM up to 4GB
- Intelligent processor cooling
- 2 Gigabit LAN ports
- 2 Wi-Fi ports
- Supports 4x RJ45 100M ports (DC52.5V - 1.94A - 102W)
- Supports watchdog technology
- Supports 90~240V AC input
- Applications: industrial automation, machine control, network servers or digital security.
Specifications:
| Product Dimensions | 264 (W) * 199.4 (D) * 38 (H) mm |
| Product Model | JBC512F532(W)-2930-B |
| Motherboard Model & Size | NF532P-2930 / 3.5” SBC |
| BIOS | AMI UEFI |
| CPU | INTEL® Bay Trail-M 2930 SoC Processor |
| Memory | Single Channel DDR3L 1333MHz SDRAM up to 4GB |
| Storage | 2.5” SATA Device * 1 |
| Colors | Black |

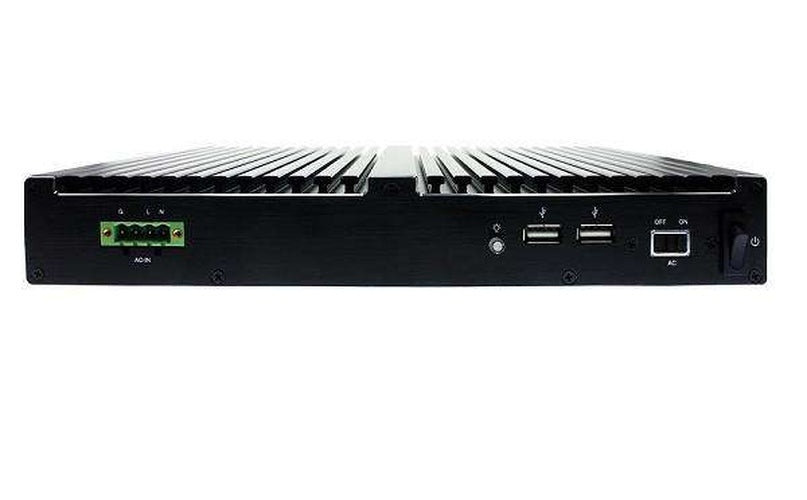

| Front I/O Ports | 4 PIN AC Input * 1 AC ON-OFF * 1 Power LED * 1 Power Switch * 1 USB 2.0 * 2 |

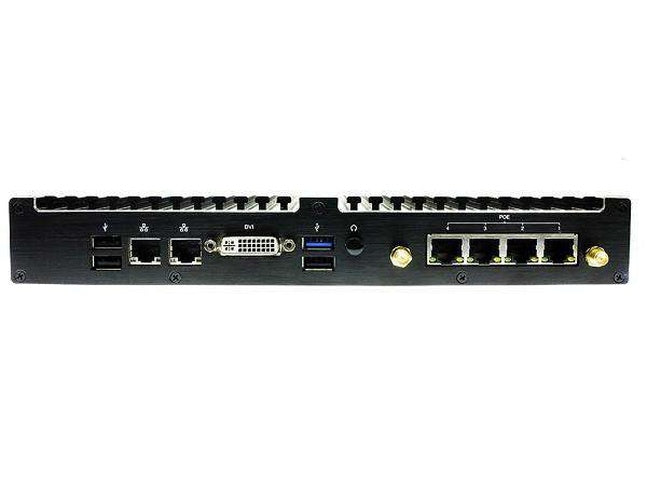

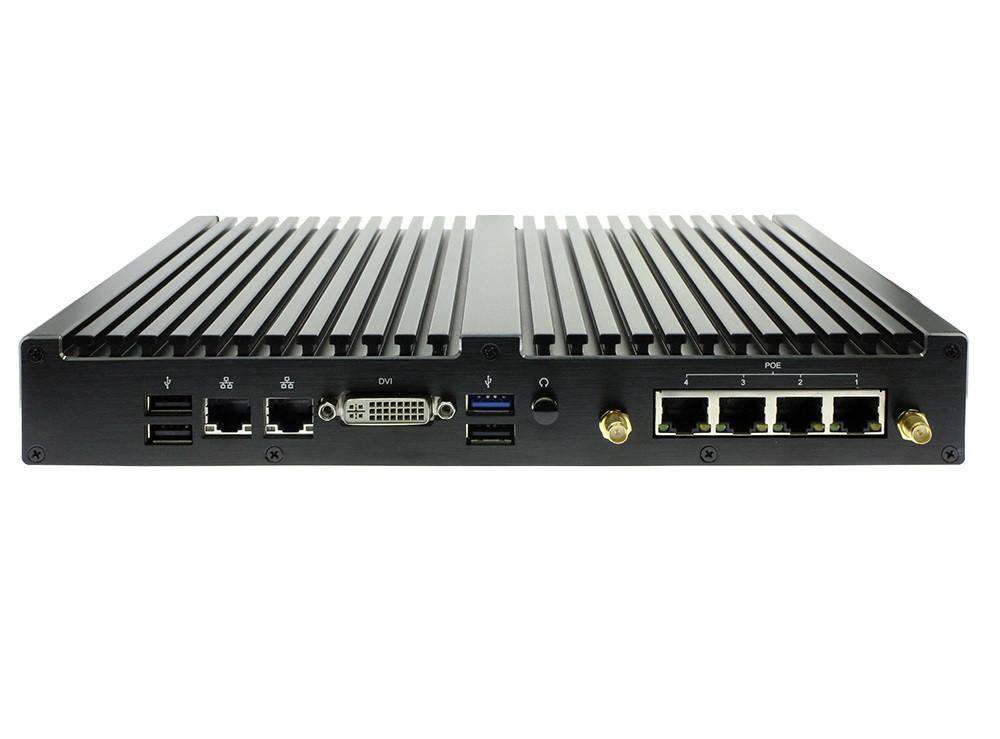

| Rear I/O Ports | USB3.0 * 1 , USB2.0 * 3 DVI-I * 1 Gigabit LAN Ports * 2 Audio * 1 (Line out) Wi-Fi Ports * 2 |
| PoE Ports | 100M LAN Ports * 4 (DC52.5V-1.94A-102W) Conforms to IEEE802.3, IEEE 802.3u, IEEE802.3af, IEEE802.3at IEEE802.3x flow control Provides 4 PoE injectors, DC52.5V-0.48A-25W per port Switch: IP178G PoE: MAX5980 |
| Power Source | 150W internal AC-to-DC power supply with 90~240V AC input |
| Accessories | AC Cable * 1 4 Pin Terminal Block Connector * 1 User Manual * 1 CD * 1 Screw Package * 1 |
| Packing | Net Weight: 3.6KG Gross Weight: 4.5KG Color Box Dimensions: 406 (W) x 148 (D) x 359 (H) mm |
| Temperature | Operating within 0~50 degrees centigrade Storage within -10-70 degrees centigrade |
| Certifications | EMC : CE , FCC Safety : RoHS , ErP |
| Applications | Industrial Control Systems Network Servers System Security Industry |
