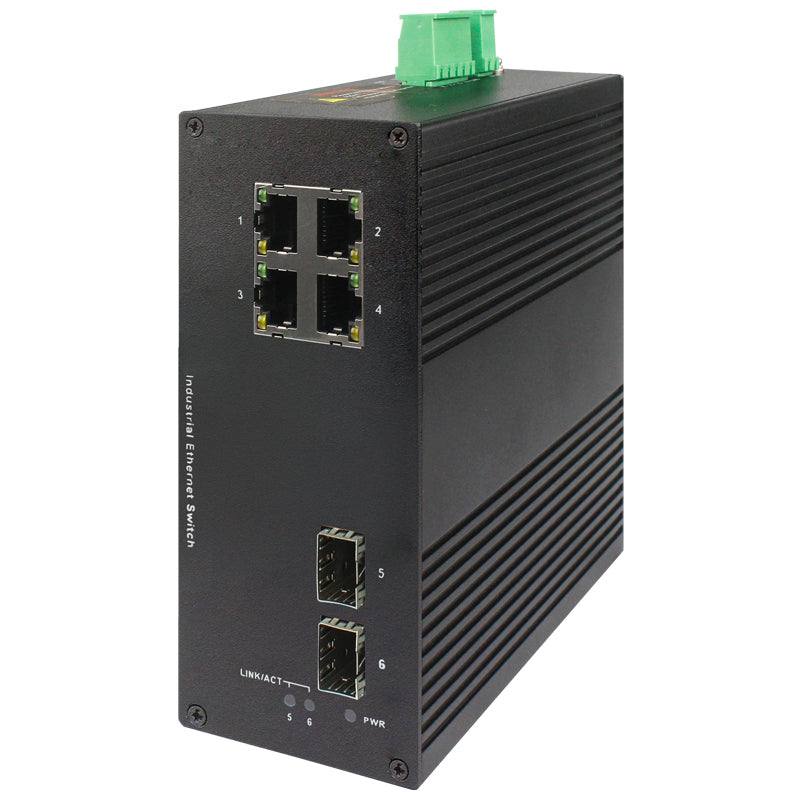

Switch JDL104G-2F (4*10/100/1000TX + 2*1000 SFP)

Chip

– LAN chip: Marvell

Dimensions

– 140 * 138 * 60mm

Safety

– CE, FCC, ROHS

I/O Port

– 4 * 10/100/1000BaseT(X)
– 2 * 1000 BaseSFP
– LED: power, port speed, port connection

Management

– N.C

Standards and protocols

– IEEE802.3 10BaseT
– IEEE802.3u 100BaseT/100BaseFX
– IEEE802.3z 1000BaseX
– IEEE802.3ab 1000BaseT(X)
– IEEE802.3x Flow control

Network interface/cabling specifications

– 10BASE-T: Category 3 or higher unshielded/shielded twisted pair (≤100 m)
– 100BASE-TX: Category 5 or higher unshielded/shielded twisted pair (≤ 100 m)
– 1000BASE-T: Category 5 or higher unshielded/shielded twisted pair (≤ 100 m)

PoE support

– N.C

Power input/consumption

– 12-36VDC
– Power input reverse-polarity protection: supports reverse-polarity connection
– Power interface: 5pin terminals

Operating Temp.

– – 40°C ~ +85°C

Cooling method

– Fanless design

MTBF

– 100,000 HR

Warranty

– 3 years
