Jetway HBJC150I225-H610B (Intel 12/ 13 LGA1700, 2 LAN, 2 COM)

Model

– HBJC150I225-H610B

Motherboard Model

– MI225H6100

CPU/Chipset

– 12th/13th-generation Intel® Core i7/i5/i3/Pentium/Celeron processor for LGA1700 socket (Max. 65W TDPs under 180A)
– Intel® Alder Lake-S H610 Express Chipset

BIOS

– AMI Flash ROM

Memory

– 2* Dual CH non-ECC DDR5 4800MHz SDRAM SO-DIMM slots, up to 64GB

Network

– HBJC150I225-Q670: 1* Intel® i219-LM GbE + 1* Intel® i225-V 2.5GbE
– HBJC150I225-H610: 1* Intel® i219-V GbE + 1* Intel® i225-V 2.5GbE

Graphics

– Intel® UHD Graphics, shared memory
– 1* DP 1.4a (Max Resolution: 4096×2304@60Hz)
– 1* HDMI 2.0b (Max Resolution: 4096×2160@60Hz)
– 1* VGA (Max Resolution: 1920×1080@60Hz)

Storage

– 2* SATAIII (6 Gb/s) 2.5” devices, (HBJC150I225-Q670 supports RAID 0, 1)
– 1* M.2 M-Key (2280, PCIe Gen.3 x4 interface) with NVMe support
– 1* M.2 M-Key (2242, PCIe Gen.4 x4/SATA interface) with NVMe support (HBJC150I225-Q670 only)

Expansion

– 1* M.2 E-Key (2230, USB2.0/PCIe Gen.3 x1 interface) with CNVi support
– 1* M.2 B-key (3042, PCIe Gen.3 x1/USB3.2 Gen.2/USB2.0 interface) (HBJC150I225-Q670 only)
– 1* M.2 B-key (3042, PCIe Gen.3 x1 interface) (HBJC150I225-H610 only)
– 1* PCIe Gen.4 x16

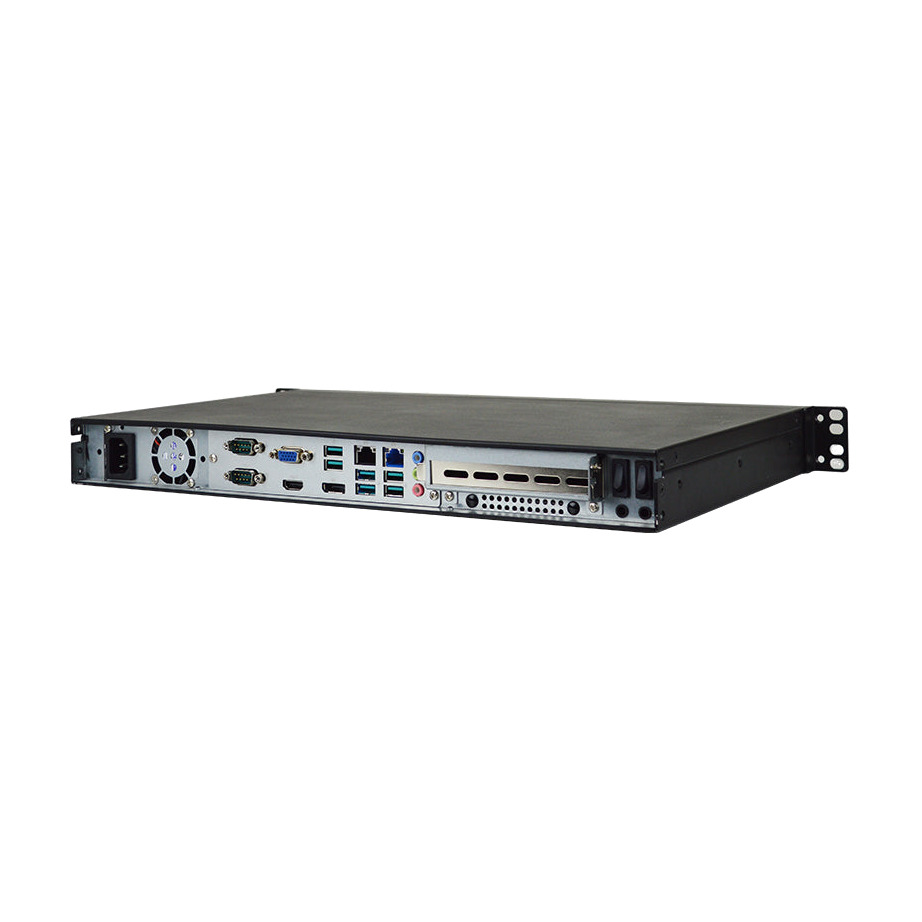

Rear Panel I/O

– 2* RJ45
– 6* USB3.2(Gen.2) (HBJC150I225-Q670)
– 4* USB3.2(Gen.2) + 2* USB2.0 (HBJC150I225-H610)
– 1* HDMI
– 1* DP
– 1* VGA
– 2* COM
– 1* Audio (Line-in, Line-out, MIC)

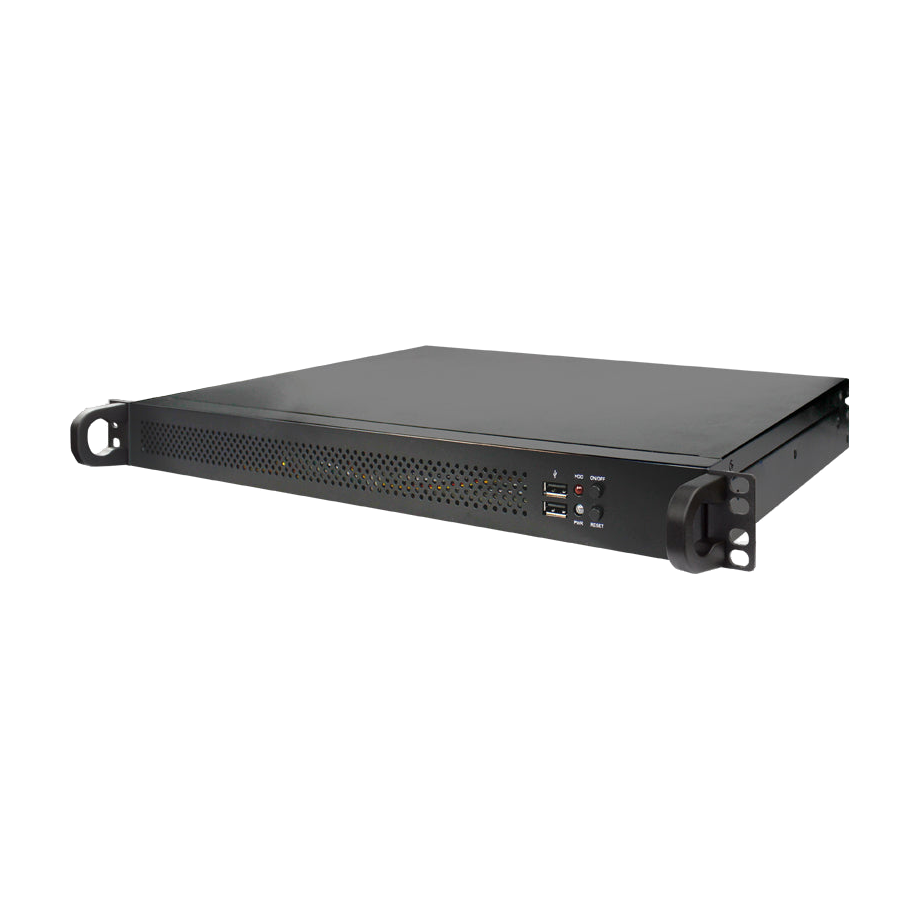

Front Panel I/O

– 1* Power button, 1* Reset button
– 2* USB2.0
– 1* Power LED, 1* HDD LED

Internal Connector

– SIM Card slot
– 1* GPIO (8 bit)
– TPM2.0 (optional)

Power Source

– 1U FLEX 400W ATX PWR (4+24 pin)

Compliance

– CE, FCC, LVD, RoHS, ErP Ready

Dimensions

– Operating temperature: 0 ~ 50° C
– Storage Temperature: -40 ~ 85° C
– Humidity: 10% ~ 95% RH @40°C (non-condensing)

Temperature

– Operating Temperature: 0 ~ 50° C
– Storage Temperature: -40 ~ 85° C
– Humidity: 10%~95% @40° C (non-condensing)

OS Support

– Windows 11, Linux

Warranty

– 2 Year limited warranty
