Jetway HBJC330U10(I)-1145G7 (Tiger Lake i5-1145G7, 2* LAN, 2* HDMI)
Price excludes VAT
962.22€
Sale price
Price excludes VAT
962.22€
Regular price
Total with VAT (23%): 1,183.53€
Shipping calculated at checkout.
HBJC330U10-1135G7
HBJC330U10I-1135G7 (M.2 ac Wi-Fi card)
Fanless embedded PC with Intel® Tiger Lake-UP3, SO-DDR4/3200 up to 64GB
- Intel® Tiger Lake-UP3 SoC processor (TDP 15W)
- 2* DDR4 3200MHz SO-DIMM up to 64GB
- 2* Intel GbE
- 1* M.2 M-key 2242/2280, 1* M.2 E-key 2230 with CNVi support, 1* M.2 B-key 3042/3052
- 2* HDMI, 2* DP
- Supports a fanless cooling design
Diagram
Motherboard model | – JMU10-1135G7 – JMU10-1145G7 (Default) | |
Part No. | Without Wi-Fi | M.2 ac Wi-Fi card |
– HBJC330U10-1135G7 | – HBJC330U10I-1135G7 | |
BIOS | – AMI SMT Flash ROM | |
Processor | – Intel® Tiger Lake-UP3 Processor (TDP 15W), Default: 1145G7E Notes: During system operation, the CPU automatically adjusts its clock frequency according to changes in workload. | |
Network | – 2* Intel® GbE – 1* M.2 E-Key 2230 with CNVi support for Wi-Fi – 1* M.2 B-Key 3042/3052 for a 4G/5G module | |
Memory | – 2* DDR4 3200MHz SO-DIMM up to 64GB | |
Storage | – 1* M.2 M-key 2242/2280 (PCIe4.0 x4/SATAIII interface) with NVMe support – 1* SATAIII (SATA PWR supports 5V only) | |
Expansion slot | – 2 * Mini PCIe (full-size, for Wi-Fi & CAN BUS expansion) – 1 * Mini PCIe slot (USB signal only, full-size, for 4G LTE + GPS expansion) | |

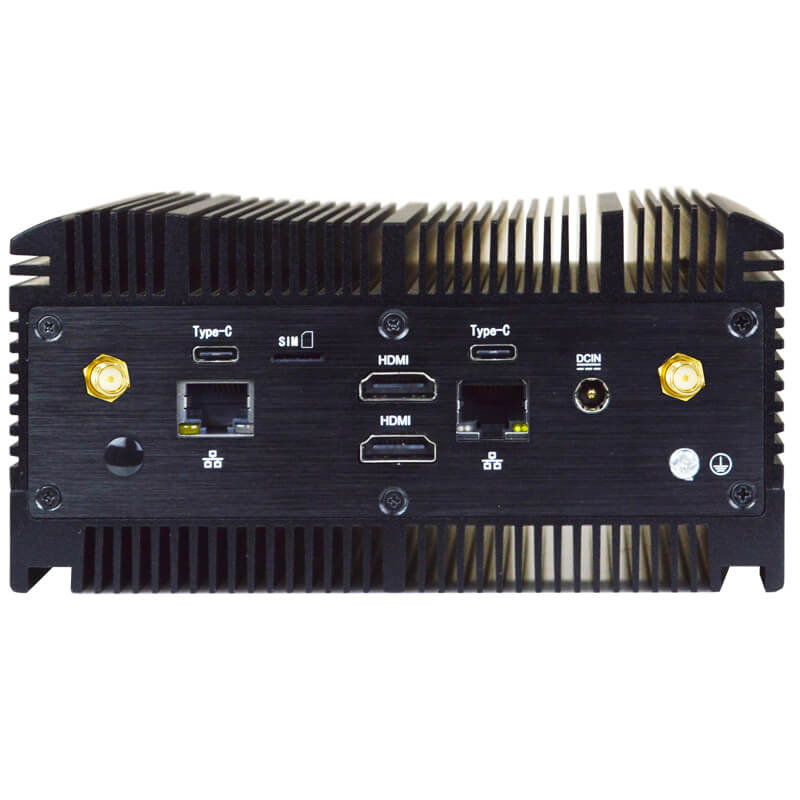

Rear Panel I/O | – 2* USB3.2 / Type C (DP1.4 support) – 1* SIM card slot – 2* HDMI – 2* RJ45 – 1* DC jack | |

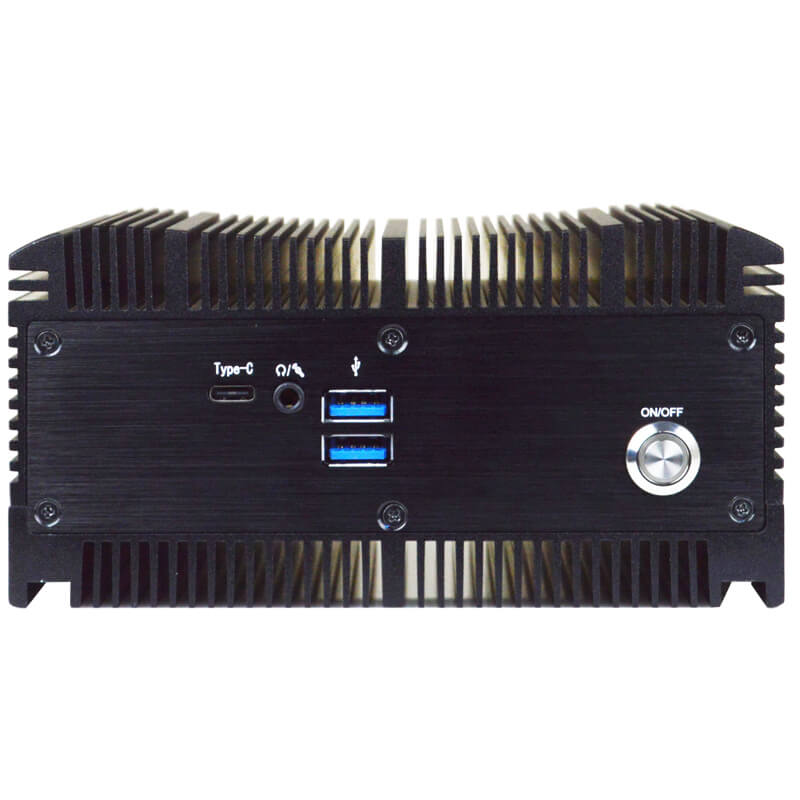

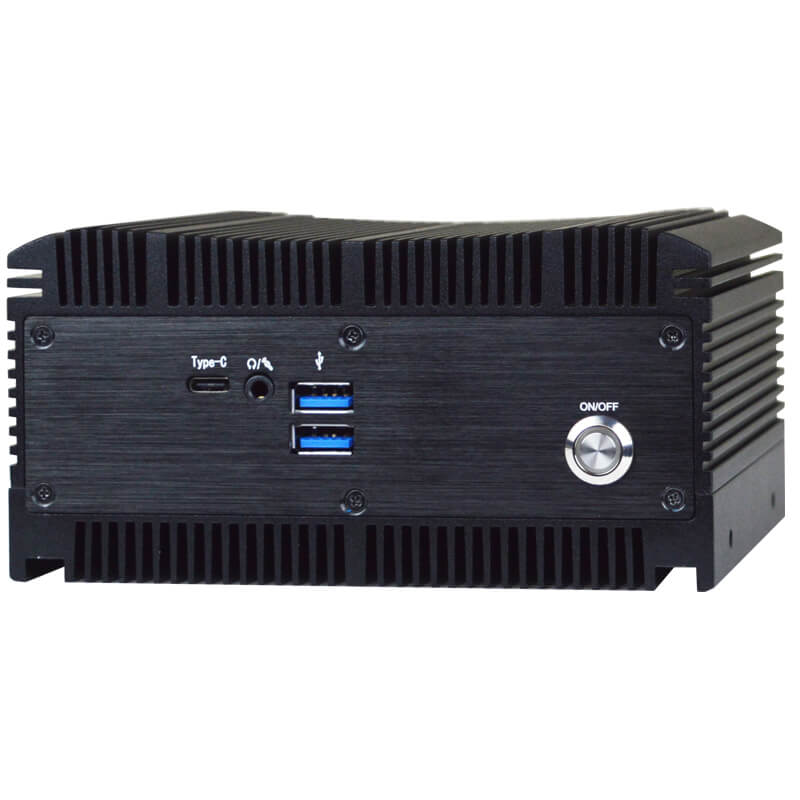

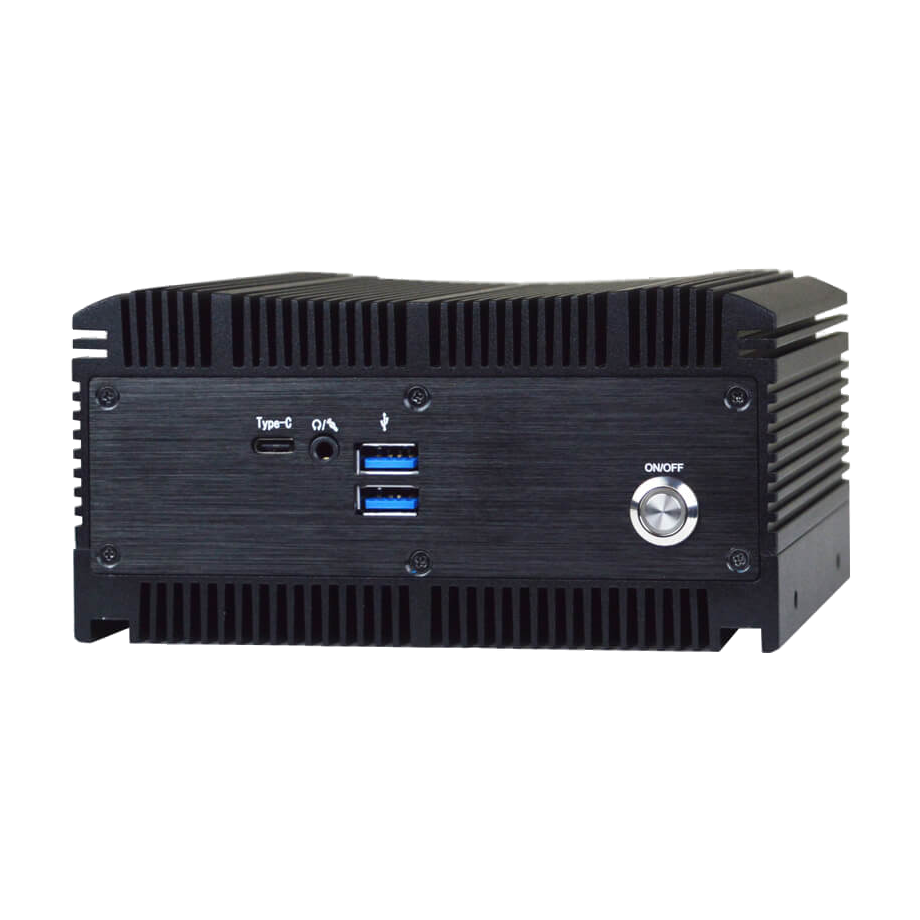

Front Panel I/O | – 1* audio jack (Line out +MIC) – 2* USB3.2 / Type A – 1* USB3.2 / Type C – 1* power button + LED | |
Compliance | – CE, FCC, RoHS, ErP Ready (Option) | |
Power Source | – Adapter: DC12V_5A_60W – M/B: DC 12~24V input | |
Safety | – CE, FCC, LVD, RoHS | |
Temperature | – Operating Temperature: -10 ~ 50° C – Storage Temperature: -20 ~ 60° C | |
Dimensions | – 150.0 (W) x 109.2 (D) x 75.0 (H) mm | |
OS Support | – Windows 10, Linux | |
Warranty | – 2-year limited warranty | |
* Specifications are subject to change without notice. We are not responsible for typographical errors. HDD and OS are not included.
