Jetway HBJC330U95V-10210 (Comet Lake i5-10210U. 2* LAN, 12-24V Input)
Price excludes VAT
599.65€
Sale price
Price excludes VAT
599.65€
Regular price
Total with VAT (23%): 737.57€
Shipping calculated at checkout.
HBJC330U95V-10210
HBJC330U95VI-10210
Intel® Comet Lake i5-10210U 1.6G/QC, DDR4 2666MHz up to 64GB, 1* GbE, 1* 2.5GbE, 12V DC-in
- Intel® Comet Lake i5-10210U 1.6G QC Processor
- Supports Dual Channel DDR4 2666MHz up to 64GB
- 1* Intel® I219LM GbE, 1* Intel® I225-V 2.5GbE
- 1* M.2 (M-key, SATA interface), 1* M.2 (E-key, CNVi support)
- 1* RS232/RS422/485, 4* USB3.2
- 1* DP, 2* HDMI
- 12V DC-in
Diagram
Dimensions
Model | – HBJC330U95V-10210 (CPU : 10210U, default) – HBJC330U95VI-10210 (CPU : 10210U, Wifi) | |
CPU/Chipset | – Intel® Comet Lake i5-10210U 1.6G QC SoC Processor – Intel® Comet Lake 5205U SoC Processor | |
BIOS | – AMI 128MB SMT Flash ROM | |
Memory | – 2 * DDR4 2666MHz SO-DIMM up to 64GB | |
Network | – 1* Intel® I219LM GbE – 1* Intel® I225-V 2.5GbE | |
Graphics | – 1* HDMI1.4 (Max Resolution : 4096×2304@30Hz) – 1* HDMI2.0 (Max Resolution : 4096×2304@60Hz) – 1* DP (Max Resolution : 4096×2304@60Hz) – Supports triple displays | |
Storage | – 1 * M.2 (M-Key, 2242, SATA interface) | |
Expansion | – N/A | |

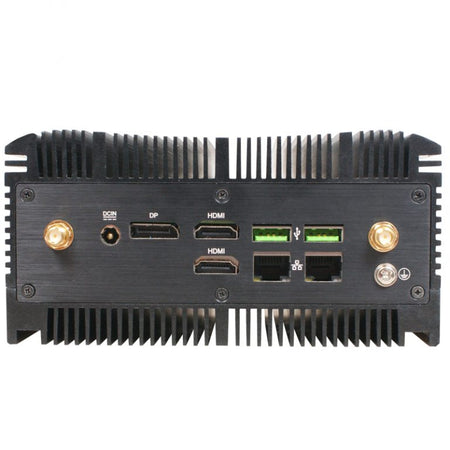

Rear Panel I/O | – 2 * USB3.2 (Gen2) – 1 * DP1.4 – 1 * HDMI2.0 – 1 * HDMI1.4 – 2 * RJ45 – 1 * DC jack | |

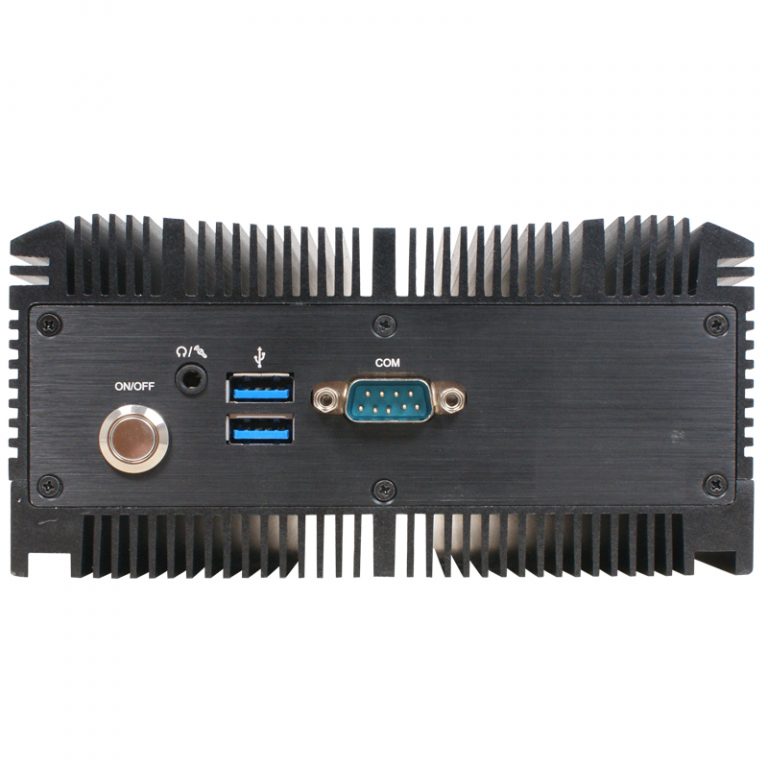

Front Panel I/O | – 1 * audio jack (Line out +MIC) – 2 * USB3.2 (Gen2) – 1 * RS232/422/485 – 1 * Power Button | |
Internal Connector | – 1 * M.2 (M-Key, SATA Interface) – 1 * M.2 (E-Key) for CNVi or PCI-E/USB Wi-Fi/BT – 8bit GPIO – 2 * USB2.0 | |
Power Source | – 12V DC-in – Adapter: DC 19V/6.32A 120W | |
Compliance | – CE, FCC, RoHS, ErP Ready (Option) | |
Temperature | – Operating Temperature: -10 ~ 50° C – Storage Temperature: -20 ~ 60° C | |
Dimensions | – 150 (W) x 106 (D) x 75 (H) mm | |
OS Support | – Windows 10, Linux | |
Warranty | – 2 Year limited warranty | |
* Specifications are subject to change without notice. We are not responsible for typographical errors. HDD and OS are not included.
