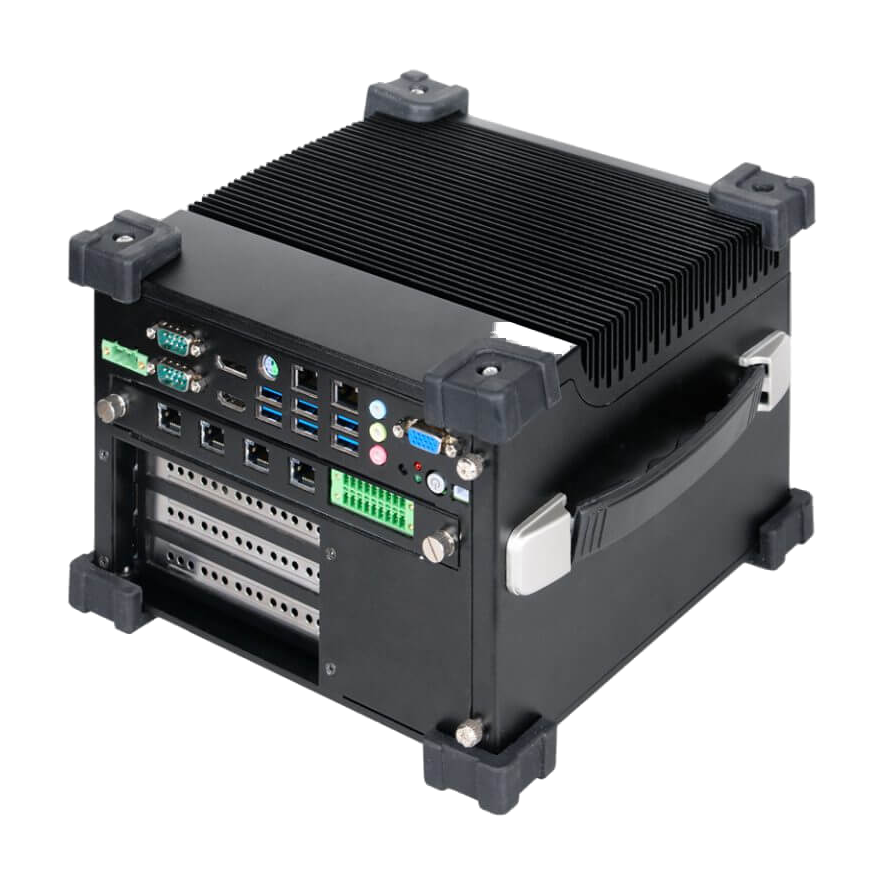

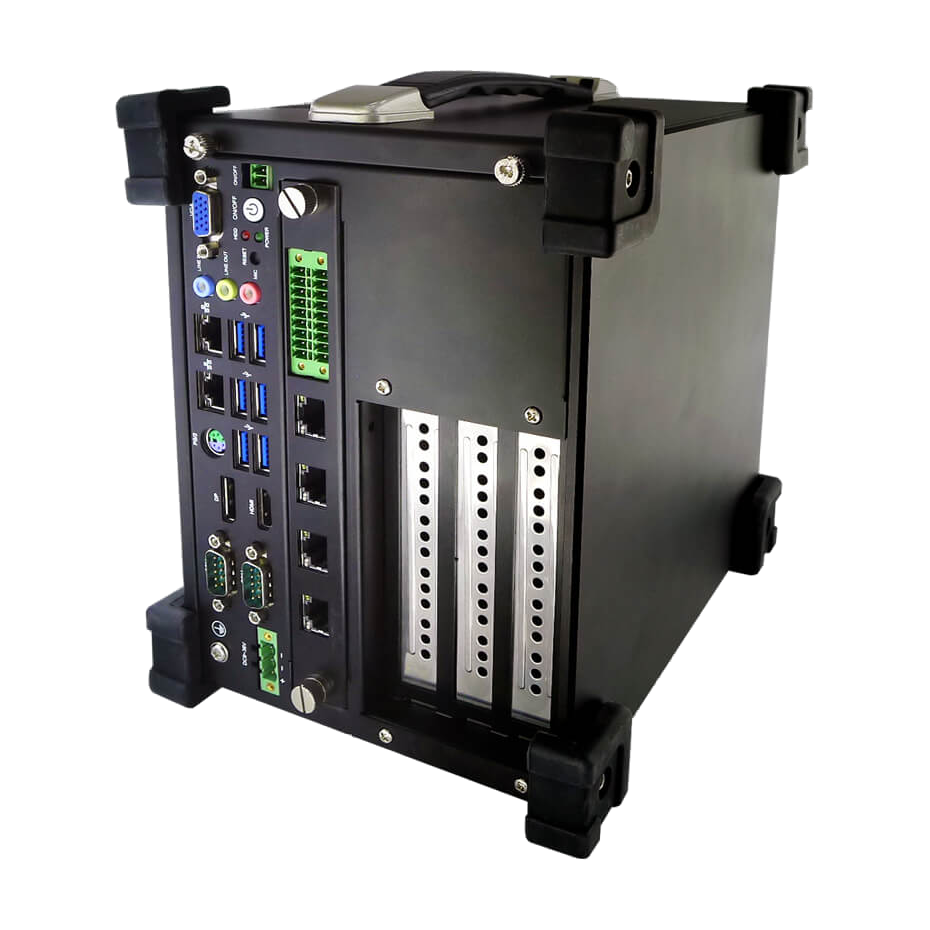

Jetway HM-1400 (Intel® SkyLake H110)
HM-1400
Intel® H110 chipset, LGA1151 processor, 1* PCI-E expansion slot, 2* PCI slots, 1* extension slot and 1* Mini PCIe slot
- Intel® LGA 1151 Socket for Core i7/i5/i3 Processor (Max 54W)
- Support 2*DDR4 2133/1866 SO-DIMM (Max 32GB)
- 2 x Intel® 10/100/1000Base-T Ethernet (i219LM +i211AT)
- 2 x RS-232/422/485 ports with automatic flow control
- VGA, HDMI and DP support for 3 x independent displays
- 6 x USB3.0, 1 x PCI-E x16 slot, 2 x PCI slots, 1 x extension slot
- The extension slot can be used to add 14 x USB3.0, 4 x GbE or other functional interfaces
- Thumbscrew for easy maintenance and expansion card installation
- The wired switch facilitates on-site operation
- Intel® vPro support (depending on CPU)
- The 9~36V wide input voltage range meets the needs of different industries
The HM-1400 system is designed with a wide 9 ~ 36V voltage range and overvoltage and overcurrent protection. It supports up to 32g of memory through 2*SO-DIMM DDR4 2133 memory modules. It also supports the simultaneous connection of 3 displays and includes a front switch function.
The HM-1400 system has a durable aluminum structure with a thickness of 5 mm, providing strength, stability, and an attractive appearance. Its fanless and wireless design, together with the battery fastening assembly, increases system stability.
To meet varying customer requirements, the HM-1400 system offers a range of expansion and extension options. Jetway can design expansion cards based on specific customer needs. The standard interface includes 1*PCI-E x16 + PCI slots, and additional extension daughterboards can be supplied upon request. For example, a daughterboard with 5*PCI Slots is available. To support a watchdog function, a vertical USB interface is provided inside the extension card.
Finally, the HM-1400 system heat sink is equipped with protective covers on both sides, ensuring safe operation without the risk of burns. With its strong performance and safe design, we believe you will be impressed by the HM-1400 system!

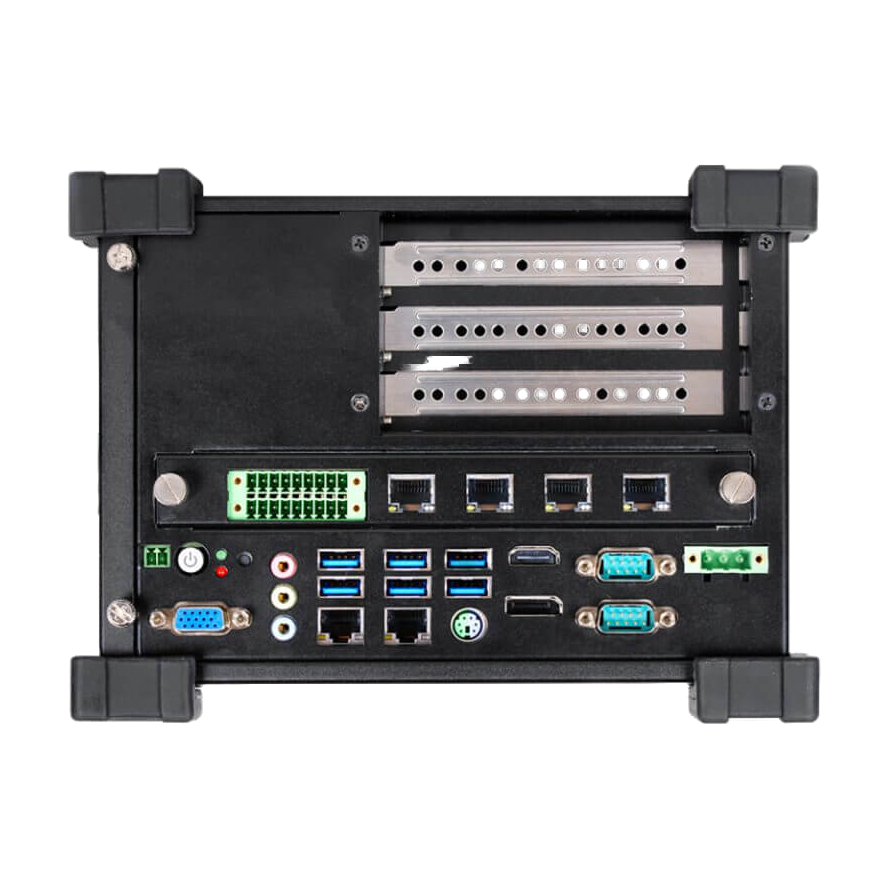

I/O
Dimensions
Model No. | – HM-1300 | – HM-1400 |
Part No. | – HM-1300 | – HM-1400 |
General | |
Certification | – FCC, CE, ROHS |
Dimensions (W x D x H) | – 212x150x220mm (W x D x H) |
Mounting | – Stand mount, enclosure mount |
Weight (net) | – 6.4Kg |
Power Requirements | – 9~36VDC |
Power Consumption | – Varies depending on CPU |
OS Support | – Windows 7/8.1/10, Linux |
Hardware | |
BIOS | – AMI 128Mbit Flash BIOS |
CPU | – Intel® LGA 1151 Socket for Core i7/i5/i3 Processor (Max 54W) |
System Chipset | – Intel® SkyLake Q170 (HM-1300) |
Memory | – 2* SO-DIMM DDR4 2133 DRAM (Max 32GB) |
Graphics | – Intel® HD Graphics 530 (depending on CPU) |
Ethernet | – 1* Intel® i219LM + i211AT GbE |
Storage | – 1* built-in bracket for 2.5” SATA HDD |
Expansion | – 1* full-size Mini PCI-e |
Extension | – 1* extension card |
I/O Interface | |
Power Connector | – 1* 3-pin terminal block with lock |
| Serial Port | – 2* RS-232/422/485 with DB9 connectors and automatic RS-485 data flow control |
Display | – 1* VGA, supports 1920×1080@60Hz |
| LAN Port | – 2* RJ45, 10/100/1000 Mbps |
| PS/2 Port | – 1* PS/2 keyboard & mouse port |
USB Port | – 6* USB3.0 |
| Audio | – MIC, Line-in, Line-out |
| Power Button | – 1* power button |
Reset Button | – 1* Reset Button |
LED | – 1* power LED, 1 x HDD LED |
Front Power Button | – 1* 2Pin power connector |
Environment | |
Temperature | – Operating：-10 ~ 60°C |
Relative Humidity | – 10 ~ 90% RH, non-condensing |
Vibration Protection | – Operating, IEC 60068-2-64-2008 |
Shock Protection | – Operating, EN 50155: 2017 |
CE Protection | – EN 55032 : 2015 |
Warranty | |
Warranty | -2 Years Limited Warranty |
* Specifications are subject to change without notice. We are not responsible for typographical errors. HDD and OS are not included.
