Jetway HM-5004S (Whiskey Lake i5-8265U, 6* GLAN, 12-36V)
HM-5004S
DIN-rail PC with Intel® Whisky Lake I5-8265U, 6* PoE and GPIO
- Intel 8th/10th Gen. Core i U-Series CPU
- 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB)
- 2* RS232/422/485, 6* GbE
- 16-bit GPIO
- Support for a 4G/5G module (M.2 B Key + Nano SIM Holder) and a Wi-Fi6 module (M.2 E Key)
- 12~36V DC input with OCP/OVP
- Remote Power Switch Design

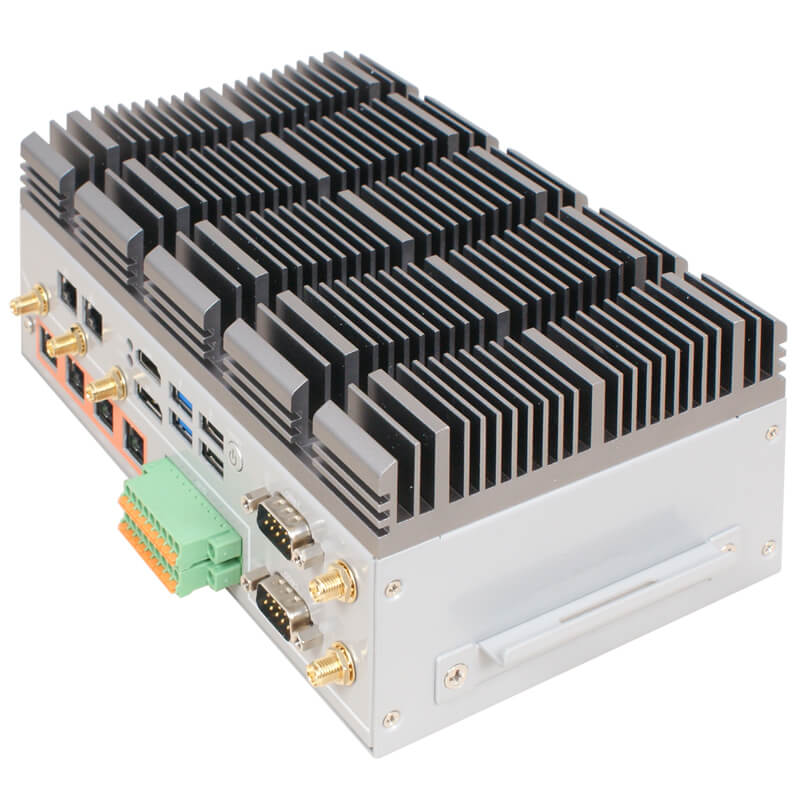

The HM-5000S series fanless system features the processing power of Intel 8th/10th Gen. Core I processors, extensive IO and an excellent heat-dissipation solution. The HM-5000S series supports 12~36V power, over-voltage & over-current protection and a remote power switch via a terminal-block connection.
The HM-5000S provides extensive internal IO options: dual-channel SODIMM, M.2 M Key with NVMe SSD support, M.2 E Key for Wi-Fi6 module installation and M.2 B Key for 4G/5G module connectivity, all in a compact form factor.
Model | – HM-5004S (Default) |
General | |
Certification | – FCC, CE, ROHS |
Dimensions | – 216.8 x 124 x 86mm (W x D x H) |

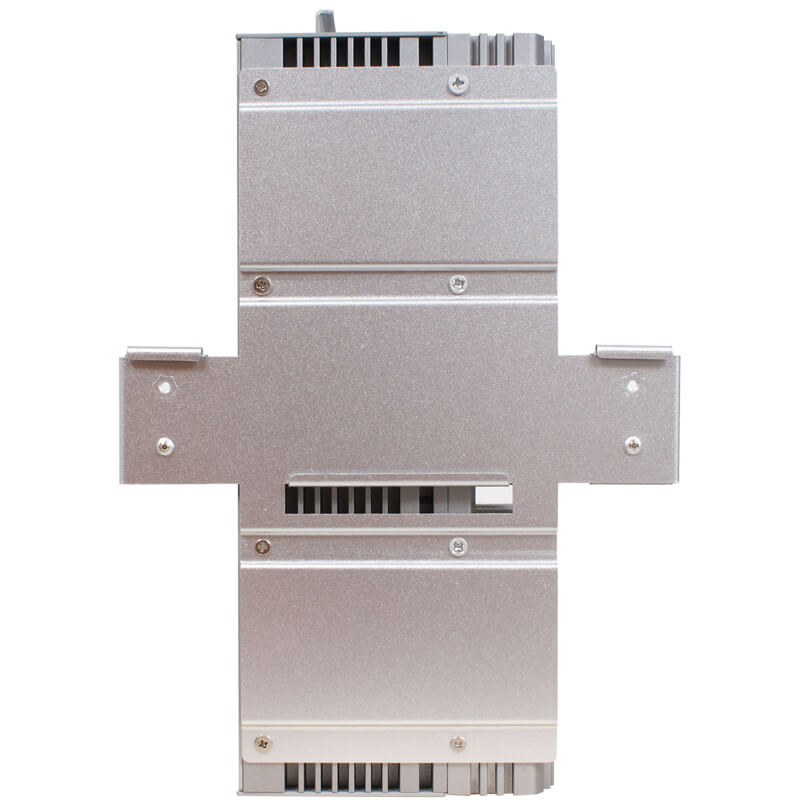

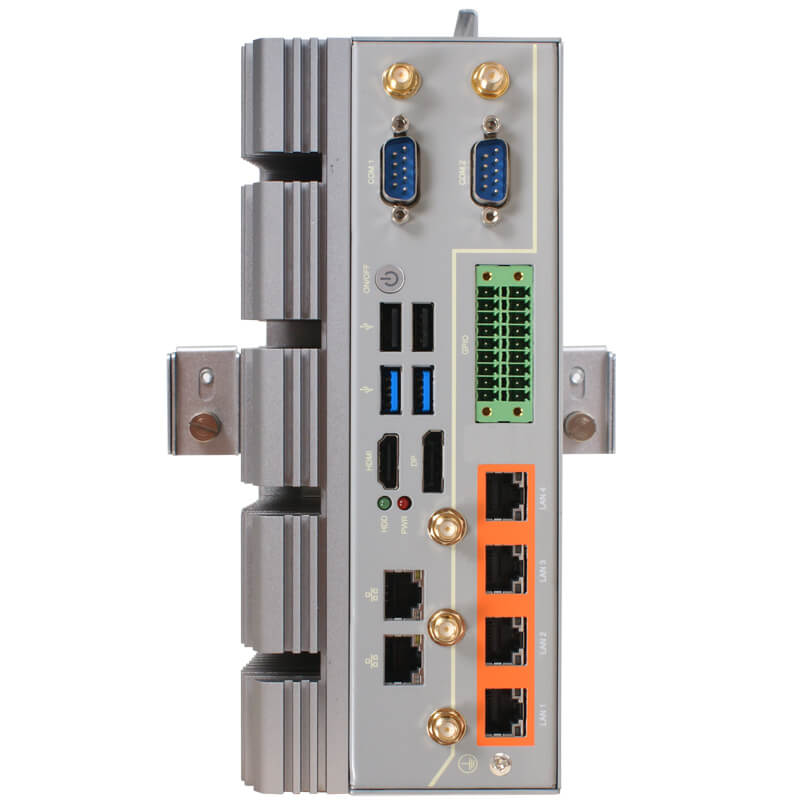

Mounting | – Wall mounting, DIN rail mounting |
Power Requirements | – 12 ~ 36VDC |
Power Consumption | – Varies according to the CPU |
OS Support | – Windows 10/11, Linux |
Hardware | |
BIOS | – AMI 128Mbit Flash BIOS |
CPU | – HM-5004S (8265U, Default): Intel® Whiskey Lake Mobile U i5-8265U |
Memory | – 2* SO-DIMM DDR4 2400/2133 Dram (Max 64GB) |
Graphics | – Intel® UHD Graphics (by CPU) |
Ethernet | – 1* Intel® i219LM GbE |

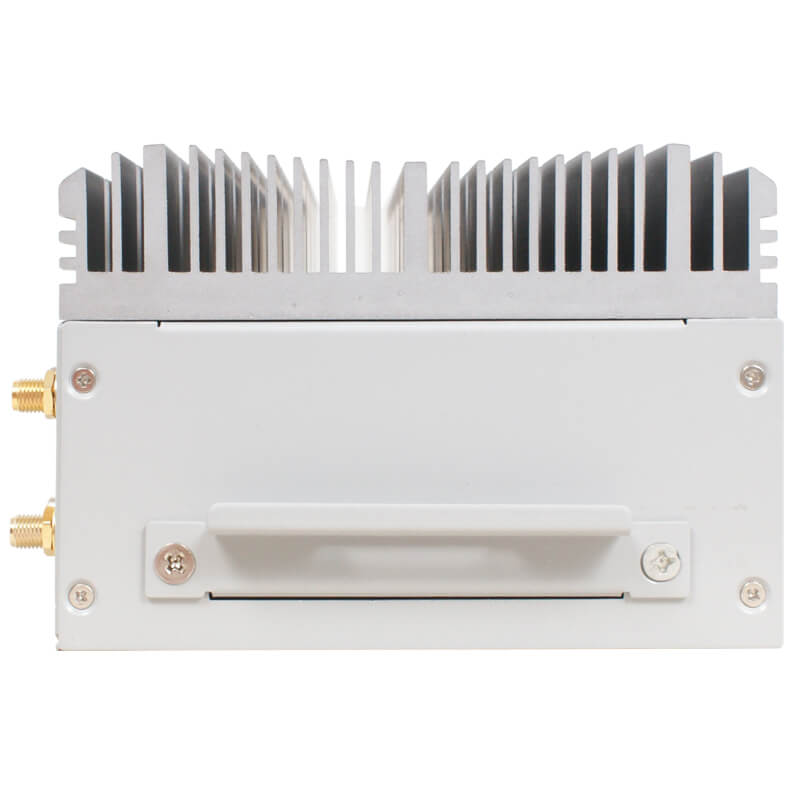

Storage | – 1* 2.5” external cold-swap SATA3 bay |
Expansion | – 1* M.2 E key (2230 size, CNVi interface for Wi-Fi/BT) |

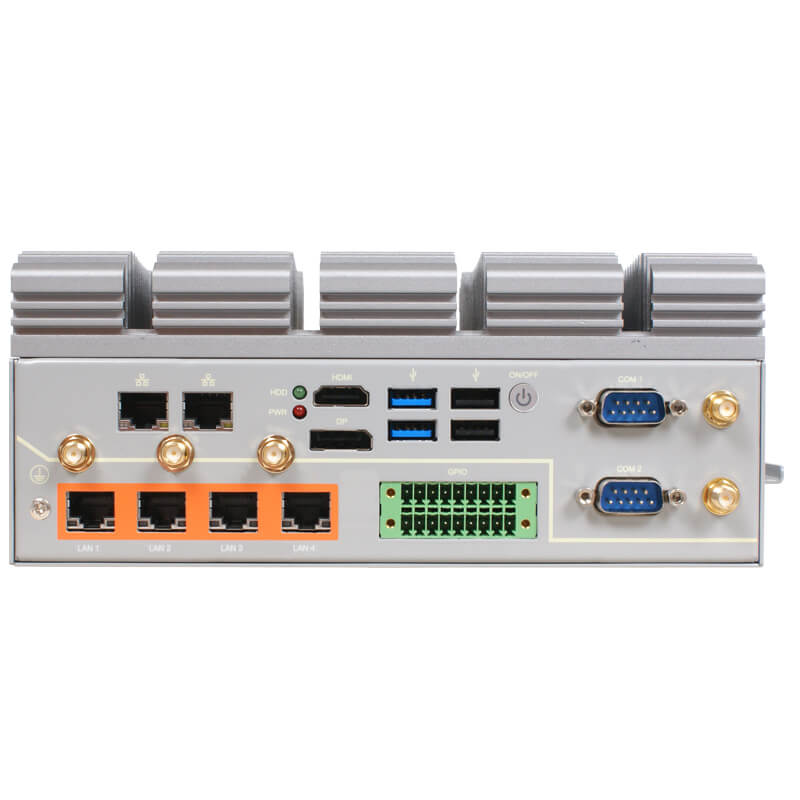

Front I/O Interface | |
Serial Port | – 2* RS-232/422/485 with DB9 connectors and automatic RS-485 data flow control |
Display | – 1* HDMI 1.4b, supports 4096 x 2304@30Hz |
LAN | – 6* RJ45, 10/100/1000 Mbps |
GPIO | – 16 bit GPIO (5V/12V) |
USB | – 2* USB3.0 |
LED | – 1* Power LED |
Power Button | – 1* power button (Power LED) |

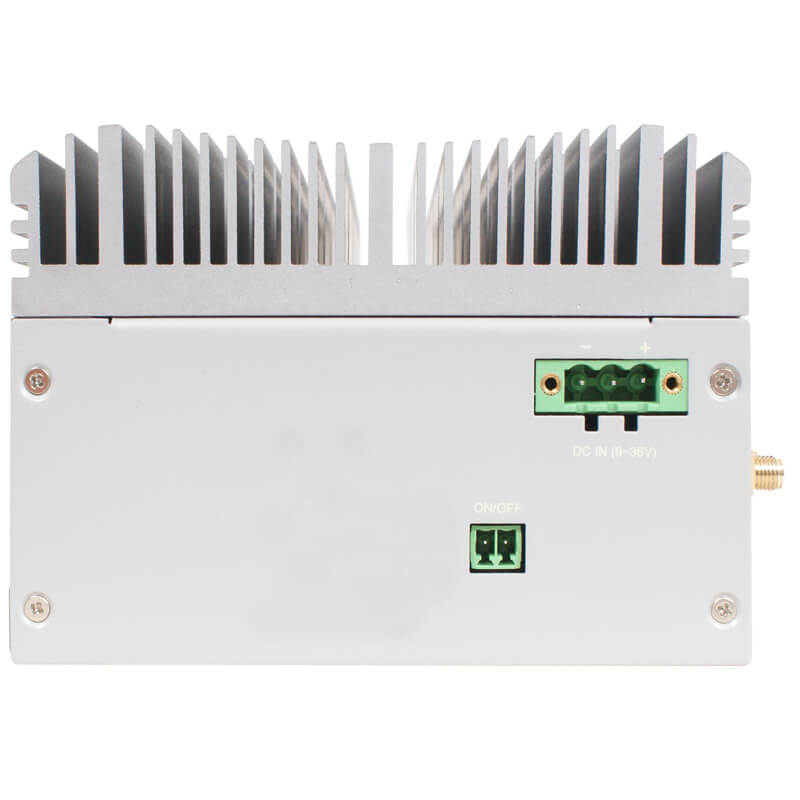

Side I/O Interface | |
Power Connector | – 1* 3-pin terminal block with lock for the main board |
Front Power Button | – 1* 2Pin connector for the remote power switch function |
Environment | |
Temperature | – Operating: -10 ~ 50°C |
Relative Humidity | – 10 ~ 90% RH, non-condensing |
CE/LVD/FCC Compliance | – EN 55032 : 2015 |
Warranty | |
Warranty | – 2-year limited warranty |
* Specifications are subject to change without notice. We are not responsible for typographical errors. HDD and OS are not included.
