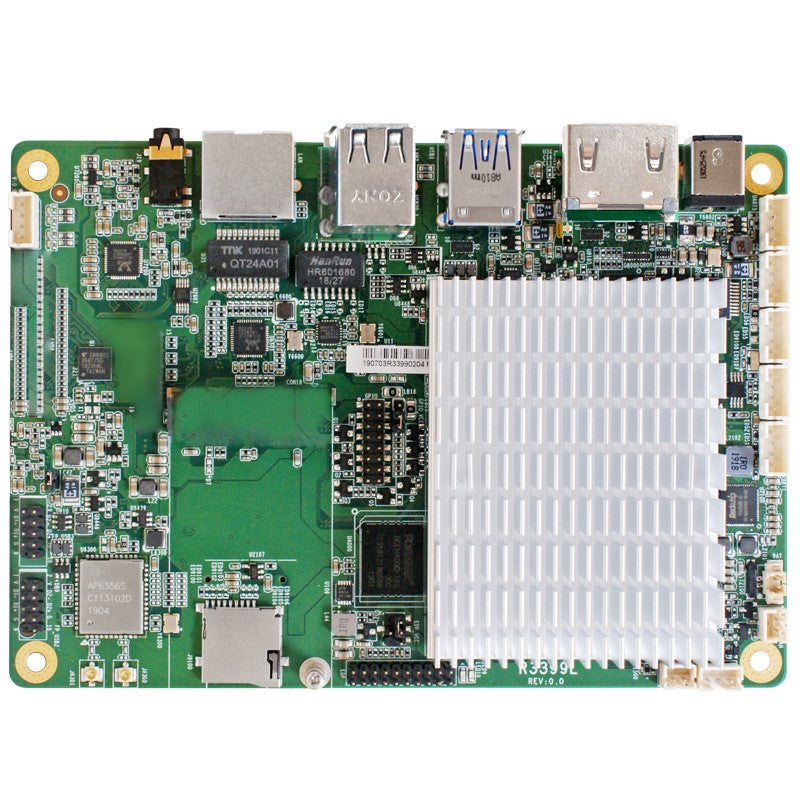

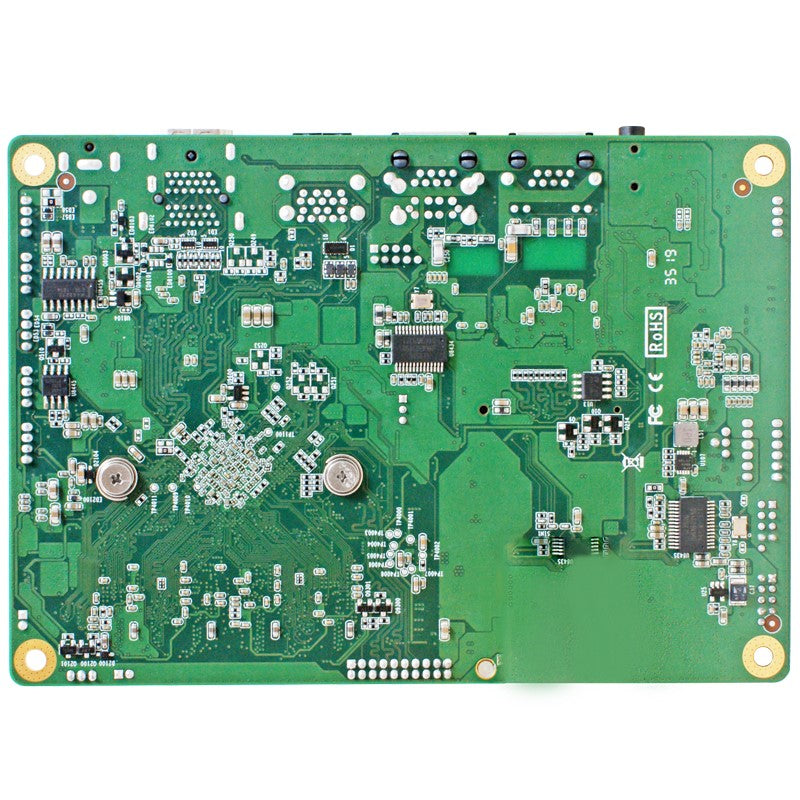

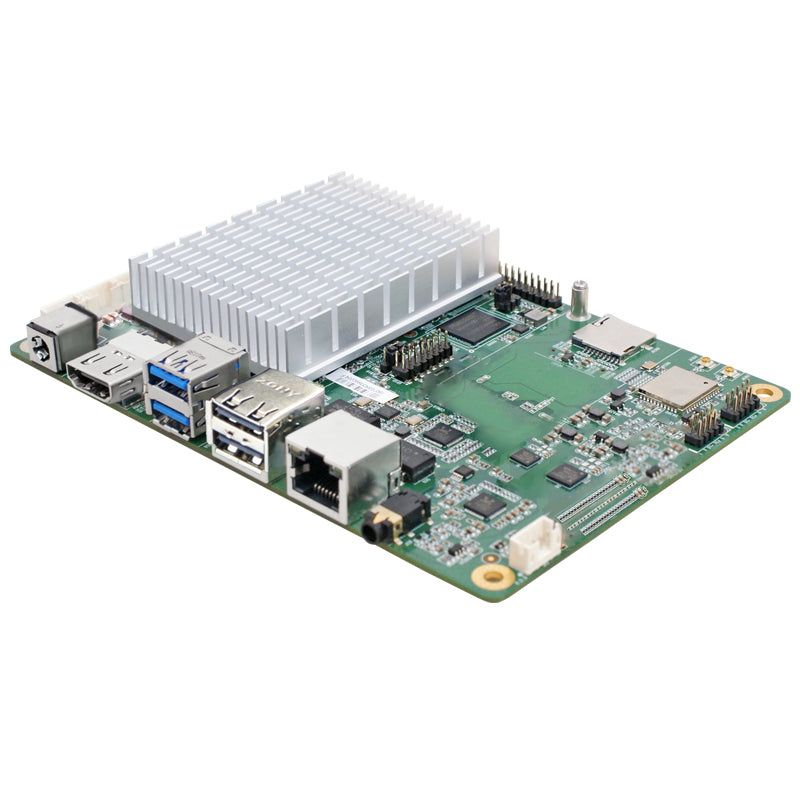

Jetway JR3399XL-2C (ARM Cortex A72+A53 RK3399, 1* RJ45)

Model

Model

– JR3399XL-2C

Part number

– JR3399XL-2C

 Form factor

Dimensions

– 102 * 146mm

 Processor system

Processor/CPU

– Rockchip® ARM Cortex A72 (Dual Core) + Cortex A53 (Quad Core) 2.0GHz
– Rockchip® RK808-D PMU

 Memory

DRAM

– Onboard DDR3L 1333MHz 2GB

 Expansion slot

Dimensions

– 1* Micro SD
– 1* SIM card socket

 Graphics

Graphics

– Mali T860MP4 GPU, OpenGL ES1.1/2.0/3.0, OpenCL1.2, DirectX11.1
– 1* HDMI (max. resolution: 3840×2160@60Hz)
– 1* eDP (max. resolution: 4096×2304@60Hz)
– Supports dual displays

 Ethernet

Ethernet

– 1* Realtek RTL8211E GbE

Wifi

– 1* AMPAK AP6356S 802.11 a/b/g/n/ac 2.4/5G WIFI and BT-V4.1

 Audio

Audio

– 2-channel HD audio: ALC5640

 Storage

Storage

– 16GB Flash ROM (max. 64GB)

 I/O ports

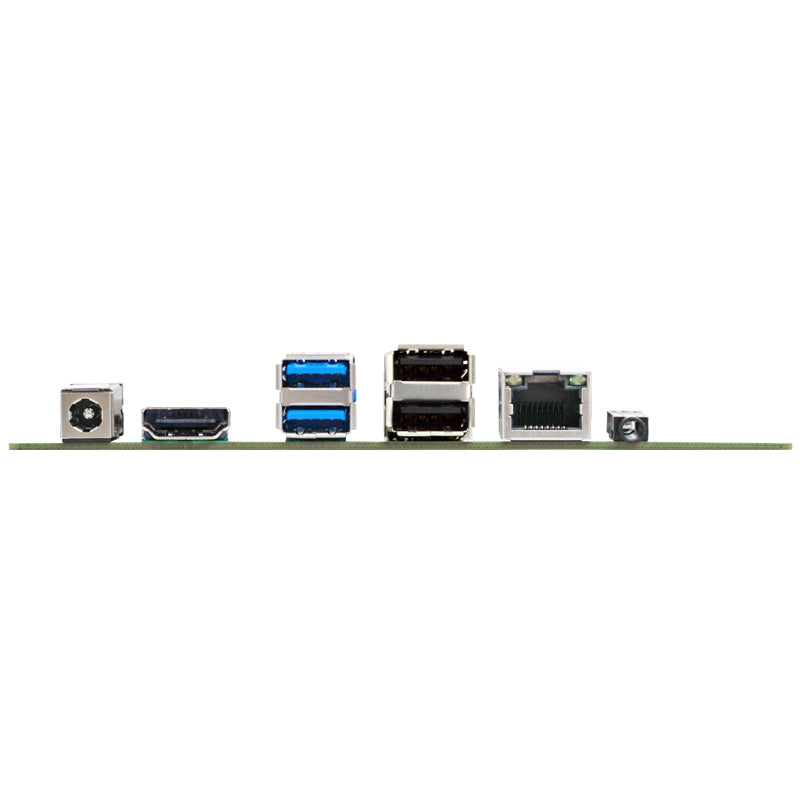

Rear I/O

– 1* DC jack (12V)
– 2* USB3.0 (Co-lay OTG)
– 2* USB2.0
– 1* HDMI2.0
– 1* AUDIO(Line-out +MIC)
– 1* RJ45

Internal I/O

– 4* USB2.0
– 3* UART, 1* RS232, 1* Debug
– 1* eDP
– 1* speaker (3W AMP)
– 1* GPIO (8 bit)
– 1* I2C
– 1* power button (header)
– 1* reset button (header)
– 1* CPU FAN (header)

 Watchdog timer

Watchdog timer

– From Super I/O to trigger RESETCON#
– 256 segments (0~255 sec)

 Power

Power

12V DC-in (PWR Con)
– AT: Direct PWR-on when power input is ready
– ATX: Press the button to power on after the power input is ready

 Compliance

Certifications

– CE, FCC, LVD, RoHS, REACH

 Environment

Temperature

– Operating: -10°C ~ 60°C

– Storage: -20°C ~ 70°C

 Warranty

Warranty

– 2-year limited warranty
