Switch PoE JRL116MP-2F-M (16* 10/100 BaseTx)

Chip

– LAN chip: IC+
– Power chip: Maxim

Dimensions

– 440 * 200 * 44 mm

Safety

– CE, FCC, ROHS

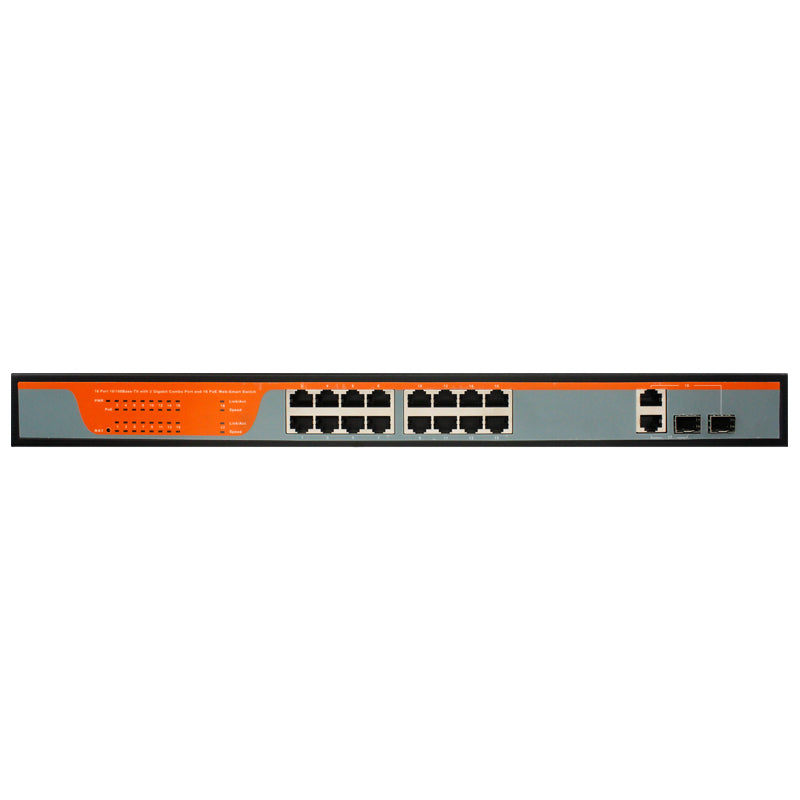

I/O ports

– 16 * 10/100BaseT(X)
– 2 * auto-switching Gigabit ports
– LED: power, PoE, port speed, port connection

Management

– Supports a WEB interface and SNMP v1 / v2 / v3

Standards and protocols

– IEEE802.3 10Base-T Ethernet standard; IEEE802.3u 100Base-TX Fast Ethernet standard
– IEEE802.3x full-duplex flow control and backpressure half-duplex flow control; IEEE802.3AB 1000Base-T Ethernet standard
– IEEE802.3z Gigabit Ethernet (optical)
– IEEE802.3x full-duplex flow control and backpressure half-duplex flow control
– IEEE802.3ab link aggregation

Network interface/cabling specifications

– 10BASE-T: Category 3 or higher unshielded/shielded twisted pair (≤100 m)
– 100BASE-TX: Category 5 or higher unshielded/shielded twisted pair (≤ 100 m)
– 1000BASE-T: Category 5 or higher unshielded/shielded twisted pair (≤100 m)

PoE support

– PoE standard: IEEE802.3af, IEEE802.3at; each port provides 15.4W, with a maximum of 30W
– Pin definition: V + (RJ45 pins 1, 2), V- (RJ45 pins 3, 6)
– PoE management: supports port-based PoE status display and PoE switch control

Power input/Consumption

– AC 90~240V input
– Built-in 270W open-frame power supply

Operating temperature

– 0°C ~ +40°C

Cooling method

– Silent fan (4020)

MTBF

– 100,000 HR

Warranty

– 3 years
