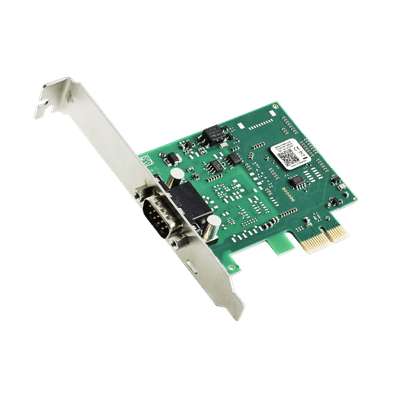

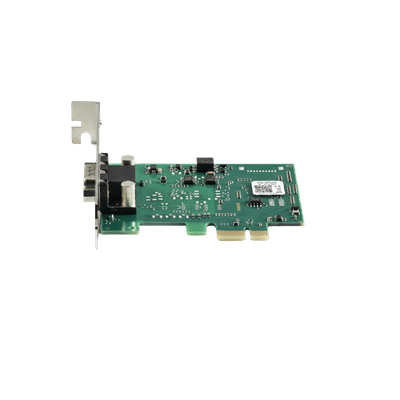

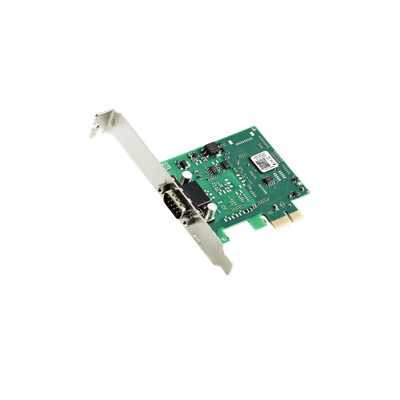

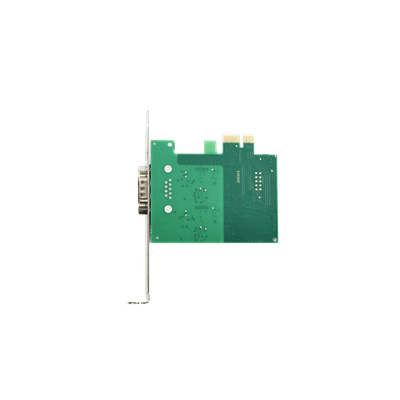

Kvaser PCIEcan 1xCAN v3

Kvaser PCIEcan 1xCAN v3

Real-time CAN interface with a single CAN/CAN FD channel

The Kvaser PCIEcan 1xCAN v3 is a compact, advanced real-time CAN interface that manages the transmission and reception of standard and extended CAN messages with high timestamp accuracy. It is compatible with applications that use Kvaser's CANlib.

• PCI Express CAN interface
• Supports CAN FD, up to 8 Mbit/s
• Quick and easy plug-and-play installation
• Supports 11-bit identifiers (CAN 2.0A) and 29-bit identifiers (active CAN 2.0B)
• 100% compatible with applications written for other Kvaser CAN hardware using Kvaser CANlib
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
• Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet
• Suporte para SocketCAN
• Supports silent mode for analysis tools — monitor the bus without interfering
• Supports the simultaneous use of multiple Kvaser interfaces
• Low-profile board, including low- and high-profile brackets

Warranty

2-year warranty. See our General Terms and Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year warranty extension.

Support

Free technical support for all available products by contacting support@kvaser.com

Software

• Documentation, software and drivers can be downloaded free of charge at kvaser.com/downloads
• The Kvaser CANLIB SDK is a free resource that includes everything required to develop software for Kvaser CAN interfaces
• Includes comprehensive documentation and numerous program examples written in C, C++, C#, Delphi and Visual Basic
• All Kvaser CAN interface boards share a common software API
• Programs written for one interface type will work on other interface types without modification
• J2534 Application Programming Interface available
• RP1210A Application Programming Interface available
• Online documentation in Windows HTML-Help and Adobe Acrobat formats
