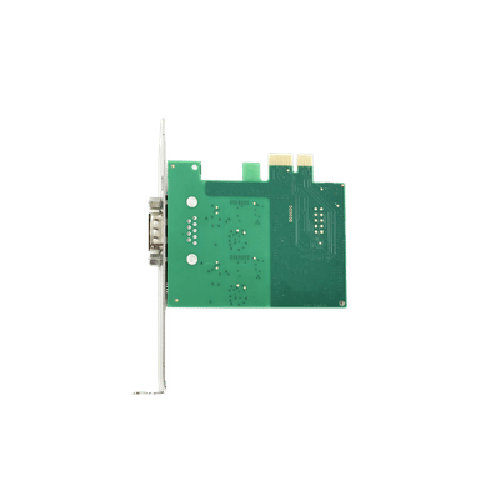

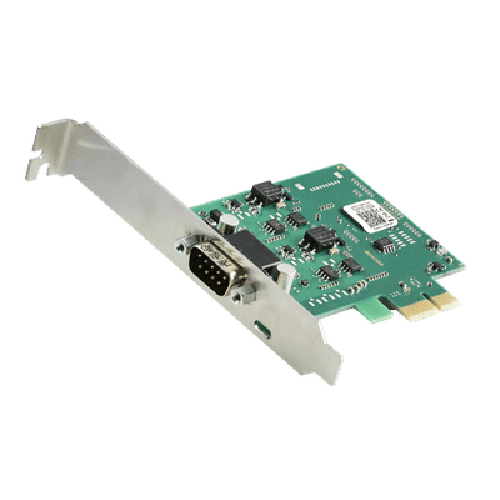

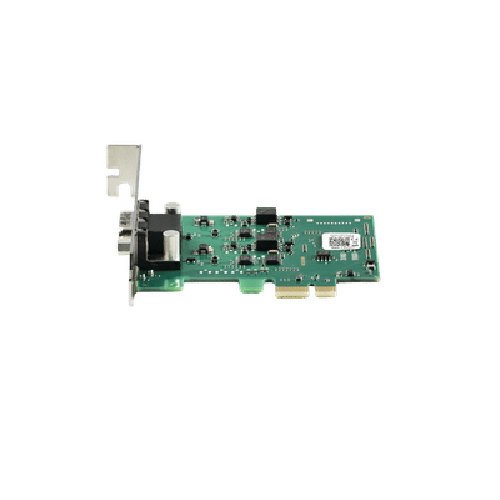

Kvaser PCIEcan 2xCAN v3

Kvaser PCIEcan 2xCAN v3

Real-time multichannel CAN interface with two CAN/CAN FD channels.

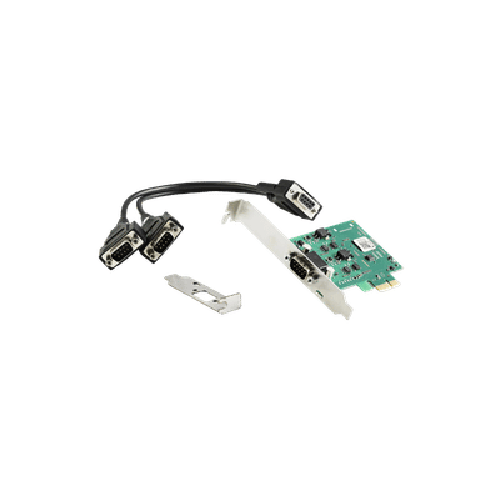

The Kvaser PCIEcan 2xCAN v3 is an advanced, compact multichannel CAN interface that enables the transmission and reception of standard and extended CAN messages with high timestamp accuracy. It is compatible with applications using Kvaser's CANlib and includes both low-profile and high-profile brackets, together with a 2-channel breakout cable.

• PCI Express CAN interface
• Supports CAN FD, up to 8 Mbit/s
• Quick and easy plug-and-play installation
• Supports 11-bit identifiers (CAN 2.0A) and 29-bit identifiers (active CAN 2.0B)
• 100% compatible with applications written for other Kvaser CAN hardware using Kvaser CANlib
• High-speed CAN connection (compliant with ISO 11898-2), up to 1 Mbit/s
• Fully compatible with J1939, CANopen, NMEA 2000® and DeviceNet
• Suporte para SocketCAN
• Supports silent mode for analysis tools — monitor the bus without interfering
• Supports the simultaneous use of multiple Kvaser interfaces
• Low-profile board, including low- and high-profile brackets

Warranty

2-year warranty. See our General Terms and Conditions and Policies for details. Register your product at kvaser.com/getting-started for an additional 1-year warranty extension.

Support

Free technical support for all available products by contacting support@kvaser.com

Software

• Documentation, software and drivers can be downloaded free of charge at kvaser.com/downloads
• The Kvaser CANLIB SDK is a free resource that includes everything required to develop software for Kvaser CAN interfaces
• Includes comprehensive documentation and numerous program examples written in C, C++, C#, Delphi and Visual Basic
• All Kvaser CAN interface boards share a common software API
• Programs written for one interface type will work on other interface types without modification
• J2534 Application Programming Interface available
• RP1210A Application Programming Interface available
• Online documentation in Windows HTML-Help and Adobe Acrobat formats
