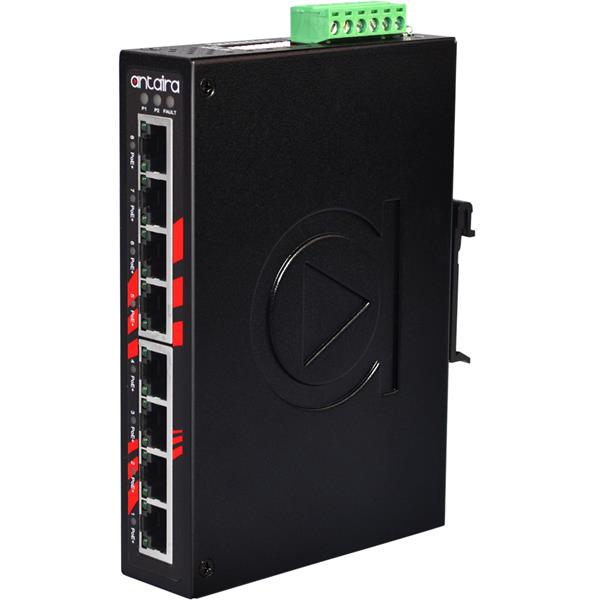

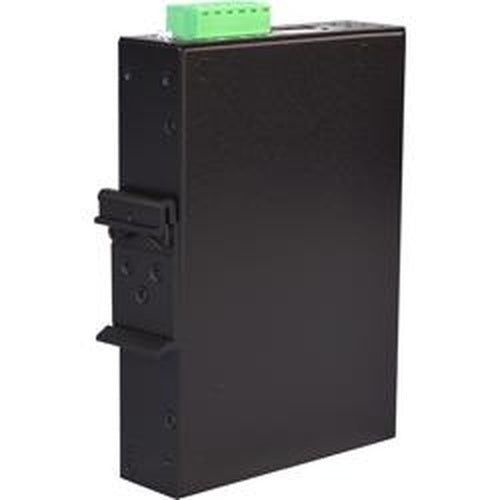

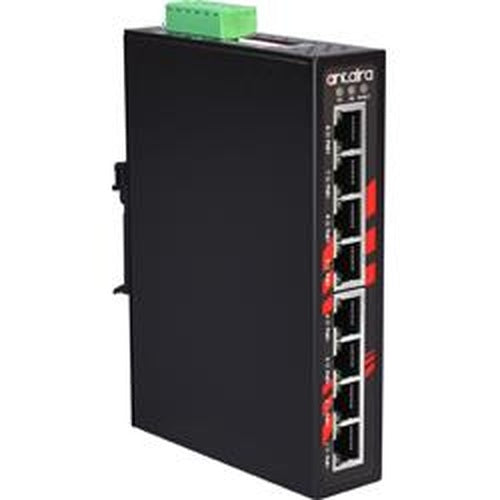

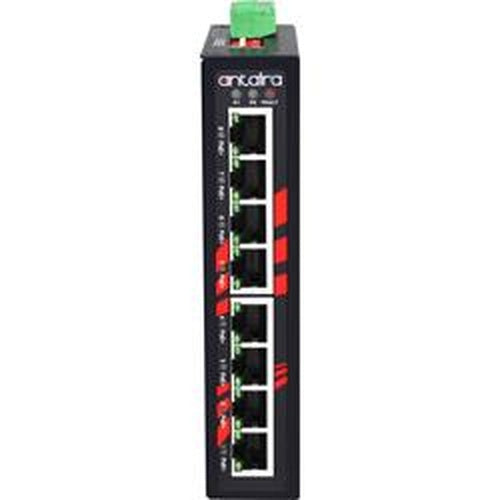

Switch LNP-0800 (8* 10/100Tx ports, 30W per port)
Antaira's LNP-0500 is an intelligent 5-port unmanaged industrial Ethernet switch compatible with IEEE-802.3at (Power-over-Ethernet Plus) on ports 1 through 4. It can also be used as power sourcing equipment (PSE); in this configuration, the LNP-0500 enables centralized power distribution and provides up to 30 watts per port. The LNP-0500 can power IEEE 802.3af- or IEEE 802.3at-compliant powered devices (PD), eliminating the need for an additional power supply. It supports IEEE 802.3 / 802.3u / 802.3x with 10 / 100BTx, full/half duplex operation and automatic MDI/MDI-X detection, providing a cost-effective solution for industrial Ethernet networks. In addition, network storm protection and the internal relay alert function notify network managers of power failures or port interruptions.
Included
- LNP-0500
- Mounting brackets
| EMI | FCC Class A |
| EMS | EN6100-4-2; EN6100-4-3; EN6100-4-4; EN6100-4-5; EN6100-4-6; EN6100-4-8 EN6100-6-2; EN6100-6-4 |
| Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3x |
| PROCESSING TYPE | Store-and-forward |
| Protocols | CSMA/CD |
| Switching Architecture | Back-Plane (Switching Fabric): 1.0Gbps Packet Throughput Capacity (Full-Duplex): 1.488Mpps @ 64bytes |
| Transfer Rate | 14,880pps per Ethernet port 148,800pps per Fast Ethernet port |
| MAC TABLE SIZE | 2K |
| Ethernet Port | 10/100BaseT(X) with auto-negotiation, full/half duplex mode and auto MDI/MDI-X connection 4*10/100 |
| PoE Pinout | V+, V+, V-, V-, on pins 1, 2, 3, 6 (Endspan, MDI-X Alternative A) |
| EFT | 3,000 VDC for the power line |
| ESD | 6,000 VDC for Ethernet |
| Input Voltage | 48~55VDC, redundant input |
| Overcurrent Protection | Slow-blow Fuse |
| Connector | 1 removable 4-contact terminal block |
| Reverse Polarity Protection | Yes |
| PoE Power Output | 25W @ 48VDC (per PoE port); 30W @ 51~55VDC (per PoE port) |
| Power Consumption | 110 Watts @ 48VDC; 130 Watts @ 51~55VDC |
| Housing | Metal, IP30 protection |
| Dimensions | 30 x 142 x 99 mm (1.18 x 5.59 x 3.90 in.) |
| Weight | Unit Weight: 1.1 lbs. Shipping Weight: 1.45 lbs |
| Mounting | DIN-Rail mounting, wall mounting (optional) |
| Operating Temperature | STD: -10° to 70° C (14° to 158° F) |
| Storage Temperature | -40°C ~ 85°C (-40°F ~ 185°F) |
| Humidity | 5 to 95% (non-condensing) |
| Free Fall | IEC60068-2-32 |
| Shock | IEC60068-2-27 |
| Green | RoHS Compliant |
| Certifications | FCC, CE, UL508 |
| Vibration | IEC60068-2-6 |
| Warranty | 5 Years |
