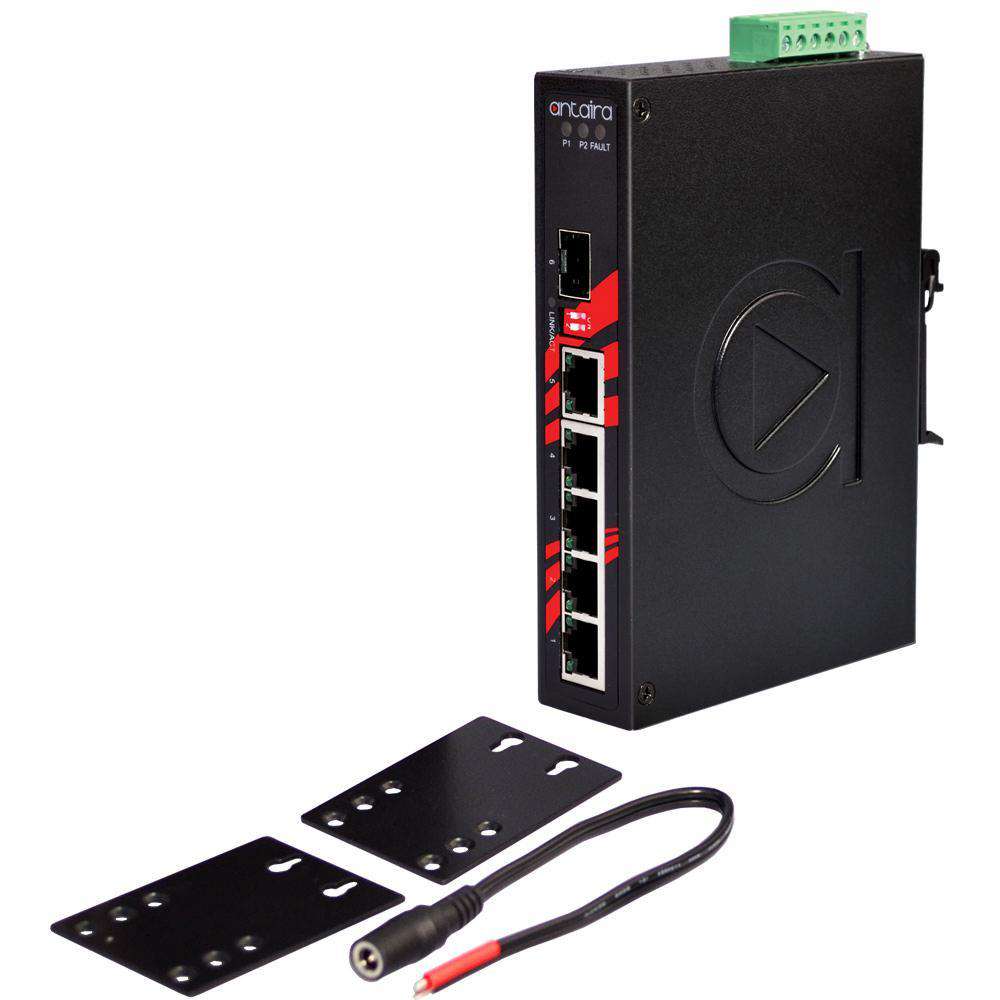

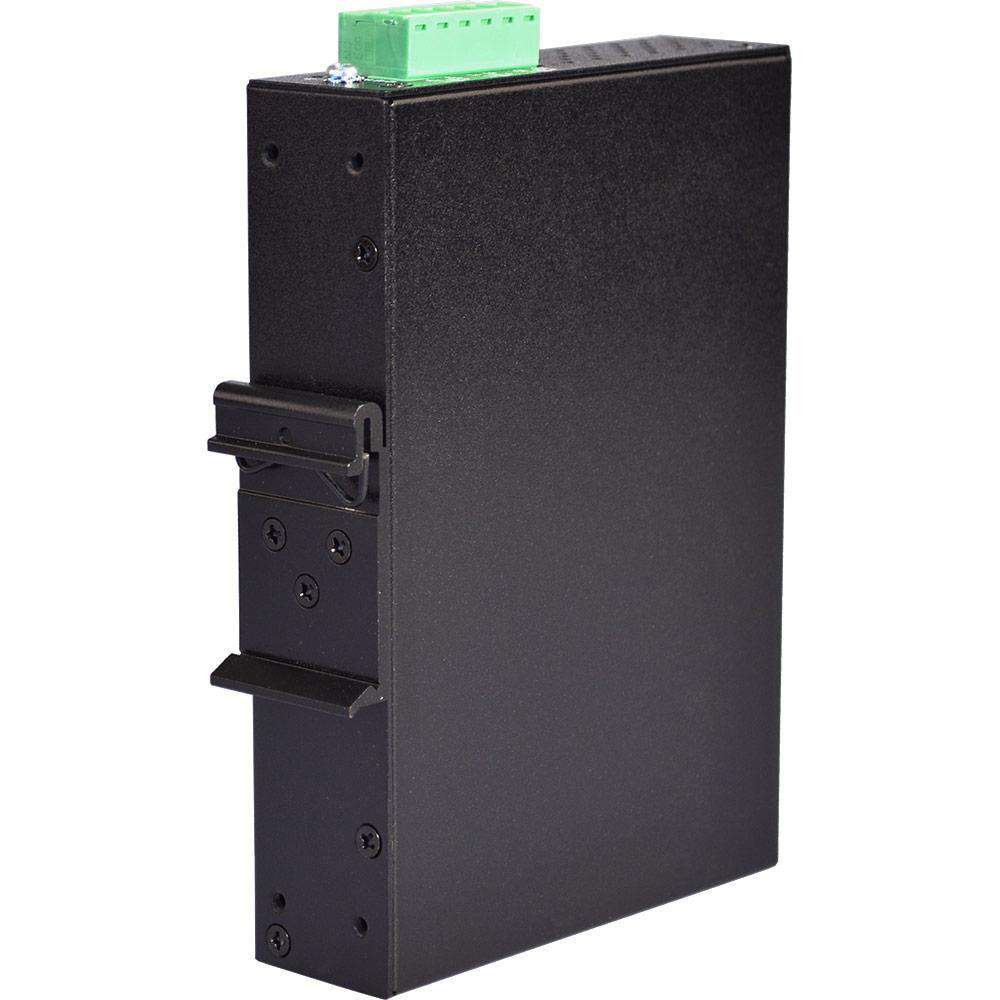

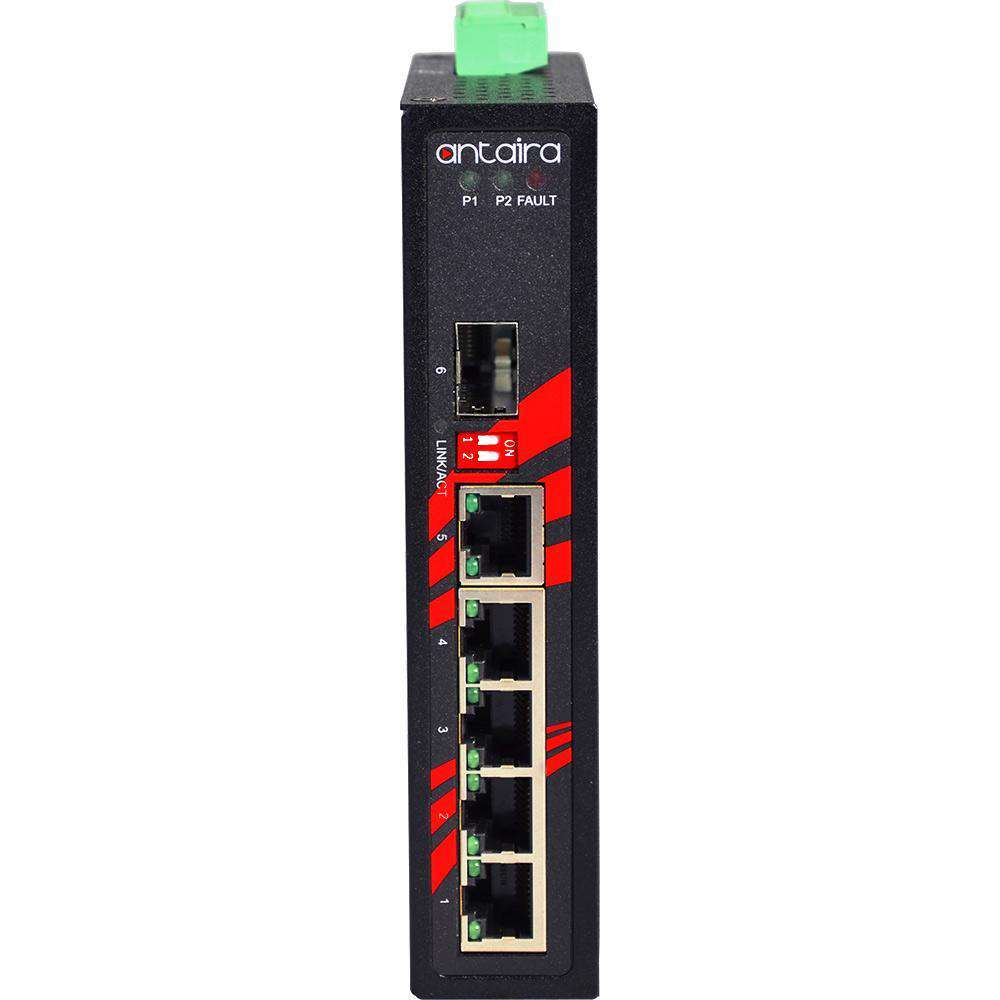

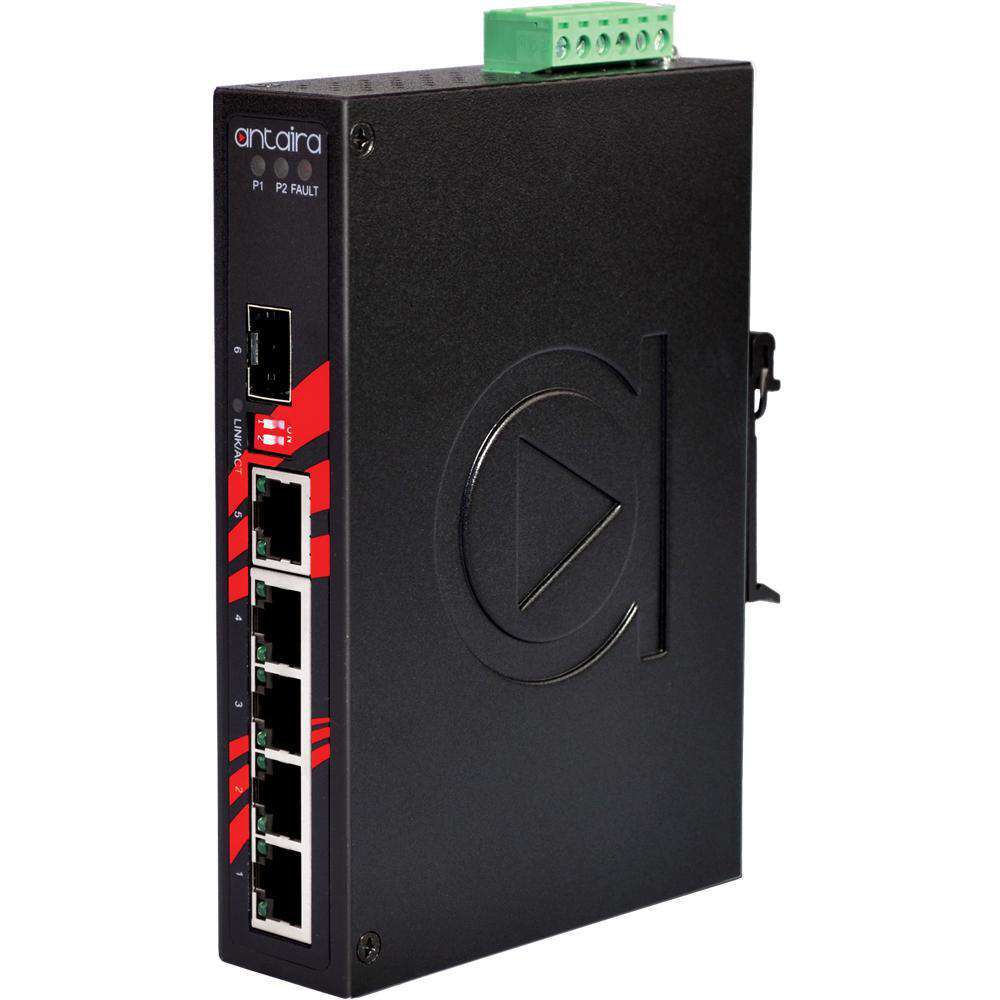

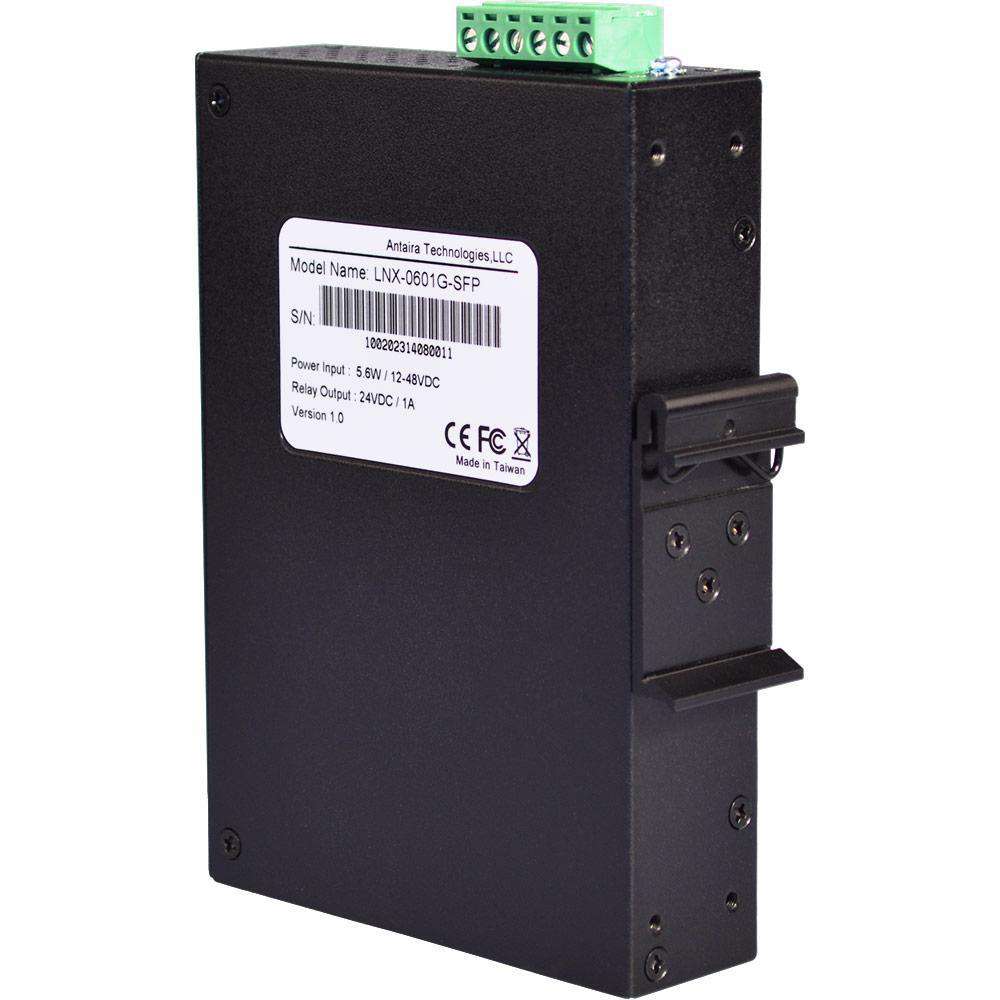

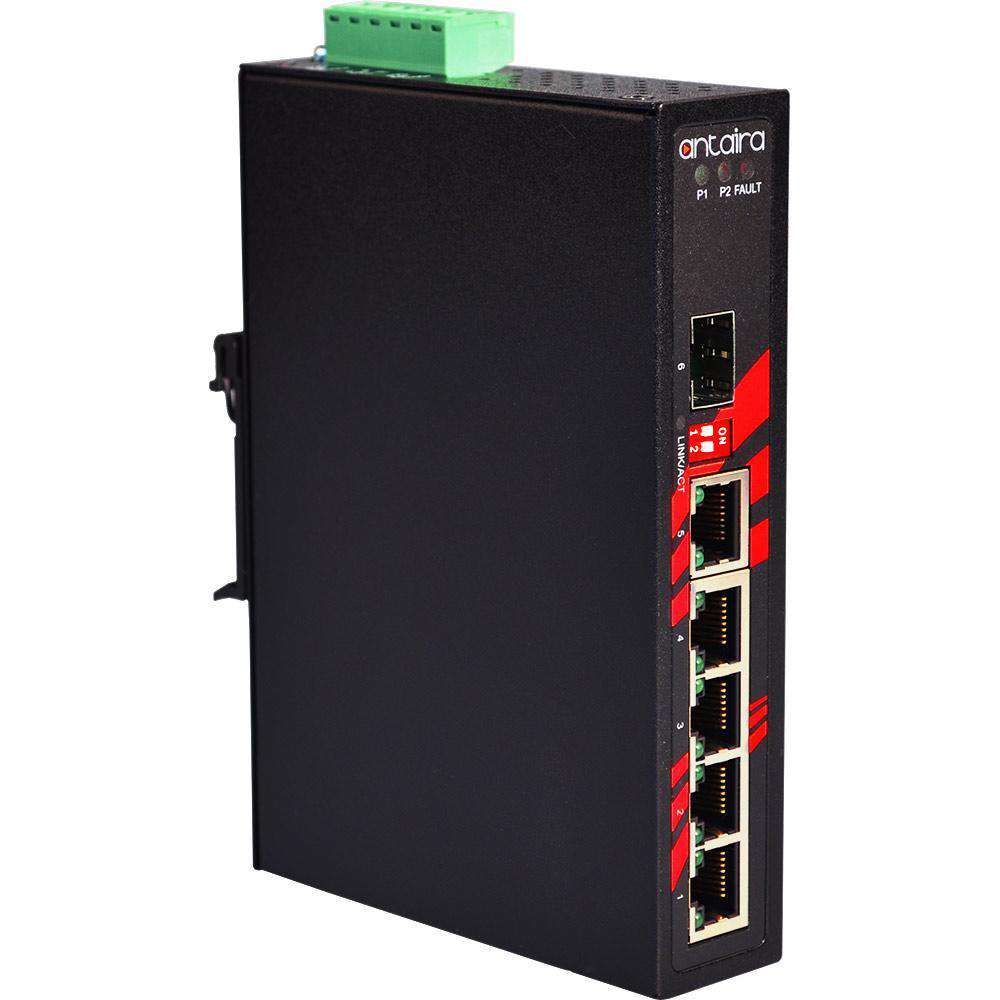

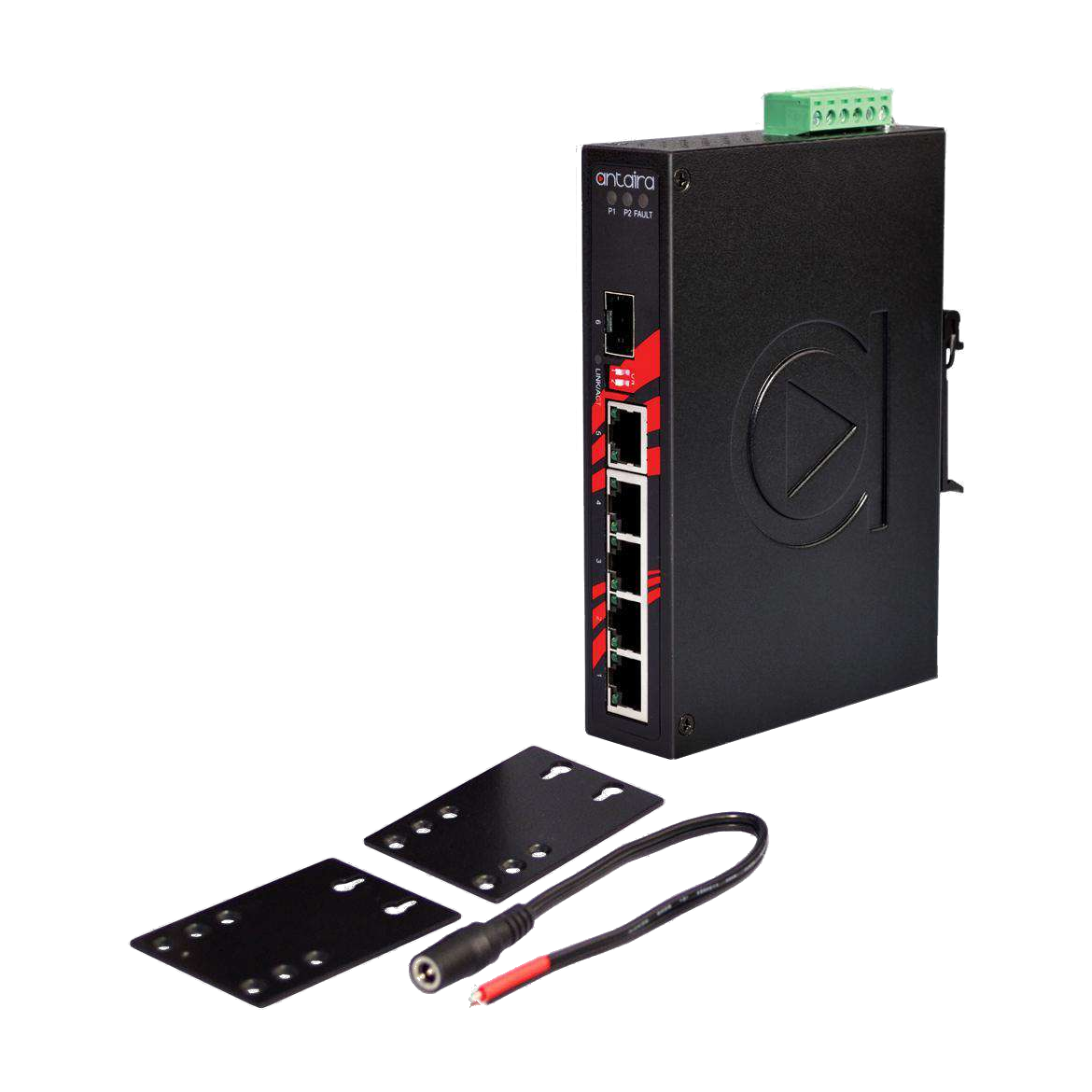

Switch LNX-0601G-SFP-T (5*10/100/1000Tx + 1* SFP)
LNX-0601G-SFP-T
Antaira’s LNX-0601G-SFP-T industrial Gigabit unmanaged Ethernet switch series is IP30 rated and DIN-Rail mountable. The unit is designed with five Gigabit Ethernet ports and one dual-rate (100/1000) SFP slot, making it ideal for applications that require high bandwidth and long-distance communication. The LNX-0601G-SFP-T series provides high EFT and ESD protection against unregulated voltage and is suitable for harsh environments. It supports power redundancy through a dual power input design with reverse-polarity protection.
In addition, the built-in relay warning function alerts maintenance personnel when power failures or port interruptions occur. The built-in advanced broadcast storm protection feature blocks any data packet that exceeds a defined limit when it reaches a port, until the rate decreases to a lower threshold.
The LNX-0601G-SFP-T has an extended operating temperature range of -40 to 75°C. It is specifically designed to meet the requirements of industrial automation, outdoor applications and harsh-weather environments.
- 5-Port 10/100/1000 Tx Fast Ethernet &1-Port SFP
- Supports Auto MDI/MDI-X Function
- Supports Auto MDI/MDI-X function
- Store-and-Forward switching architecture
- 8K MAC address table
- 10Kbytes Jumbo Frame support
- Surge (EFT) protection support
- Ethernet ESD protection support
- Redundant power input design: 12~48 VDC
- Built-in 1 relay output for port interruption alarm
- IP30 Rugged Aluminum Case Design
- DIN-rail and wall-mount support
- 5-Year Warranty
- Operating temperature range — EOT: -40° to 75 °C
