Switch LNX-1600G (16* 10/100/1000 BaseTx)
Price excludes VAT
766.83€
Sale price
Price excludes VAT
766.83€
Regular price
Total with VAT (23%): 943.20€
Shipping calculated at checkout.

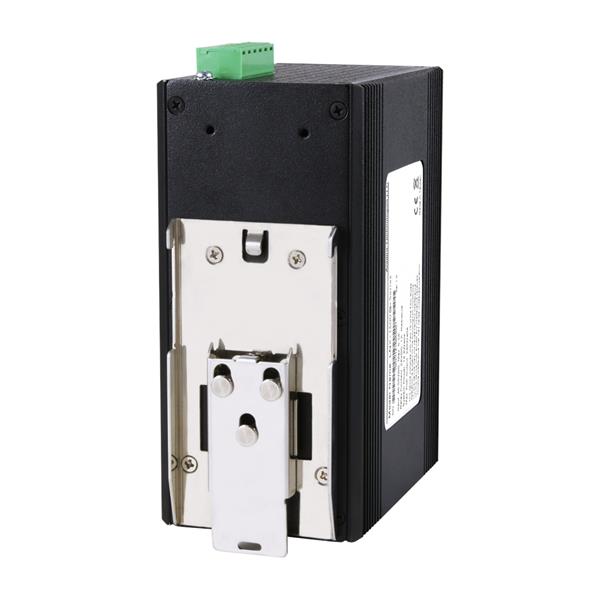

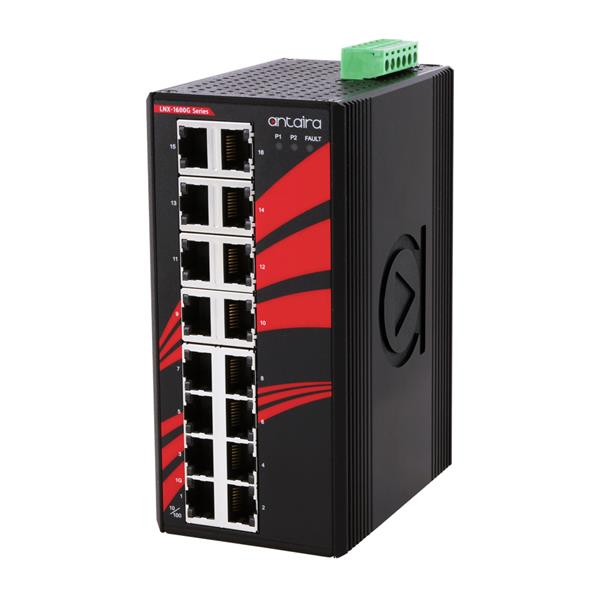

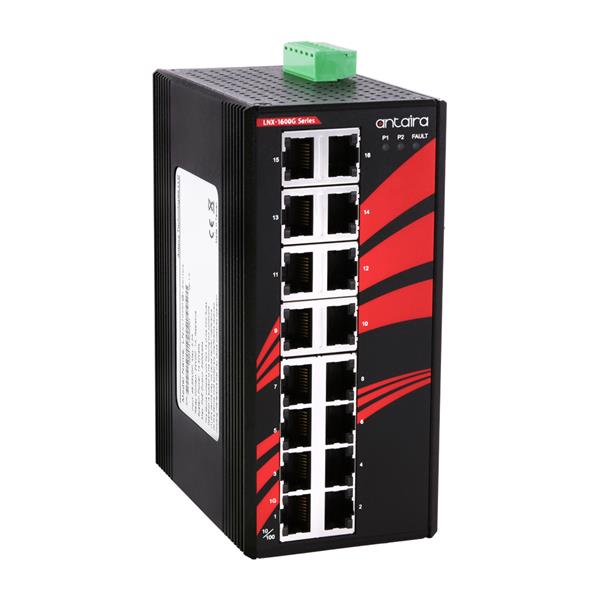

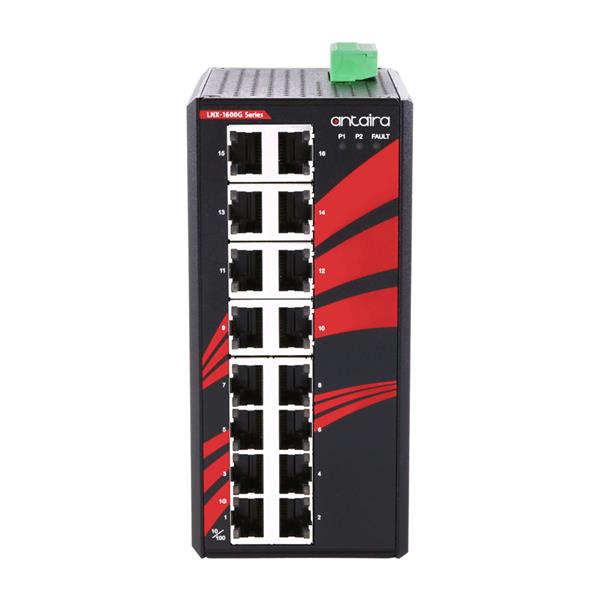

The Antaira Technologies LNX-1600G series of unmanaged industrial Gigabit Ethernet switches features an IP30 rating and DIN-rail mounting, with 16 * 10/100 / 1000Tx ports, making it ideal for applications requiring a high-bandwidth connectivity solution.
This series provides high EFT and ESD protection, dual power inputs, and reverse power polarity protection. In addition, the built-in relay warning function alerts maintenance personnel when power failures occur. A wide-operating-temperature model supporting -10° to 70° C is available. The LNX-1600G series is an ideal solution for harsh outdoor environments and industrial applications.
| Protocols | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000BaseT |
| Ethernet Port | 16*10/100/1000T(X), auto-negotiation speed, Full/Half duplex mode, and automatic MDI/MDI-X connection |
| Input Voltage | 12 to 48VDC, redundant inputs |
| Power Consumption | 12Watts |
| Operating Temperature | -10° C ~ 70° C |
| Storage Temperature | -40° C ~ 85° C |
| Humidity | 5% to 95%, (non-condensing) |
| EMI | FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A |
| Free fall/shock/vibration | IEC60068-2-32 / IEC60068-2-27 / IEC60068-2-6 |
| Warranty | 5 Years |
| Weight | Unit: 2.65 lbs. |
| Dimensions | 67 x 142 x 99 mm (W x H x D) |
