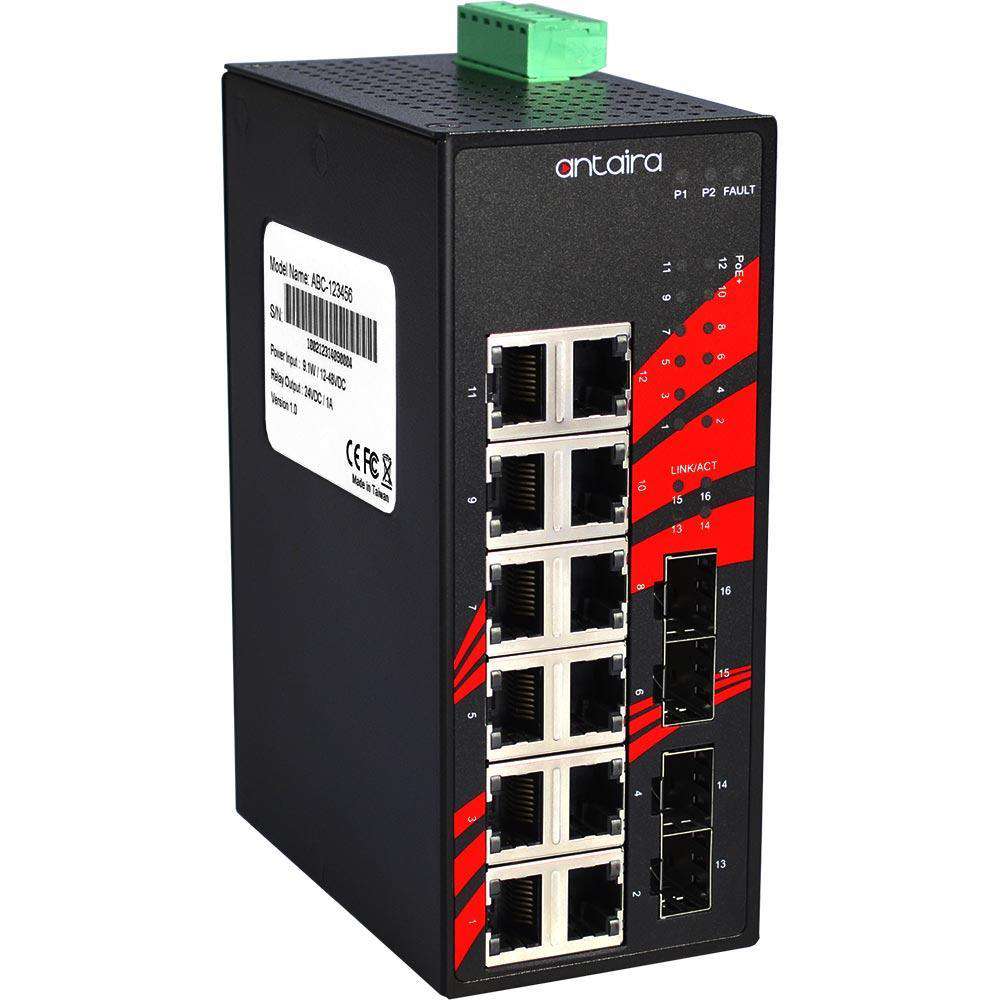

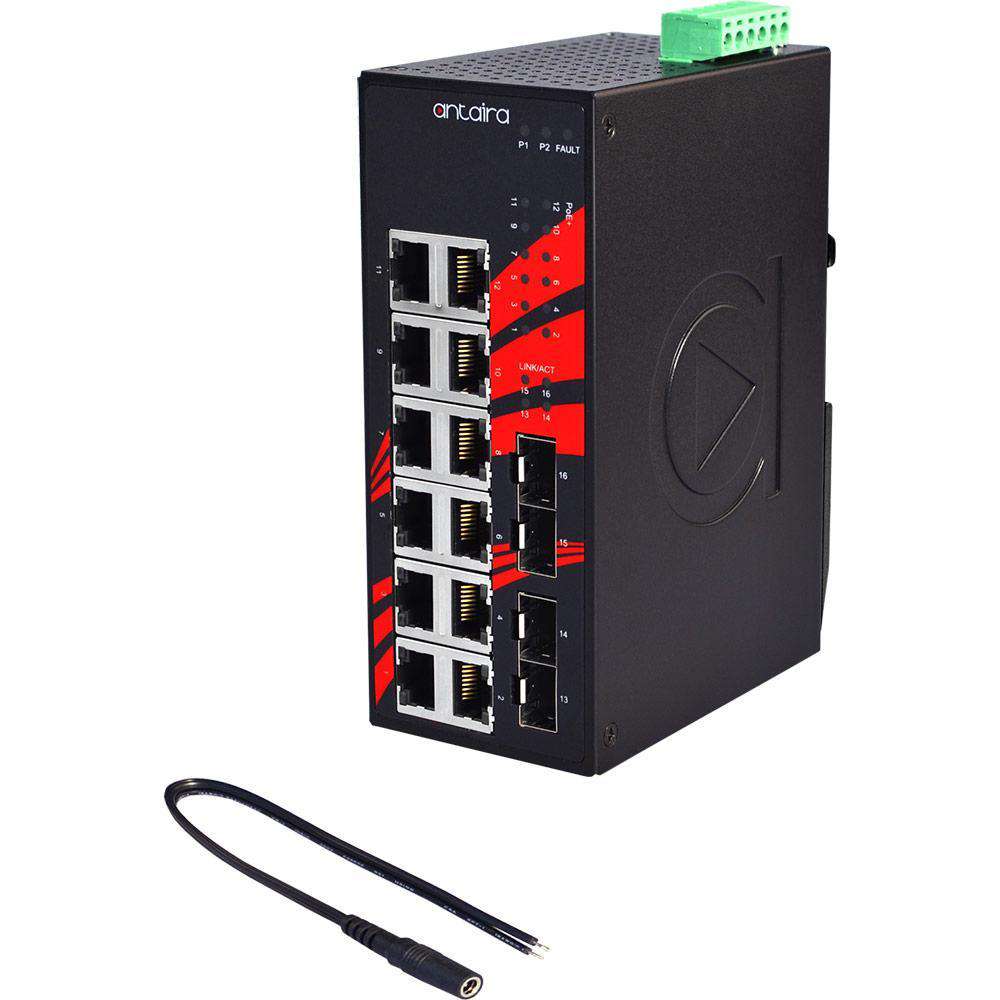

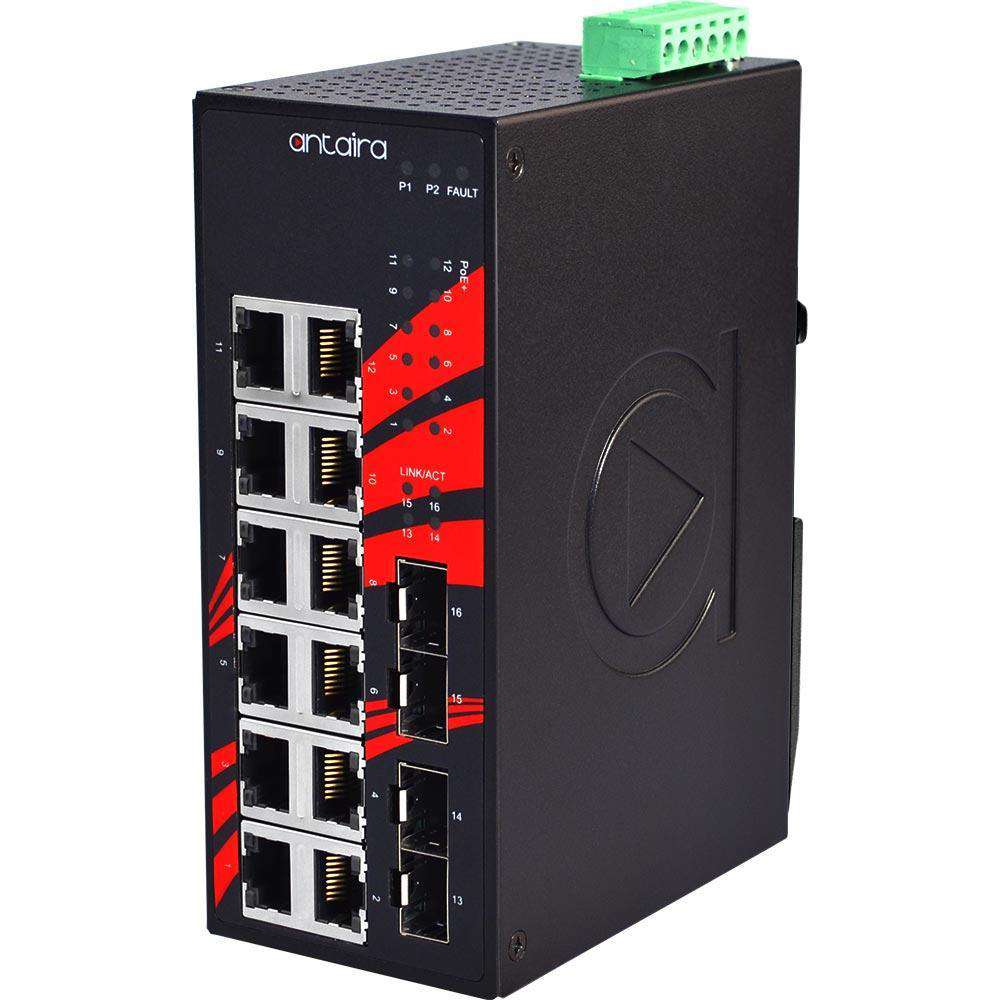

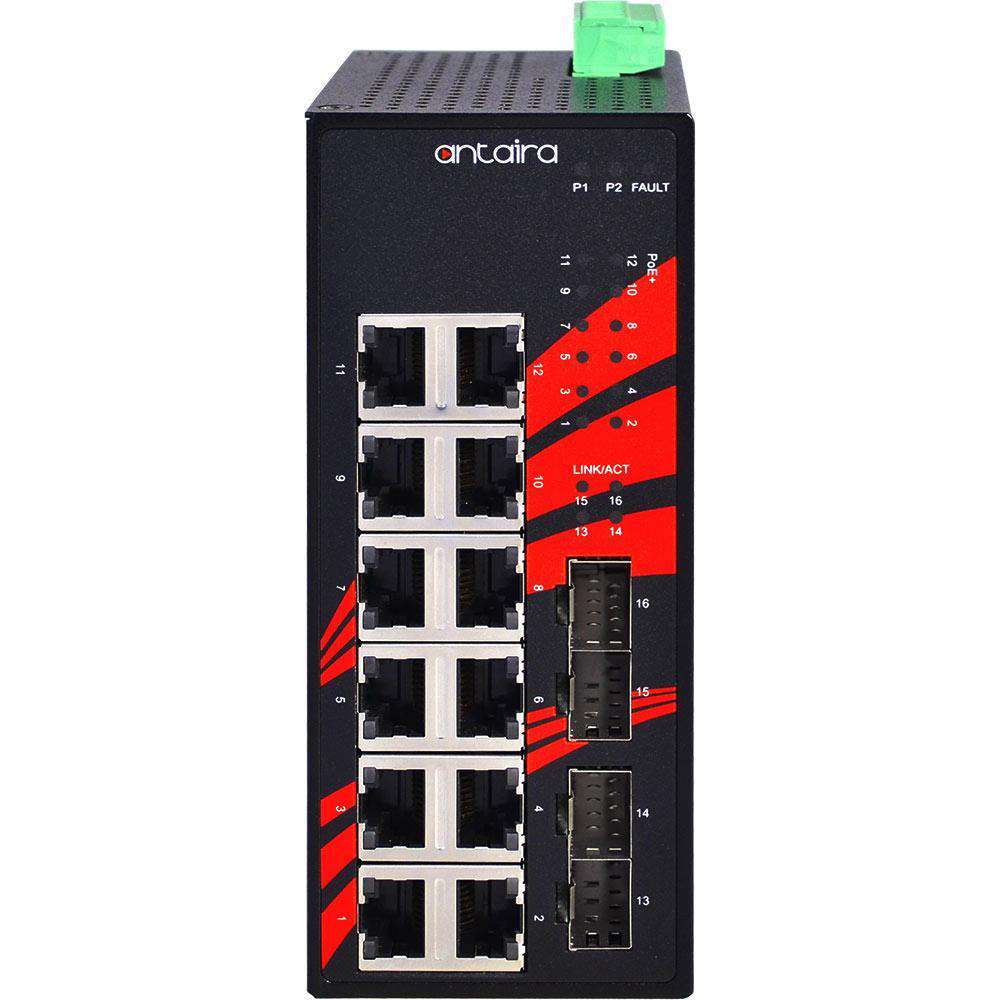

Switch LNX-1604G-SFP (12* 10/100/1000Tx + 4* 100/1000 SFP)
LNX-1604G-SFP
Antaira Technologies’ LNX-1604G-SFP series of unmanaged industrial Gigabit Ethernet switches is IP30 rated and DIN-rail mountable. Each unit features twelve Gigabit Ethernet ports and four dual-rate (100/1000) SFP slots for fiber connections, making it ideal for applications requiring high bandwidth and long-distance communication, such as power/utilities, water and wastewater treatment plants, oil/gas/mining, process-control automation, security access-control systems, and intelligent transportation systems.
This product series features a hardened design that provides high EFT and ESD protection against unregulated voltage. It also supports dual 12~48VDC power inputs. Two wide-operating-temperature models are available, supporting either -10 to 70 ̊C or - 40 to 75 ̊C environments.
- Supports 12*10/100/1000Tx + 4*100/1000 SFP ports
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 8K MAC Address Table
- Jumbo Frame support: 12.2K
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- Built-in 1 relay output for power failure warning
- IP30 rugged metal enclosure design

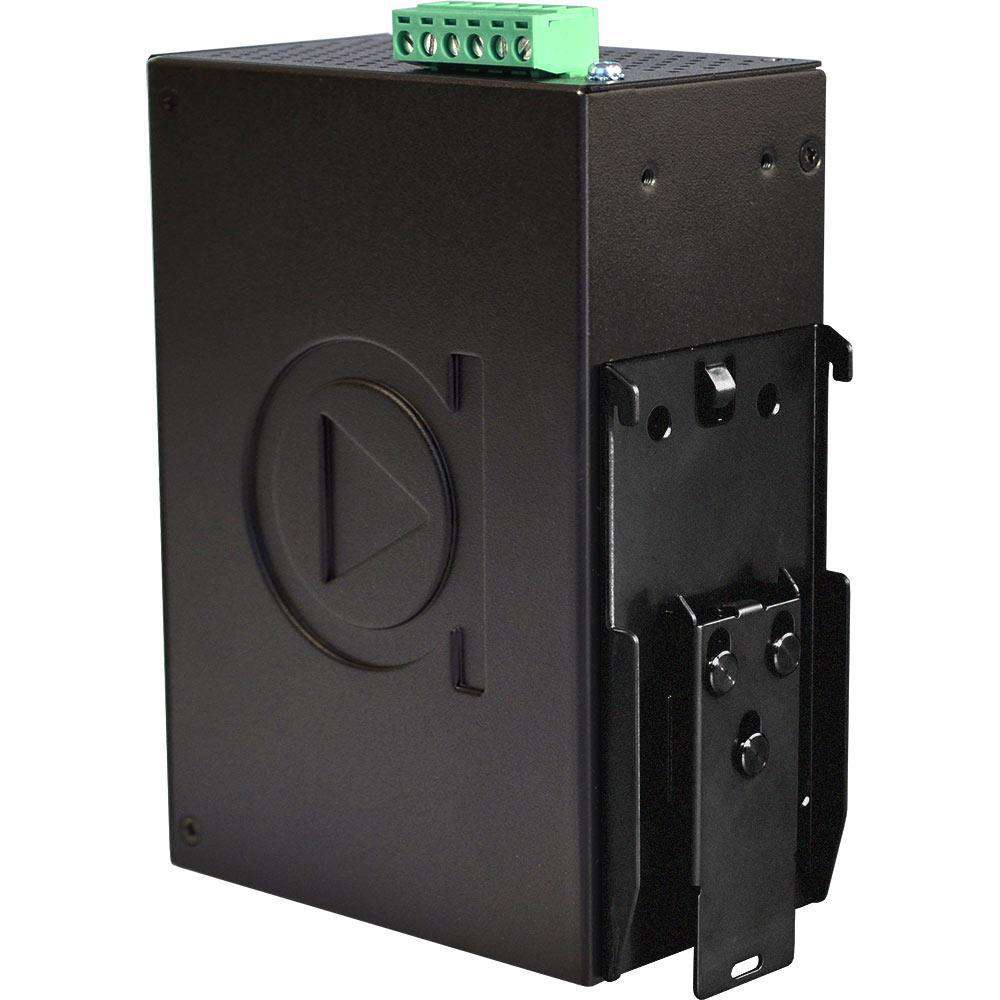

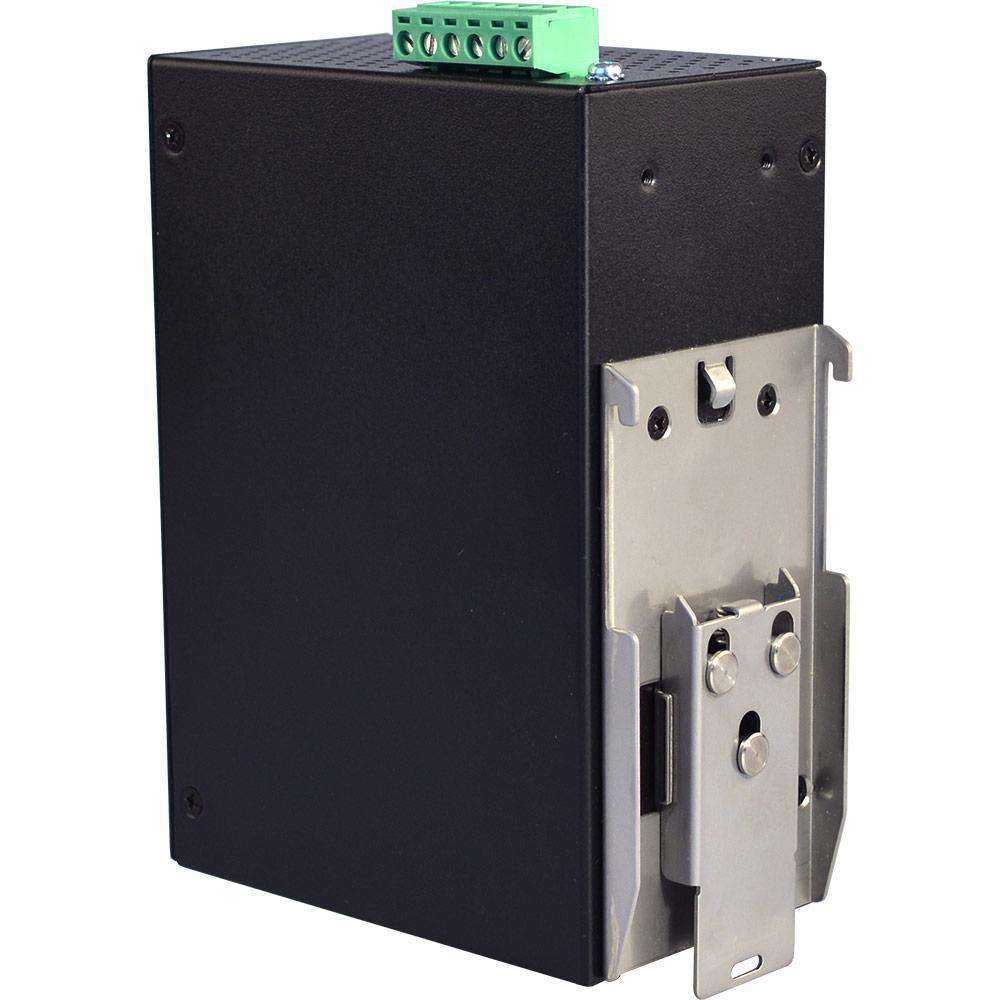

- DIN-rail and wall-mount support
- Operating temperature range: -10° to 70° C
- 5-Year Warranty
