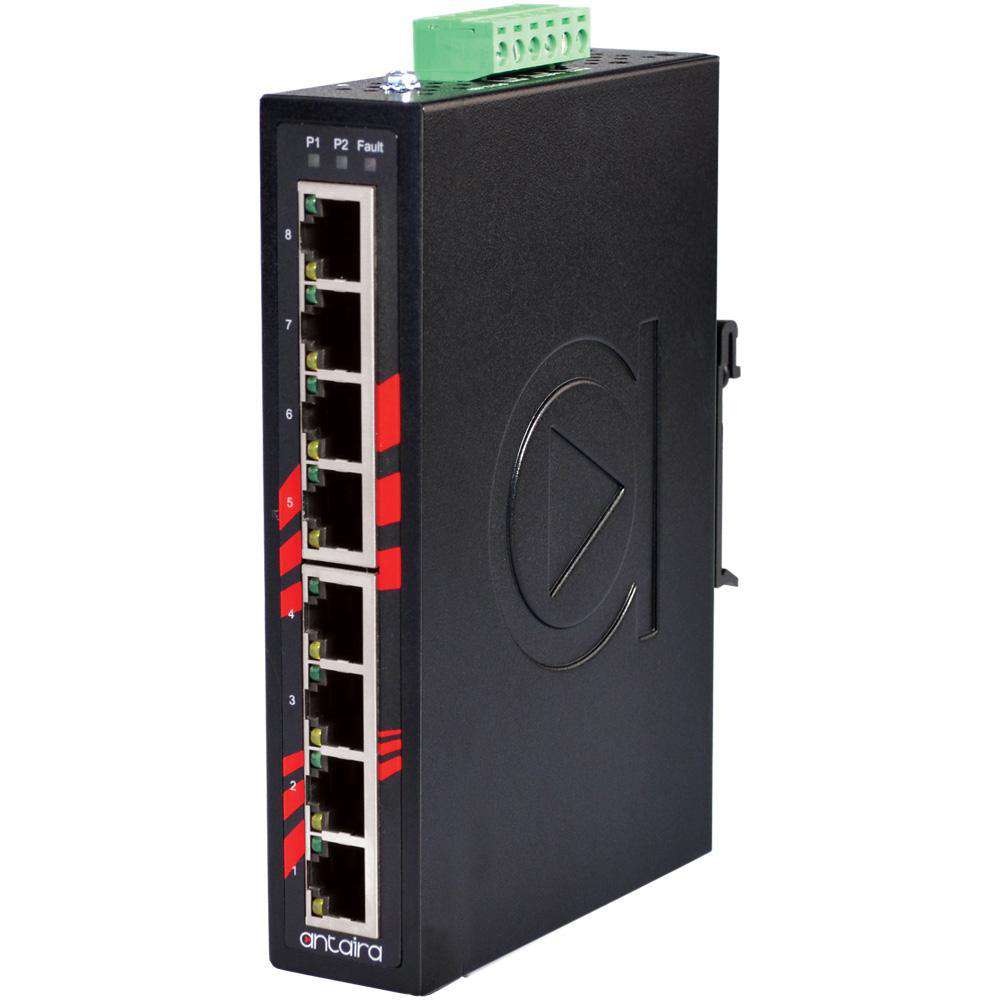

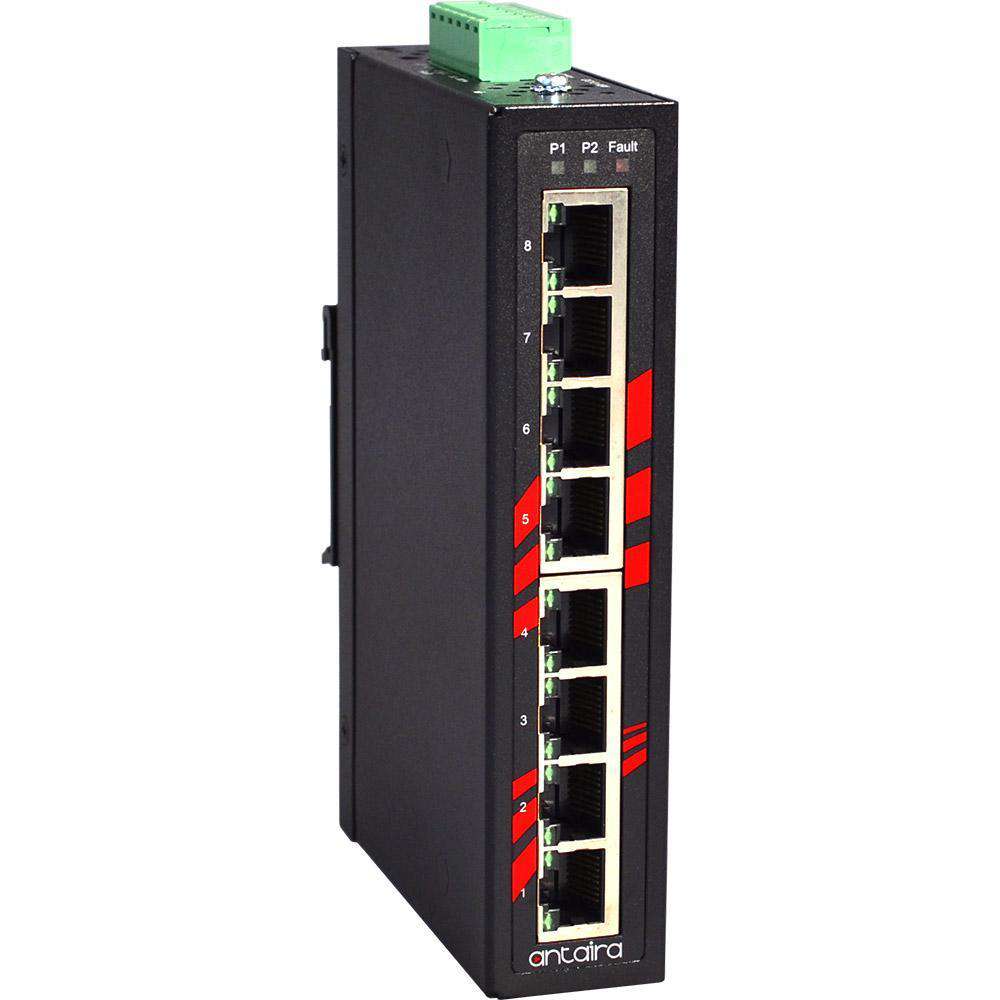

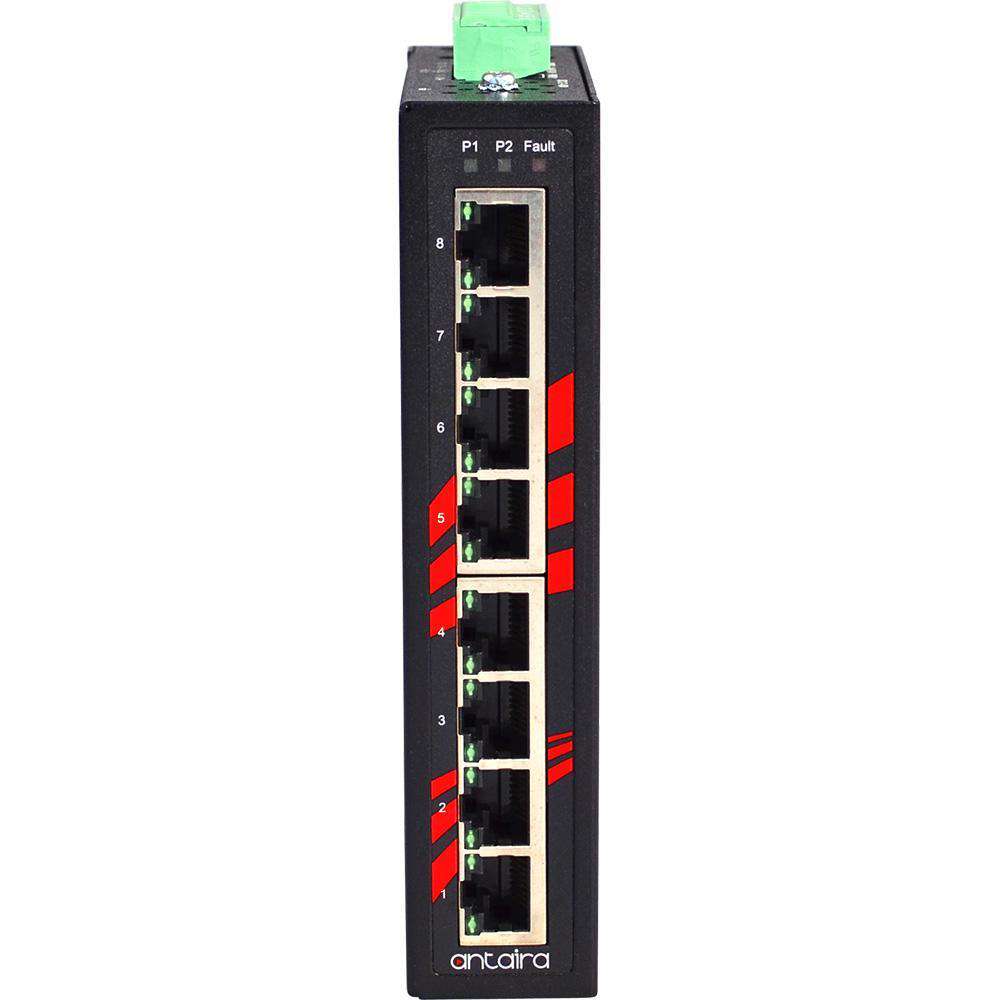

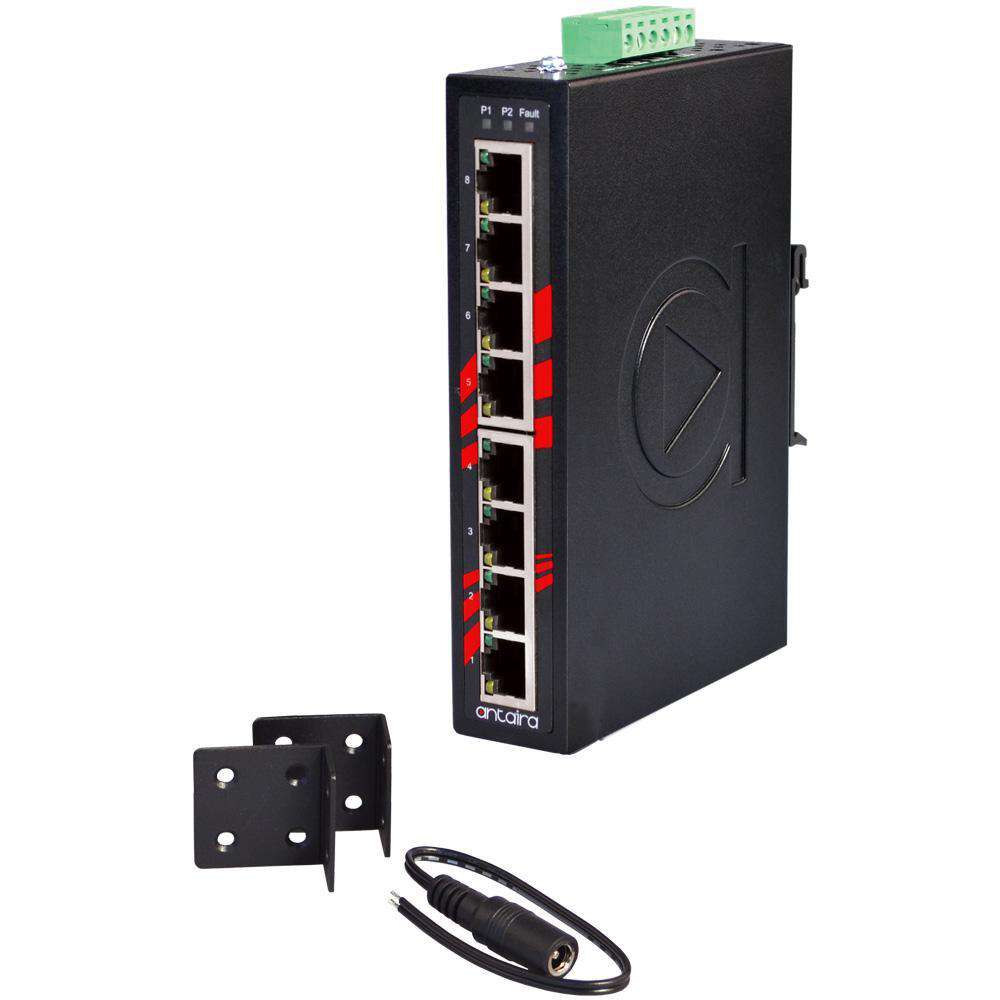

Switch LNX-800AG (8* 10/100/1000Tx) SLIM
Price excludes VAT
223.55€
Sale price
Price excludes VAT
223.55€
Regular price
Total with VAT (23%): 274.97€
Shipping calculated at checkout.
LNX-800AG
Specifications
- Network Broadcast Storm Protection
- 8-port 10/100/1000Tx Fast Ethernet
- Supports Auto MDI/MDI-X Function
- Store-and-Forward Switching Architecture
- 16Gbps Back-Plane (Switching Fabric)
- 8K MAC Address Table
- 9.6Kbytes Jumbo Frame Support
- Surge Protection: 3,000 VDC Support
- ESD Protection: 6,000 VDC Support
- Redundant Power Input Design – 12~48VDC
- Built-in 1 Relay Output for Port Failure Alarm
- IP30 Rugged Aluminum Enclosure Design

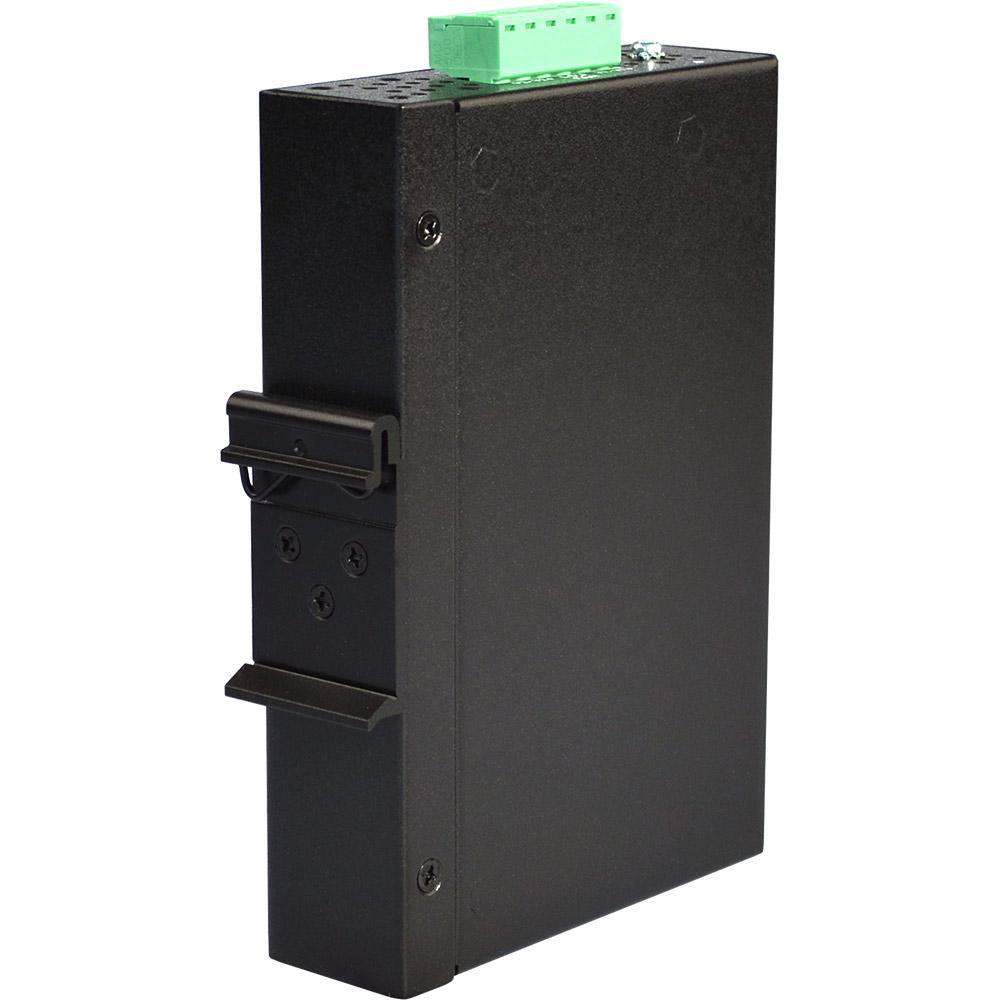

- DIN-Rail and Wall Mount Support
- Operating Temperature Range — STD: -10° to 70° C
- 5-Year Warranty
Description
Antaira’s LNX-800AG is a smart 8-port industrial Gigabit unmanaged Ethernet switch with 10/100/1000Tx support that can automatically detect transmission speeds of 10/100/1000 Mbps. The RJ-45 interface can also be detected automatically, allowing MDI or MDI-X to be selected automatically without requiring a crossover cable. All Ethernet ports have memory buffers that support the Store-and-Forward mechanism.
Features
| Standards | IEEE 802.3, IEEE 802.3u, IEEE802.3ab |
| Operating Temperature | -10° ~ 70° C (14° ~ 158° F) |
| Storage Temperature | -40° ~ 85° C |
| Humidity | 5% ~ 95% non-condensing |
| Dimensions | IP-30, 30 x 140 x 95 mm (1.18 x 5.51 x 3.74 inches) |
| Protocols | CSMA/CD |
| Power Input | 12 ~ 48 VDC, redundant input |
| Power Consumption | 7.788W @ 12VDC, 7.392W @ 48VDC |
| Housing | Metal, IP30 protection |
| Weight | Unit Weight: 1-lbs. Shipping Weight: 1.5 lbs |
| Certifications | FCC, CE, UL, UL Class 1 Div.2 |
| Warranty | 5 Years |
