Switch LNX-C500 Compato (5* 10/100Tx)
LNX-C500

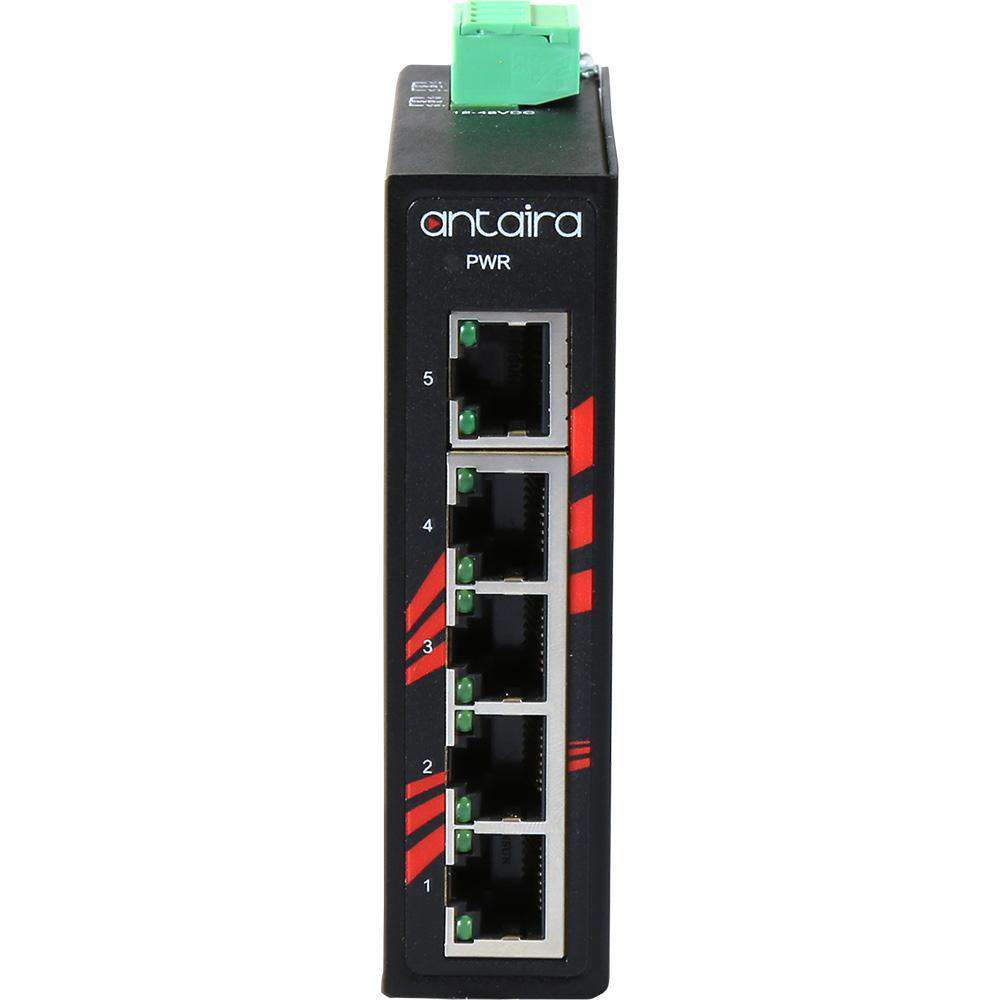

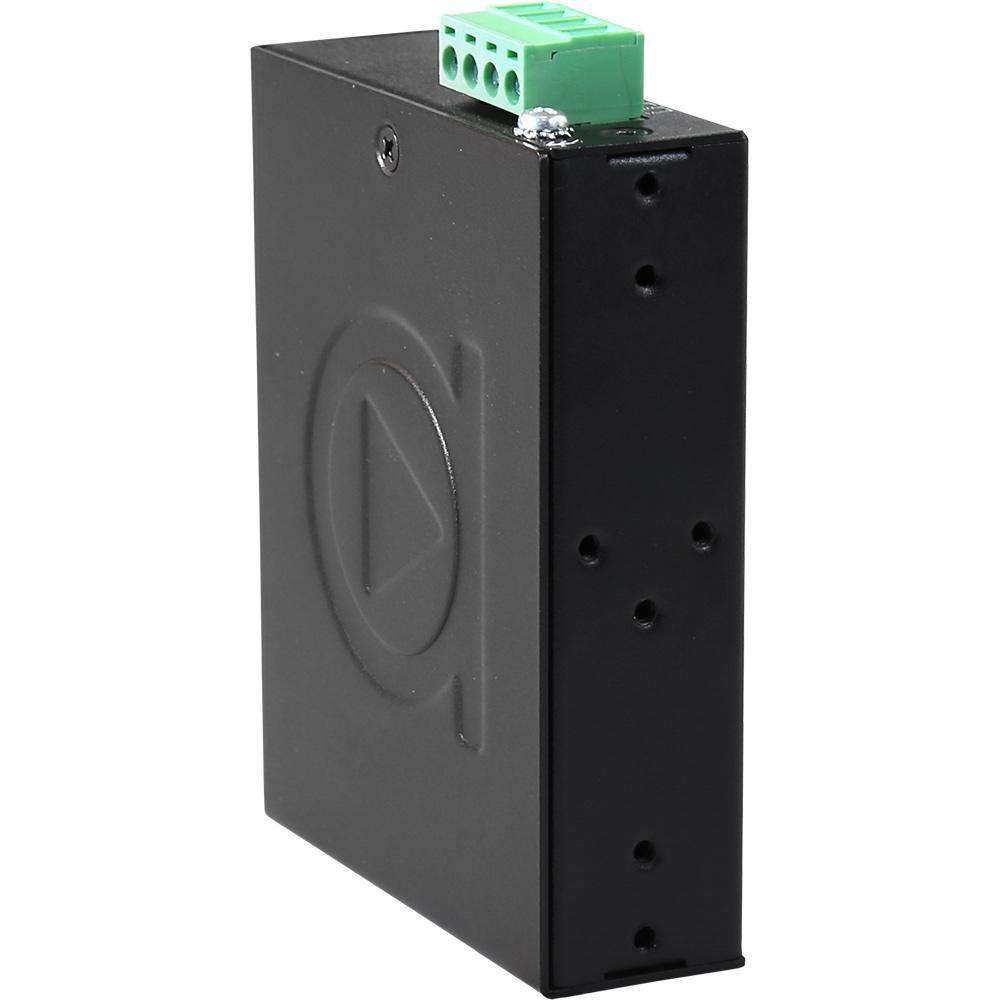

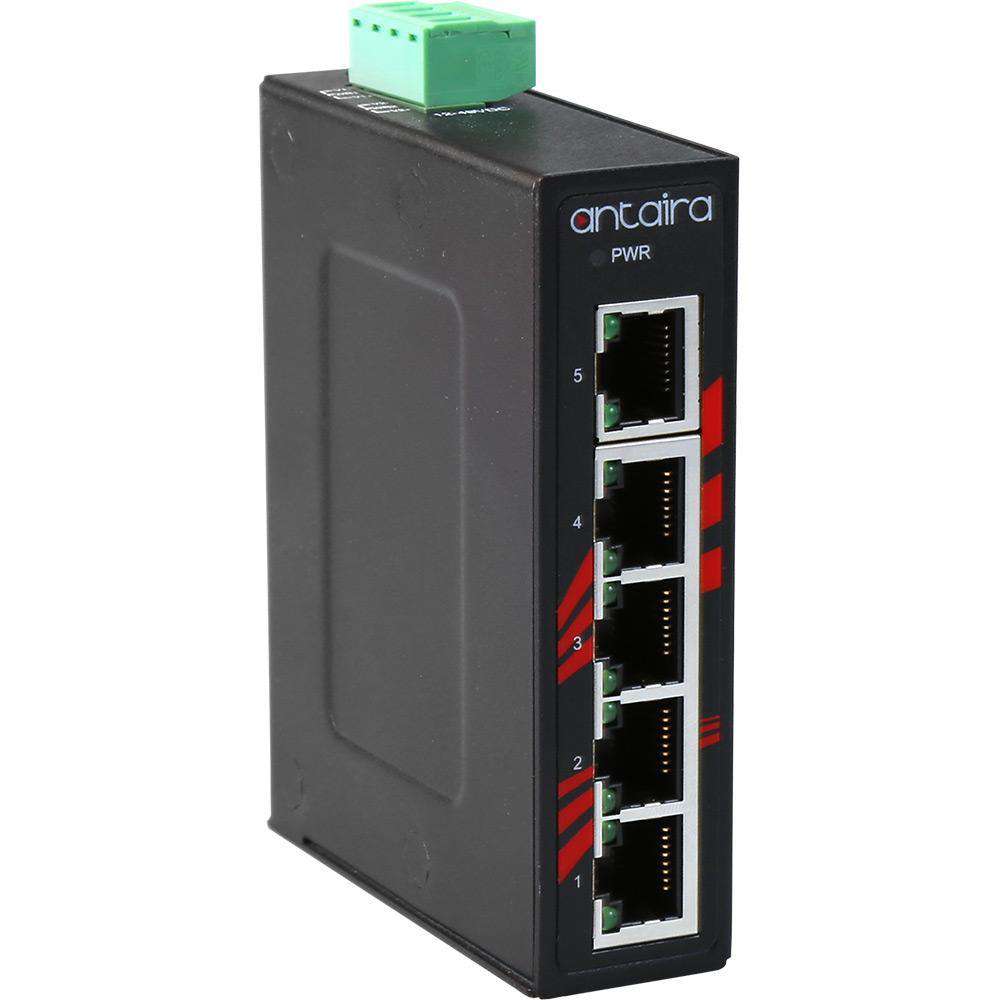

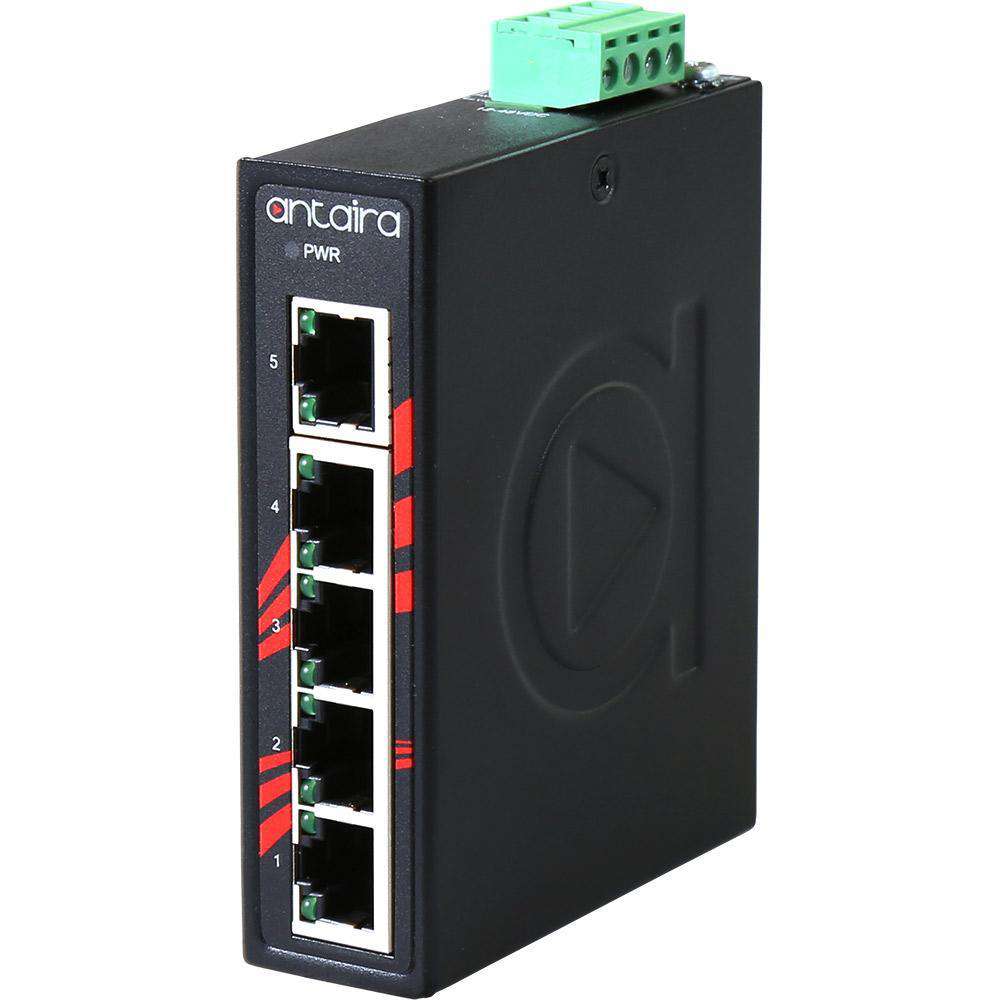

Antaira’s compact LNX-C500 industrial unmanaged Ethernet switch is IP30 rated and DIN-Rail mountable. The LNX-C500 series is equipped with 5*10/100Tx RJ45 Ethernet ports and provides a backplane speed of 1gbps. The small form factor of this industrial switch is 30% smaller, allowing for more versatile deployment. This product series provides high EFT and ESD protection against unregulated voltage and is suitable for harsh environments. It also supports a standard operating temperature range from -10 to 70°C. The LNX-C500 is an ideal industrial networking product for applications such as power/utility, water and wastewater treatment, oil/gas/mining, process control automation, security access control systems, and intelligent transportation systems.
- Compact industrial-grade design
- Supports 5*10/100Tx
- Supports Auto MDI/MDI-X function
- Store-and-Forward switching architecture
- 8K MAC address table
- Surge protection: 2,000 VDC support
- ESD protection: 6,000 VDC support
- Redundant power input design: 12~48VDC
- IP30 rugged metal enclosure design
- DIN-Rail and wall-mount support
- Operating temperature range: -10° to 70° C
- 5-Year warranty
