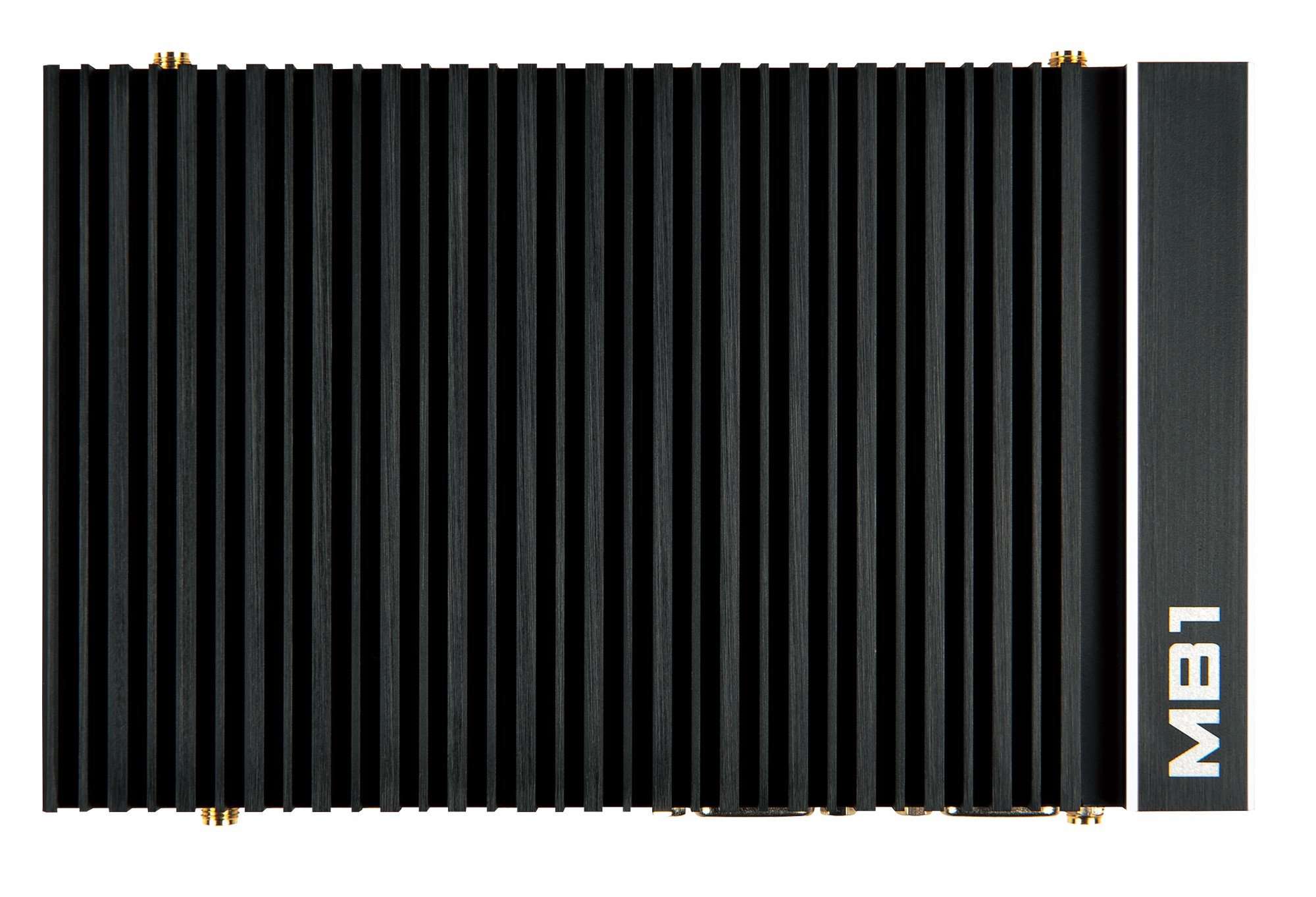

Mitac MB1-10AP-N4200-POE (1* GLAN, 2* PoE, 2* RS232)
Price excludes VAT
605.87€
Sale price
Price excludes VAT
605.87€
Regular price
Total with VAT (23%): 745.22€
Shipping calculated at checkout.
MB1-10AP-N4200-POE
Fanless Embedded BOX PC com os processadores Intel® Apollo Lake N3350 / N4200 (até 2.5 GHz)
- Intel Apollo Lake
- 1* Gigabit LAN + 2* PoE
- Fanless
- Modular
Powerful Apollo Lake Processor
- N4200 (2M Cache, up to 2.5 Ghz, TDP 6W)
1.48X Performance Improvement (CPU Passmark)
Power Consumption Reduction
Lower Power Consumption Fanless Thermal
Design for Less Environmental Impact
Support 3 Ports LAN and 2 w/ PoE+ options
- Total supports 3 x Giga LAN
- 2 x LAN supports 802.3af and 802.3at PoE
Versatile Xpansion Modules
- Support HDMI + VGA, DVI, or DisplayPort
- Support power COM port &Digital I/O for iIoT application
Edge AI Accelerator Intel® Movidius™ Myriad™ X for Edge AI
MB1-10AP with AI modules powered by Intel® Movidius™ Myriad™ X creates the possibility to be implemented in more Edge AI solutions, for example, traffic flow monitoring and real-time decision, manufacturing yield rate improvement via AI algorithm, remote healthcare service, and efficient transportation.
Support Flexible Configuration For Dual Display
- Support HDMI as primary display
- Support secondary display (DisplayPort, DVI-D, or VGA) with Xpansion module options
- Increase the flexibility to aim at target markets
Advanced Power Protection
Wide Power Range
8V~24V
Power Protection
- Reverse Power Input Protection
- Over Voltage Protection: 30V
- Over Current Protection: 16.6A
- ESD Protection: +/-15kV (air), +/-8kV (contact)
- Surge Protection: 3kW
-25~70oC Wide Temperature
MB1-10AP is designed in patented aluminum enclosure not only for aesthetic appearance but also for fan-less application in extreme temperature condition from -25℃ to 70℃.
Extreme Shock & Vibration Resistance
Shock Resistance
Operating, 50 Grms, Half-sine 11 ms Duration
(w/ SSD, according to IEC60068-2-27)
Vibration Resistance
Operating, 5 Grms, 5-500 Hz, 3 Axes
(w/ SSD, according to IEC60068-2-64)
Clear Installation Design
Dimension (mm)
I/O Interface
MB1-10AP (MB1-10AP)
Ordering Information | ||||
| Model | Processor | Giga / PoE LAN | Operating Temperature | AC Adaptor |
|---|---|---|---|---|
| MB1-10AP-N3350 | N3350 | 3 / 0 | -25 ~ 70°C | None |
| MB1-10AP-N3350-AC | N3350 | 3 / 0 | -25 ~ 70°C | 72W AC to DC Adaptor |
| MB1-10AP-N3350-POE | N3350 | 1 / 2 | -25 ~ 60°C | None |
| MB1-10AP-N3350-POE-AC | N3350 | 1 / 2 | -25 ~ 60°C | 120W AC to DC Adaptor |
| MB1-10AP-N4200 | N4200 | 3 / 0 | -25 ~ 70°C | None |
| MB1-10AP-N4200-AC | N4200 | 3 / 0 | -25 ~ 70°C | 72W AC to DC Adaptor |
| MB1-10AP-N4200-POE | N4200 | 1 / 2 | -25 ~ 60°C | None |
| MB1-10AP-N4200-POE-AC | N4200 | 1 / 2 | -25 ~ 60°C | 120W AC to DC Adaptor |
| MB1-10AP (MB1-10AP) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | Intel® Apollo Lake-M N4200 / N3350 Processor | |
| CHIPSET | Intel® SoC Integrated | ||
| SYSTEM MEMORY | DDR3L 1866 MHz / 1 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | ||
| GRAPHICS | Intel® HD Graphics | ||
| DISPLAY INTERFACE | HDMI 1.4 / Optional DisplayPort/VGA/DVI-D by Expansion Module | ||
| STORAGE SLOT | 1 x 2.5 HDD / SSD (Default w/ HDD Bracket) / 1 x mSATA | ||
| ETHERNET | 2 x Intel® I210-IT Giga LAN (2 x Output PoE LAN: Optional) / 1 x Realtek RTL8154 LAN (Up to 480Mbps) | ||
| AUDIO | Realtek® ALC662 | ||
| I/O CHIPSET | Nuvoton NCT6116D | ||
| TPM | Nuvoton NPCT750AAAYX TPM2.0 (Optional) | ||
| EXPANSION SLOT | LTE/Wireless: Mini PCIe Full size (USB / PCIe), w/ SIM Card Holder (w/ Full to Half size adapter plate) / Storage: mPCIe Full size (USB / PCIe / SATA) | ||
| INTERNAL SPEAKER | 1 x Buzzer | ||
| INDICATOR | Power Button / Power LED / HDD LED | ||

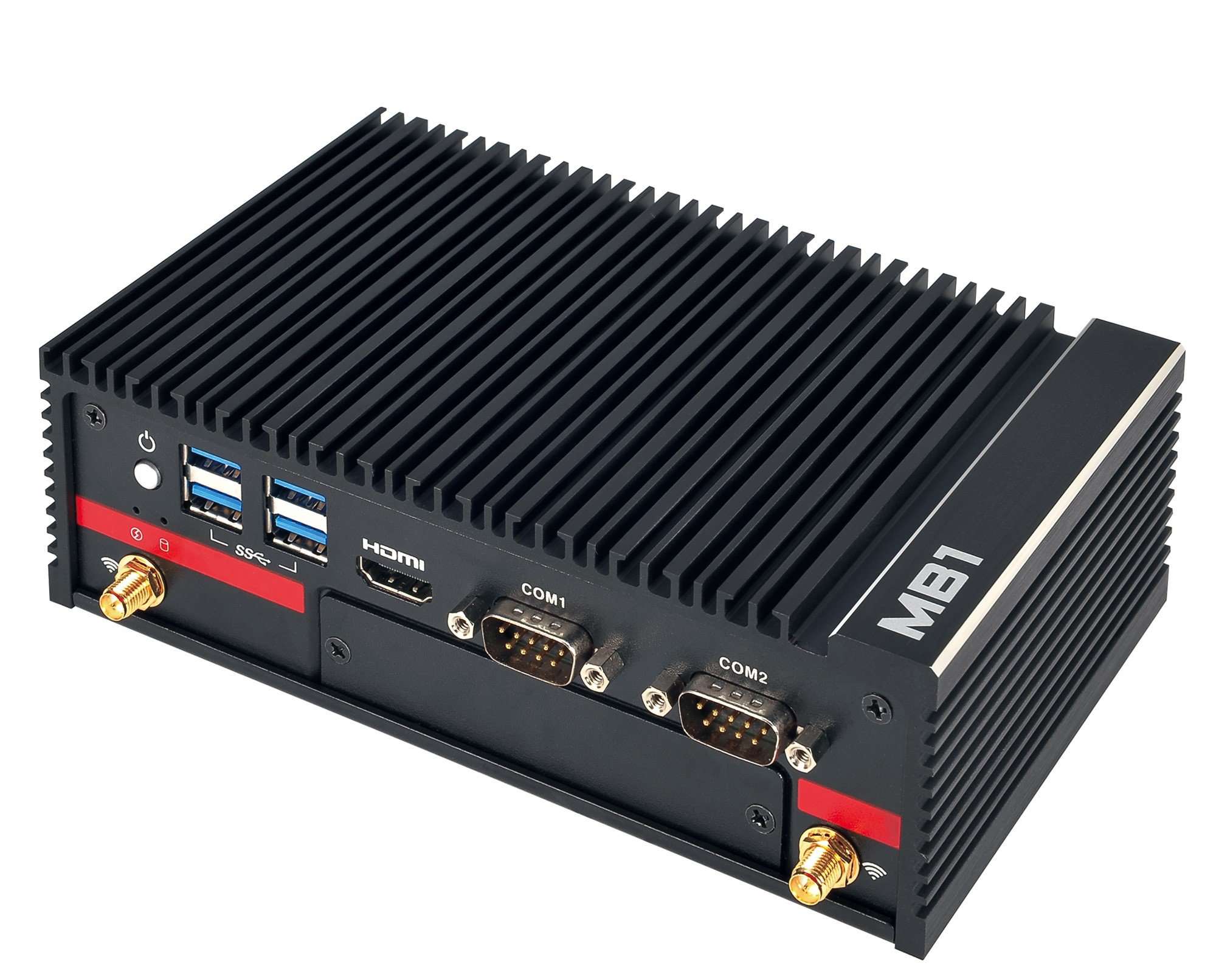

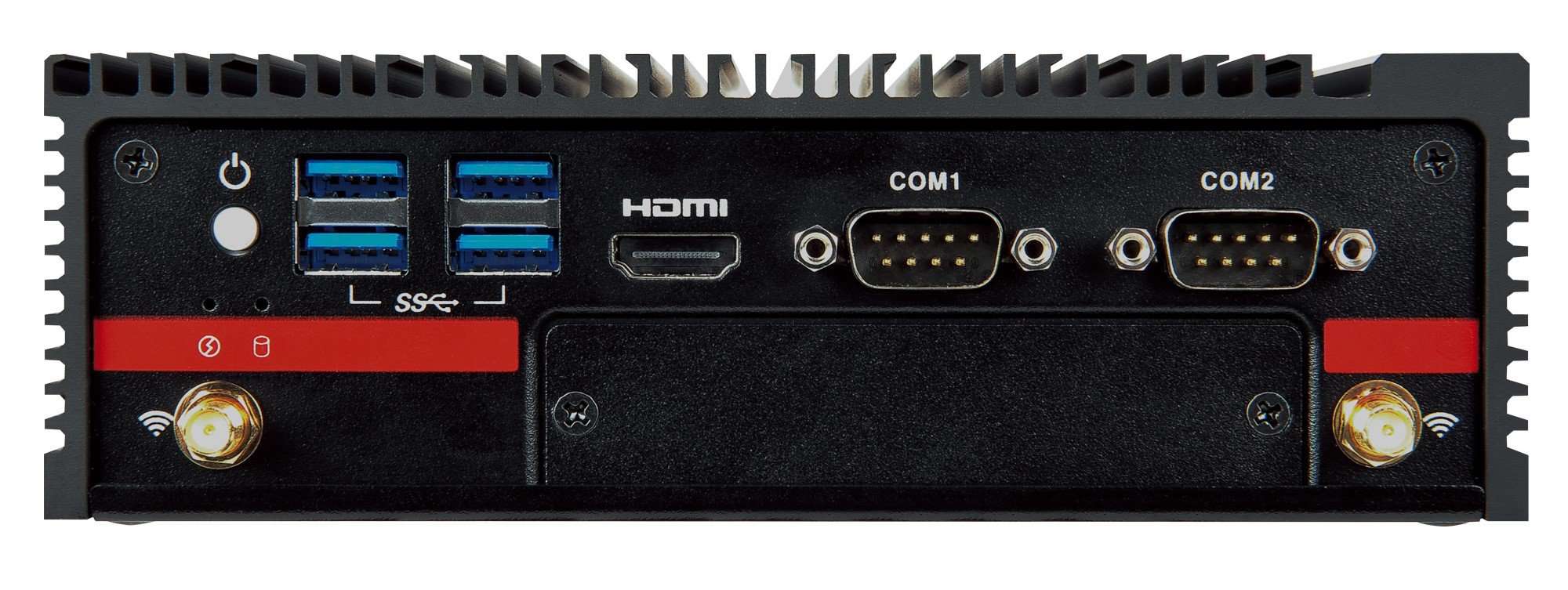

| FRONT I/O | 1 x HDMI 1.4 / 4 x USB 3.0 / 2 x SMA Antenna (Optional for WiFi/LTE function) / 1 x Xpansion Module Door / 2 x RS232 / 422 / 485 (Support Power 5V / 12V) | ||

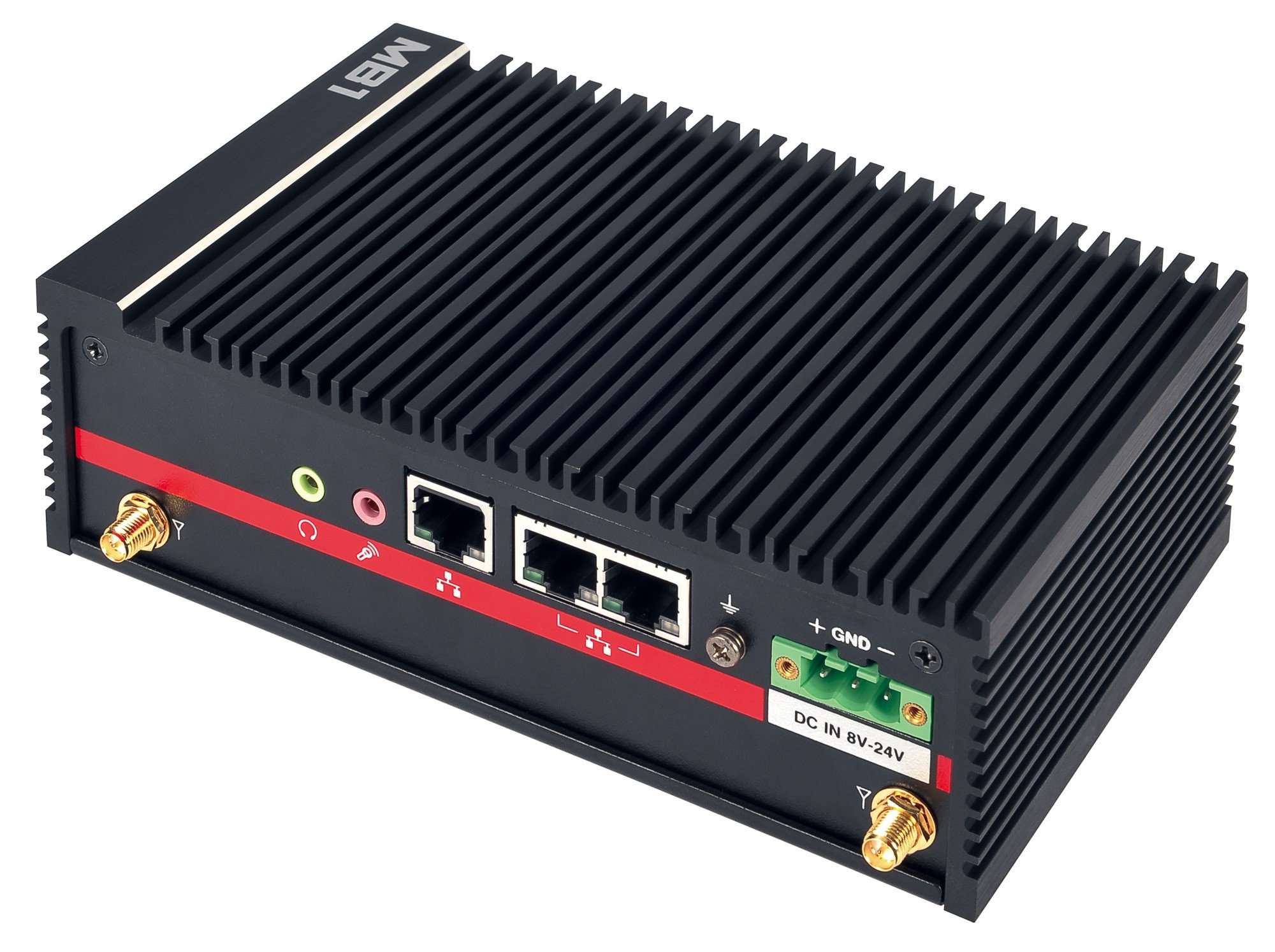

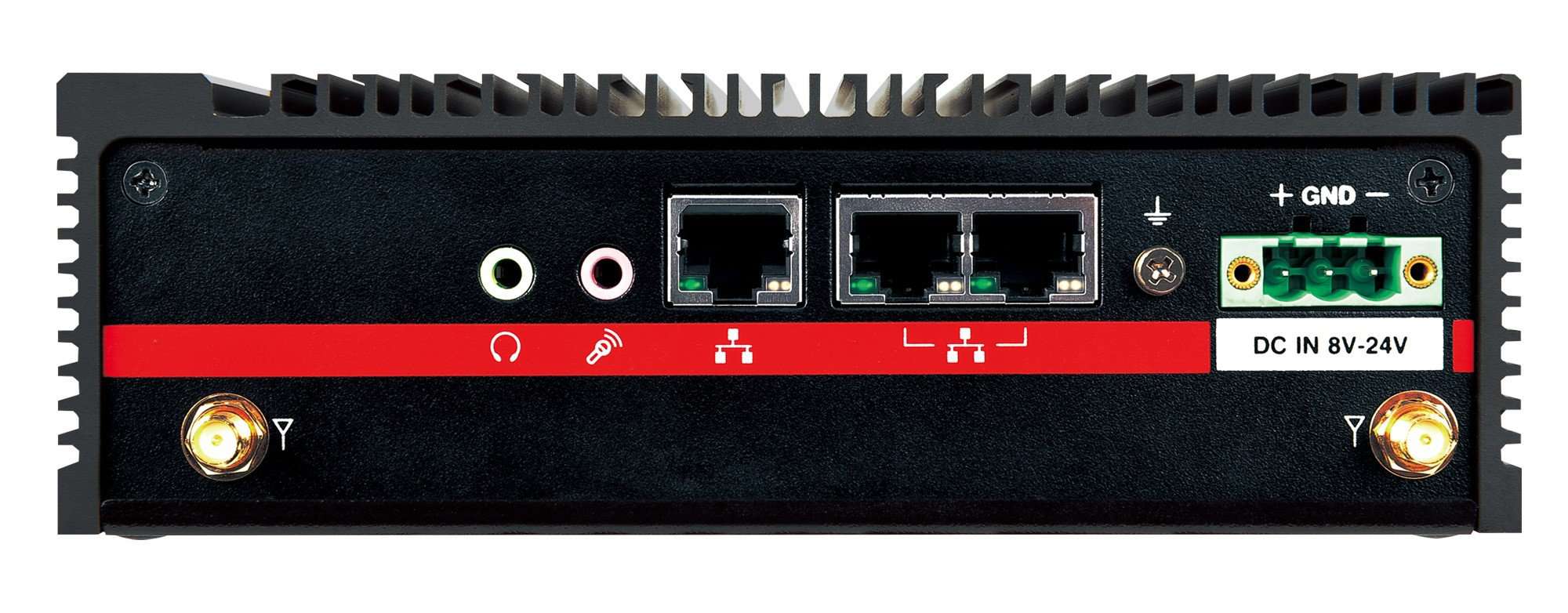

| REAR I/O | 1 x 2-pin Header Remote Power on / off / 3 x RJ-45 / 1 x Mic-in / 1 x Line-out / 1 x 3-pin Terminal Block Power Input / 2 x SMA Antenna (Optional for WiFi/LTE function) | ||
| WATCHDOG TIMER | 1~255 steps by software program | ||
| EDGE AI ENGINE (Optional) | Single Movidius Myriad X VPU, and Intel® OpenVINO™ toolkit supported (Optional) | ||
| POWER REQUIREMENT | POWER INPUT | 8~24V Wide Range DC Input w/ Terminal Block Connectivity | |
| POWER ADAPTER | Optional | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -25°C to 70°C (For non-PoE SKU) / -25°C to 60°C (For PoE SKU) / with 0.7m/s Air Flow and Wide Temperature Memory/Storage | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 5Grms / 3Axis (w/ SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating: 50 Grms, Half-sine 11 ms Duration (w/ SSD, according to IEC60068-2-27) | ||
| CERTIFICATION | CE / FCC Class A | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| MOUNTING | Wallmount / 75 mm x 75 mm VESA Holes & Din Rail Mount Combo Kit (Optional) | ||
| DIMENSIONS (W X D X H) | 6.9” x 4.1” x 2.2” (170 x 105 x 57 mm) | ||
| WEIGHT | 1.3kg (2.8 lb) | ||
| MATERIAL | Top cover: Aluminum Alloy / Bezel and chassis: Steel | ||
| OS | OS SUPPORT | Windows® 10 64-bit / Linux (support by request) | |
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets / 1 x 3 pin Terminal Block Power Connector / 1 x Full to Half Size mPCIe Card Adapter Plate | |
