Mitac ME1-8MD-2G16G (I.MX8M Dual Core, 2GB LPDDR4, 16GB eMMC)
Price on request

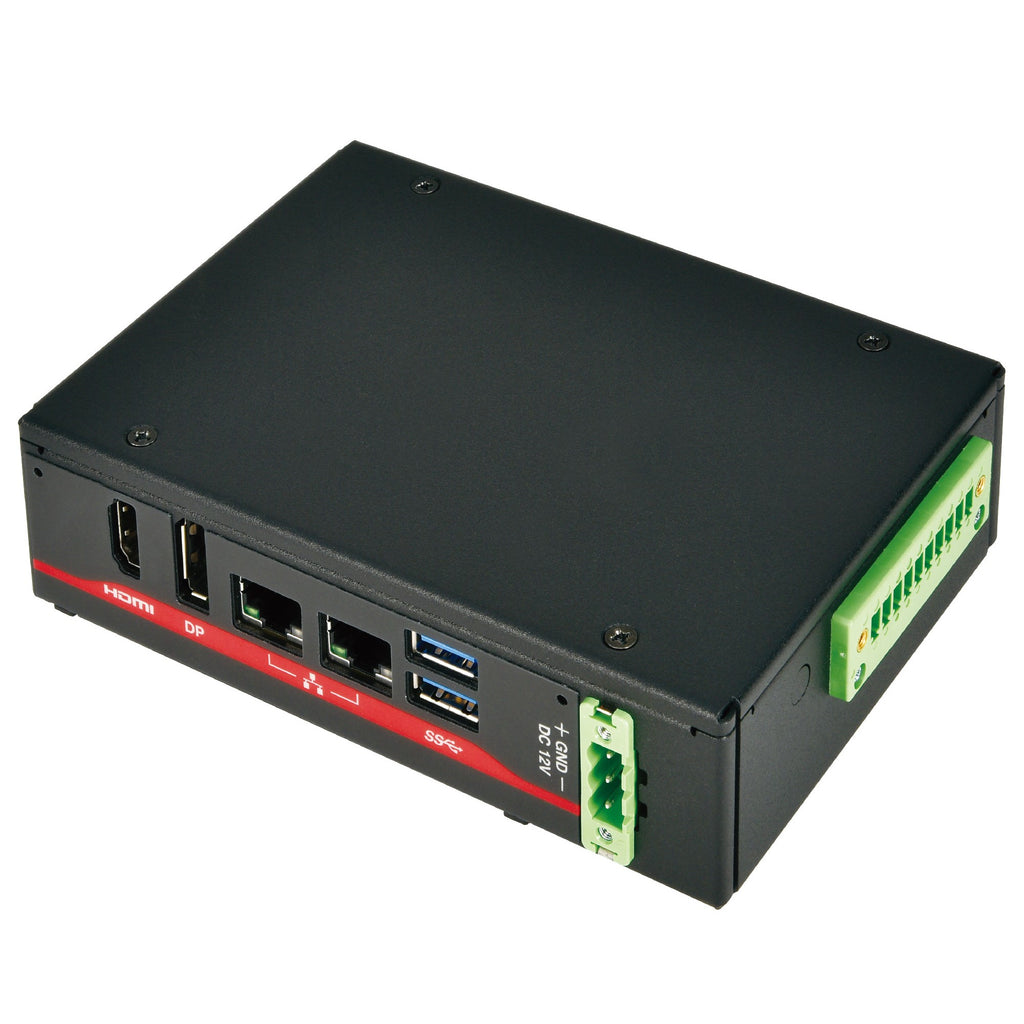

Fanless embedded PC with NXP® i.MX8M Dual processor
MiTAC's ME1-108T is a fanless embedded system with NXP i.MX8M, featuring a 2.5” Arm-based Qseven module powered by a high-performance NXP Quad Core Arm Cortex-A53 i.MX8M processor. Moreover, to extend its expansion capability, the ME1-108T includes an onboard Raspberry Pi 40-pin header that supports various peripheral devices for additional applications. The new SoC architecture provides greater capability for your tasks or applications.
The ME1-108T 1.2 liter fanless chassis and expandable module design provide the flexibility to adapt to any workspace and environment when deployed as an embedded system.
I/O Connectors
Dimensions
| ME1-108T (ME1-108T) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | NXP® i.MX8M Family - 8M Quad (4 x Cortex-A53 @ 1.3GHz) - 8M Dual (2 x Cortex-A53 @ 1.3GHz) | |
| CHIPSET | Integrated i.MX8M SoC | ||
| SYSTEM MEMORY | Onboard LPDDR4 800MHz memory with options for 1GB / 2GB / 4GB) | ||
| GRAPHICS | Integrated I.MX8 | ||
| STORAGE | 1 x Micro SD card slot (up to 256GB) / Onboard eMMC with options for 8GB / 16GB / 32GB | ||
| ETHERNET | 1 x Realtek® RTL8111H Giga LAN / 1 x Realtek® RTL8211FD Giga LAN | ||
| AUDIO | Realtek® ALC5660 | ||
| SIDE I/O | 1 x Micro SD/SIM card slot / 1 x 10-pin GPIO (4in/4out/5V/GND, terminal block) | ||
| EXPANSION SLOT | Full-size / Half-size Mini PCIe (PCIe / USB) | ||
| INDICATOR | Power button / Power LED | ||

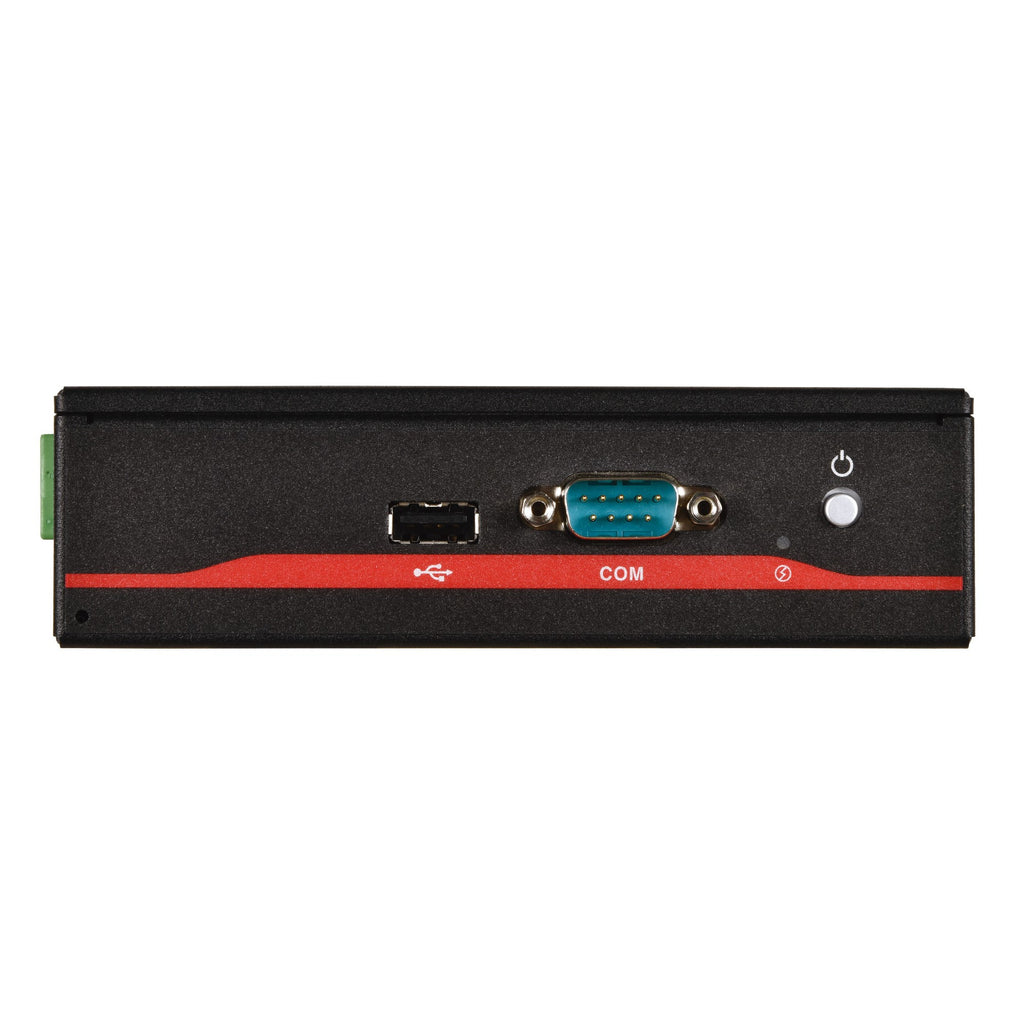

| FRONT I/O | 1 x USB 2.0 / 1 x RS232 / 422 / 485 | ||

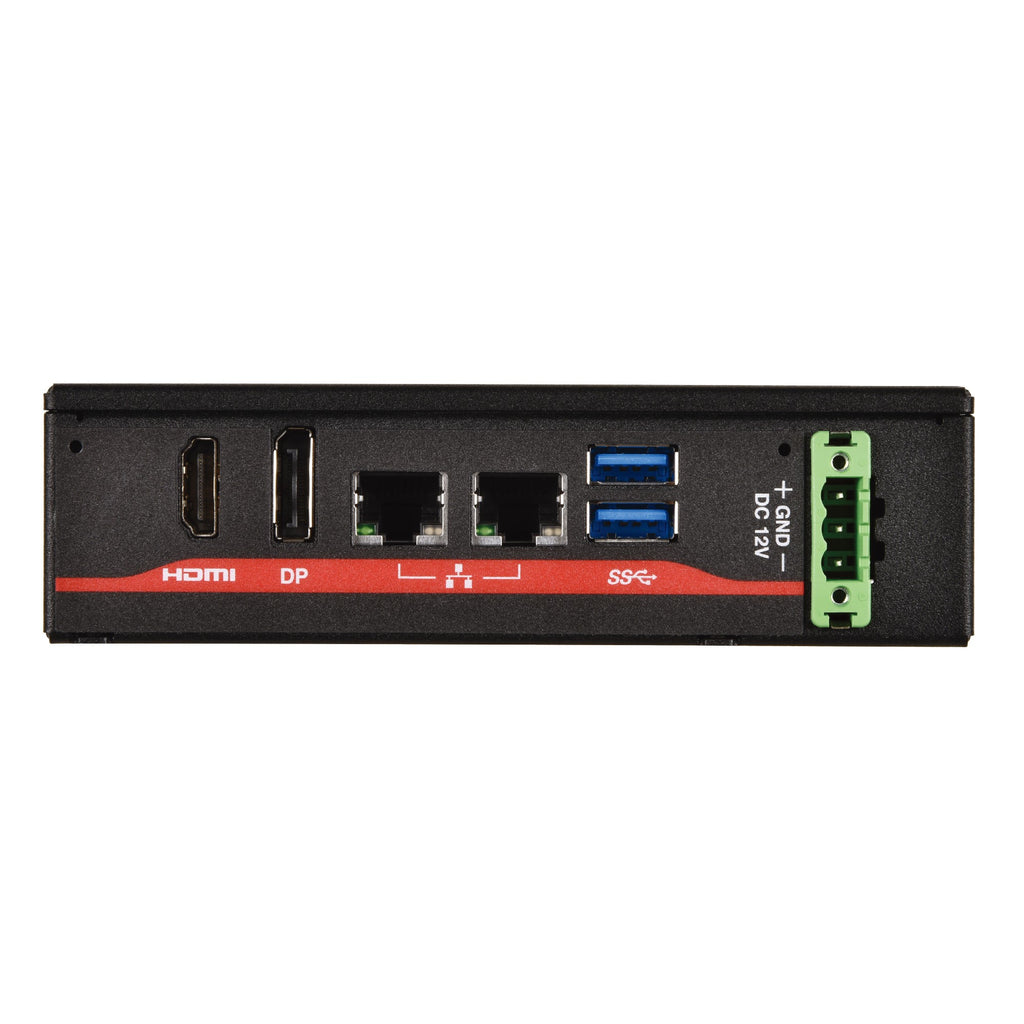

| REAR I/O | 1 x HDMI 2.0 / 1 x DisplayPort 1.2 / 2 x RJ-45 / 2 x USB 3.0 / 1 x 3-pin terminal block power input | ||
| POWER REQUIREMENT | POWER ADAPTER | DC12V / 3A / 36W adapter | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 55°C (32 ~131°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C, non-condensing | ||
| CERTIFICATION | CE / FCC Class B | ||
| MECHANICAL | ANTENNA | 2 x SMA antennas (optional for WiFi / LTE functionality) | |
| THERMAL DESIGN | Fanless & Ventless | ||
| MOUNTING | 2-in-1 Wall / VESA Mounting Bracket (75 x 75mm) | ||
| DIMENSIONS (W X D X H) | 140 x 100 x 38.75mm | ||
| MATERIAL | Enclosure: Sheet Metal | ||
| OS | OS SUPPORT | BSP Support for Yocto Sumo (Kernel version 4.14.98) / BSP Support for Android 9 Pie (Kernel version 4.14.98) | |
| PACKING LIST | PACKAGE CONTENTS | 1 x Quick Installation Guide / 1 x Embedded System / 1 x Wall Mount Brackets (2PCS in 1 set) / 1 x 10P terminal block male plug (331000000508) | |
