Mitac ME1-8MQ-4G32G (I.MX8M Quad Core, 4GB LPDDR4, 32GB eMMC)
Price excludes VAT
360.00€
Sale price
Price excludes VAT
360.00€
Regular price
Total with VAT (23%): 442.80€
Shipping calculated at checkout.
ME1-8MQ-4G32G

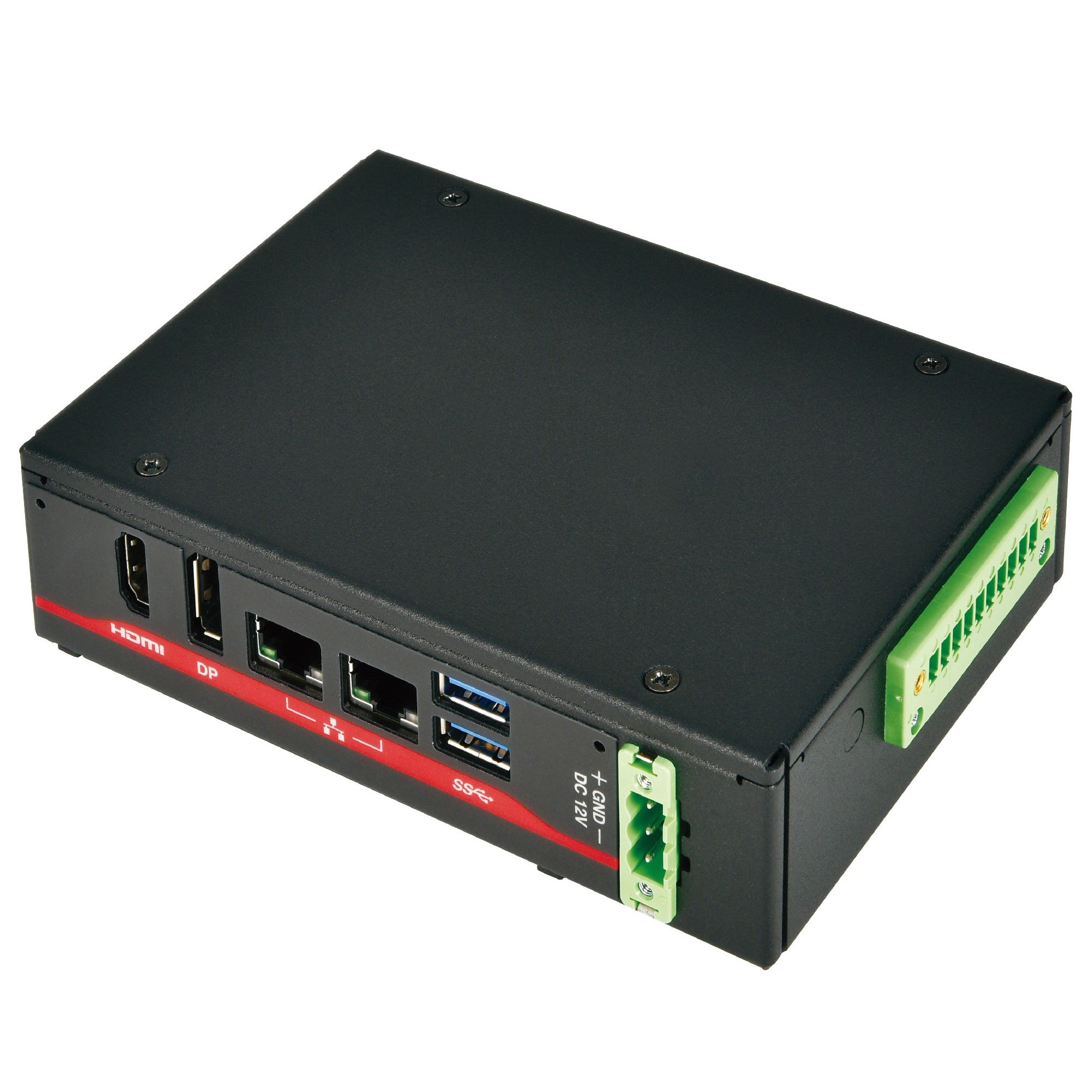

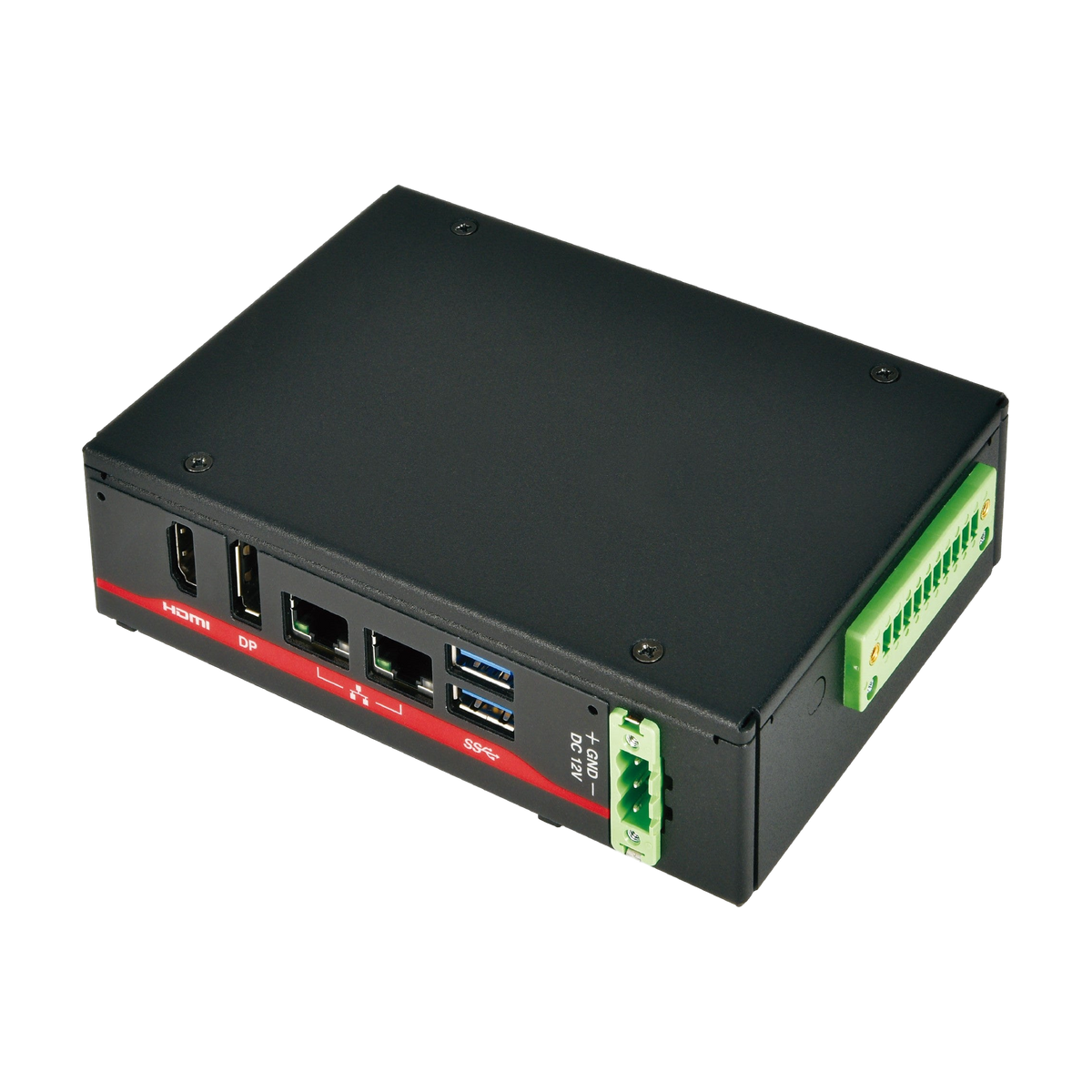

Fanless embedded PC with NXP® i.MX8M Dual processor
The MiTAC ME1-108T box PC is a fanless industrial embedded system equipped with high-performance NXP ARM-based i.MX8M Dual core/Quad core processors.
The ME1-108T features a compact 0.55-liter design while retaining support for multiple high-resolution displays, an expansion slot, high-speed I/O and complete software BSP support.
All of this is designed to enable Internet-connected IoT applications anywhere, with greater cost efficiency and lower power consumption.
I/O Connectors
Dimensions
| Model | Processor | DDR4 | eMMC | Display | LAN | COM |
|---|---|---|---|---|---|---|
| ME1-8MQ-4G32G | I.MX8M Quad Core | 4GB | 32GB | HDMI + DisplayPort | 2 | 1 |
Optional Development Kit | ||||||
| Optional Kit | Specification | |||||
| USB OTG Programming Cable | Micro USB connector, cable length: 500mm | |||||
| UART Debugging Kit | Debugging board + cable to motherboard | |||||
| ME1-108T (ME1-108T) Specifications | |||
|---|---|---|---|
| SYSTEM | CPU | NXP® i.MX8M Family - 8M Quad (4 x Cortex-A53 @ 1.3GHz) - 8M Dual (2 x Cortex-A53 @ 1.3GHz) | |
| CHIPSET | Integrated into the i.MX8M SoC | ||
| SYSTEM MEMORY | LPDDR4 onboard memory with options: 1GB (1200MHz), 2GB (1600MHz), 4GB (1600MHz) | ||
| GRAPHICS | Integrated I.MX8 | ||
| STORAGE | 1 x Micro SD card slot (up to 256GB) / Onboard eMMC with 8GB / 16GB / 32GB options | ||
| ETHERNET | 1 x Realtek® RTL8111H Giga LAN / 1 x Realtek® RTL8211FD Giga LAN | ||
| AUDIO | Realtek® ALC5660 | ||
| SIDE I/O | 1 x Micro SD/SIM card slot / 1 x 10-pin GPIO (4in/4out/5V/GND, terminal block) | ||
| EXPANSION SLOT | Full-size / half-size Mini PCIe (PCIe / USB) | ||
| INDICATOR | Power button / Power LED | ||

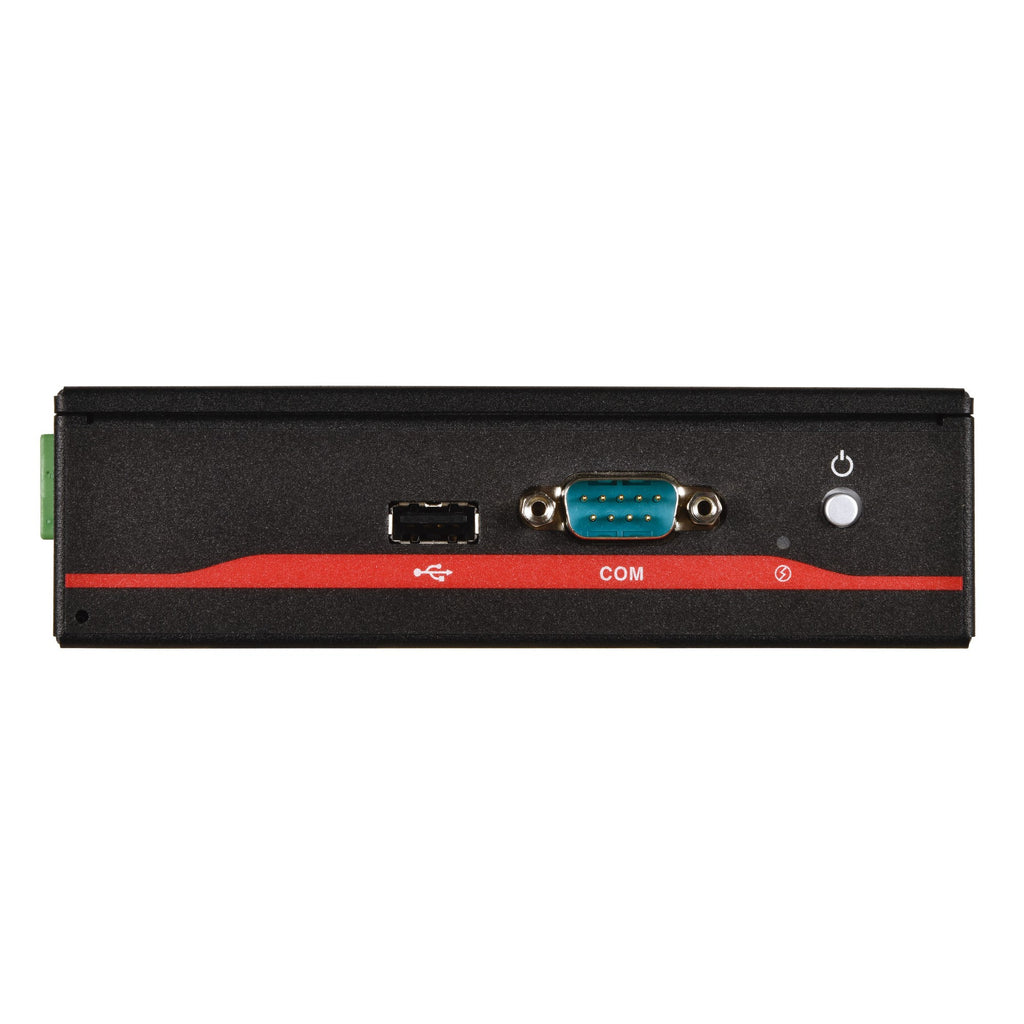

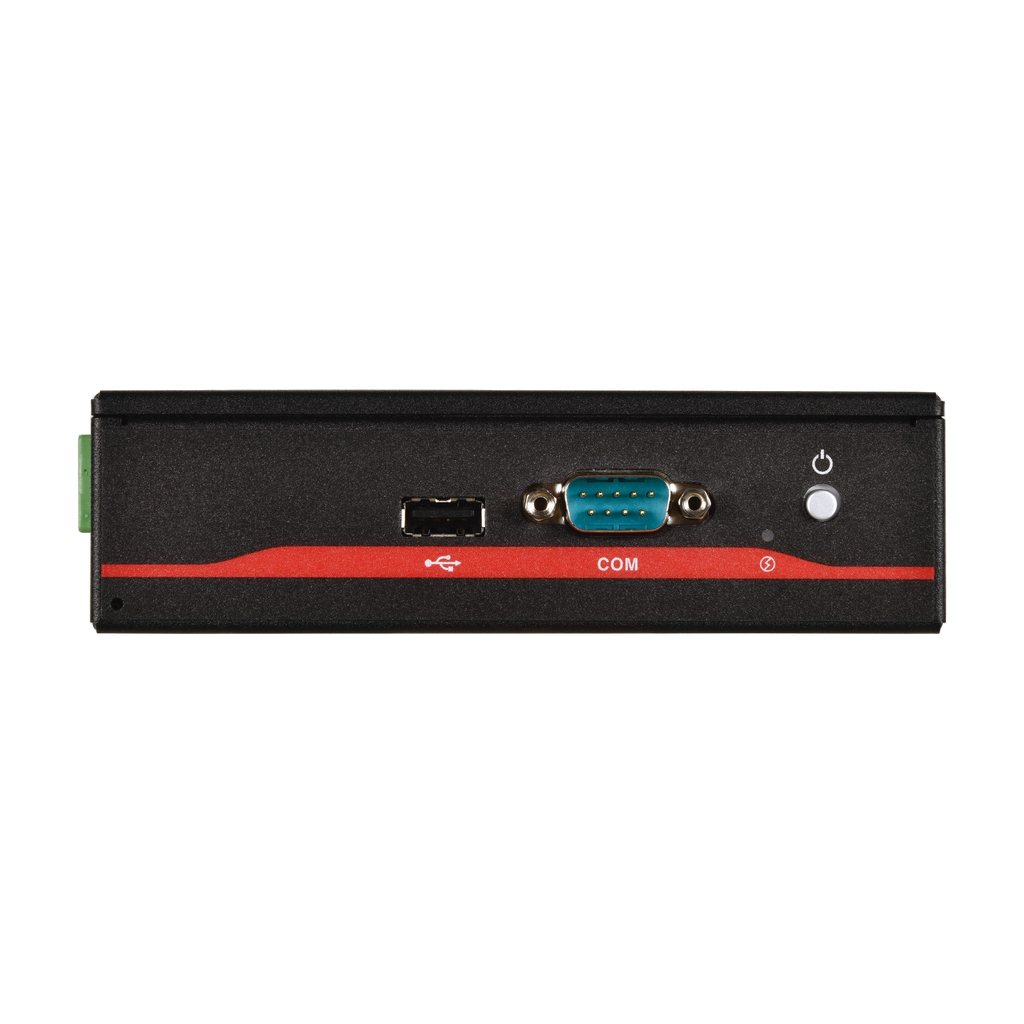

| FRONT I/O | 1 x USB 2.0 / 1 x RS232 / 422 / 485 | ||

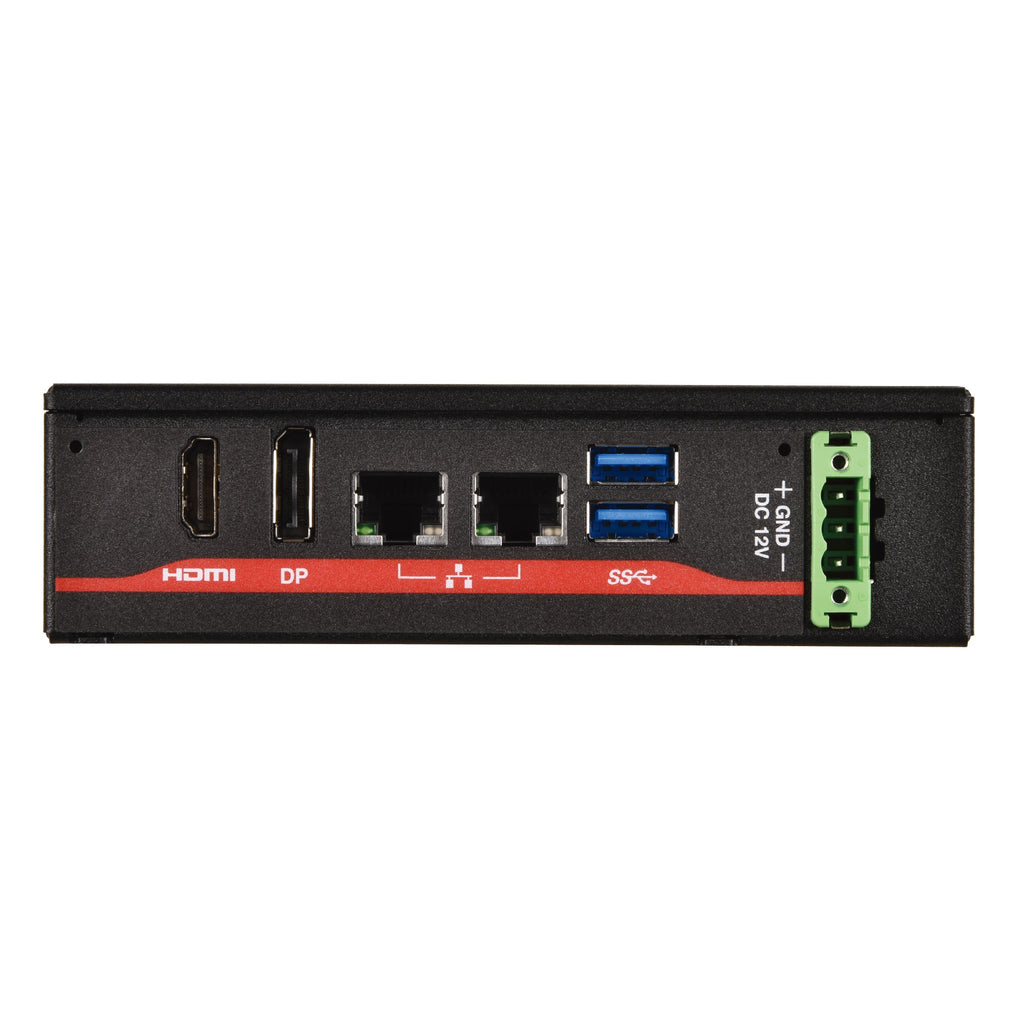

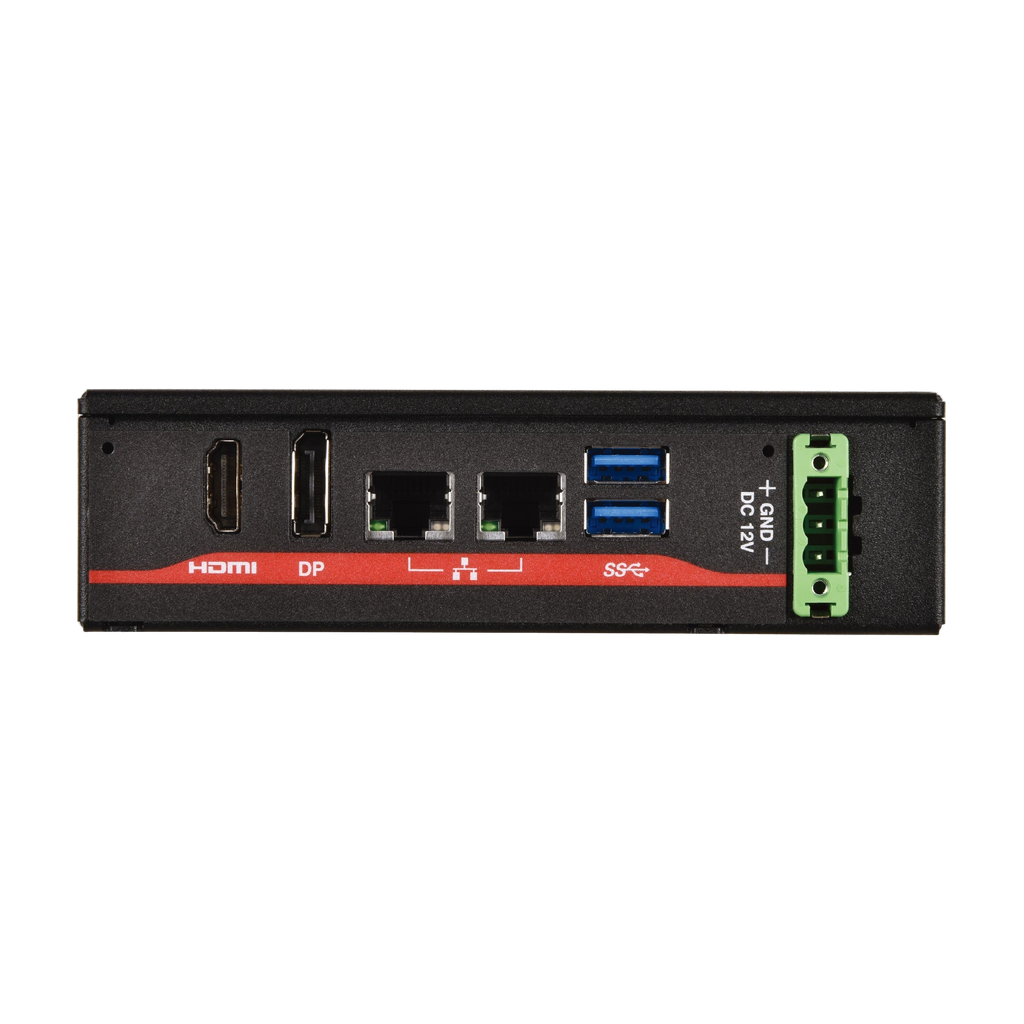

| REAR I/O | 1 x HDMI 2.0 / 1 x DisplayPort 1.2 / 2 x RJ-45 / 2 x USB 3.0 / 1 x 3-pin terminal block power input | ||
| POWER REQUIREMENT | POWER ADAPTER | DC12V / 3A / 36W adapter | |
| ENVIRONMENTAL | OPERATING TEMPERATURE | 0 ~ 55°C (32 ~131°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (Non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C, non-condensing | ||
| CERTIFICATION | CE / FCC Class B | ||
| MECHANICAL | ANTENNA | 2 x SMA antennas (optional for WiFi / LTE functionality) | |
| THERMAL DESIGN | Fanless and ventless | ||
| MOUNTING | 2-in-1 bracket for wall mounting / VESA mounting (75 x 75mm) | ||
| DIMENSIONS (W X D X H) | 140 x 100 x 38.75mm | ||
| MATERIAL | Enclosure: Sheet metal | ||
| OS | OS SUPPORT | BSP support for Yocto Sumo (Kernel version 4.14.98) / BSP support for Android 9 Pie (Kernel version 4.14.98) / (Remark: Android is recommended for the 4G MB memory SKU) | |
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x embedded system / 1 x wall-mount brackets / 1 x 10P male terminal block plug | |
