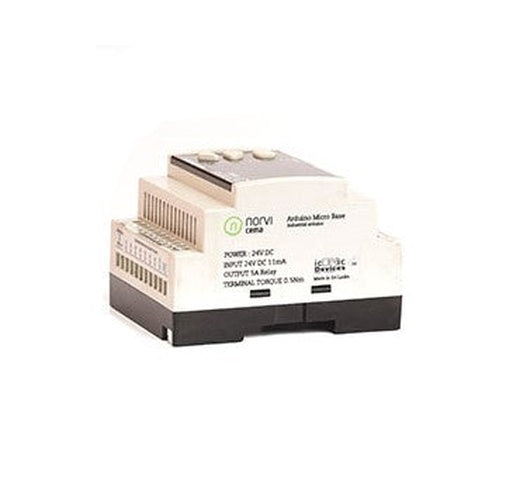

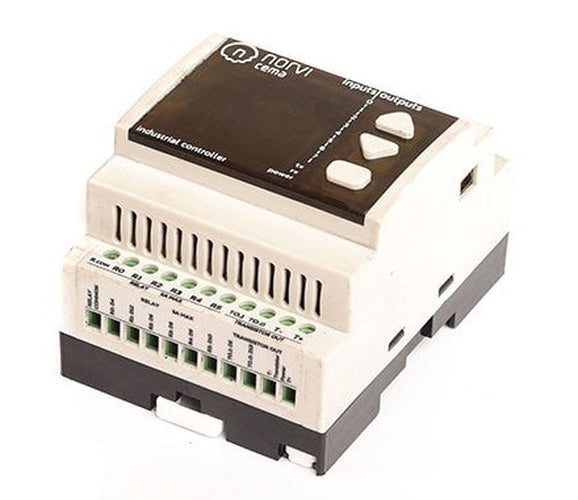

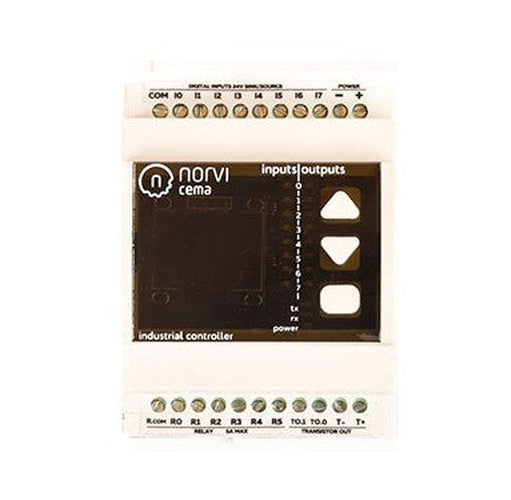

CEMA-M1 (Arduino Micro ATMEGA 32-U4, 8* Digital I/O, 6* Relays 5A)
Price excludes VAT
108.15€
Sale price
Price excludes VAT
108.15€
Regular price
Total with VAT (23%): 133.02€
Shipping calculated at checkout.
NORVI CEMA Micro Arduino for automation applications.
- ATMEGA 32
- Arduino Micro
- CPU 8Mhz
- 32 Kbytes Flash
- Up to two 16 bit timers with separate prescalers and Compare and Capture modes; one 10 bit high-speed Timer/Counter with PLL and Compare mode; four PWM channels with programmable resolution from 2 to 16 Bits; interrupt and Wake-up on pin change
- Programmable with Arduino IDE
- Integrated OLED and buttons programmable as an HMI
- Programming flexibility
- LED indicators for easy diagnostics
The NORVI Cema Industrial Arduino is the most compact version of the NORVI series. Nevertheless, it has 8 outputs and 8 inputs, outperforming all devices of the same size on the market. Its two transistor outputs add PWM or pulse-output capabilities. It includes a 6-pin expansion port with Serial output. Cema delivers leading reliability in industrial environments.
| Main | |
| Product range | NORVI CEMA |
| Product type | Programmable controller |
| Rated supply voltage | 24V DC |
| Number of discrete inputs | 8 discrete inputs |
| Discrete output type | Relay and transistor |
| Number of discrete outputs | 6 relay outputs, 2 transistor outputs |
| Discrete output voltage | 24V DC for transistor output |
| Discrete output current | 0.5A with T0.0... T0.1 transistor; 2 A with R0....R5 |
| Complementary | |
| Number of discrete IO points | 16 |
| Number of expansions | ----- |
| Supply voltage limits | 20.4 ..... 28.8V |
| Inrush current | <= 50A |
| Power consumption in W | 32.6 ...... 40.4 with all outputs ON |
| Discrete logic input | Sink or source |
| Discrete input voltage | 24V DC |
| Voltage type — voltage state 1 | > = 15V for input |
| Voltage type — voltage state 0 | < = 5V for input |
| Discrete input current | 5mA for input |
| Input impedance | 4.7k Ohm for input |
| Local signalling | 1 green LED for PWR 1 green LED for RUN 8 green LEDs for I0......I7 6 green LEDs for R0.....R5 2 green LEDs for T0....T1 |
| Electrical connection | Removable screw terminal block for inputs and outputs (pitch 5.08 mm) |
| Mounting support | Top-hat rail type TH35-15 conforming to IEC 60715 Top-hat rail type TH35-7.5 conforming to IEC 60715 Plate or panel with fixing kit |
| Height | 90.50 mm |
| Depth | 56.60 mm |
| Width | 60.60 mm |
| Weight | 0.43 kg |
| Environment | |
| Resistance to electrostatic discharge | 4kV contact discharge, 8kV air discharge |
| Resistance to electromagnetic fields | 10 V/m (80 MHz ...... 1 Ghz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ....... 3 GHz) |
| Immunity to microbreaks | 10 ms |
| Relative humidity | 10....95% non-condensing during operation |
| IP degree of protection | IP20 |
| Operating altitude | 0...2000m |
| Storage altitude | 0...3000m |
| Shock resistance | 15 gn for 11 ms |
| Resistance to electrostatic discharge | 4kV contact discharge, 8kV air discharge |
| Resistance to electromagnetic fields | 10 V/m (80 MHz ...... 1 Ghz) 3 V/m (1.4 MHz ...... 2 GHz) 1 V/m (2 MHz ....... 3 GHz) |
