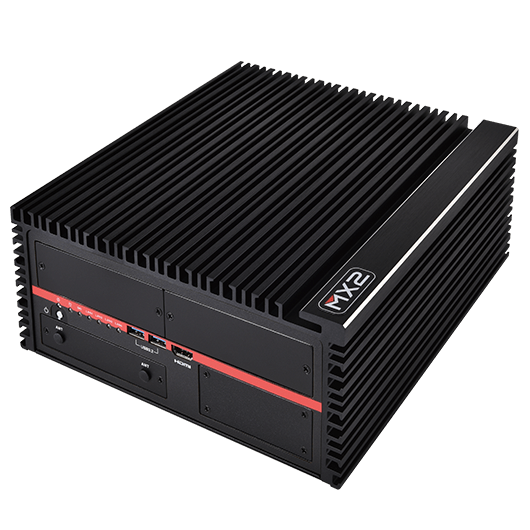

Mitac MX2-10ADP (Intel Raptor Lake-S, 4 LAN 2.5G, 3 RS232, Hailo-8)
Price excludes VAT
858.88€
Sale price
Price excludes VAT
858.88€
Regular price
Total with VAT (23%): 1,056.42€
Shipping calculated at checkout.
MX2-10ADP
Embedded graphics computing system for Intel® Raptor Lake-S Refresh Core-i CPUs up to 65W
- AI inference
- Intel® Raptor Lake-S Refresh 14th/Raptor Lake-S 13th/Alder Lake-S 12th Core-i processor (up to 65W)
- Supports 2 x DDR5 SO-DIMM (up to 96 GB)
- HDMI, DisplayPort, VGA, 4 x LAN 2,5G
- Supports 8 x USB, 3 x RS232 and 8-bit DIO
- Wide 9 ~ 48 V power input range
Compatible with 12th-generation (Alder Lake-S)/13th-generation (Raptor Lake-S)/14th-generation (Raptor Lake-S Refresh) Intel® Core™ processors - up to 65W
The first desktop processor with the new Intel hybrid 8+8-core technology for intelligent resource allocation.
1,35X generation-over-generation performance improvement and efficiency optimization for machine vision. Lower latency with lower power consumption.
2,81x improvement in AI inference
The first desktop processor with the new Intel hybrid 8+8-core technology for intelligent resource allocation.
1,35X generation-over-generation performance improvement and efficiency optimization for machine vision. Lower latency with lower power consumption.
| Model | Chipset | Thermal | Power | AC adaptor |
|---|---|---|---|---|
| MX2-10ADP | R680E | Fanless | 9~48V wide-range DC input with terminal block connectivity | None |
| MX2-10ADP-AC300 | R680E | Fanless | 9~48V wide-range DC input with terminal block connectivity | 300W AC-to-DC adapter |
| MX2-10ADP | |||
| SYSTEM | CPU | 14th/13th/12th Gen Intel® Raptor Lake-S Refresh/Raptor Lake-S/Alder Lake-S Core i9/i7/i5/i3/Celeron/Pentium (up to 65W) / *Please see the CPU options in Docs / Manuals | |
| CHIPSET | Intel® R680E | ||
| SYSTEM MEMORY | DDR5 4800 MHz / 2 x 262-pin SO-DIMM / Max. 96 GB (Non-ECC/ECC) | ||
| GRAPHICS | Intel® UHD Graphics | ||
| DISPLAY INTERFACE | VGA / DisplayPort 1.4 / HDMI 1.4 | ||
| STORAGE SLOT | 2 x 2.5 HDD / SSD (1 with removable HDD bay, 1 with internal HDD bracket) / 1 x M.2 2280/2260/2242 NVMe / SATA SSD / 1 x M.2 2242/2260 SATA SSD / 1 x mSATA | ||
| ETHERNET | 4 x Intel® I226-LM 2.5G LAN | ||
| AUDIO | Realtek® ALC888 | ||
| I/O CHIPSET | Nuvoton NCT6126D | ||
| TPM | Nuvoton NPCT760AABYX TPM2.0 | ||
| EXPANSION SLOT | 1 x M.2 2230/ 2242 / 2260 / 2280 M key (PCIeX4 NVME, SATAIII)/ 1 x full-size / half-size mPCIe (USB2.0 / PCIeX1 / SATAIII) / 1 x M.2 2230 E key (CNVi , PCIeX1, USB 2.0) / 1 x M.2 3052 / 3042 / 2242 / 2260 B key (USB3.0 , SATAIII, PCIeX1) with 2 x SIM slot / PCIe 4.0 X16 slot | ||
| INTERNAL SPEAKER | 1 x Buzzer | ||
| INDICATOR | DIO / LAN1~4 ACT / Power LED / HDD LED | ||

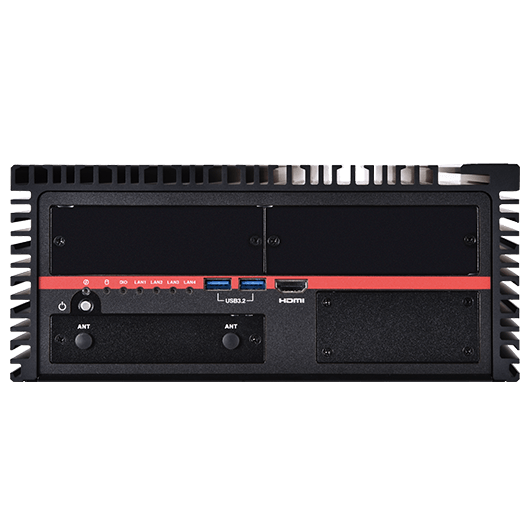

| FRONT I/O | 1 x HDMI 1.4 / 2 x USB 3.2 Gen2 / 2 x SIM card slot with cover / 1 x 2.5" SATAIII HDD / SSD bay | ||

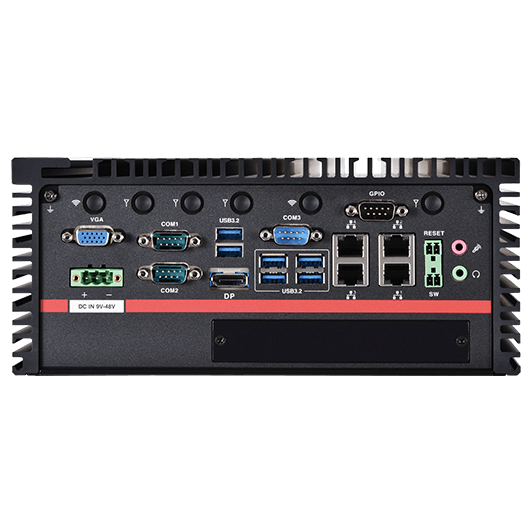

| REAR I/O | 4 x RJ-45 / 6 x USB 3.2 Gen 2 (10 Gbps) / 3 x RS232 / 422 / 485 (supports 5V / 12V power) / 6 x SMA antenna (optional for WiFi/LTE function) / 1 x 8-bit GPIO (in DB9 connector) / 1 x DisplayPort 1.2 / 1 x VGA / 1 x Mic-in / 1 x Line-out / 1 x PCIe x16 slot / 1 x 2-pin terminal block for remote power reset / 1 x 3-pin terminal block power input / 1 x 2-pin terminal block for remote power on / off | ||
| POWER REQUIREMENT | POWER INPUT | 9~48V wide-range DC input with terminal block connectivity | |
| POWER ADAPTER | Optional | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | 35W TDP processor: -40°C to 70°C / 65W TDP processor: -40°C to 50°C / with 0.7m/s airflow and wide-temperature memory/storage | |
| STORAGE TEMPERATURE | -40 ~ 85°C (-40 ~185°F) | ||
| OPERATING HUMIDITY | 10% ~ 90% R/H (non-condensing) | ||
| STORAGE HUMIDITY | 10% ~ 95% @85°C non-condensing | ||
| VIBRATION RESISTANCE | Operating: 5Hz~500Hz / 5Grms / 3Axis (with SSD, according to IEC60068-2-64) | ||
| SHOCK RESISTANCE | Operating: 50 Grms, half-sine, 11 ms duration (with SSD, according to IEC60068-2-27) | ||
| CERTIFICATION | CE / FCC Class A / LVD CoC: EN62368-1 | ||
| MECHANICAL | THERMAL DESIGN | Fanless | |
| MOUNTING | Wall mount | ||
| DIMENSIONS (W X D X H) | 10.6” x 9.7” x 4.3” (268 x 246 x 108 mm) | ||
| WEIGHT | 6.9kg (15.2 lb) | ||
| OS | OS SUPPORT | Linux (support available upon request) / Windows® 10 64-bit / Windows® 11 64bit, | |
| PACKING LIST | PACKAGE | 1 x Quick Installation Guide / 1 x Embedded System / 1 x CPU cooler (passive) / 1 x Wall mount brackets / 1 x 3 pin terminal block power connector / 2 x 2 pin terminal block male connector / 1 x 30 cm SATA & SATA PWR Y cable (3rd SSD/HDD requires an optional SATA Y cable) | |
