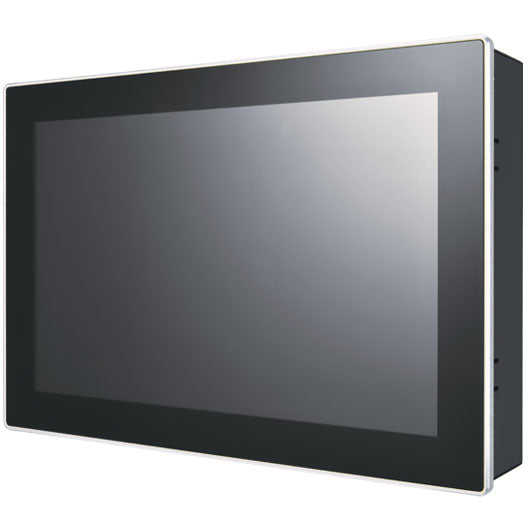

Panel PC 10.1' P100-10AS-N4200 (Apollo Lake N4200 quad core)

10.1' panel PC with Intel® Celeron Apollo Lake processor

P100-10AS

• 10.1" TFT LCD with a 30,000-hour service life
• IP65 front protection and fanless design
• Intel® Apollo Lake-M N3350 processor

The P100-10AS is a 10.1 inch all-in-one panel PC system based on the Intel Apollo Lake platform, designed for power efficiency and fanless operation.

For different industrial touch applications, it flexibly supports either resistive or capacitive touch solutions, with an IP65 protection rating on the front.

These features are intended to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

Powerful Apollo Lake processor

1.48X performance improvement
(CPU Passmark)

Power consumption reduction

Low power consumption and fanless design

ATOM

Fanless Design

Silent and stable 24-7 long-term operation

Slim and sleek design

Display and touch

P-cap Multi Touch

Scratch resistance: 7H

FHD 16:9 natural viewing experience

Sunlight-Readable Display

Triple Display

Supports three independent displays (VGA, HDMI, DP). HDMI & DisplayPort support high resolutions up to 4K. The enhanced visual quality meets high-precision requirements.

DisplayPort 1.2 4K@60Hz

HDMI 1.4 4K@30Hz

Wide temperature range: -20 ∼ 60ºC

The P series Panel PC is designed for fanless applications in extreme temperature conditions from -20ºC to 60ºC.

IP65 Dust & Water Protection

Front IP65 Protection

Sealing prevents dust ingress and provides protection against water splashes

(within certain limits)

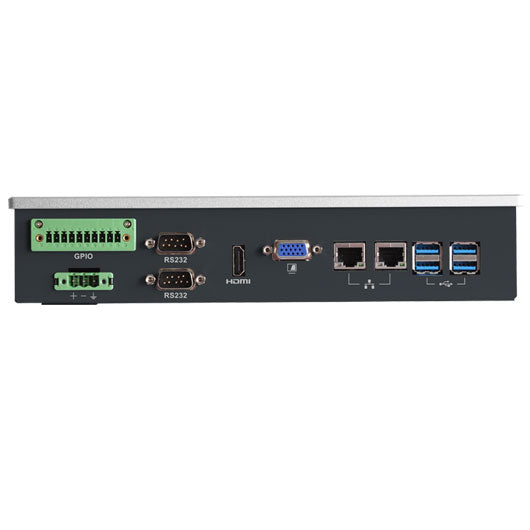

Rich I/O Connectivity

Advanced Power Protection

Wide Power Range

8V ∼ 24V

Protection

ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV

Mounting Design

STEP 1

• Make a cutout in the mounting fixture (e.g. wall) according to the Panel PC cutout dimensions

STEP 2

• Place the Panel PC into the fixture from the front
• The sides of the bezel should remain visible from the outside

STEP 3

• Use the mounting kit to secure the Panel PC to the fixture
• First install the mounting clamp on the Panel PC, then tighten the screw to secure the clamp to the fixture

STEP 4

• Installation Complete
