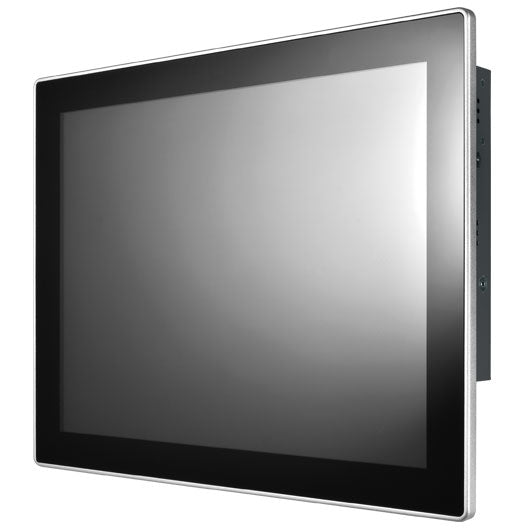

Panel PC 15' P150-10AI-N3350 (Apollo Lake N3350 dual core)
15' Panel PC with Intel® Celeron Apollo Lake processor
P150-10AI
- 15" TFT LCD with a service life of 70,000 hours
- IP65 front protection and fanless design
- Slim Panel PC with PCAP touchscreen
- Intel® Apollo Lake-M N3350 processor
The P150-10AI is a 15 inch all-in-one Panel PC system based on the Intel Apollo Lake platform, designed for power efficiency and fanless operation.
For different industrial touch applications, it flexibly supports either resistive or capacitive touch solutions, with an IP65 protection rating on the front.
All these features are designed to provide the most stable and reliable product solution for different environmental or industrial HMI applications.
Powerful Apollo Lake Processor
1.48X performance improvement
(CPU Passmark)
Power Consumption Reduction
Low Power Consumption & Fanless Design
ATOM
Fanless Design
Silent & Stable 24-7 Long-Term Operation
Slim & Sleek Design
Display & Touch
P-cap Multi Touch
Scratch Resistance: 7H
Sunlight-Readable Display
Triple Display
Supports three independent displays (VGA, HDMI, DP). HDMI & DisplayPort support high resolutions up to 4K. The enhanced visual quality meets high-precision requirements.
DisplayPort 1.2 4K@60Hz
HDMI 1.4 4K@30Hz
Wide temperature range: -20 ∼ 60ºC
The P series Panel PC is designed for fanless applications in extreme temperature conditions from -20ºC to 60ºC.
IP65 Dust & Water Protection
Front IP65 Protection
Sealing prevents dust ingress and provides protection against water splashes
(within certain limits)
Rich I/O Connectivity
Advanced Power Protection
Wide Power Range
8V ∼ 24V
Protection
ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV
Mounting Design
STEP 1
- Make a cutout in the mounting fixture (e.g. wall) according to the Panel PC cutout dimensions
STEP 2
- Place the Panel PC into the fixture from the front
- The sides of the bezel should remain visible from the outside
STEP 3
- Use the mounting kit to secure the Panel PC to the fixture
- First install the mounting clamp on the Panel PC, then tighten the screw to secure the clamp to the fixture
STEP 4
Installation Complete
| Model | CPU | DisplayPort | HDMI | USB 3.0 / 2.0 | GPIO | RS-232 | LAN | Wi-Fi / BT | Power |
|---|---|---|---|---|---|---|---|---|---|
| P150-10AI-N3350 | N3350 | 1 | 1 | 4 / 0 | 1 | 2 | 2 | Optional | 8~24V |
| P150-10AI-N4200 | N4200 | 1 | 1 | 4 / 0 | 1 | 2 | 2 | Optional | 8~24V |
| P150-10AI (P150-10AI) Specifications | |||
|---|---|---|---|
| LCD | DISPLAY TYPE | 15" TFT-LCD | |
| MAX. RESOLUTION | 1024 x 768 | ||
| MAX. COLORS | 16.7M (8 bit / color) | ||
| LUMINANCE (cd/m2) | 300 | ||
| VIEWING ANGLE (H/V) | 176° / 176° | ||
| LED BACKLIGHT LIFETIME (hrs) | 70,000 | ||
| HIGH BRIGHTNESS | Option | ||
| TOUCH SCREEN | TYPE | P-CAP | |
| TOUCH SCREEN | True-flat, 10 points | ||
| AR/AG | Option | ||
| SYSTEM | PROCESSOR | Intel® Apollo Lake-M N3350 Processor / Option: N4200 | |
| CHIPSET | Integrated Intel® SoC | ||
| SYSTEM MEMORY | DDR3L 1866 MHz / 2 x 204-pin SO-DIMM / Max. 8GB (Non-ECC) | ||
| ETHERNET | 2 x Intel® I211-AT Giga LAN | ||

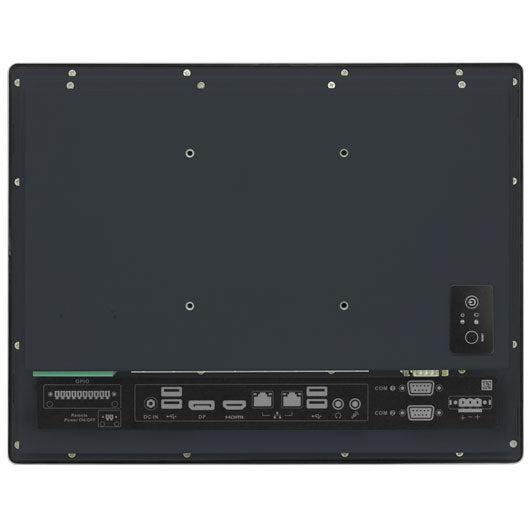

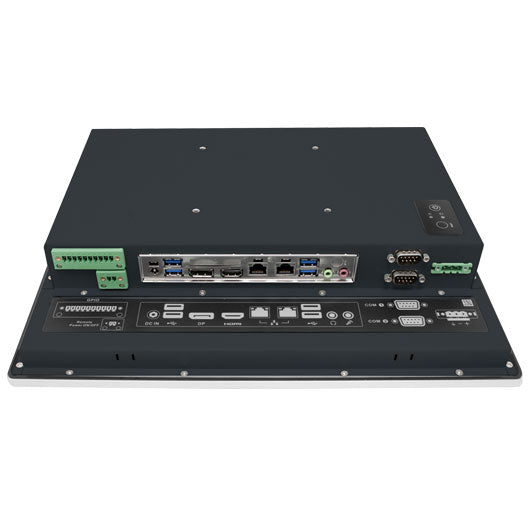

| I/O PORTS | 2 x RS232 / 2 x RJ45 / 1 x 8bit GPIO terminal block / 1 x DisplayPort 1.2 / 1 x DC input terminal block / 1 x DC Jack / 4 x USB 3.0 / 1 x HDMI 1.4 / 1 x Line-out / 1 x Mic-in | ||
| EXPANSION SLOT | 1 x M.2 2280 B key / 1 x M.2 2230 E key (PCIe / USB) | ||
| STORAGE | 1 x SATA 2.5” HDD / SSD bay | ||
| STEREO SPEAKER | 2 x 2W | ||
| OS SUPPORT | Windows® 10 Enterprise 1703 | ||
| WATCHDOG TIMER | 1~255 steps programmable via software | ||
| POWER REQUIREMENTS | POWER INPUT | DC input 8~24V | |
| POWER ADAPTER | AC-to-DC adapter / DC19V / 3.4A / 65W | ||
| MECHANICAL | MOUNTING | VESA 100 / Panel Mount | |
| DIMENSIONS (W X D X H) | 283.1 x 360.4 x 66.7 mm | ||
| WEIGHT | TBD | ||
| ENVIRONMENTAL | OPERATING TEMPERATURE | -20°C ~ 60°C (4 ~ 140°F) | |
| STORAGE TEMPERATURE | -20 ~ 70°C (-4 ~158°F) | ||
| STORAGE HUMIDITY | 10% ~ 95% @40°C, non-condensing | ||
| VIBRATION RESISTANCE | Operating random vibration test: 5-500Hz, 0.3 Grms with HDD / 2Grms with SSD, in accordance with IEC 60068-2-64 | ||
| SHOCK RESISTANCE | Operating peak acceleration of 10 G (11 ms duration) / in accordance with IEC 60068-2-27 | ||
| EMC | CE / FCC Class B | ||
| FRONT PANEL PROTECTION | IP65 compliant | ||
| PACKING LIST | PACKAGE CONTENTS | 1 x Driver CD / 1 x Quick Installation Guide / 1 x 3-pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screw Kit / 1 x Mounting Kit / 1 x 10-pin Male Terminal Connector | |
