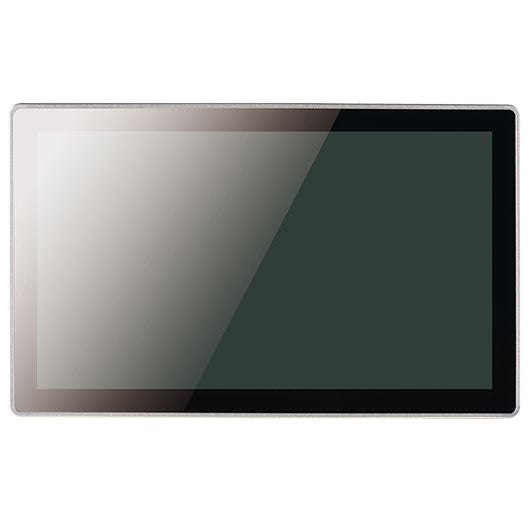

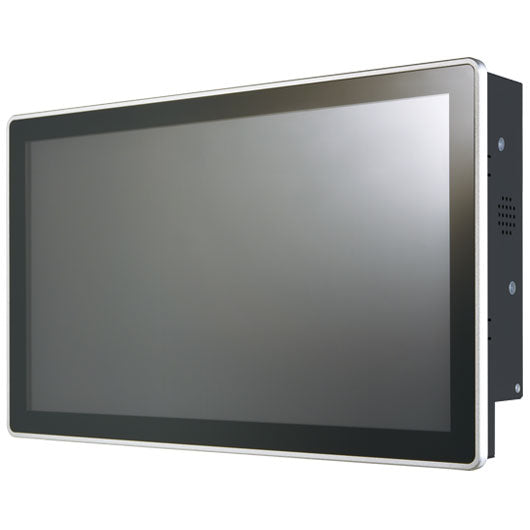

Panel PC 15.6' P156-10AI-N4200 (Apollo Lake N4200 quad core)

15.6' Panel PC with Intel® Celeron Apollo Lake processor

P156-10AI

• 15.6" TFT LCD with a service life of 50,000 hours
• IP65 front protection and fanless design
• Slim Panel PC with PCAP touchscreen
• Intel® Apollo Lake-M N4200 processor

The P156-10AI is a 15.6-inch all-in-one Panel PC system based on the Intel Apollo Lake platform, designed for power efficiency and fanless operation.

For different industrial touch applications, it flexibly supports either resistive or capacitive touch solutions, with an IP65 protection rating on the front.

All these features are designed to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

Powerful Apollo Lake Processor

1.48X performance improvement
(CPU Passmark)

Power Consumption Reduction

Low Power Consumption & Fanless Design

ATOM

Fanless Design

Silent & Stable 24-7 Long-Term Operation

Slim & Sleek Design

Display & Touch

P-cap Multi Touch

Scratch Resistance: 7H

Natural FHD 16:9 viewing experience

Sunlight-readable display

Triple display

Supports three independent displays (VGA, HDMI, DP). HDMI & DisplayPort support high resolutions up to 4K. The enhanced visual quality meets the requirements of high-precision applications.

DisplayPort 1.2   4K@60Hz

HDMI 1.4   4K@30Hz

Wide operating temperature range: -20 ∼ 60ºC

The P series Panel PC is designed for fanless applications in extreme temperature conditions from -20ºC to 60ºC.

IP65 dust & water protection

IP65-rated front panel

Sealed to prevent dust ingress and provide protection against water splashes

(within certain limits)

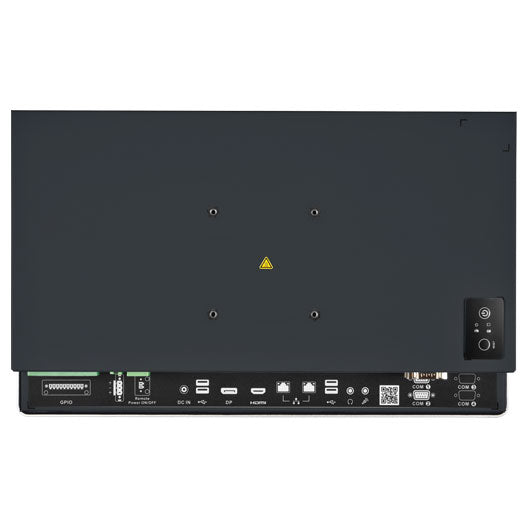

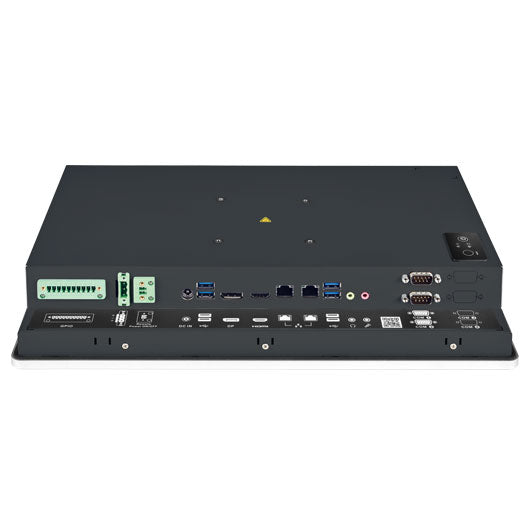

Rich I/O connectivity

Advanced power protection

Wide power range

8V ∼ 24V

Protection

ESD protection: +/-8kV (air), +/- 4kV (contact)
Surge immunity: 2kV

Mounting design

STEP 1

• Make a cut-out in the mounting fixture (e.g. a wall) according to the Panel PC cut-out dimensions

STEP 2

• Insert the Panel PC into the mounting fixture from the front
• The sides of the bezel should remain visible from the outside

STEP 3

• Use the mounting kit to secure the Panel PC to the fixture
• First, install the mounting clamp on the Panel PC, then tighten the screw to secure the clamp to the fixture

STEP 4

• Installation complete
