• Intel® Kaby Lake i7-7600U
  • Dual Intel® LAN Gigabit
  • 15.6" Capacitive Touch Panel
  • Proteção IP65
  • DC 8-24V
com IVA
1,943.40€

sem IVA
1,580.00€
Sku: P156-11KS-7600U
Product Type: Panel-PC Alta Performance
Vendor: MiTAC

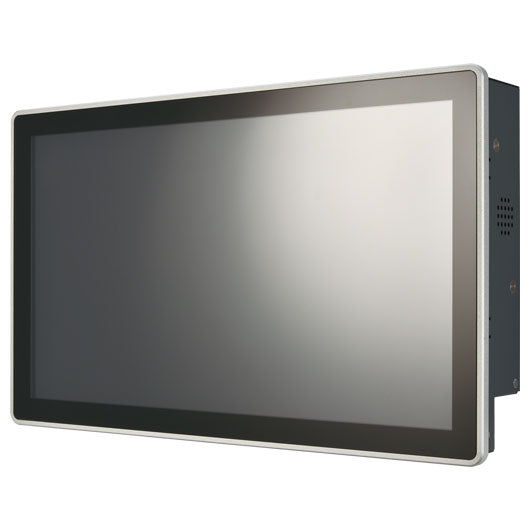

Panel PC 15.6' com processador Intel® Kaby Lake i7-7600

P150-11KS

  • LCD TFT 15.6" com 50,000 horas de vida útil
  • Proteção IP65 frontal, design fanless
  • Slim Panel PC PCAP touch
  • Processadores de 7ª Ger. Intel® Core i
7th_gen_core_i7
Caraterísticas
Caraterísticas
intel

P156-11KS is a 15.6 inch all in one panel PC system with Intel Apollo Lake based platform for power-efficiency and fanless condition.

IP65

For different industrial touch application, it is also flexible to support either resistive touch or capacitive touch solution followed by IP65 protection rating in front.

HMI-applications

All of these are aiming to provide the most stable and reliable product solution for different environmental or industrial HMI applications.

Industrial-Automation

Powerful Kaby Lake Processor

Kaby-Lake

2.18X Performance Improvement
(CPU Passmark)

CPU-Passmark

Power Consumption Reduction

Consumption

Low Power Consumption & Fanless Design

CORE-I

Fanless Design

Slient & stable 24-7 long term opertation

Core-i

Slim & Sleek Design

Slim-Design

Display & Touch

P-cap-Multi-Touch

P-cap Multi Touch

Scratch-resistance-7H

Scratch resistance: 7H

FHD-16:9

FHD 16:9 natural viewing experience

Sunlight Readable Display

Sunlight-Readable-Display

Triple Display

Support triple independent displays(VGA, HDMI, DP). The HDMI & DisplayPort up to 4K high resolution. The enhance visual quality responses the demand of being high precise.



DisplayPort 1.2   4K@60Hz

HDMI 1.4   4K@30Hz

Triple-Display

0 ∼ 50ºC Wide Temperature

P series Panel PC is design for fan-less application in extreme temperature condition from 0ºC to 50ºC

Wide-Temperature

IP65 Dust & Water proof

IP65
Front-IP65

Front IP65

Sealing to prevent dust even protected against splash of waters

(within certain limits)

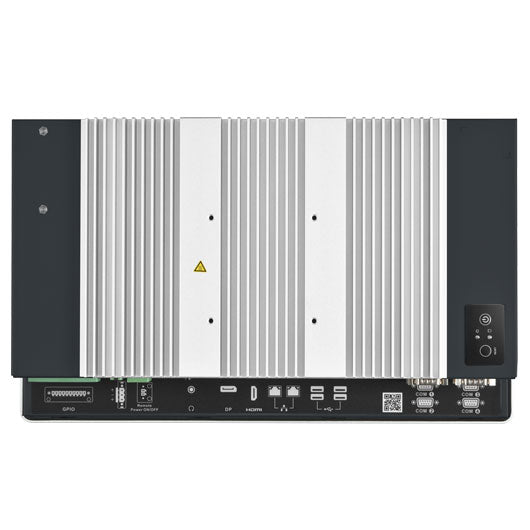

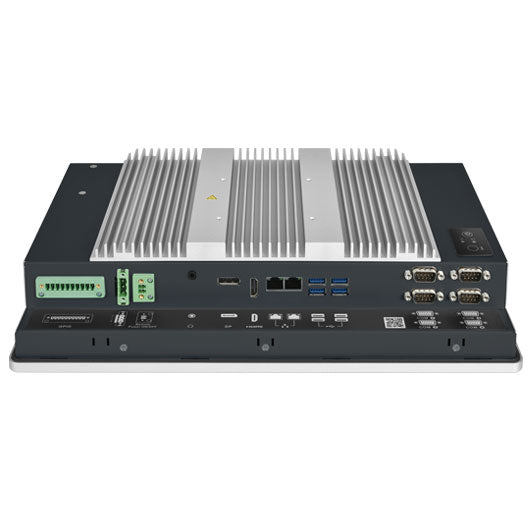

Rich I/O

P156-11KS-IO

Advanced Power Protection

8V-24V

Wide Power Range

8V ∼ 24V

Protection

Protection

ESD Protection: +/-8kV (air), +/- 4kV (contact)
Surge Immunity: 2kV

Mounting Design

STEP 1

  • Make a cutout on the fixture (ex. wall) according to the cutout Dimensions of the Panel PC
Front-View

STEP 2

  • Place the Panel PC on the fixture from the front side
  • The sides of the bezel should be visible from outside
Rear-View

STEP 3

  • Use mounting kit to secure the Panel PC to the fixture
  • First install mounting clamp to the Panel PC, and then fasten the screw to fix the clamp to the fixture
mounting

STEP 4

  • Installation complete

Installation-complete
Especificações
Model CPU VGA Display Port HDMI USB 3.0 / 2.0 Line out / Mic-in RS232 LAN Wifi / BT Power
P156-11KS-3965U Celeron 3965U 0 1 1 4 / 0 1 combo jack 4 2 Optional DC-in 8~24V
P156-11KS-7100U Core i3-7100U 0 1 1 4 / 0 1 combo jack 4 2 Optional DC-in 8~24V
P156-11KS-7300U Core i5-7300U 0 1 1 4 / 0 1 combo jack 4 2 Optional DC-in 8~24V
P156-11KS-7600U Core i7-7600U 0 1 1 4 / 0 1 combo jack 4 2 Optional DC-in 8~24V
P156-11KS (P156-11KS) Specifications
LCD   DISPLAY TYPE 15.6" TFT-LCD
  MAX. RESOLUTION 1920 x 1080
  MAX. COLORS 16.2M (8 bit / color)
  LUMINANCE (cd/m2) 450
  VIEWING ANGLE (H/V) 170° / 170°
  LED BACKLIGHT LIFETIME (hrs) 50,000
  HIGH BRIGHTNESS Option
TOUCH SCREEN   TYPE P-CAP
  TOUCH SCREEN True-flat 10 points
  AR/AG Option
SYSTEM   PROCESSOR 7th Gen Intel® Kaby Lake-U i3-7100U(Dual Core, 3MB Cache, 2.40 GHz) / option: 7th Gen Kaby Lake celeron 3965U / i5-7300U / i7-7600U / option: 6th Gen Skylake celeron 3955U / i3-6100U / i5-6300U / i7-6600U
  CHIPSET Intel® SoC Integrated
  SYSTEM MEMORY DDR4 2133MHz / 2 x 260-pin SO-DIMM / Max. 32GB (Non-ECC)
  ETHERNET Intel® I219-LM Giga LAN + Intel® I211-AT Giga LAN
  I/O PORT 1 x 3-pin Phoenix type terminal block DC input / 2 x RJ45 / 1 x Audio Jack (combo Line-out + Mic-in) / 1 x 8bit GPIO terminal block / 4 x RS232 / 1 x DisplayPort 1.2 / 1 x 2-pin remote power on/off / 4 x USB 3.0 / 1 x HDMI 1.4
  EXPANSION SLOT Wireless: M.2 2230 E key (PCIe, USB)
  STORAGE 1 x SATA 2.5” HDD / SSD bay
  STEREO SPEAKER 2 x 2W
  OS SUPPORT Windows® 10 enterprise 1703
  WATCHDOG TIMER 1~255 steps by software program
POWER REQUIREMENT   POWER INPUT DC-in 8~24V
  POWER ADAPTER AC to DC / DC19V / 3.4A / 65W adapter
MECHANICAL   MOUNTING VESA 75 / Panel Mount
  DIMENSIONS (W X D X H) 235.6 x 386.2 x 83mm
  WEIGHT 5kg (11.1 lb)
ENVIRONMENTAL   OPERATING TEMPERATURE -20~55°C (-4 ~ 131°F)
  STORAGE TEMPERATURE -20 ~ 70°C (-4 ~158°F)
  STORAGE HUMIDITY 10% ~ 90% @40°C non-condensing
  VIBRATION RESISTANCE Operating Random vibration Test 5-500Hz, 0.3 Grms@with HDD / 2Grms @with SSD, follow IEC 60068-2-64
  SHOCK RESISTANCE Operating 10 G peak acceleration (11 ms duration) / follow IEC 60068-2-27
  EMC CE / FCC Class B
  FRONT PANEL PROTECTION IP65 Compliant
PACKING LIST   PACKAGE 1 x Driver CD / 1 x Quick Installation Guide / 1 x 3 pin Terminal Block Power Connector / US + EU Power Cord / 1 x Power Adapter (19V, 65W, DC Jack Type) / 1 x Panel PC / 1 x Screws kit / 1 x Mounting kit / 1 x 10 pin Terminal Male Connector
