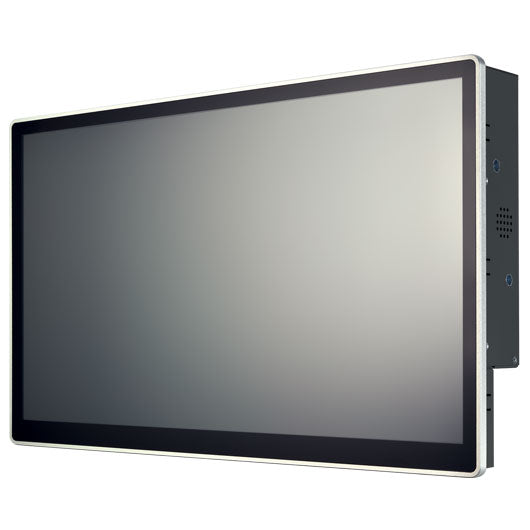

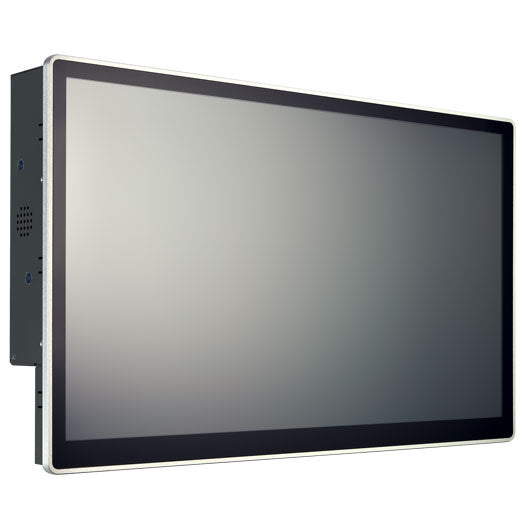

Panel PC 21.5' P210-11KS-7600U (Kaby Lake i7-7600 4M, 3.90 GHz)

21.5' Panel PC with Intel® Kaby Lake i7-7600 processor

P210-11KS

• 21.5" TFT LCD with a service life of 30,000 hours
• IP65 front protection and fanless design
• Slim Panel PC with PCAP touch
• 7th-generation Intel® Core-I processors

The P210-11KS is a 21.5-inch all-in-one Panel PC system based on the Intel Apollo Lake platform, designed for power efficiency and fanless operation.

For different industrial touch applications, it flexibly supports either resistive or capacitive touch solutions, with an IP65 protection rating on the front.

These features are designed to provide a stable and reliable product solution for different environments or industrial HMI applications.

Powerful Kaby Lake processor

2.18X performance improvement
(CPU Passmark)

Power Consumption Reduction

Low Power Consumption & Fanless Design

CORE-I

Fanless Design

Silent & Stable 24-7 Long-Term Operation

Slim & Sleek Design

Display & Touch

P-cap Multi Touch

Scratch resistance: 7H

FHD 16:9 natural viewing experience

Sunlight-readable display

Triple display

Supports three independent displays (VGA, HDMI, DP). HDMI & DisplayPort support resolutions up to 4K. Enhanced visual quality meets the requirements of high-precision applications.

DisplayPort 1.2   4K@60Hz

HDMI 1.4   4K@30Hz

Wide temperature range: 0 ∼ 50ºC

The P series Panel PC is designed for fanless applications under extreme temperature conditions from 0ºC to 50ºC.

IP65 dust & water protection

Front IP65

Sealed to prevent dust ingress and provide protection against water splashes

(within certain limits)

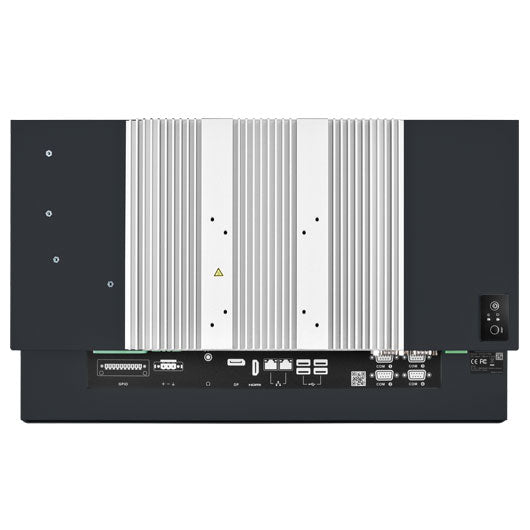

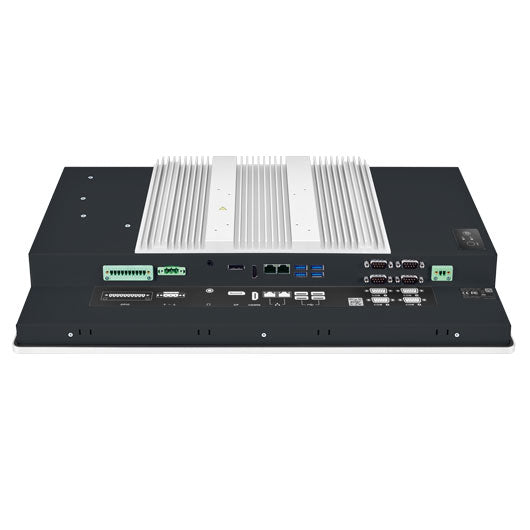

Rich I/O

Advanced power protection

Wide power range

8V ∼ 24V

Protection

ESD protection: +/-8kV (air), +/- 4kV (contact)
Surge immunity: 2kV

Mounting design

STEP 1

• Make a cut-out in the mounting fixture (e.g. a wall) according to the Panel PC cut-out dimensions

STEP 2

• Place the Panel PC on the fixture from the front side
• The sides of the bezel should remain visible from the outside

STEP 3

• Use the mounting kit to secure the Panel PC to the fixture
• First install the mounting clamp on the Panel PC, then tighten the screw to secure the clamp to the fixture

STEP 4

• Installation complete
