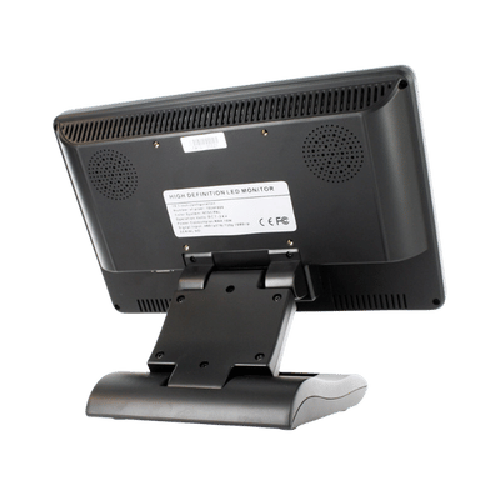

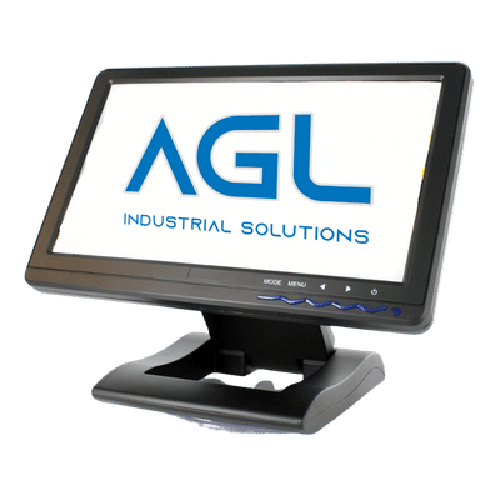

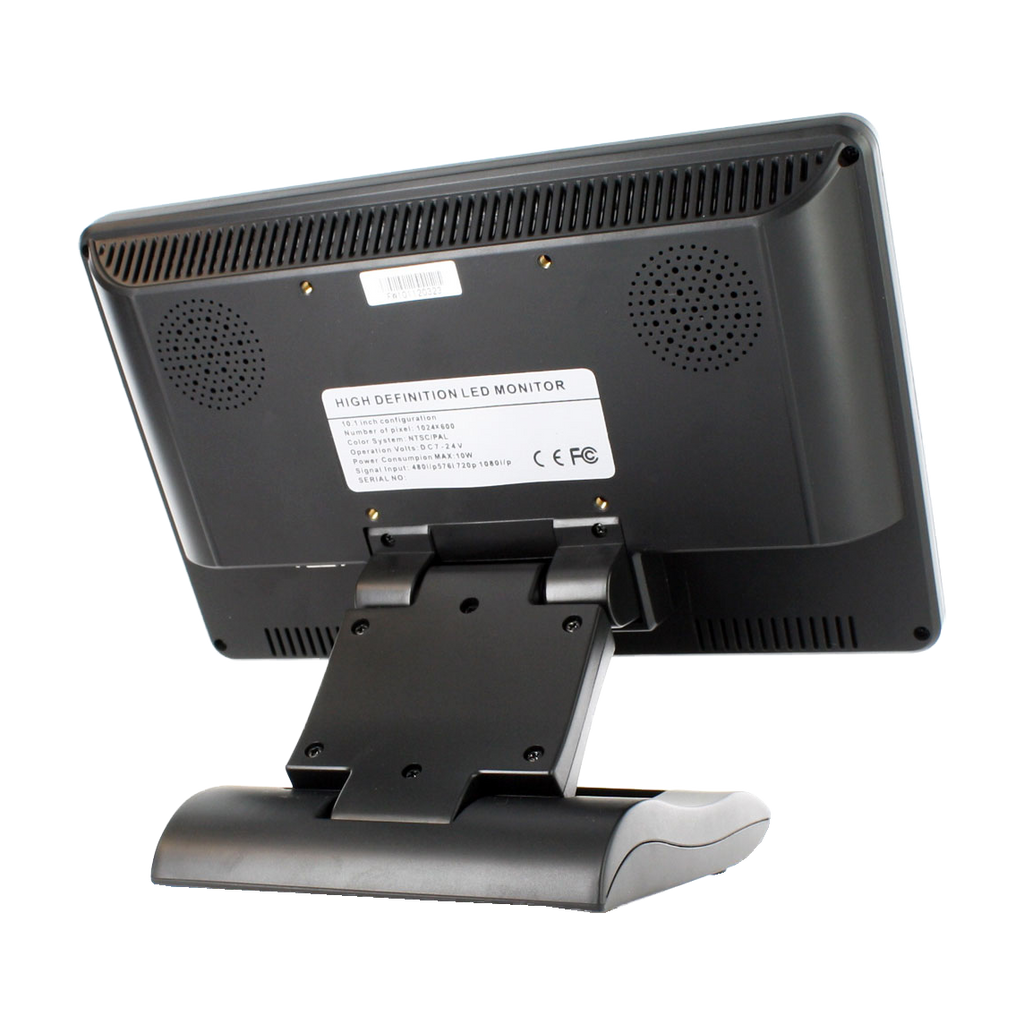

Monitor 10.1' CVL1010 HDMI/VGA, TFT, USB Touch, PAL/NTSC
CVL1010
HDMI/VGA 10.1" TFT - USB touchscreen - PAL/NTSC - IR - Audio [LED backlight]
The new "Value Line" offers low-priced yet outstanding display products. Unlike the CTF series, "Value Line" models have a more limited temperature range, lower brightness, and are not tested for vibration or E1 certification. These displays are also incompatible with our all-in-one cable design.
New LED backlight technology with optimized color saturation, enabling a particularly bright and vivid display. The range of displayable color nuances is increased by 45% by the new technology. Conventional LCDs use CCFL backlighting, which can display approx. 72% of the standard NTSC color gamut (National Television Systems Committee). LED backlight technology can display 104% of the NTSC color gamut, resulting in highly realistic image reproduction.
The new CVL1010 will impress you. It is the ideal display and control unit for your laptop, CarPC, or HTPC. The touchscreen functionality allows you to control the PC comfortably with your fingers. The bright VGA/HDMI display provides maximum readability and sharpness.
The device has integrated stereo speakers. The package includes an AC home adapter, a cigarette-lighter adapter, and an IR remote-control unit.
Driver CD included, compatible with:
- Windows 95/98/ME/NT4/2000/XP/7/8/8.1/10
- XP Tablet PC Edition
- Windows CE 2.12, 3.0, .net
- Linux RedHat,Mandrake,..
- Macintosh OS 9.x, 10.x
- DOS,..
| Specifications | |
| Screen size | 10.1" digital |
| Aspect ratio | 16:9 widescreen TFT display |
| Physical resolution | 1024x600 |
| Supported resolutions | 640x480-1920x1440 |
| Power input | DC 12V |
| Power consumption | Max. 6W |
| Video system | 2x video inputs (PAL/NTSC) 1x Y/Pb/Pr 1x VGA input 1x HDMI input |
| Brightness | 400 cd/m² |
| Contrast | 500:1 |
| Operating temperature | -20° to 50°C |
| Dimensions | 255(L)*163(W)*69(H) (folded) 255(L)*150(W)*236(H) (unfolded) |
| Video input signal | 1.0Vp-p, composite video |
| Features | Full-function OSD control (English) |
| Integrated stereo speakers | |
| LED backlight | |

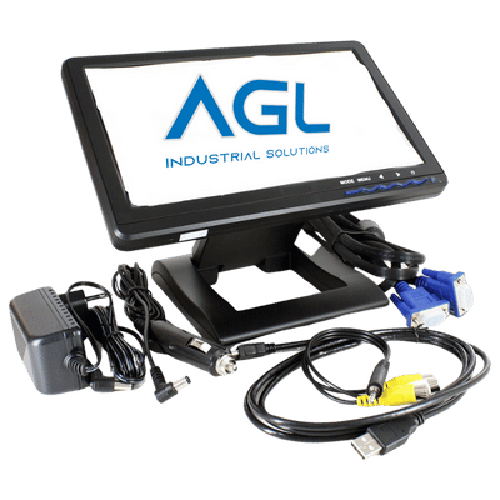

| Package contents | - 10.1" VGA/HDMI TFT touchscreen with video/audio support |
| - Infrared remote control | |
| - Dashboard monitor mount | |
| - VGA / Video / Audio / USB connection cable | |
| - Power supply for connection to a 230V socket | |
| - Cigarette-lighter adapter | |
| - Touchscreen driver CD | |
| - Touchscreen stylus | |
| - Manual |
