Monitor 10.1' 1099L Outdoor Open Frame
elo1099l – E354792
10.1" Outdoor Open-Frame Monitor
- Built-in Thermal Protection
- Compliant with UL-60950 & IK-10
- IP66 & Nema 4x
- OEM Life-Cycle Support
- Ready for 24/7 Use
1099L 10" Outdoor Open Frame
Outdoor kiosk ready.
Elo's 10-inch outdoor monitor, featuring 1000 NITs brightness and an IK09 vandal-resistant rating, delivers 24/7 performance, even in direct sunlight. Readable through polarized sunglasses, it operates across extended temperature ranges. Ideal for payment systems, signage and charging stations, this bright, optically bonded, weatherproof monitor features edge-to-edge glass for seamless integration into outdoor enclosures.
Model | 1099L |
Color | Black |
Active Display Area | 8.54" x 5.33" / 216.96 mm x 135.60 mm |
Diagonal | 10.1" |
Aspect ratio | 16:10 |
Native Resolution | 1280x800 |
Other Supported Resolutions | 640x480 60Hz; 720x400 70Hz; 800x600 60Hz; 1024x768 60Hz; 1280x800 60Hz |
Number of Colors | 16.7 million |
Number of Touches | 5-touch with USB, 2-touch with touch-thru |
Brightness (Typical) | With TouchPro PCAP: 1000 nits |
Response Time (Typical) | 25 msec |
Viewing Angle | Horizontal: 85°/170°; Vertical: 85°/170° |
Contrast Ratio | 800:1 |
On-Screen Display | Accessible through switches on the unit’s tethered OSD control box. Controls: Menu, Up, Down, Select, Power Brightness, Contrast, Light Sensor, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Rotation, OSD Language, OSD H-Position, OSD V-Position, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Touch Through, Touch Interface, GPIO Control, Time Setting, On/Off Schedule, Daylight Saving Time Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese Lockouts: OSD, Power |
I/O Ports | Locking connectors for all ports, including USB TypeB, RJ45 for the OSD remote key, VGA, HDMI and DisplayPort |
Video | HDMI V1.3 Type A receptacle for HDMI input Analog VGA on a Female DE-15 (DB-15) Connector DisplayPort V1.1a — Supports Later Versions of DisplayPort Video Input Input Video Horizontal Sync Frequency Range: 31.5 – 80 KHz Input Video Vertical Sync (Frame Rate) Frequency Range: 60-75Hz |
Power | External DC — Optional Power Brick (Sold Separately) Monitor input power connector: coaxial power jack (2.5mm (+0.0 -0.1mm) pin outer diameter, 5.7mm (+/- 0.1mm) barrel inner diameter, 7.8mm (+/- 0.2mm) barrel depth) Monitor Input Voltage Range: 12V – 24V DC +/- 5% Adapter output power connector: DC barrel plug (2.5mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 7.5mm (+/- 0.5mm) barrel length) Adapter Input Voltage Range: 100-240 VAC; Input Frequency: 50-60 Hz |
Power Consumption | Monitor + Adapter — ON: 23 W; SLEEP from PC: 1.5 W ; OFF: 1.5 W |
Temperature | Operating: -20 °C to 60 °C (-4 °F to 140 °F); Storage: -30 °C to 80 °C (-22 °F to 176 °F) |
Humidity | Operating: 10% to 90%; Storage: 10% to 95% (38.7° maximum wet-bulb temperature) |
Dimensions | 10.08" x 6.93" x 1.61" / 256 mm x 176 mm x 41 mm |
Shipping Dimensions | 13.58" x 10.94" x 6.89" / 345 mm x 278 mm x 175 mm |
Weight | Unpackaged: 1.67 kg / 3.68 lbs, packaged: 3.6 kg / 7.94 lbs |
Mounting Options | 75mm VESA mount on the rear of the unit; 2-hole mounting interface on all four sides; flush mount with included brackets |
Warranty | 2 years standard |
MTBF | 50,000 hours demonstrated |
Agency Approvals | Australia RCM; Canada cUL, IC; China CCC; Europe CE, TUV; United Kingdom UKCA; Japan VCCI; Korea KCC; Mexico NoM; Taiwan BSMI; United States UL, FCC; International CB; RoHS, China RoHS, WEEE |
Compliance | GLI 27 kV air / 8 kV contact ESD compliance; UL ball-drop compliance; IK09 impact compliance |

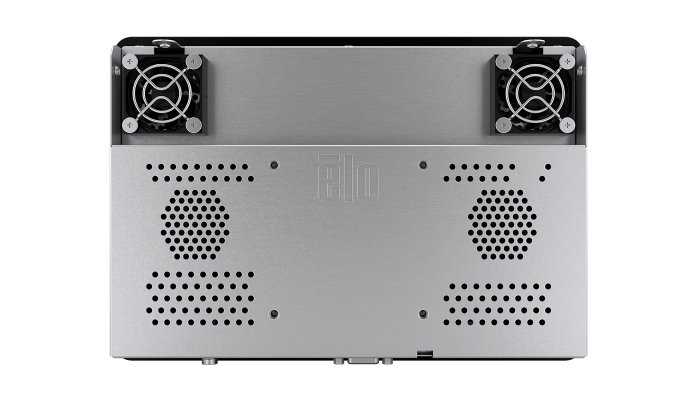

Other Features | Viewable with polarized sunglasses in portrait and landscape orientations. Ambient light sensor. Thermal sensor. External fans (automatically controlled) |
What’s in the Box | 1099L, HDMI cable (screw-locking type), VGA cable, OSD remote, touch USB cable (screw-locking type), QIG, flush-mount brackets with screws, EEI label, Japan Class-B TM information sheet |
