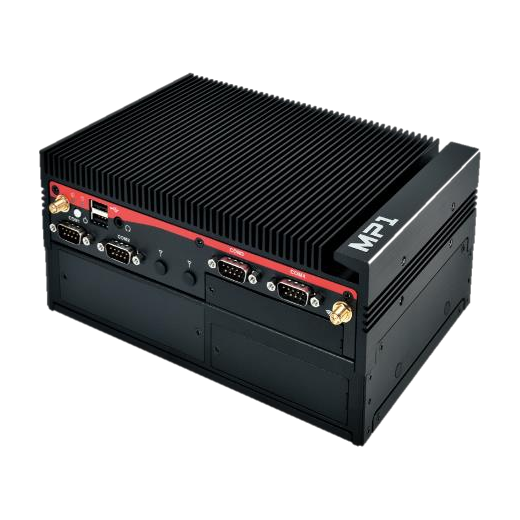

Mitac MP1-11TGS-D-1185G7E-AC (Tiger Lake i7-1185G7E, 12~36VDC)

MP1-11TGS-D-1185G7E-AC

Fanless Embedded PC with Intel® Tiger Lake-UP3 CPU and Intel®Iris Xe graphics

• Supports Intel® Tiger Lake-UP3 Core i7/i5/i3/Celeron ULV processors
• Excellent graphics processing capability with Intel®Iris Xe graphics
• Supports Intel® vPro technology
• 1* SO-DIMM DDR4 up to 32GB
• Supports 4 monitors via HDMI and DisplayPort
• 2* hot-swappable SSD/HDD slots
• 2* Intel® Gigabit Ethernet (optional: 2* additional LAN)
• 2* USB 2.0, 4* USB 3.1 Gen2 e 4* COM
• Wide input voltage range: 12V~36V

Intel® 11th Gen (Tiger Lake-UP3) Core™ processors - Up to 28W

New-generation CPU architecture

Architecture based on a 10nm++ process

60% performance improvement

Get work done faster

Supports Core i7

Up to 4 cores, 8 threads, 4.4GHz Turbo frequency and 28W TDP

Outstanding graphics processing capability

Intel Iris® Xe transforms integrated graphics

• New Iris® Xe(Gen12) graphics engine with up to 96 EU
• 4 independent display units at 4K resolution

Iris Xe iGPU drives the AI revolution

• 5X better AI performance
• AI/DL instruction set, including VNNI (Vector Neural Network Instruction), and CV/AI applications, improving inference workload performance
• Intel Deep Link provides additive AI, Hyper Encode, dynamic power sharing and a common software framework for Iris Xe iGPU

5G cellular network

M.2 3042/3052 + SIM slot

• M.2 3042/3052 slot with built-in SIM slot for LTE/*5G network expansion
• Higher speeds and lower latency
• More deployment possibilities across different scenarios and business models

Hot-swappable HDD drive

• Hot-swappable design for a 2.5" HDD/SSD drive with advanced hardware protection
• Easy maintenance and installation with only one screw

High-resolution quadruple display

• High-resolution HDMI port and DisplayPort for different scenarios and applications
• Quadruple display for main, secondary, third, and fourth monitor can be set in clone or extension mode in operating system for multiple tasks

High-resolution quadruple display

Wide power range

12V~36V

Protection

• Reverse power input protection
• Overvoltage protection: 44V
• Overcurrent protection: 15A
• ESD protection: +/-15kV (air), +/-8kV (contact)
• Surge protection: 3kW

Wide operating temperature range for harsh environments

The MP1-11TGS-D features a patented aluminium enclosure designed not only for an aesthetic appearance but also for fanless operation under extreme temperature conditions from -40oC to 70oC.

Extreme shock & vibration resistance

Shock resistance

Operating, 50 Grms, half-sine, 11 ms duration
(with SSD, according to IEC60068-2-27)

Vibration resistance

Operating, 5 Grms, 5-500 Hz, 3 axes
(with SSD, according to IEC60068-2-64)

vPro support (Core i5/i7)

Intel® vProTM technology features Intel® AMT and provides a lightweight form of virtualization for auditing all Intel® AMT-based platforms in a networked environment. It enables remote management of corporate PCs and asset recovery.

Industrial-grade Design

6X longer lifespan

Unlike electrolytic capacitors, our server motherboards use solid capacitors to provide a longer service life, stability and reliability.

I/O Interface
