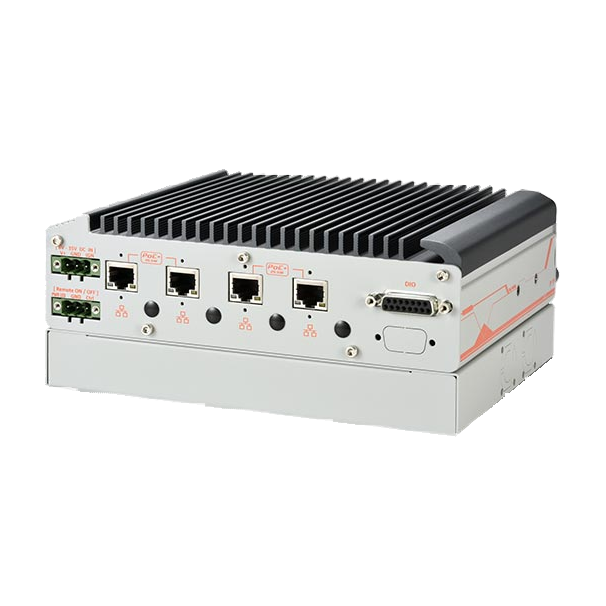

Neousys Nuvo-2600E (Intel® Elkhart Lake x6425E, 4 GbE, HDD, PCIe)
Nuvo-2600E
Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x GbE, 7/15mm 2.5" HDD, and PCIe expansion cassette
Nuvo-2600E-PoE
Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x PoE+ GbE, 7/15mm 2.5" HDD, and PCIe expansion cassette
Nuvo-2600E-IGN
Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x GbE, 7/15mm 2.5” HDD, PCIe expansion cassette, and ignition power control
Nuvo-2600E-PoE-IGN
Intel® Elkhart Lake Atom® x6425E fanless box PC with 4x PoE+ GbE, 7/15mm 2.5” HDD, PCIe expansion cassette, and ignition power control
- Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/ 3.0GHz 12W processor
- Rugged -25°C to 70°C fanless operation
- 4x Gigabit PoE+ ports via RJ-45 connector with screw lock
- 1x isolated RS-485 port and 1x RS-422/485 or 3x 3-wire RS-232 ports
- 2x full-size mini-PCIe sockets and 1x M.2 3042/3052 Key B
- 1x front-accessible 2.5” SATA SSD tray (up to 15mm in height) and 1x M.2 2280 SATA
- 1x patented cassette for a single-slot PCIe card (Nuvo-2600E), or 1x 2500 watt-second SuperCAP UPS (Nuvo-2600J)
- 8V to 35V wide-range DC input with remote control
The Nuvo-2600 series comprises Intel® Elkhart Lake Atom® fanless box PCs with flexible expansion options for versatile factory automation and machine vision applications requiring a compact footprint, Gigabit PoE+ capability, front-accessible data storage, and CPU performance with low 12W power consumption.
Powered by an Intel® Elkhart Lake Atom® x6425E quad-core CPU, the Nuvo-2600 series delivers a 320% CPU performance improvement over the previous Nuvo-2500E series. The Nuvo-2600 series has four Gigabit PoE+ ports and one USB 3.1 port with screw-lock mechanisms to secure camera connections. In addition to its internal M.2 2280 SATA SSD for system storage, the Nuvo-2600 has one front-accessible 2.5" HDD tray accommodating a 7-15mm 2.5" SSD/HDD with up to 5TB of storage capacity. It also has one isolated RS-485 port and isolated DIO to provide robust connections to industrial devices. For internal expansion, the Nuvo-2600 series provides two mini-PCIe sockets and one M.2 3042/3052 Key B socket to support 4G/ 5G mobile broadband.
To meet diverse deployment requirements, the Nuvo-2600 series is available in two variants. The Nuvo-2600E has a PCIe cassette for an additional PCIe card, such as a USB or GbE frame grabber, isolated DIO, or industrial communication card. The Nuvo-2600J has an integrated SuperCAP UPS that can withstand power interruptions or voltage fluctuations in industrial environments. Featuring an Intel Elkhart Lake Atom® quad-core CPU, wide-temperature operation, industrial I/O interfaces, and an expansion cassette module, the Nuvo-2600 series is a versatile, multi-purpose fanless box PC for factory automation and machine vision applications.
■ NEOUSYS MARKETING TEAM
| System Core | |
|---|---|
| Processor | Intel® Elkhart Lake Atom® x6425E quad-core 2.0GHz/3.0GHz 12W processor |
| Graphics | Integrated Intel® UHD Graphics |
| Memory | Up to 32GB DDR4-3200 SDRAM via one SODIMM socket |
| Panel I/O Interface | |
|---|---|
| Ethernet port | 4x Gigabit Ethernet ports via RJ-45 connectors using Intel® I210 with screw-lock |
| PoE capability | Compliant with IEEE 802.3at PoE+ PSE, with a maximum 25.5W output on a single PoE+ port. Compatible with 802.3at (PoE+) and 802.3af (PoE) PD |
| Video Port | Dual VGA and DVI display outputs via one DVI-I connector |
| USB | 1x USB 3.2 Gen1 (5 Gbps) port with screw-lock 2x USB 2.0 ports with screw lock |
| Serial Port | 1x isolated RS-485 port with 15 kV ESD protection (COM1) 3x 3-wire RS-232 ports (COM2/3/4) or 1x RS-422/485 (COM2) |
| Isolated DIO | 4-CH isolated DI and 4-CH isolated DO |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Internal I/O interface | |
|---|---|
| PCIe | 1x PCIe x4 slot @ 2-lane PCIe 3.0 signal in Cassette module (Nuvo-2600E only) |
| Mini PCI Express | 1x full-size mini PCI Express socket with PCIe and USB 2.0 signals 1x full-size mini PCI Express socket with USB 2.0 signal |
| M.2 B Key | 1x M.2 3042/3052 B Key (USB 3.1 + USB 2.0) for a 4G/ 5G module with dual internal micro SIM sockets |
| Storage Interface | |
|---|---|
| M.2 SATA | 1x M.2 2280 M Key socket (SATA interface only) for SATA SSD installation |
| SATA HDD | 1x front-accessible HDD tray for 2.5" HDD/SSD installation (up to 15mm in height) |
| Power Supply | |
|---|---|
| DC Input | 1x 3-pin pluggable terminal block for 8V to 35V DC input with built-in ignition power control (IGN/GND/V+) |
| Remote control & LED output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| SuperCAP UPS | |
|---|---|
| Capacity | 2500 watt-second (Nuvo-2600J only) |
| Mechanical | |
|---|---|
| Dimensions | 205 mm (W) x 156 mm (D) x 86 mm (H) |
| Weight | - |
| Mounting | Wall-mount bracket (optional) |
| Environmental | |
|---|---|
| Operating temperature | -25°C to 70°C* |
| Storage temperature | -40°C ~ 85°C |
| Humidity | 10%~90%, non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.7, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.7, Procedure I |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55035 |
* For sub-zero operating temperatures, a wide-temperature HDD or Solid State Disk (SSD) is required.
Expansion PCIe Cards:
Optional Accessories
PA-120W-OW
120W AC/DC power adapter 20V/6A; 18AWG/120cm; cord-end terminals for terminal block, operating temperature: -25 to 70°C.
PA-160W-OW
160W AC-DC power adapter 20V/8A; 18AWG/120cm; cord-end terminals for terminal block, operating temperature: -25 to 70°C.
Fankit-25
Single-fan kit for the PCIe Cassette of the Nuvo-2600 and Nuvo-2610VTC series, including one 25x25mm fan and screws
Wmkit-Nuvo-2600
Wall-mounting kit for the Nuvo-2600 and Nuvo-2610VTC series, including wall-mount brackets and screws
