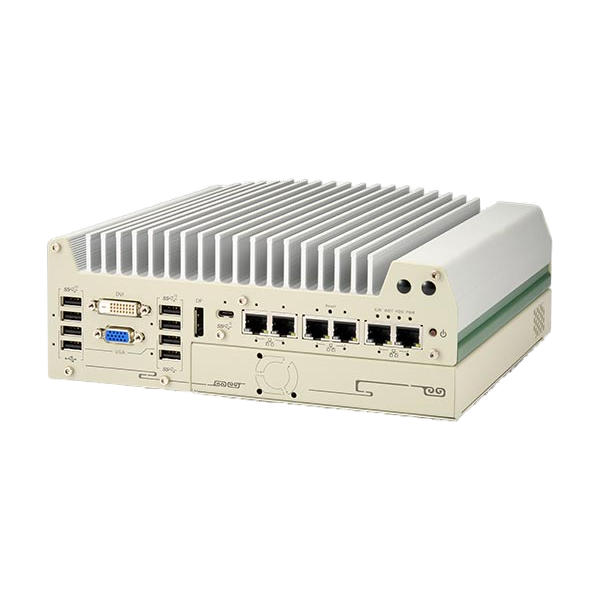

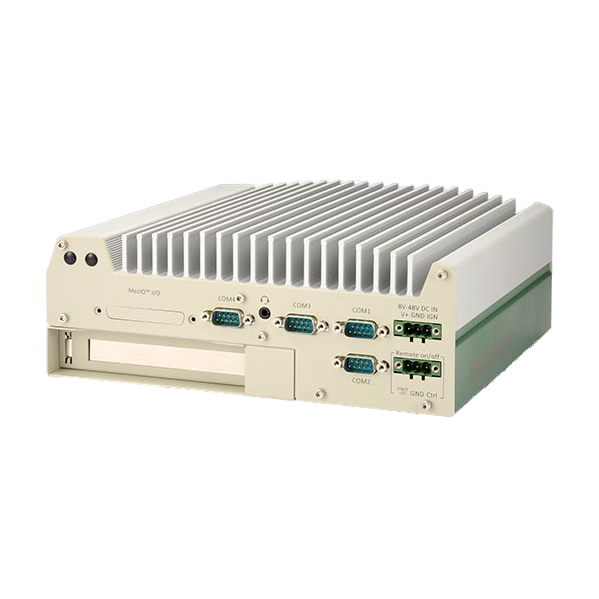

Neousys Nuvo-9006E (Intel 12 Gen. 6 GLAN, Type-C, PCIe & MezIO™)
Nuvo-9006E
Fanless industrial PC with 12th-Gen Intel® Core™, 6x GbE, USB 3.2 Type-C, patented cassette & MezIO™ interface
- Supports Intel® 12th-Gen Alder Lake Core™ 16C/ 24T 35W/ 65W CPU
- Patented Cassette for accommodating PCI/PCIe add-on cards
- Rugged, -25°C to 70°C fanless operation
- Up to 6x GigE ports with optional PoE+, supporting 9.5 KB jumbo frames
- 1x USB 3.2 Gen2x2 type-C port and 6x USB 3.2 Gen2x1 type-A ports
- Supports M.2 Gen4x4 NVMe and 2x SATA ports
- MezIO™ interface for easy function expansion
- VGA/ DVI/ DP triple independent display output, supporting 4K2K resolution
The Nuvo-9000 series is Neousys' new rugged embedded computer based on the Intel® 12th-Gen Alder Lake platform. Benefiting from cutting-edge Intel 7 photolithography, the latest Core™ desktop processor offers up to 16 cores and 24 threads, delivering a significant increase in computing performance. By combining increased DDR5 memory bandwidth with high-speed PCIe Gen4 NVMe disk read/write performance, users can expect an overall system performance improvement of up to 1.8x compared with previous 10th or 11th-Gen platforms.
The Nuvo-9000 series inherits Neousys' patented expansion Cassette design, providing excellent versatility by allowing the installation of additional PCIe or PCI add-on cards. Three expansion Cassette options are available for the Nuvo-9000 series: the Nuvo-9000E features a single x16 Gen3 PCIe slot; the Nuvo-9000DE has dual x16 PCIe slots; and the Nuvo-9000P has a single PCI slot. For users requiring more flexible storage, the Nuvo-9000LP has a 2.5" HDD tray instead of an expansion Cassette to support a hot-swappable 2.5" HDD/SSD.
I/O functionality has also been comprehensively enhanced. In addition to six Gigabit Ethernet ports with a PoE+ PSE option, the Nuvo-9000 series features a USB 3.2 Gen2x2 type-C port offering 20 Gbps bandwidth for data exchange with external devices, plus another six USB 3.2 Gen2x1 type-A ports for USB3 camera connectivity. It also features an upgraded M.2 Gen4x4 slot supporting the latest NVMe SSDs, increasing disk read/write speeds up to 7000 MB/s. For additional I/O requirements, users can employ the expansion Cassette to add a function-specific PCIe/ PCI card, the proprietary MezIO interface, and internal mini-PCIe/M.2 interfaces.
With its field-proven thermal design, significant CPU and I/O upgrades, and multiple expansion methods, the Neousys Nuvo-9000 series meets the requirements for ruggedness, performance, and versatility across a wide range of applications.
■ NEOUSYS MARKETING TEAM
| System Core | |
|---|---|
| Processor | Supports Intel® 12th-Gen Alder Lake Core™ CPU (LGA1700 socket, 35W/ 65W TDP) - Intel® Core™ i9-12900E/ i9-12900TE - Intel® Core™ i7-12700E/ i7-12700TE - Intel® Core™ i5-12500E/ i5-12500TE - Intel® Core™ i3-12100E/ i3-12100TE - Intel® Pentium® G7400E/ G7400TE - Intel® Celeron® G6900E/ G6900TE |
| Chipset | Intel® Q670E platform controller hub |
| Graphics | Integrated Intel® UHD Graphics 770 (32EU) |
| Memory | Up to 64 GB DDR5 4800 SDRAM (two SODIMM slots) |
| AMT | Supports Intel vPro/ AMT 16.0 |
| TPM | Supports dTPM 2.0 |
| I/O Interface | |
| Ethernet Port | 1x 2.5G Ethernet via I225 and 1x Gigabit Ethernet via I219 (Nuvo-9002E/ P/ DE) with screw-lock 5x 2.5G Ethernet via I225 and 1x Gigabit Ethernet via I219 (Nuvo-9006E/ P/ DE) with screw-lock |
| PoE+ | Optional IEEE 802.3at PoE+ PSE for Port 3 ~ Port 6, with a 100 W total power budget |
| USB | 1x USB 3.2 Gen2x2 (20 Gbps) port with type-C connector and screw-lock 4x USB 3.2 Gen2x1 (10 Gbps) ports with type-A connectors 2x USB 3.2 Gen 1x1 (5 Gbps) ports with type-A connectors 2x USB 2.0 ports |
| Video Port (Integrated Graphics) | 1x VGA, supporting 1920 x 1200 resolution 1x DVI-D, supporting 1920 x 1200 resolution 1x DisplayPort, supporting 4096 x 2304 resolution |
| Serial Port | 2x software-programmable RS-232/ 422/ 485 ports (COM1/ COM2) 2x RS-232 ports (COM3/ COM4) |
| Audio | 1x 3.5 mm jack for mic-in and speaker-out |
| Storage Interface | |
| SATA HDD | 2x internal SATA ports for 2.5" HDD/ SSD installation, supporting RAID 0/ 1 |
| M.2 NVMe | 1x M.2 2280 M key NVMe socket (PCIe Gen4x4) for NVMe SSD |
| Expansion Bus | |
|---|---|
| PCI/PCI Express | 1x PCIe x16 slot@Gen3, 16-lanes PCIe signals in the cassette (Nuvo-9002E/ 9006E) 2x PCIe x16 slots@Gen3, 8-lanes PCIe signals in the cassette (Nuvo-9002DE/ 9006DE) 1x PCI slot in the cassette (Nuvo-9002P/ 9006P) |
| Mini PCI Express | 1x full-size mini PCI Express socket |
| M.2 | 1x M.2 2242/3052 B key socket with SIM slot for M.2 5G/ 4G module |
| Expandable I/O | 1x MezIO™ expansion port for Neousys MezIO™ modules |
| Power Supply | |
| DC Input | 1x 3-pin pluggable terminal block for 8 to 48V DC input |
| Remote Control & LED Output | 1x 3-pin pluggable terminal block for remote control and PWR LED output |
| Mechanical | |
| Dimensions | 240 mm (W) x 225 mm (D) x 90 mm (H) (Nuvo-9000E/ P series) 240 mm (W) x 225 mm (D) x 110.5 mm (H) (Nuvo-9000DE series) |
| Weight | 4.4 kg (Nuvo-9000E/ P series) |
| Mounting | Wall-mount (standard) or DIN-rail mount (optional) |
| Environmental | |
| Operating Temperature | with 35W CPU -25°C ~ 70°C ** with 65W CPU -25°C ~ 70°C */** (configured as 35W TDP) -25°C ~ 50°C */** (configured as 65W TDP) |
| Storage Temperature | -40°C ~ 85°C |
| Humidity | 10%~90% , non-condensing |
| Vibration | Operating, MIL-STD-810G, Method 514.6, Category 4 |
| Shock | Operating, MIL-STD-810G, Method 516.6, Procedure I, Table 516.6-II |
| EMC | CE/FCC Class A, according to EN 55032 & EN 55024 |
■ Date last revised: Jan. 27, 2022
* For sub-zero and over 60°C operating temperatures, a wide-temperature HDD/ SSD/ NVMe is required.Expansion PCIe Cards:
Supported MezIO™ Modules
The Neousys MezIO™ module provides computer signals, power rails, and control signals through a high-speed connector. It transforms Neousys embedded systems into application-specific systems with application-oriented I/Os such as RS-232/422/485, isolated DIO, and ignition power control.
(Click here for details of compatible MezIO™ modules)
Optional Accessories
DINRAIL-O
DIN-rail mount assembly for Nuvo-9000 series
Dmpbr Nuvo5000_7000
Neousys’ patented damping bracket assembly for the Nuvo-9000 Series
PA-160W-OW
160W AC/DC power adapter, 20V/8A;18AWGx4C/120cm, cord-end terminals for terminal block, operating temperature: -30°C to 70°C.
