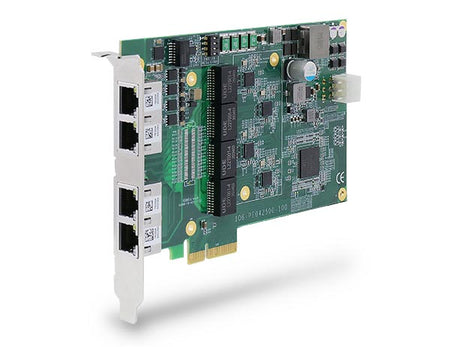

Neousys PCIe-PoE425bt Network Card (4-Port 2.5GbE 802.3bt PoE++)
PCIe-PoE425bt
4-port 2.5GBASE-T Network Adapter with IEEE 802.3bt PoE++ Capability
- Compliant with IEEE 802.3bt PoE++ PSE, provides up to 90W on a single port
- 4x IEEE 802.3bz 2.5GBASE-T Ethernet ports via Intel® I225-IT controller
- Supports 2.5G/ 1G/ 100M/ 10M link speeds
- x4, Gen2 PCI Express interface
- Supports 9.5 kB jumbo frames, teaming and IEEE 1588
- Per-port PoE+ power on/off control via software API
Introducing one of the world's first 2.5G Ethernet cards featuring IEEE 802.3bt PoE++ PSE capability! The PCIe-PoE425bt is a 4-port 2.5GBASE-T PoE++ card leveraging the cutting-edge Intel® I225 controller. It complies with the IEEE 802bz standard to provide 2.5 Gbps bandwidth and is backward-compatible with 1000BASE-T, 100BASE-TX, and 10BASE-TE Ethernet.
In addition to the increase in bandwidth, the PCIe-PoE425bt also features IEEE 802.3bt PSE capability. IEEE 802.3bt, or PoE++, is the latest addition to the Power over Ethernet specifications, allowing a single port to supply up to 90W of power to a PD over a standard CAT-5e or CAT-6 Ethernet cable. As COTS high-power PoE PTZ cameras and outdoor WIFI access points may require more than 30W, the PCIe-PoE425bt is particularly useful for directly connecting and powering these devices without an external PoE++ injector.
By incorporating 2.5GBASE-T and PoE++ technologies, the PCIe-PoE425bt is an ideal choice for machine vision and surveillance applications using advanced PoE devices, such as PTZ cameras, high-performance WIFI access points, and industrial NBASE-T cameras.
■ NEOUSYS MARKETING TEAM
| PCIe-PoE425bt | |
| Bus Interface | x4, Gen2 PCI Express |
|---|---|
| Number of 2.5G Ports | 4x 2.5G Ethernet ports via four Intel® I225-IT controllers, supporting 9.5 kB jumbo frames, teaming, and IEEE 1588 |
| Network Interface | IEEE 802.3 Ethernet interface for 2500BASE-T (802.3bz), 1000BASE-T (802.3ab), 100BASE-TX (802.3u), and 10BASE-TE (802.3) |
| PoE Capability | Compliant with IEEE 802.3bt PoE++ Type 3 and Type 4 PSE, with a maximum output of 90W on a single PoE++ port Compatible with 802.3at (PoE+) and 802.3af (PoE) PDs |
| Ethernet Connector | 4x RJ-45 connectors |
| Cable Requirement | 100 meters over CAT-5e or better Ethernet cable |
| Power Requirement | Jumper-selectable 12VDC input Maximum 5.5A@12V (66W) from PCIe gold finger connector Maximum 12A@12V (144W) from on-board 6-pin PCIe power connector |
| EMC | CE Class A, according to EN 55032/55035 FCC Class A, according to FCC Part 15, Subpart B |
| Operating temperature | 0°C ~ 55°C with airflow |
| Dimensions | 167.7mm (L) x 111.2mm (H) x 18.2mm (W) |
